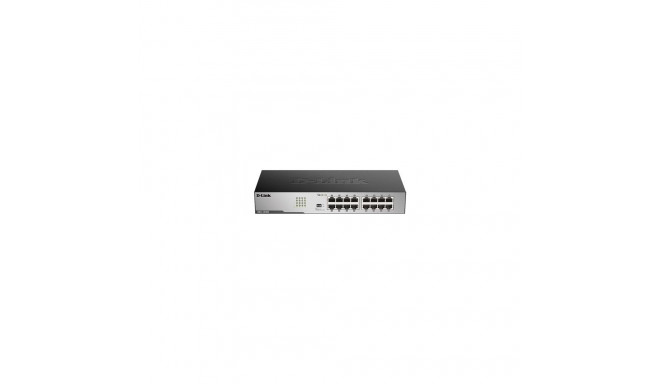

D-Link DGS-1016D/E network switch Unmanaged Black, Metallic

Main info

Product has been archived


Warranty 24 (G)
Certification FCC Class A, CE, ICES-003, VCCI, C-Tick, RoHS
Package height 108 mm
Depth 180.3 mm
Auto MDI/MDI-X Yes
Rack mounting Yes
Power consumption (typical) 11.7 W
Package width 180 mm
Width 281.9 mm
Package depth 328 mm
Height 44.5 mm
Shipping (inner) case gross weight 9.21 kg
Pallet height (sea) 193 cm
Full duplex Yes
Maximum data transfer rate 1 Gbit/s
Pallet gross weight (air) 295.7 kg
Store-and-forward Yes
Products per pallet (sea) 250 pc(s)
MAC address table 8000 entries
Master (outer) cases per pallet (air) 30 pc(s)
Shipping (inner) case length 57.2 cm
Products per shipping (inner) case 5 pc(s)
Master (outer) cases per pallet (sea) 50 pc(s)
Mean time between failures (MTBF) 828109 h
Pallet gross weight (sea) 480.3 kg
Products per pallet (air) 150 pc(s)
Shipping (inner) case net weight 8.54 kg
Pallet gross length 110 cm
Switching capacity 32 Gbit/s
Pallet gross width 120 cm
Pallet height (air) 121.2 cm
Jumbo frames support Yes
Harmonized System (HS) code 85176990
Switch type Unmanaged
Shipping (inner) case width 19.7 cm
Stackable Yes
Flow control support Yes
Basic switching RJ-45 Ethernet ports quantity 16
Shipping (inner) case height 35.9 cm
Packet buffer memory 0.340 MB
10G support No
AC input voltage 100 - 240 V
Power over Ethernet (PoE) No
AC input frequency 50 - 60 Hz
Operating temperature (T-T) 0 - 40 °C
Weight 1.35 kg
Operating relative humidity (H-H) 5 - 95%
Package weight 1.71 kg
Storage temperature (T-T) -10 - 55 °C
LED indicators Yes
Quality of Service (QoS) support Yes
Copper ethernet cabling technology 1000BASE-T
Product colour Black
Networking standards IEEE 802.3u

Dimensions and weights

Package width
100 cm
Package height
355 cm
Package length
260 cm

Product codes

EAN
790069269974
Manufacturer code
DGS-1016D/E
