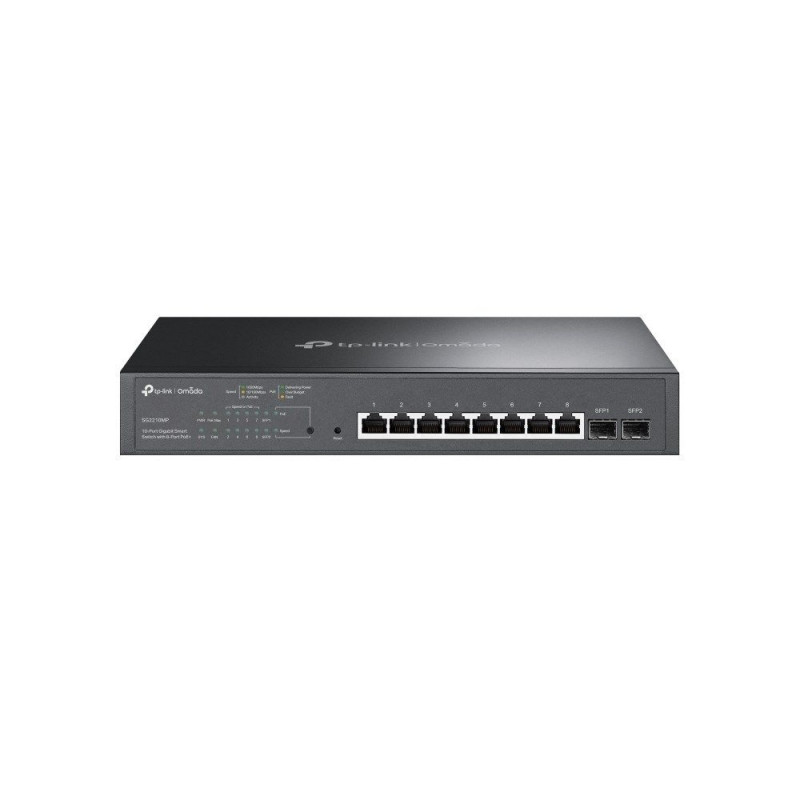

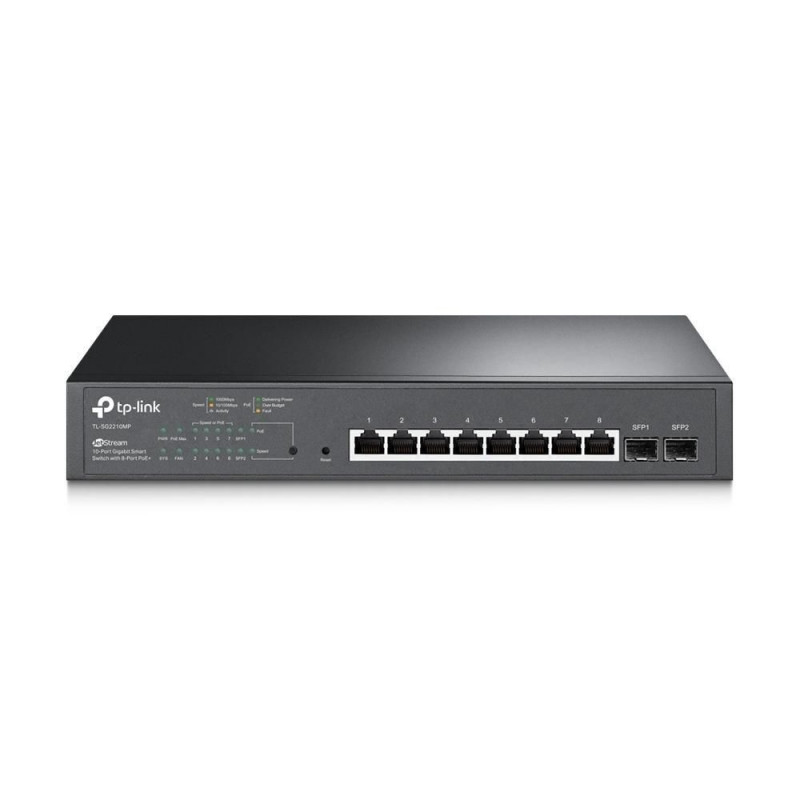

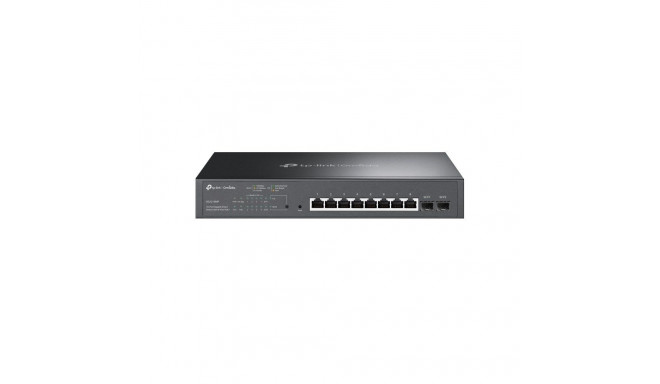

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

Main info

Product has been archived


Certification CE, FCC, RoHS
Forwarding rate 14.9 Mpps
Depth 180 mm
Switching capacity 20 Gbit/s
Power over Ethernet plus (PoE+) ports quantity 8
10G support No
IGMP snooping Yes
Width 294 mm
Form factor 1U
VLAN support Yes
Multicast support Yes
Power source AC
Gigabit Ethernet (copper) ports quantity 8
ARP inspection Yes
Switch layer L2/L2+
System event log Yes
Spanning tree protocol Yes
Jumbo frames 9000
SFP module slots quantity 2
Number of VLANs 4000
Link aggregation Yes
MIB support RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
Height 44 mm
Quality of Service (QoS) support Yes
Rack mounting Yes
Management protocols SNMPv1/v2c/v3, SNTP
MAC address table 8000 entries
Total Power over Ethernet (PoE) budget 150 W
SSH/SSL support Yes
Packet buffer memory 4.1 MB
Port mirroring Yes
Flow control support Yes
Rate limiting Yes
Number of fans 1 fan(s)
Power supply included Yes
BPDU filtering/protection Yes
Jumbo frames support Yes
Cloud-managed Yes
Storage relative humidity (H-H) 5 - 90%
Broadcast storm control Yes
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Switch type Managed
IP-MAC-Port binding Yes
Power consumption (max) 173.9 W
Access Control List (ACL) Yes
Number of queues 8
Heat dissipation 594.46 BTU/h
Basic switching RJ-45 Ethernet ports quantity 8
Configuring Location Settings (CLI) Yes
AC input frequency 50/60 Hz
Storage temperature (T-T) -40 - 70 °C
AC input voltage 100 - 240 V
Operating relative humidity (H-H) 10 - 90%
Product colour Black
Power over Ethernet (PoE) Yes
Operating temperature (T-T) 0 - 50 °C
Web-based management Yes
Warranty 24 (G)
Queue scheduling algorithms Weighted Round Robin (WRR)
Virtual LAN features Tagged VLAN
Fiber ethernet cabling technology 1000BASE-X
DHCP features DHCPv6 snooping
Copper ethernet cabling technology 10BASE-T
Networking standards IEEE 802.1p
Security algorithms SSH-2

Dimensions and weights

Package width
87 cm
Package height
407 cm
Package length
255 cm

Product codes

EAN
6935364030674
Manufacturer code
TL-SG2210MP
