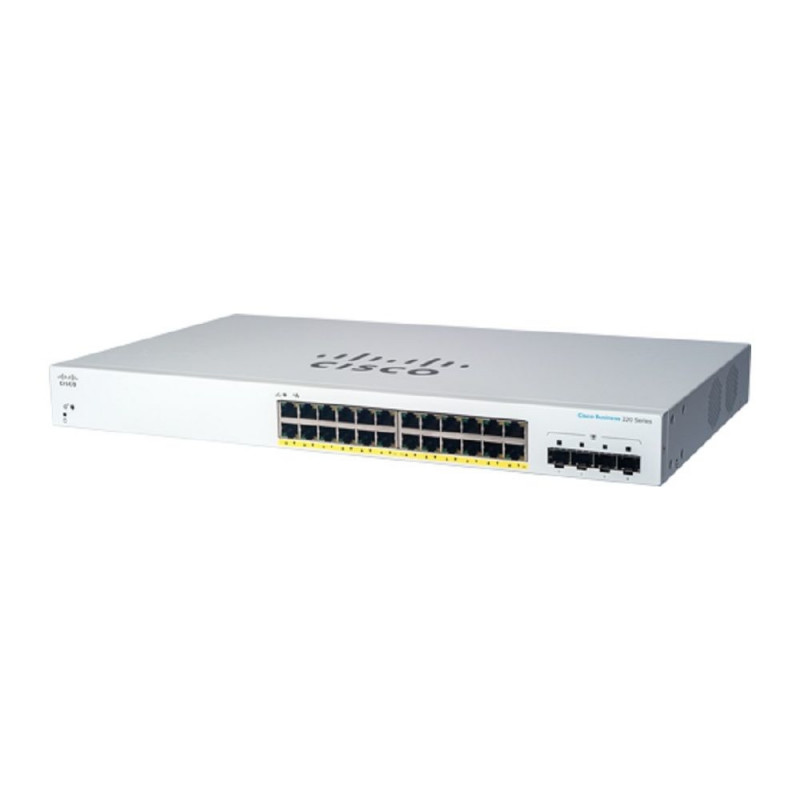

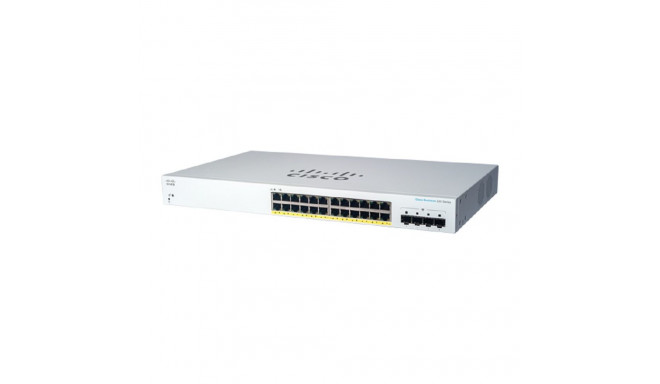

CBS220 SMART 24-PORT GE POE/4X1G SFP

Main info

Product has been archived


Operating relative humidity (H-H) 10 - 90%
Built-in processor Yes
Depth 203 mm
Power over Ethernet (PoE) Yes
BPDU filtering/protection Yes
Spanning tree protocol Yes
MAC address table 8192 entries
Number of fans 1 fan(s)
Jumbo frames support Yes
Width 440 mm
DHCP features DHCP client
Auto MDI/MDI-X Yes
Storage temperature (T-T) -20 - 70 °C
Number of VLANs 256
SFP module slots quantity 4
Harmonized System (HS) code 85176990
Firmware upgradeable Yes
Product colour White
Multicast support Yes
Weight 2.75 kg
Flow control support Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
GARP VLAN Registration Protocol (GVRP) Yes
Authentication type IEEE 802.1x, RADIUS
Form factor 1U
AC input frequency 50 - 60 Hz
Internal memory 256 MB
Rack mounting Yes
Packet buffer memory 4.1 MB
Port mirroring Yes
SSH/SSL support Yes
Quality of Service (QoS) support Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Jumbo frames 9216
Broadcast storm control Yes
10G support Yes
VLAN support Yes
Storage relative humidity (H-H) 10 - 90%
IGMP snooping Yes
Operating temperature (T-T) 0 - 50 °C
Basic switching RJ-45 Ethernet ports quantity 24
System event log Yes
Flash memory 64 MB
Forwarding rate 41.66 Mpps
Head-of-line (HOL) blocking Yes
Reset button Yes
Switch layer L2
Web-based management Yes
MAC address filtering Yes
IP routing Yes
Link aggregation Yes
Height 44 mm
Heat dissipation 833.59 BTU/h
Switch type Managed
AC input voltage 100 - 240 V
Multicast MAC address table 8192 entries
Number of queues 8
LED indicators Yes
Switching capacity 56 Gbit/s
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Loop protection Yes
Access Control List (ACL) Yes
Management protocols SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
Warranty 12 (G)
Security algorithms SSH
Networking standards IEEE 802.3u

Dimensions and weights

Package width
422 cm
Package height
579 cm
Package length
113 cm

Product codes

EAN
889728344685
Manufacturer code
CBS220-24P-4G-EU
