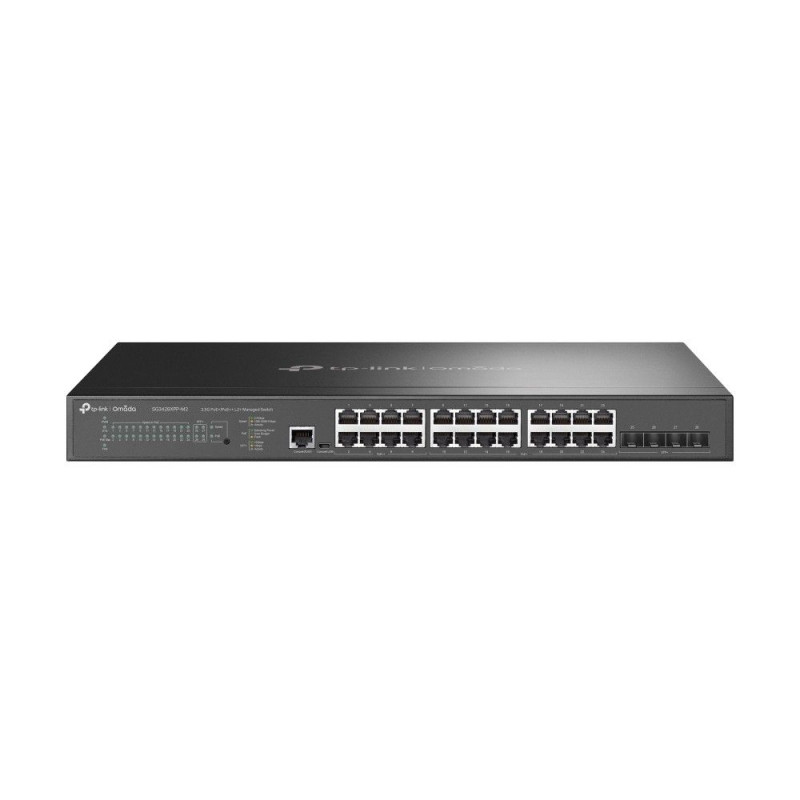

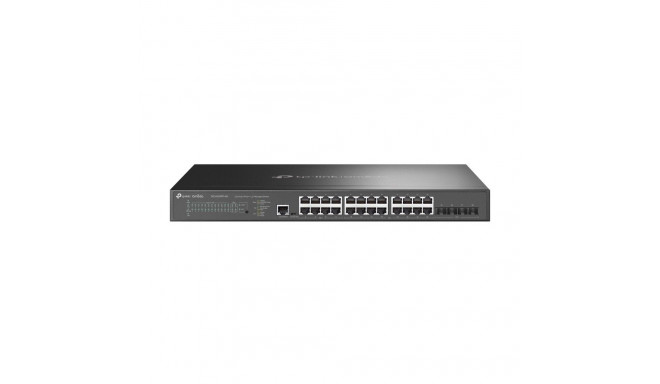

"24+4P TP-LINK Omada SG3428XPP-M2 POE++ M RM"

969 €

Monthly payment starting from 33,03 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

"TP-Link Omada SG3428XPP-M2. Switch-Typ: Managed, Switch-Ebene: L2+. Basic Switching RJ-45 Ethernet Ports-Typ: 2.5G Ethernet (100/1000/2500), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24, Konsolen-Port: RJ-45/Micro-USB. Vollduplex. MAC-Adressentabelle: 32000 Eintragungen, Routing-/Switching-Kapazität: 200 Gbit/s. Netzstandard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack-Einbau, Formfaktor: 1U"
Switch-Typ Managed
Switch-Ebene L2+
Eigenschaft Nachhaltigkeitskonformität
MIB Unterstützung RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Anzahl der basisschaltenden RJ-45 Ethernet Ports 24
Basic Switching RJ-45 Ethernet Ports-Typ 2.5G Ethernet (100/1000/2500)
Anzahl 2.5G Ethernet (Kupfer)-Ports 24
Menge Modul-Steckplätze SFP+ 4
Konsolen-Port RJ-45/Micro-USB
Ethernet LAN Datentransferraten 10,100,1000,2500,10000 Mbit/s
IPv4-Routen 48
IPv6-Routen 48
Virtuelle LAN-Funktionen MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Routing-/Switching-Kapazität 200 Gbit/s
Transferrate 148,8 Mpps
MAC-Adressentabelle 32000 Eintragungen
Anzahl Queues 8
Anzahl der statischen Routen 48
Anzahl IP-Schnittstellen 32
Jumbo-Frames 9000
Datenpaket-Pufferspeicher 16 MB
DHCP-Funktionen DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Unterstützte Sicherheitsalgorithmen HTTPS, SSH, SSH-2, SSL/TLS
Authentifizierung Gast VLAN, MAC-basierte Authentifizierung, Port-basierte Authentifizierung
Autentifizierungstyp AAA, IEEE 802.1x, RADIUS, TACACS+
Warteschleifenplanungs-Algorithmen SP, WRR+SP, Weighted Round Robin (WRR)
Multicast Listener Discovery (MLD) Snooping MLD v1/v2
Management-Protokolle SNMP v1/v2c/v3
IPv4 & IPv6-Funktionen IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert
Formfaktor 1U
Produktfarbe Schwarz
Anzahl Lüfter 3 Lüfter
Speichertyp DRAM
Speicherkapazität 256 MB
Flash-Speicher 32 MB
Energiequelle AC/PoE
AC Eingangsspannung 100 - 240 V
AC Eingangsfrequenz 50/60 Hz
Stromverbrauch (max.) 629,1 W
Anzahl Power over Ethernet plus (PoE+) Anschlüsse 16
Anzahl der Power over Ethernet 4PPoE- (PoE++) Anschlüsse 8
Gesamtleistung Power over Ethernet (PoE) 500 W
Betriebstemperatur 0 - 40 °C
Temperaturbereich bei Lagerung -40 - 70 °C
Relative Luftfeuchtigkeit in Betrieb 10 - 90%
Luftfeuchtigkeit bei Lagerung 5 - 90%
Wärmeableitung 2153,45 BTU/h
Mitgelieferte Kabel AC
Konformitätsbescheinigungen CE, Eidgenössische Kommunikationskommission (FCC), RoHS

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 159,99 €
  • Additional warranty (2 years) - 99,99 €
  • Insurance (1 year) - 199,99 €
  • Insurance (2 years) - 269,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
6.2 kg
Package width
44 cm
Package height
4.4 cm
Package length
33 cm

Product codes

EAN
4897098689738
