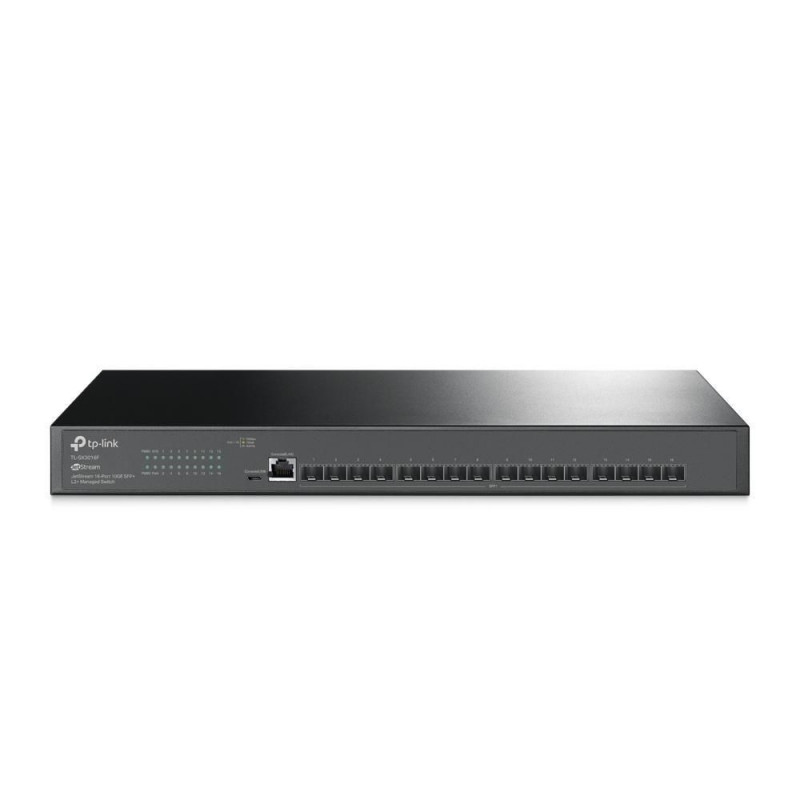

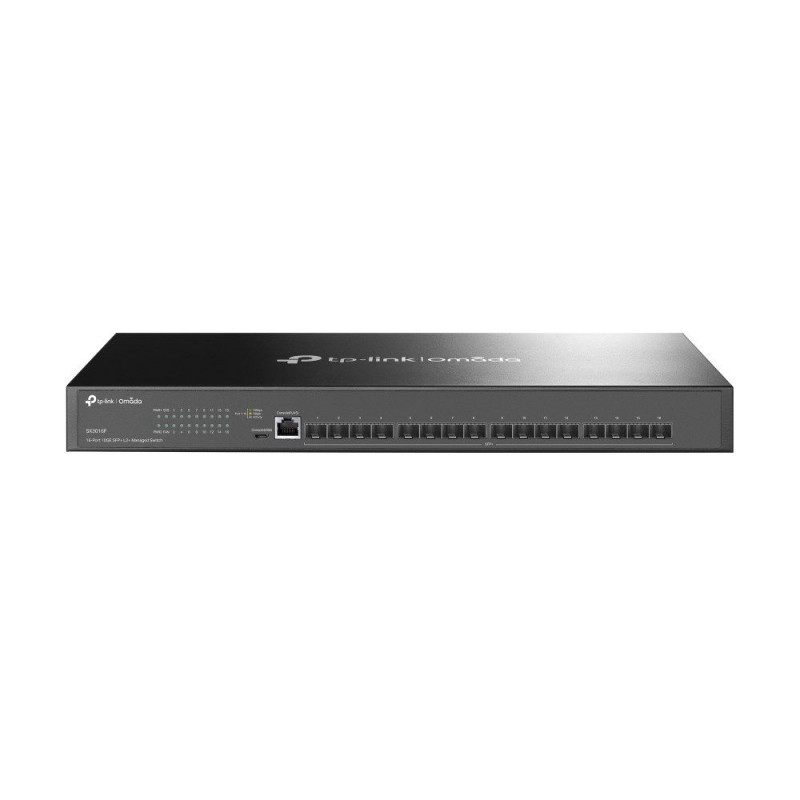

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch

549 €

Monthly payment starting from 18,71 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Warranty 24 (G)
Certification CE, FCC, RoHS
Operating relative humidity (H-H) 10 - 90%
System event log Yes
Power over Ethernet (PoE) No
Width 440 mm
MAC address table 32000 entries
Access Control List (ACL) Yes
Package type Box
Authentication type AAA, TACACS+
Flow control support Yes
Switch layer L2+/L3
Rack mounting Yes
Broadcast storm control Yes
Multicast Listener Discovery (MLD) snooping Y
Depth 220 mm
Spanning tree protocol Yes
Jumbo frames 9000
Link aggregation Yes
ARP inspection Yes
Manual Yes
Static port security Yes
Static route Yes
Number of queues 8
MIB support RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Rate limiting Yes
Height 44 mm
Heat dissipation 111.71 BTU/h
Switch type Managed
Head-of-line (HOL) blocking Yes
Forwarding rate 238.08 Mpps
Switching capacity 320 Gbit/s
Console port RJ-45/Micro-USB
Cloud-managed Yes
Traffic classification Yes
SSH/SSL support Yes
10G support Yes
Authentication Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Power supply included Yes
Storage relative humidity (H-H) 5 - 90%
Configuring Location Settings (CLI) Yes
Port mirroring Yes
Management protocols SNMPv1/v2c/v3, SNTP
Packet buffer memory 24 MB
Power source AC
Power consumption (max) 32.74 W
BPDU filtering/protection Yes
IP routing Yes
Multicast support Yes
VLAN support Yes
SFP+ module slots quantity 16
Loop protection Yes
Number of VLANs 4000
Rack mount kit Yes
Jumbo frames support Yes
Cables included AC
Power connector DC-in jack
IGMP snooping Yes
IP-MAC-Port binding Yes
Storage temperature (T-T) -40 - 70 °C
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports type No
Operating temperature (T-T) 0 - 45 °C
Web-based management Yes
MAC address filtering Yes
Quick start guide Yes
Product colour Black
AC input voltage 100 - 240 V
LED indicators Yes
AC input frequency 50/60 Hz
Security algorithms SSH
Virtual LAN features Voice VLAN
Queue scheduling algorithms SP
DHCP features DHCPv6 snooping
IPv4 & IPv6 features IPv6 tracert
Networking standards IEEE 802.1D

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 99,99 €
  • Additional warranty (2 years) - 69,99 €
  • Insurance (1 year) - 89,99 €
  • Insurance (2 years) - 159,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Package width
102 cm
Package height
333 cm
Package length
535 cm

Product codes

EAN
6935364006433
Manufacturer code
TL-SX3016F
