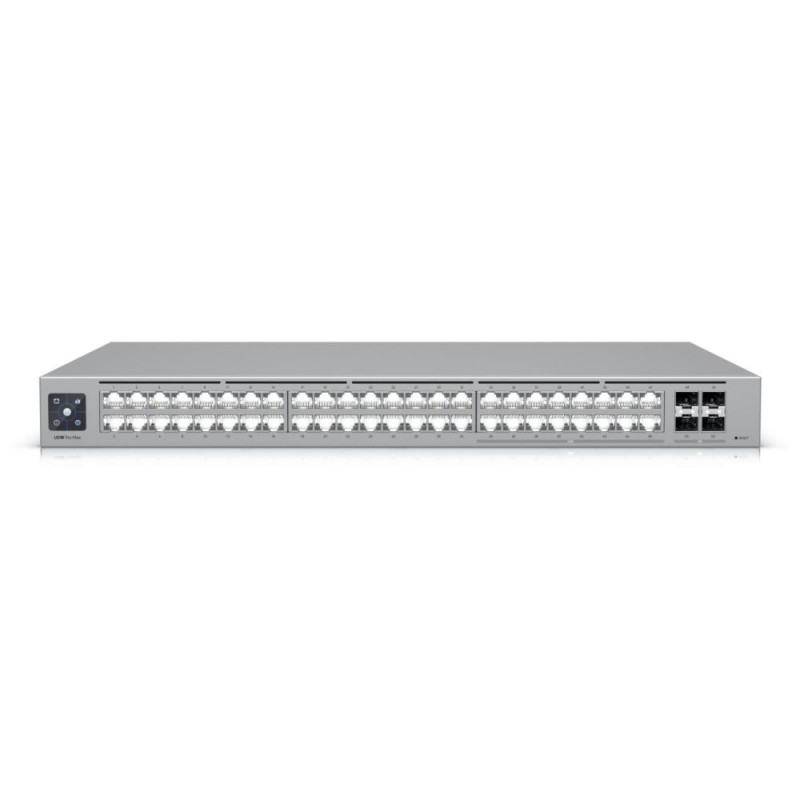

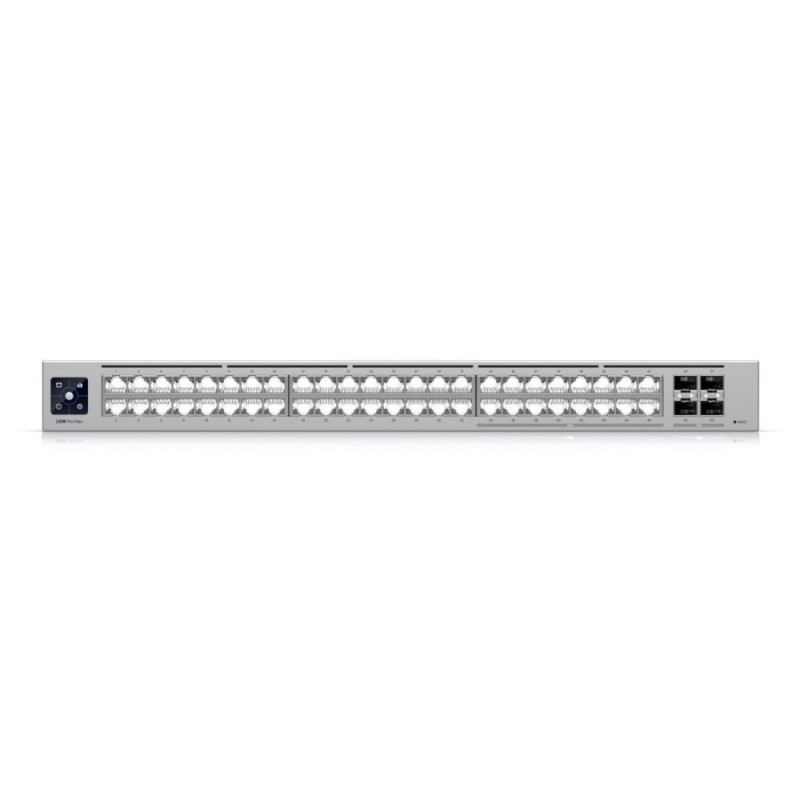

Switch|UBIQUITI|Pro Max 48|Type L3|USW-PRO-MAX-48

799 €

Monthly payment starting from 27,23 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE. (16) 2.5 GbE RJ45 ports (32) GbE RJ45 ports (4) 10G SFP+ ports DC power backup ready Managed with UniFi Network 8.0.24 and later Infot ka tootja kodulehelt.
Add to cart

Delivery in 2-4 working days

Free delivery

14 14 days return policy when purchasing online

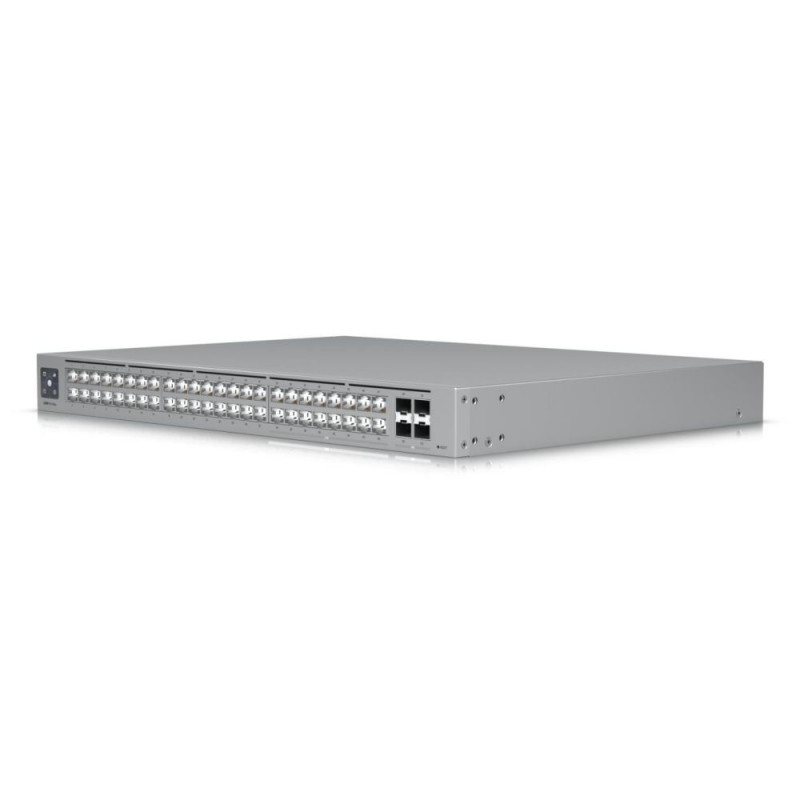

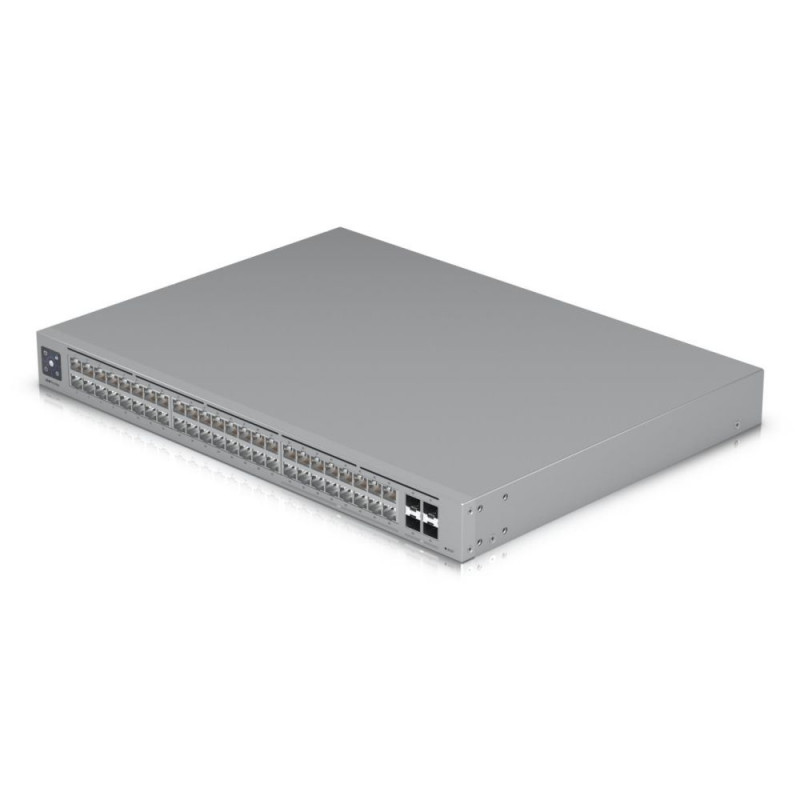

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.

  • (16) 2.5 GbE RJ45 ports
  • (32) GbE RJ45 ports
  • (4) 10G SFP+ ports
  • DC power backup ready
  • Managed with UniFi Network 8.0.24 and later


Infot ka tootja kodulehelt.
Summary Ubiquiti Pro Max 48. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC.
Management features Switch layer - L3
Ports & interfaces 2.5G Ethernet (copper) ports quantity - 16, Basic switching RJ-45 Ethernet ports quantity - 48, Basic switching RJ-45 Ethernet ports type - 2.5G Ethernet (100/1000/2500), Gigabit Ethernet (copper) ports quantity - 32, Power connector - AC/DC, SFP+ module
Network 10G support - Yes, Broadcast storm control - Yes, Flow control support - Yes, Networking standards - IEEE 802.1x, Port mirroring - Yes, Rate limiting - Yes, Virtual LAN features - Voice VLAN, VLAN support - Yes
Data transmission Forwarding rate - 166.656 Mpps, Jumbo frames support - Yes, Static route - Yes, Switching capacity - 224 Gbit/s, Throughput - 112 Gbit/s
Security DHCP features - DHCP relay/DHCP snooping, IGMP snooping - Yes, Loop protection - Yes
Design Display type - LCM, Form factor - 1U, Housing material - SGCC, LED indicators - Link/Network/Speed/Status, Product colour - Grey, Rack mounting - Yes, Reset button - Yes, Stackable - Yes
Power AC input frequency - 50/60 Hz, AC input voltage - 100 - 240 V, Power consumption (max) - 100 W, Power source - AC/DC, Power supply included - Yes, Redundant power supply (RPS) support - Yes
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Operational conditions Operating relative humidity (H-H) - 10 - 90 %, Operating temperature (T-T) - -5 - 40 °C
Weight & dimensions Weight - 4800 g

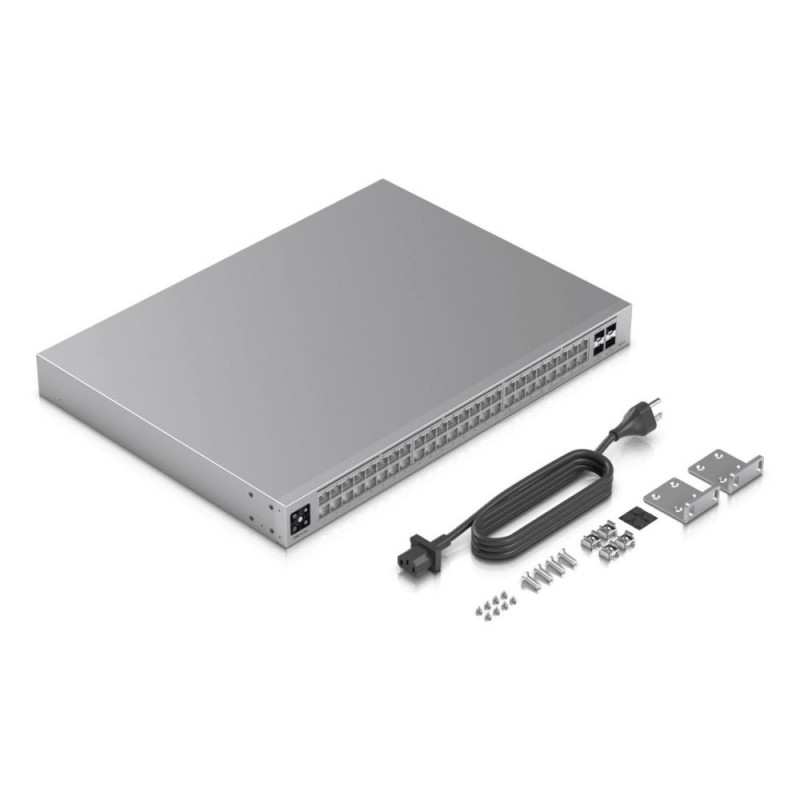

Packaging content Cables included - Power
Packaging data Mounting brackets included - Yes
Certificates Compliance certificates - CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Model USW-PRO-MAX-48
Model name Pro Max 48
Units per Shipping Box 2
Unit Calculated Volume 0.03169 cubm
Unit Calculated Weight 6.58 kg

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 129,99 €
  • Additional warranty (2 years) - 79,99 €
  • Insurance (1 year) - 119,99 €
  • Insurance (2 years) - 189,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
6.58 kg
Package width
26 cm
Package height
46 cm
Package length
53 cm

Product codes

EAN
810084692745
Manufacturer code
USW-PRO-MAX-48
