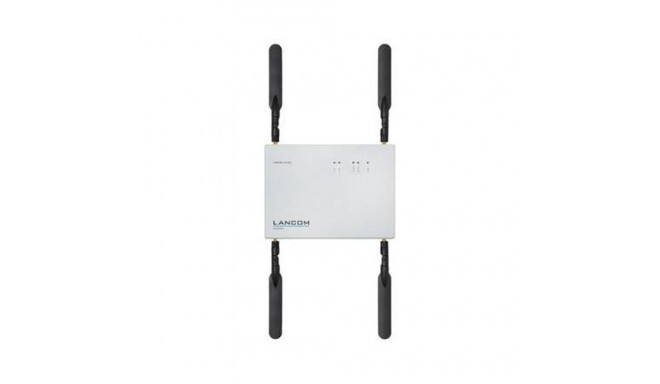

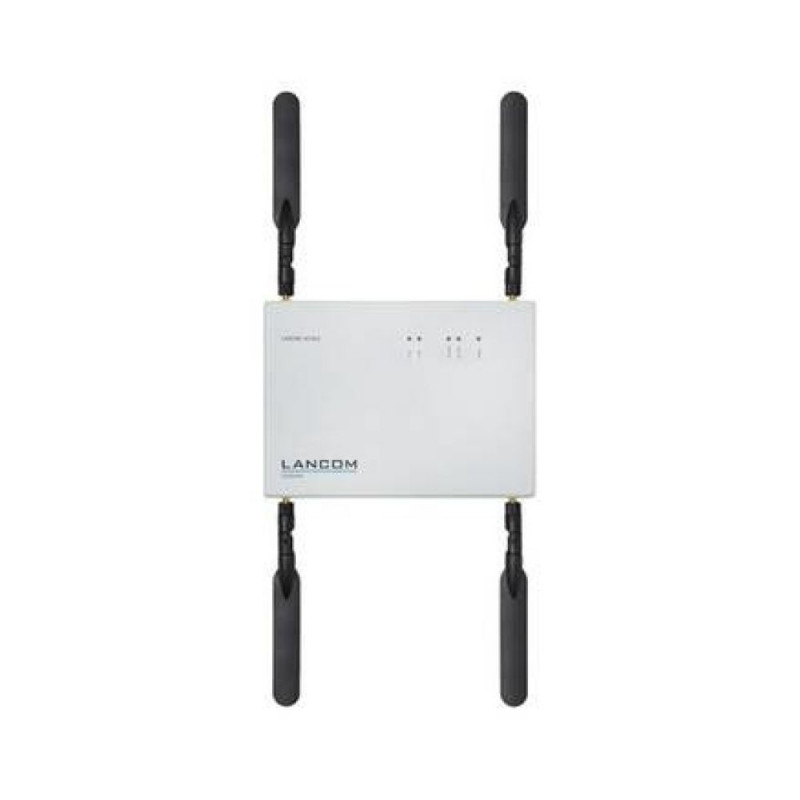

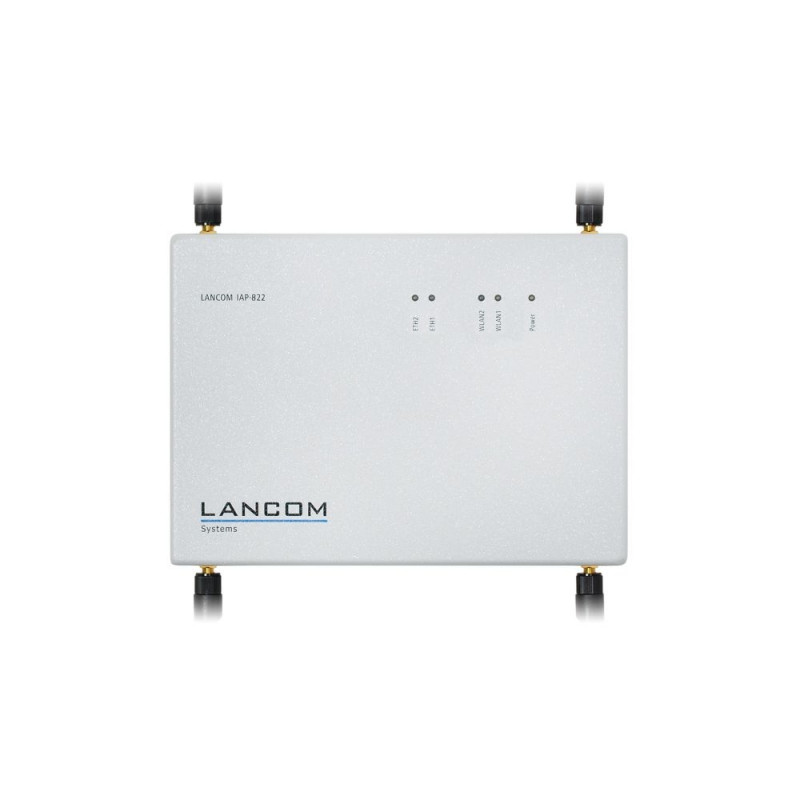

LANCOM IAP-822 1000 Mbit/s Gray Power over Ethernet (PoE)

Main info

Product has been archived


Supported protocols IPv4: DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RADSEC, RTP, SNMP, SNMPv3, TFTP, TACACS+ IPv6: NDP, SLAAC, DHCPv6, ICMPv6, DHCPv6, DNS, HTTP, HTTPS, PPPoE, RADIUS, SMTP, NTP, BGP
Receiver sensitivity 5 GHz: -80 dBm @ 54 MBit/s, IEEE 802.11an/ac: -75 dBm @ (MCS7, 20/40MHz), -71 dBm @ (MCS9, 20/40 MHz), -68 dBm (MCS9, 80 MHz) 2.4 GHz: -80 dBm @ 54 MBit/s, IEEE 802.11n: -77 dBm @ (MCS7, 20 MHz), -75 dBm @ (MCS7, 40 MHz)
Certification EN 60950-1, EN 301 489-1, EN 301 489-17 EN 301 893 EN 300 328
DHCP server Yes
Maximum indoor range 30 m
Mounting kit Yes
VLAN support Yes
Remote Authentication Dial-In User Service (RADIUS) Yes
Reset button Yes
Ethernet LAN (RJ-45) ports 2
Operating temperature (T-T) -20 - 50 °C
Automatic channel selection Yes
Housing material Metal
Number of connectors 4
International Protection (IP) code IP50
Cables included LAN (RJ-45)
Height 33 mm
Power consumption (max) 12.95 W
Wi-Fi Multimedia (WMM)/(WME) Yes
Throughput data rate 250 Mbit/s
Auto Wireless Distribution System (WDS) Yes
IGMP snooping Yes
Quality of Service (QoS) support Yes
Power over Ethernet (PoE) Yes
Placement Wall
Management protocols SSL, SSH, HTTPS, SNMP, Telnet, TFTP, SNMP, HTTP
Internal No
Maximum outdoor range 150 m
Quick start guide Yes
Syslog Yes
AC adapter included Yes
Antenna connector type SMA
Security features Terminal Access Controller Access-Control System Plus (TACACS+), Password authentication protocol (PAP)
Width 210 mm
Harmonized System (HS) code 85176990
Operating modes Access Point (AP),Bridge,Client
Depth 152 mm
LED indicators Yes
Maximum data transfer rate (5 GHz) 867 Mbit/s
5 GHz Yes
Maximum data transfer rate 1000 Mbit/s
Firmware upgradeable Yes
Antenna type External
Product colour Grey
Frequency band 2.4 - 2.4835, 5.15 - 5.7 GHz
2.4 GHz Yes
DC-in jack Yes
DHCP client Yes
Web-based management Yes
Warranty 24 (G)
Wireless Intrusion Detection System (WIDS) Yes
MIMO Yes
Dynamic Frequency Selection (DFS) Yes
Maximal-Ratio Combining (MRC) Yes
Maximum Likelihood Detection (MLD) Yes
Rate limiting Yes
Quantity per pack 1 pc(s)
Access Control List (ACL) Yes
Fast roaming Yes
6 GHz No
Package depth 288 mm
Package height 94 mm
Package width 385 mm
Customs product code (TARIC) 85176200
Package weight 2.35 kg
Country of origin Germany
Routing protocols RIP-1
Networking standards IEEE 802.3at
Security algorithms MSCHAPv2
Ethernet LAN data rates 100 Mbit/s

Dimensions and weights

Package width
290 cm
Package height
90 cm
Package length
380 cm

Product codes

EAN
4044144617577
Manufacturer code
61757
