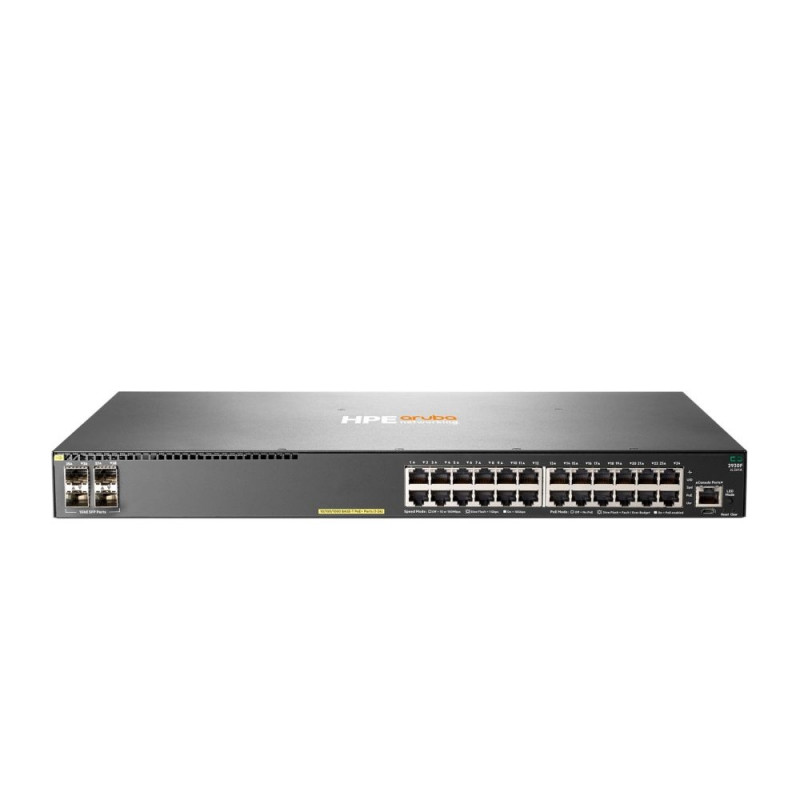

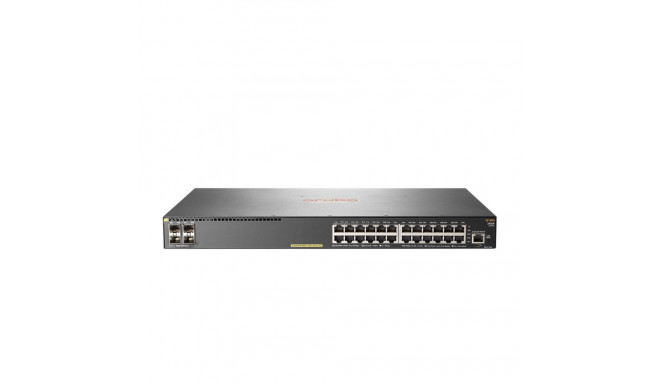

HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch

Main info

Product has been archived


Routing protocols IP
Memory type DDR3-SDRAM
Built-in processor Yes
Height 304.2 mm
Total Power over Ethernet (PoE) budget 370 W
Auto-sensing Yes
Link aggregation Yes
MAC address table 32768 entries
IGMP snooping Yes
DHCP features DHCP server
IPv6 FIB entries 5000
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Rack mounting Yes
IPv4 FIB entries 10000
Internal memory 1024 MB
Routing entries 10000
Multicast support Yes
Switching capacity 56 Gbit/s
Power consumption (max) 445 W
Switch type Managed
Depth 442.5 mm
Access Control List (ACL) Yes
VLAN support Yes
Basic switching RJ-45 Ethernet ports quantity 24
Full duplex Yes
Spanning tree protocol Yes
Width 43.9 mm
Power supply included Yes
Stackable Yes
Packet buffer memory 12.38 MB
Flow control support Yes
Rate limiting Yes
SSH/SSL support Yes
10G support No
Switch layer L3
IP routing Yes
Latency (1 Gbps) 3.8 µs
Heat dissipation 258 BTU/h
Auto MDI/MDI-X Yes
SFP module slots quantity 4
Throughput 41.7 Mpps
Operating temperature (T-T) 0 - 45 °C
Operating relative humidity (H-H) 15 - 95%
Storage relative humidity (H-H) 15 - 95%
Product colour Grey
Web-based management Yes
Power over Ethernet (PoE) Yes
Weight 3.9 kg
Processor model ARM Cortex-A9
AC input frequency 50 - 60 Hz
Form factor 1U
Storage temperature (T-T) -40 - 70 °C
Quality of Service (QoS) support Yes
Processor frequency 1016 MHz
AC input voltage 200 - 240 V
Warranty 24 (G)
Copper ethernet cabling technology 100BASE-TX
Warnings Do not open the case or try to repair it yourself.
Networking standards IEEE 802.3u

Dimensions and weights

Package width
95 cm
Package height
370 cm
Package length
520 cm

Product codes

EAN
190017005515
Manufacturer code
JL261A
