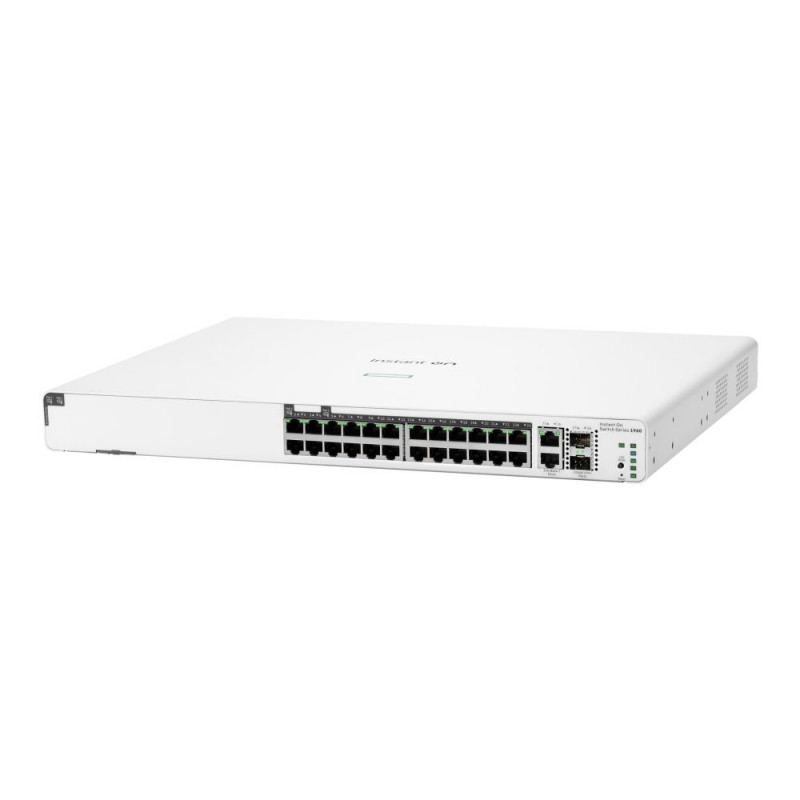

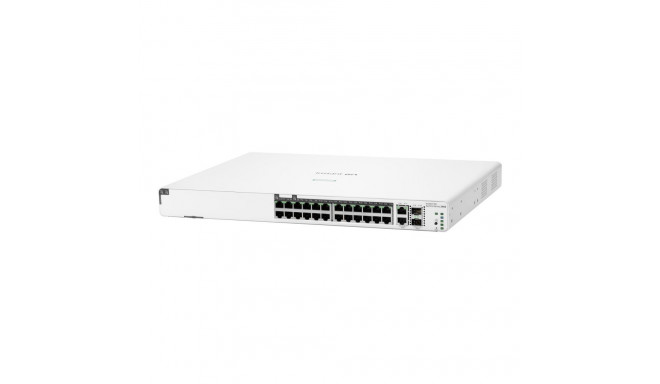

HPE Aruba Networking Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP

799 €

Monthly payment starting from 27,23 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Warranty 24 (G)
Processor model ARM Cortex-A9
Power source AC
Power consumption (max) 500 W
Processor frequency 800 MHz
Product colour White
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 15 - 95%
Form factor 1U
Web-based management Yes
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power over Ethernet (PoE) Yes
Storage temperature (T-T) -40 - 70 °C
Quality of Service (QoS) support Yes
Storage relative humidity (H-H) 15 - 90%
Spanning tree protocol Yes
Height 44 mm
Full duplex Yes
Switch type Managed
Access Control List (ACL) Yes
Link aggregation Yes
Jumbo frames support Yes
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)
Built-in processor Yes
Switching capacity 128 Gbit/s
SFP+ module slots quantity 2
MAC address table 16000 entries
Throughput 95 Mpps
Port mirroring Yes
Latency (1 Gbps) 2.2 µs
Auto MDI/MDI-X Yes
Auto-sensing Yes
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cloud-managed Yes
Authentication type RADIUS
Power supply included Yes
Physical stacking (units) 4
Latency (10 Gbps) 1.1 µs
Rate limiting Yes
IPv6 FIB entries 32
Total Power over Ethernet (PoE) budget 370 W
10G support Yes
Authentication Port-based authentication
DHCP features DHCP snooping
IGMP snooping Yes
IPv4 FIB entries 32
VLAN support Yes
Switch layer L2+
Rack mounting Yes
SSH/SSL support Yes
Multicast support Yes
Latency (10-100 Mbps) 4.4 µs
Stackable Yes
Flow control support Yes
Basic switching RJ-45 Ethernet ports quantity 24
Harmonized System (HS) code 85176990
Depth 442.5 mm
Memory type DDR3-SDRAM
Internal memory 1000 MB
Weight 4.7 kg
Width 350.5 mm
Operating altitude 0 - 3000 m
Flash memory 512 MB
Packet buffer memory 1.5 MB
ARP inspection Yes
System event log Yes
Jumbo frames 9216
10G Ethernet (copper) ports quantity 2
Networking standards IEEE 802.1w
Warnings Do not open the case or try to repair it yourself.

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 129,99 €
  • Additional warranty (2 years) - 79,99 €
  • Insurance (1 year) - 119,99 €
  • Insurance (2 years) - 189,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Package width
90 cm
Package height
550 cm
Package length
360 cm

Product codes

EAN
190017521558
Manufacturer code
JL807A
