Home page » Computers & IT»Networking»Switches»HPE Aruba Networking CX 6000 12G Class4 PoE 2G/2SFP 139W Switch

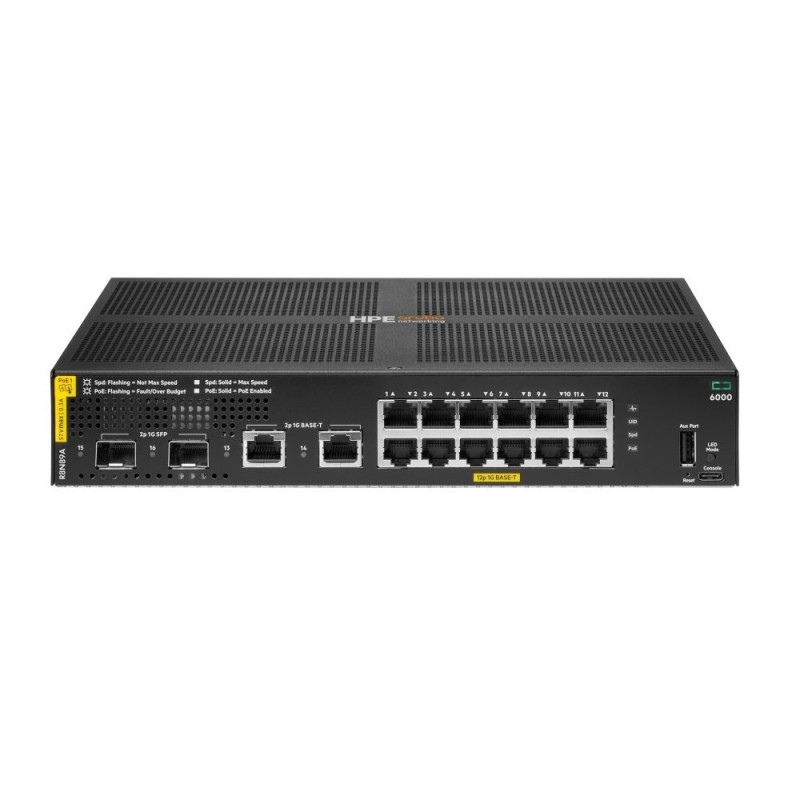

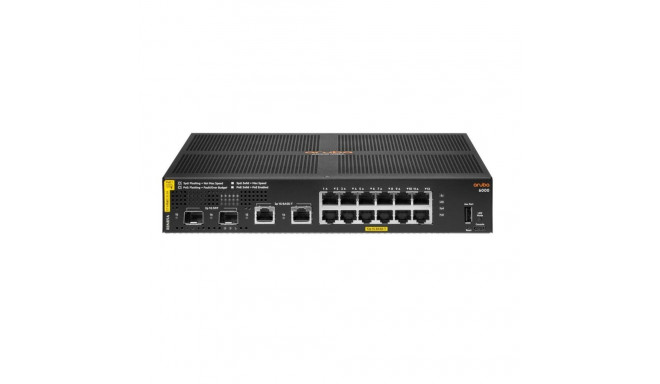

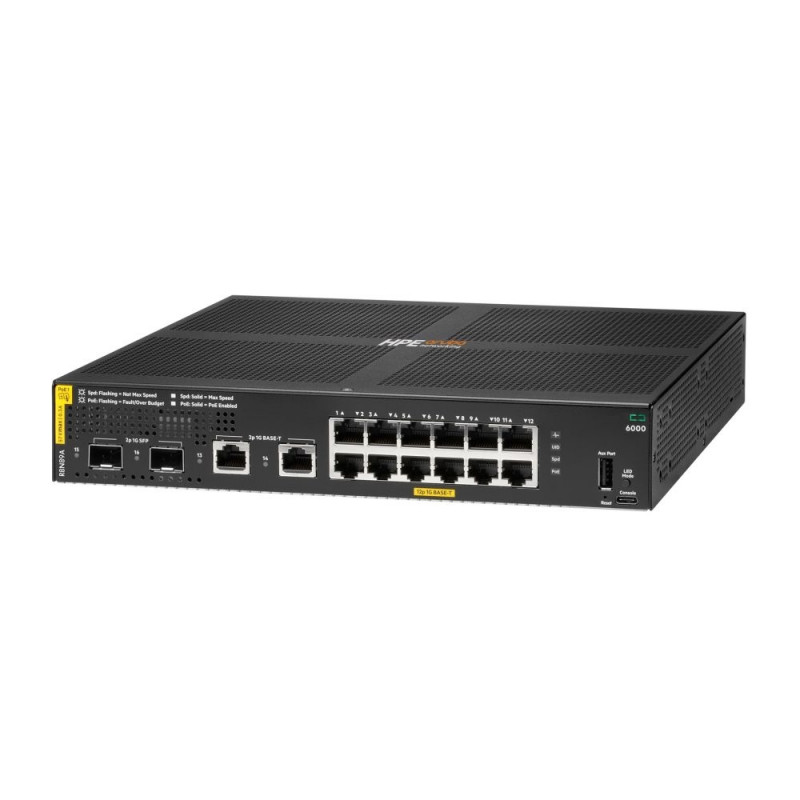

HPE Aruba Networking CX 6000 12G Class4 PoE 2G/2SFP 139W Switch

Main info

Product has been archived


Warranty 24 (G)
Processor model ARM Cortex-A9
Power source AC
Auto MDI/MDI-X Yes
Storage temperature (T-T) -40 - 70 °C
AC input frequency 50 - 60 Hz
Link aggregation Yes
Flash memory 16384 MB
Throughput 23.8 Mpps
Memory type DDR3-SDRAM
Form factor 1U
Operating relative humidity (H-H) 15 - 95%
SFP module slots quantity 2
Spanning tree protocol Yes
Basic switching RJ-45 Ethernet ports quantity 12
Cloud-managed Yes
MAC address table 8192 entries
Console port USB
Total Power over Ethernet (PoE) budget 139 W
IPv4 FIB entries 256
Power over Ethernet (PoE) Yes
Operating temperature (T-T) 0 - 45 °C
IGMP snooping Yes
DHCP features DHCP client
Access Control List (ACL) Yes
Authentication MAC-based authentication
Quality of Service (QoS) support Yes
10G support No
Processor frequency 1016 MHz
Weight 2.8 kg
Power supply included Yes
Switch layer L3
VLAN support Yes
Switch type Managed
Harmonized System (HS) code 85176990
Flow control support Yes
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)
Built-in processor Yes
Switching capacity 32 Gbit/s
Rack mounting Yes
Latency (1 Gbps) 2.3 µs
Multicast support Yes
Packet buffer memory 12.38 MB
Port mirroring Yes
IPv6 FIB entries 128
Storage relative humidity (H-H) 15 - 90%
Stackable No
Web-based management Yes
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Internal memory 8000 MB
AC input voltage 200 - 240 V
Static route Yes
Depth 254 mm
Height 255 mm
Width 44 mm
Networking standards IEEE 802.1p
Warnings Ensure the unit is adequately ventilated during operation.

Dimensions and weights

Package width
230 cm
Package height
85 cm
Package length
465 cm

Product codes

EAN
190017541853
Manufacturer code
R8N89A
