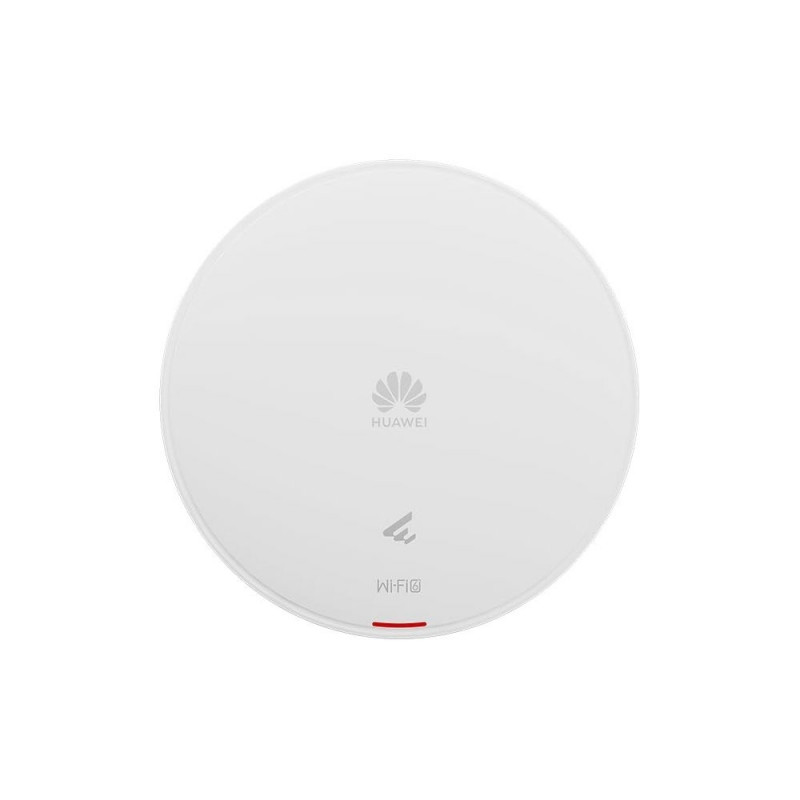

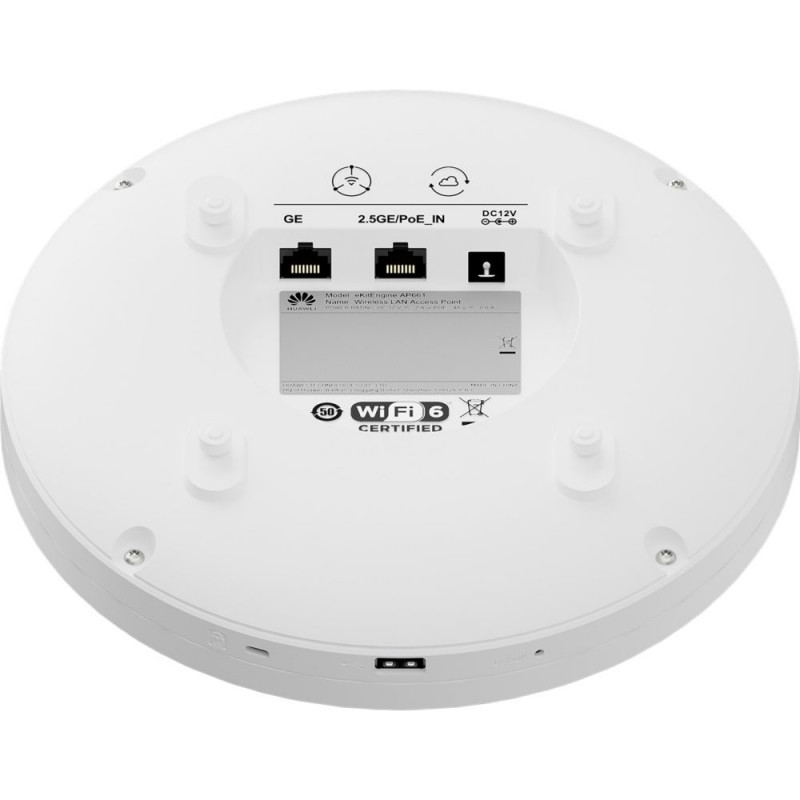

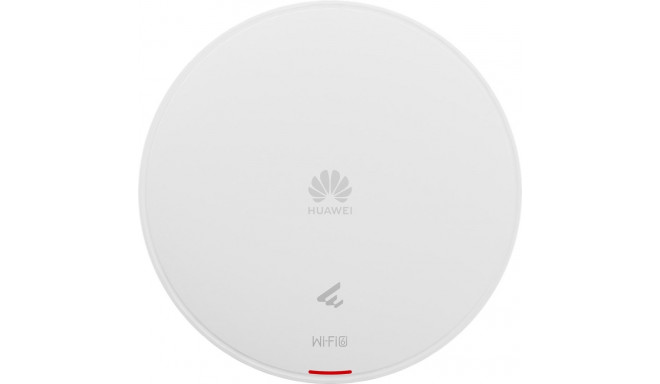

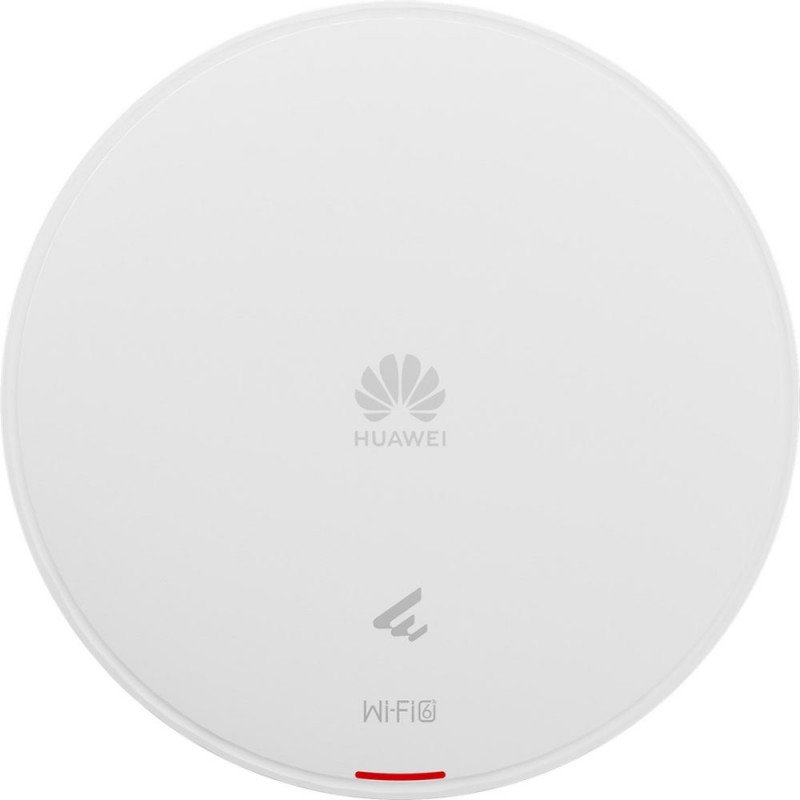

HUAWEI eKit AP600 Series AP661 Wireless Access Points

Main info

Product has been archived


Ethernet LAN (RJ-45) ports 2
5 GHz Yes
Maximum data transfer rate 6575 Mbit/s
DHCP client Yes
Depth 220 mm
Power over Ethernet (PoE) Yes
LED indicators Yes
Operating altitude -60 - 5000 m
Antenna gain level (max) 5 dBi
Quantity per pack 1 pc(s)
International Protection (IP) code IP41
USB 2.0 ports quantity 1
Weight 1.08 kg
Antenna type Internal
DC-in jack Yes
Operating relative humidity (H-H) 5 - 95%
Product colour White
MIMO Yes
Storage temperature (T-T) -40 - 70 °C
Quality of Service (QoS) support Yes
Width 220 mm
Bluetooth Yes
2.4 GHz Yes
Web-based management Yes
MAC address filtering Yes
Height 50 mm
Maximum data transfer rate (2.4 GHz) 575 Mbit/s
Placement Ceiling, Wall
BeamForming Yes
IP address filtering Yes
6 GHz No
DHCP snooping Yes
Maximal-Ratio Combining (MRC) Yes
Spatial streams 8
Wi-Fi Multimedia (WMM)/(WME) Yes
Duplex mode auto-negotiation Yes
Maximum data transfer rate (5 GHz) 6000 Mbit/s
Access Control List (ACL) Yes
Auto MDI/MDI-X Yes
Operating temperature (T-T) -10 - 50 °C
Dynamic Frequency Selection (DFS) Yes
VLAN support Yes
Cyclic Shift Diversity (CSD) Yes
Flow control support Yes
Blacklist Yes
Bluetooth Low Energy (BLE) Yes
Whitelist Yes
DC voltage range 12 V
Fast roaming Yes
Automatic channel scanning Yes
Cyclic Delay Diversity (CDD) Yes
Warranty 24 (G)
Ethernet LAN data rates 2500
Networking standards IEEE 802.11b
Security algorithms 128-bit WEP

Dimensions and weights

Package width
320 cm
Package height
400 cm
Package length
240 cm

Product codes

EAN
6901443451272
Manufacturer code
1734399
