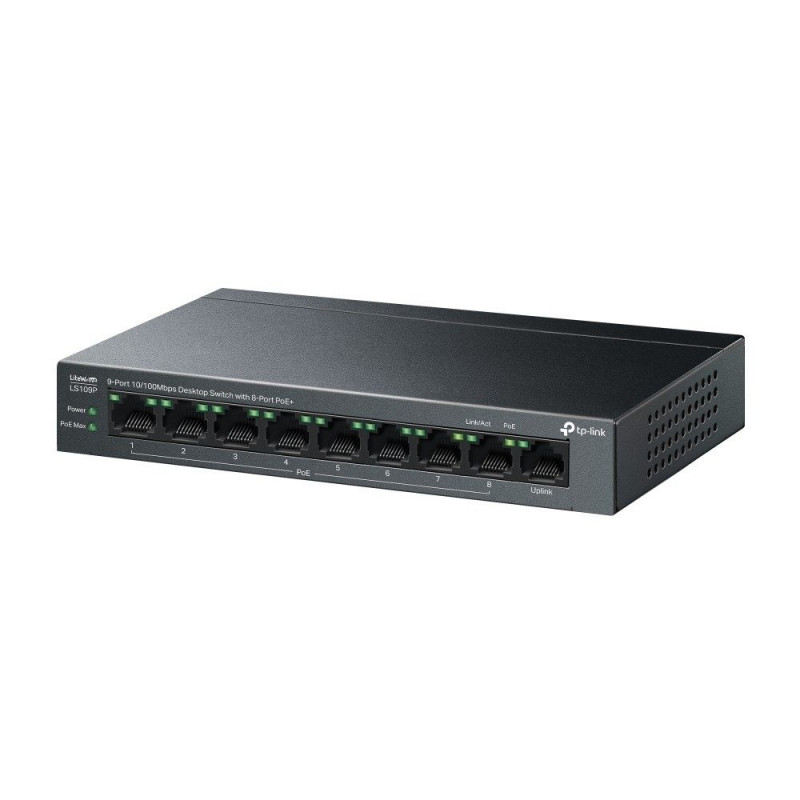

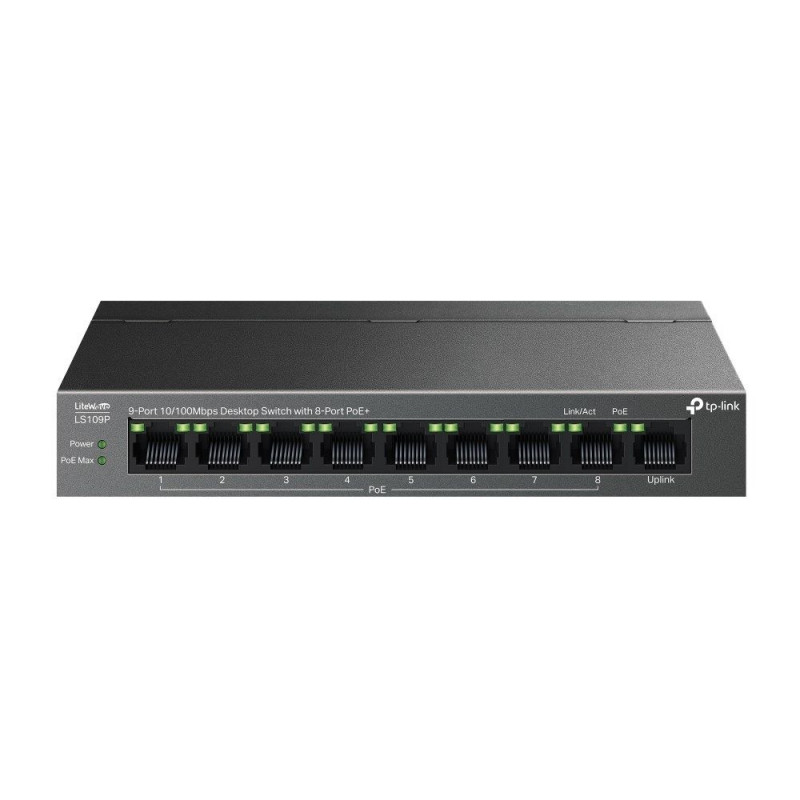

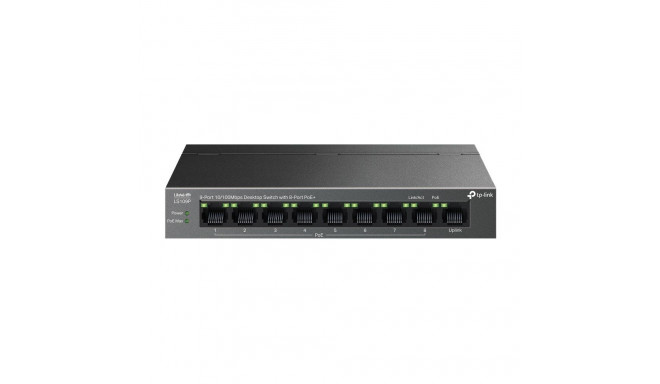

TP-Link LiteWave LS109P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Bl

Main info

Product has been archived


Certification CE, FCC, RoHS
AC input voltage 220 V
LED indicators Yes
Storage temperature (T-T) -40 - 70 °C
Quality of Service (QoS) support Yes
10G support No
Power over Ethernet (PoE) Yes
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Input current 1.31 A
Power over Ethernet plus (PoE+) ports quantity 8
Product colour Black
Storage relative humidity (H-H) 5 - 90%
Jumbo frames support Yes
User guide Yes
Power over Ethernet (PoE) power per port 30 W
MAC address table 2000 entries
Power consumption (max) 73.24 W
Depth 98 mm
DC input voltage 53.5 V
Flow control support Yes
Store-and-forward Yes
Auto MDI/MDI-X Yes
Operating temperature (T-T) 0 - 40 °C
Fanless Yes
Width 171 mm
Auto-negotiation Yes
Switching capacity 1.8 Gbit/s
AC input frequency 50 Hz
Power source DC/PoE
Operating relative humidity (H-H) 10 - 90%
Forwarding rate 1.3392 Mpps
Wall mountable Yes
Heat dissipation 249 BTU/h
Switch type Unmanaged
Power supply included Yes
Height 27 mm
Basic switching RJ-45 Ethernet ports quantity 9
Package type Box
Warranty 60 (G)
Number of fans 0 fan(s)
Copper ethernet cabling technology 100BASE-TX
Warnings The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
Cable types supported Cat3
Networking standards IEEE 802.3af

Dimensions and weights

Package width
270 cm
Package height
220 cm
Package length
65 cm

Product codes

EAN
4895252504620
Manufacturer code
LS109P
