Switch|UBIQUITI|Pro Max 16|Type L3|USW-PRO-MAX-16

Main info

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options. Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* (4) 2.5 GbE RJ45 ports (12) GbE RJ45 ports (2) 10G SFP+ ports Versat

Product has been archived

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.

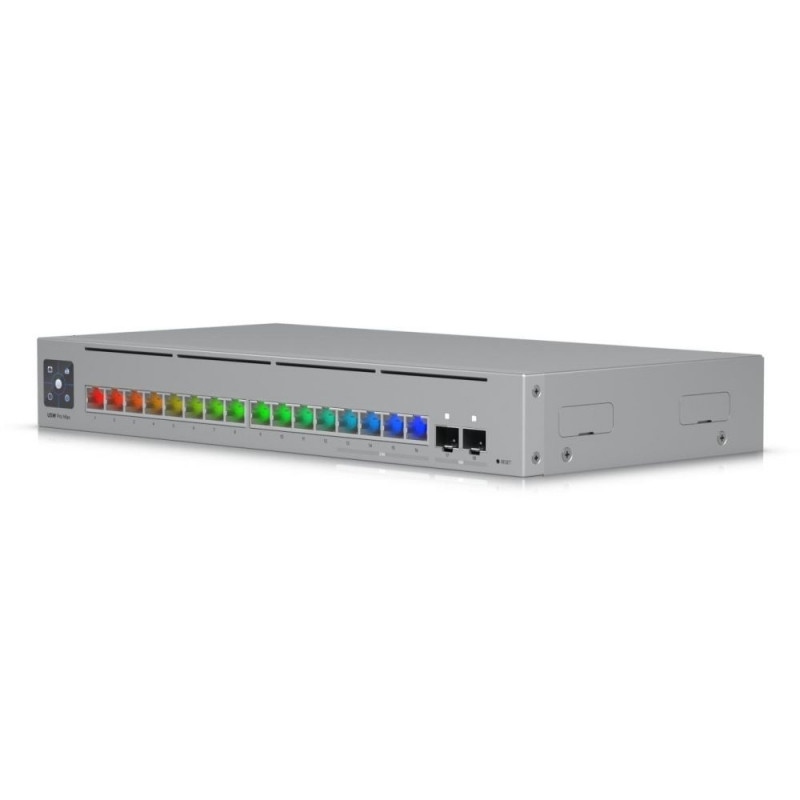

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (4) 2.5 GbE RJ45 ports
  • (12) GbE RJ45 ports
  • (2) 10G SFP+ ports
  • Versatile desktop, wall, and rack** mounting
  • Silent, fanless cooling system


Infot ka tootja kodulehelt.
Summary Ubiquiti Pro Max 16. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 16000 entries, Switching capacity: 84 Gbit/s. Networking standards: IEEE
Management features Quality of Service (QoS) support - Yes, Switch layer - L3
Ports & interfaces 2.5G Ethernet (copper) ports quantity - 4, Basic switching RJ-45 Ethernet ports quantity - 16, Basic switching RJ-45 Ethernet ports type - 2.5G Ethernet (100/1000/2500), Gigabit Ethernet (copper) ports quantity - 12, Power connector - AC/DC, SFP+ module s
Network 10G support - Yes, Broadcast storm control - Yes, Flow control support - Yes, IPv4 routes - 512, Link aggregation - Yes, Networking standards - IEEE 802.1x, Number of VLANs - 1000, Port mirroring - Yes, Rate limiting - Yes, Virtual LAN features - Voice VL
Data transmission Forwarding rate - 62 Mpps, Jumbo frames support - Yes, MAC address table - 16000 entries, Packet buffer memory - 1.5 MB, Static route - Yes, Switching capacity - 84 Gbit/s, Throughput - 42 Gbit/s
Security Access Control List (ACL) - Yes, Authentication type - IEEE 802.1x, DHCP features - DHCP guarding/DHCP relay/DHCP server/DHCP snooping, IGMP snooping - Yes, Loop protection - Yes
Design Display type - LCM, Form factor - 1U, Housing material - SGCC, LED indicators - Link/Network/Speed/Status, Product colour - Grey, Rack mounting - Yes, Reset button - Yes, Stackable - Yes
Performance Fanless - Yes
Power Input current - 5 A, Input voltage - 4.8 - 5.2 V, Power consumption (max) - 25 W, Power supply included - Yes, Redundant power supply (RPS) support - Yes
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Operational conditions Heat dissipation - 85.3 BTU/h, Operating relative humidity (H-H) - 10 - 90 %, Operating temperature (T-T) - -5 - 40 °C
Weight & dimensions Weight - 1950 g

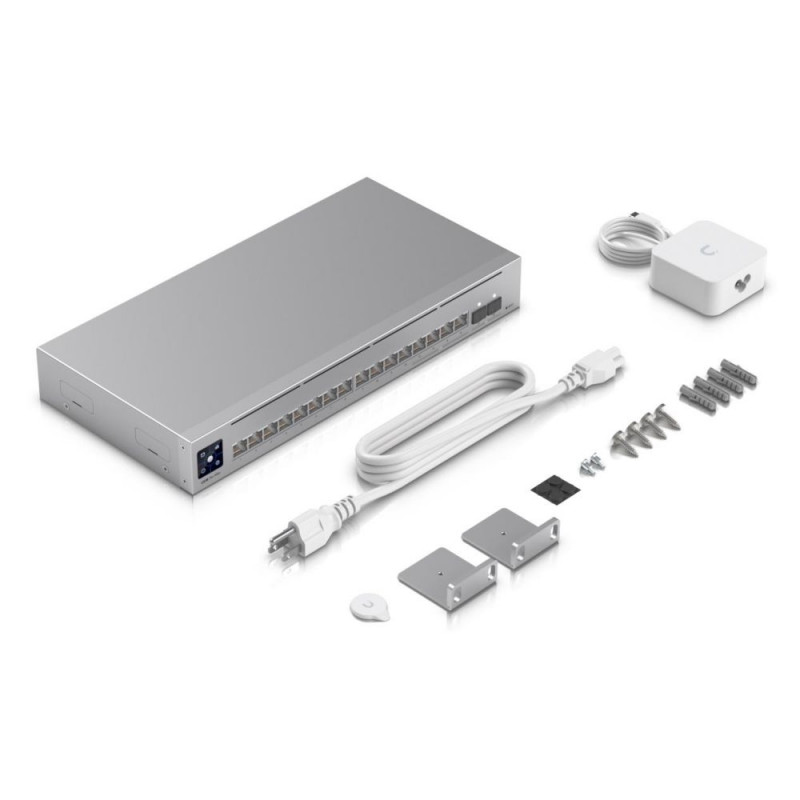

Packaging content Cables included - Power, Rack mount kit - Yes
Certificates Compliance certificates - CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
ELKO Logistics Data Product Net Weight - 1.95 kg, Unit Calculated Weight - 3.4625 kg, Units per Shipping Box - 4
ELKO Internal Logistics Data Unit Calculated Volume - 0.0167344 cubm
Model USW-Pro-Max-16
Model name Pro Max 16

Dimensions and weights

Gross weight
3.46 kg
Package width
51 cm
Package height
25 cm
Package length
52.5 cm

Product codes

EAN
810084694565
Manufacturer code
USW-PRO-MAX-16
