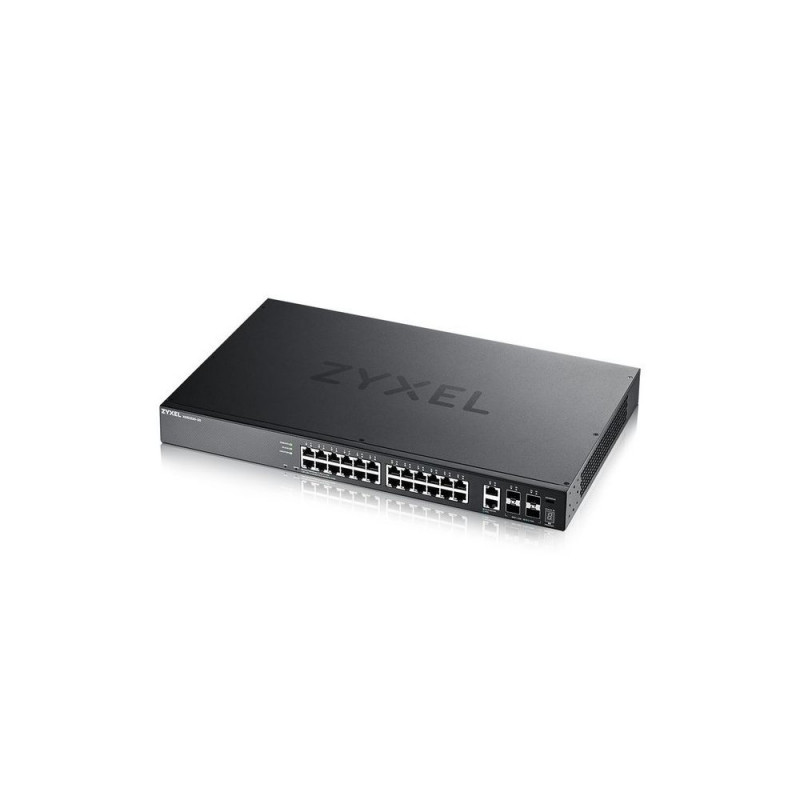

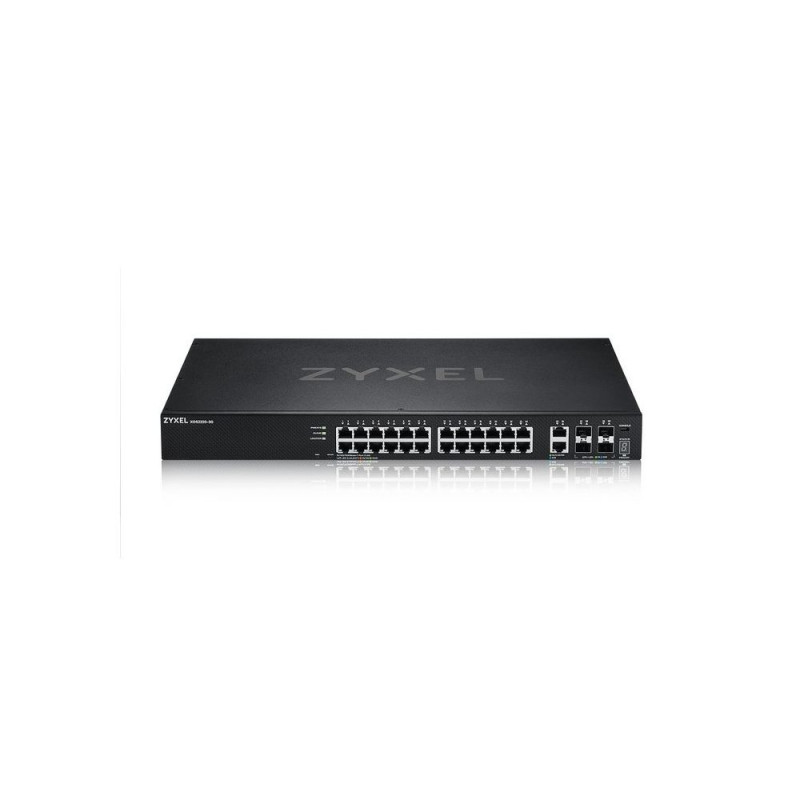

Managed Switch - Zyxel Xgs2220-30, Black

Main info

The network switch supports 10G speeds and has 24 RJ-45 Ethernet ports. It also features 2 10G Ethernet copper ports, 4 SFP+ modules, and supports GARP VLAN Registration Protocol (GVRP).

Product has been archived

Managed Switch - Zyxel Xgs2220-30, Black

A 10G network switch with web-based management and a range of technical specifications.

Key Features:
  • Supports 10G speeds and various IEEE networking standards
  • Internal memory: 1024 MB (RAM), Flash memory: 64 MB, MTBF: 520.185 hours
  • 24 RJ-45 Ethernet ports, 4 SFP+ modules, 2 10G copper ports

Technical details
Compliance certificates RoHS, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Design
Rack mounting Yes
LED indicators Yes
Product colour Black
Power
Power consumption (max) 37.62 W
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Security
DHCP features DHCP relay, DHCP server
Security algorithms SNMP, SNMPv2, SNMPv3
IGMP snooping Yes
Authentication type IEEE 802.1x, RADIUS, TACACS+
BPDU filtering/protection Yes
IGMP proxy Yes
Operational conditions
Operating temperature (T-T) -20 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 95%
Storage relative humidity (H-H) 10 - 90%
Heat dissipation 128.28 BTU/h
Management features
Cloud-managed Yes
Quality of Service (QoS) support Yes
ARP inspection Yes
Switch type Managed
Switch layer L3
Web-based management Yes
Weight & dimensions
Depth 270 mm
Weight 3.4 kg
Height 44 mm
Width 441 mm
Network
10G support Yes
Routing entries 64
Networking standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.1x, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az, IEEE 802.3an, IEEE 802.1ab
Performance
Internal memory 1024 MB
Mean time between failures (MTBF) 520.185 h
Flash memory 64 MB
Packaging data
Package width 616 mm
Package height 107 mm
Package weight 4.73 kg
Package depth 355 mm
Protocols
GARP VLAN Registration Protocol (GVRP) Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity 4
10G Ethernet (copper) ports quantity 2
Data transmission
Forwarding rate 125 Mpps
Jumbo frames support Yes
MAC address table 32000 entries
Packet buffer memory 2 MB
Static route Yes
Switching capacity 168 Gbit/s
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Multicast features
Multicast support Yes
Multicast Listener Discovery (MLD) snooping MLD v1/v2
Sustainability
Sustainability certificates Low Voltage Directive (LVD), RoHS, CE, Federal Communications Commission (FCC)

Width 441 mm
Height 44 mm
Length 270 mm
Product Weight 3400 g
Country TW

Dimensions and weights

Gross weight
4.76 kg
Package width
60 cm
Package height
11 cm
Package length
35 cm

Product codes

EAN
4718937624942
