Kvm Switch - Aten 2-port USB HDMI Kvm

Main info

The ATEN 2-Port USB HDMI KVM Switch with Audio supports up to 1920 x 1200 pixels resolution at 60Hz and has a WUXGA HD type support. It features 3 microphone inputs, a 4-port USB hub, and hot keys with LED indicators for convenient control of connected computers.

Product has been archived

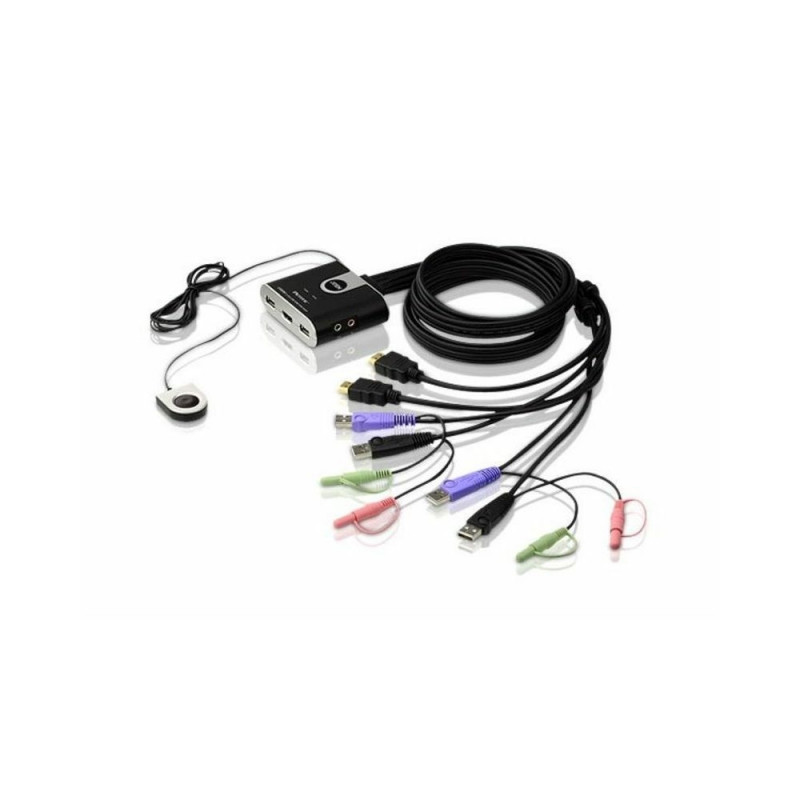

ATEN 2-Port USB HDMI KVM Switch with Audio

The ATEN 2-Port USB HDMI KVM Switch is a compact, high-performance switch for two-computer control. It features USB and audio connections for keyboard, mouse, and audio sharing.

<="" h3="">
  • 2-port USB HDMI KVM switch with audio
  • Supports up to 1920 x 1200 pixels resolution at 60Hz
  • 4 USB 2.0 Type-A hub ports for connecting peripherals
  • 3 microphone inputs and hot keys with LED indicators


Design
Rack mounting No
Housing material Plastic
Push button Yes
Hot keys Yes
LED indicators Yes
Product colour Black
Power
DC input voltage 5 V
Power source DC
Power consumption (typical) 0.72 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage relative humidity (H-H) 0 - 80%
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Weight & dimensions
Weight 409 g
Height 25.2 mm
Width 82.4 mm
Depth 66.5 mm
Performance
Scan interval 3, 20 s, 5, 10
Video bandwidth 60 Hz
Maximum resolution 1920 x 1200 pixels
HD type WUXGA
Packaging data
Package weight 550 g
Package width 70 mm
Package height 235 mm
Package depth 163 mm
Packaging content
Manual Yes
Quick installation guide Yes
Display
Built-in display No
Ports & interfaces
USB 2.0 Type-A hub ports quantity 4
Audio connections Yes
Number of microphone inputs 3
Keyboard port type USB
Console ports 3.5mm headphone, 3.5mm mic, HDMI, USB A
Video port type HDMI
Console USB ports quantity 2
USB connector type USB Type-A
Number of computers controlled 2
Mouse port type USB
Headphone outputs 3
HDMI ports quantity 2


Width 82.4 mm
Height 25.2 mm
Length 66.5 mm
Product Weight 409 g
Country TW

Dimensions and weights

Gross weight
0.549 kg
Package width
7.5 cm
Package height
20 cm
Package length
17 cm

Product codes

EAN
4710423776814
Manufacturer code
CS-692
