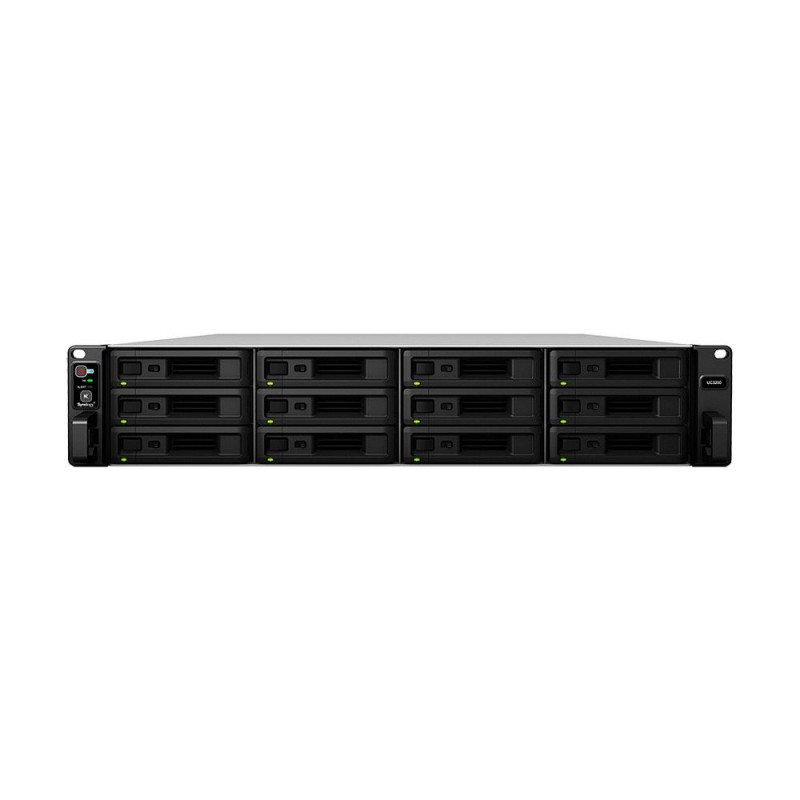

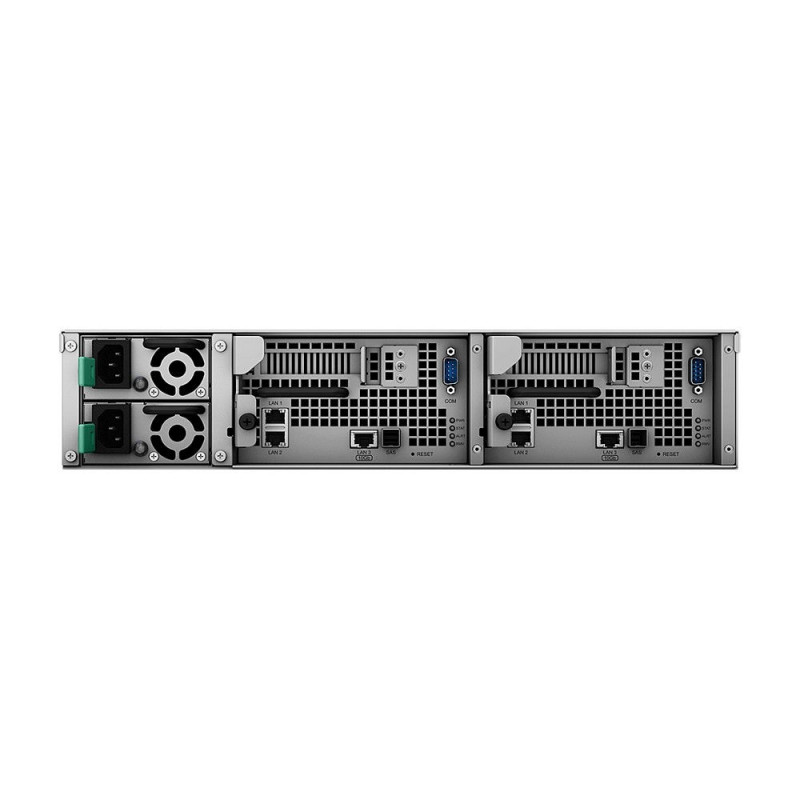

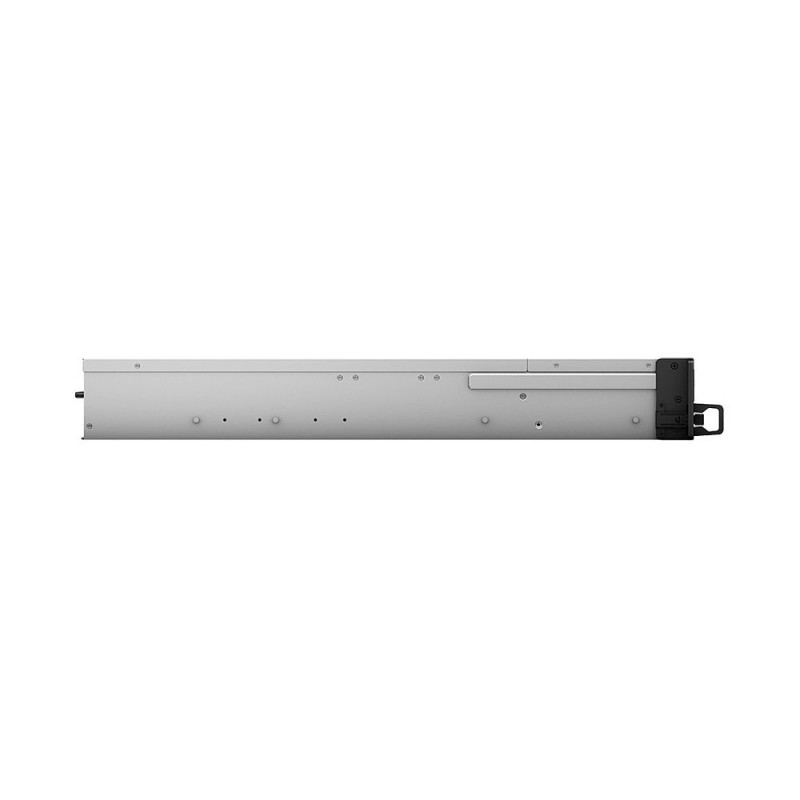

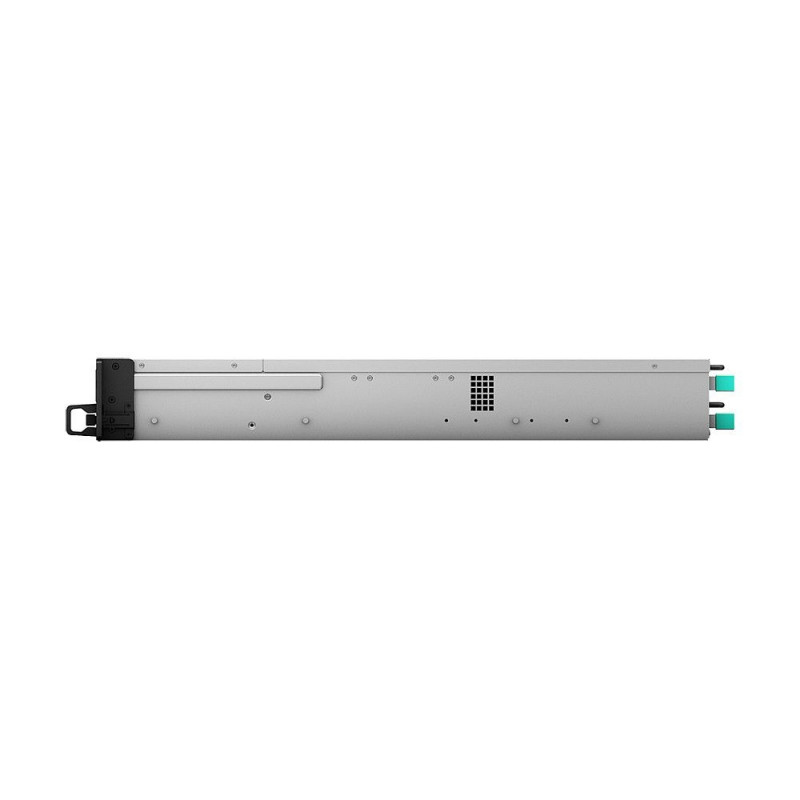

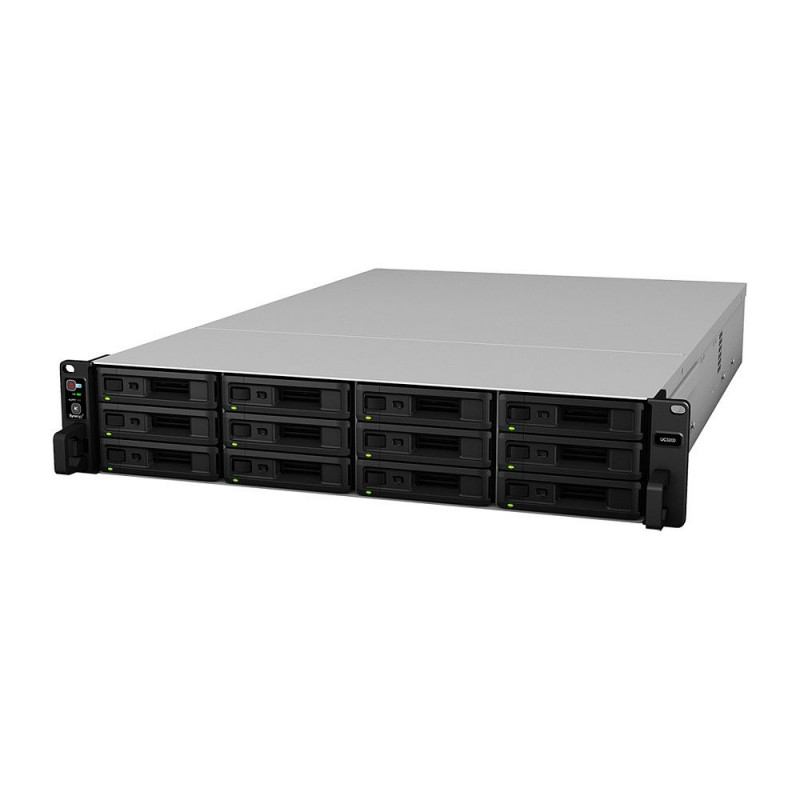

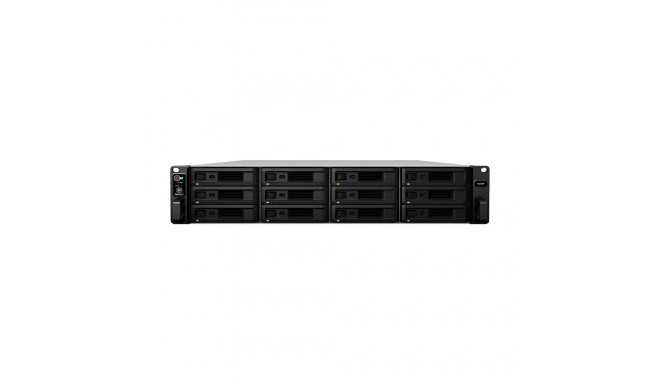

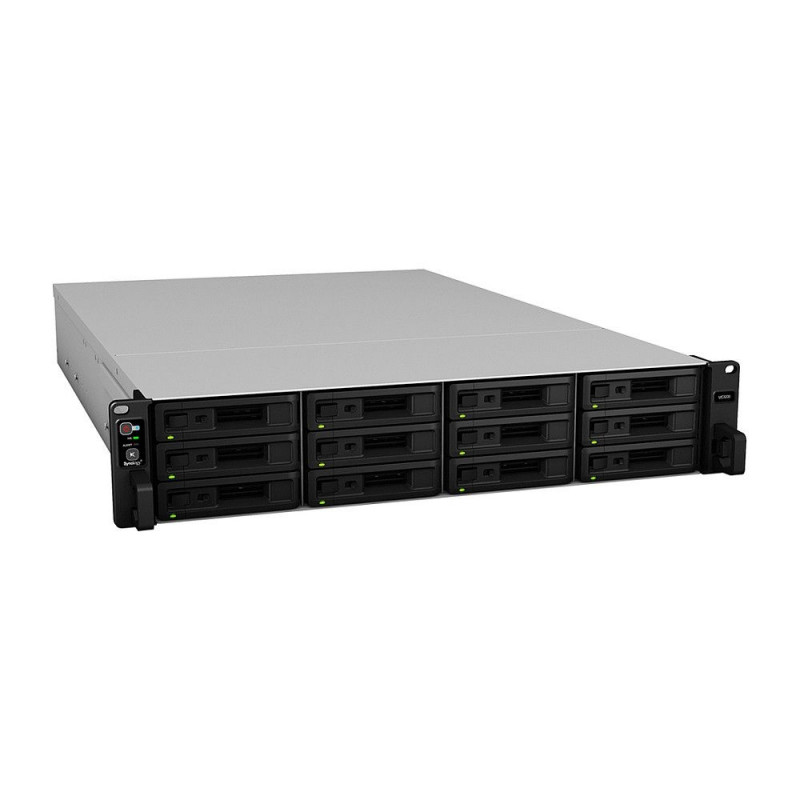

"Synology Unified Controller UC3200"

8 559 €

Monthly payment starting from 291,72 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-14 working days

Free delivery

14 14 days return policy when purchasing online

"Synology Unified Controller UC3200. Typ: SAN. Gehäusetyp: Rack (2U). Geräteklasse: Kleines & Mittleres Unternehmen. Prozessorfamilie: Intel® Xeon® D, Prozessor: D-1521, Prozessor-Taktfrequenz: 2,4 GHz. Speicherkapazität: 8 GB, Interner Speichertyp: DDR4. Gesamte installierte Speicherkapazität: 0 TB"
Speicherkapazität 8 GB
Unterstützte Speicherlaufwerk-Schnittstellen Serial Attached SCSI (SAS)
unterstützte Speicherlaufwerksgrößen 2.5,3.5""
Maximal unterstützte Speicherkapazität 192 TB
Feature UART
RAID Level 0, 1, 5, 6, 10, F1, JBOD
Unterstützte Dateisysteme BTRFS
Gesamte installierte Speicherkapazität 0 TB
Anzahl der unterstützten Speicherlaufwerke 12
Unterstützte Speicherlaufwerke HDD & SSD
Prozessorhersteller Intel
Prozessorfamilie Intel® Xeon® D
Prozessor D-1521
Prozessor-Taktfrequenz 2,4 GHz
Prozessor Boost-Frequenz 2,7 GHz
Anzahl Prozessorkerne 4
Prozessor-Threads 8
Prozessor-Cache 6 MB
CPU Konfiguration (max) 1
PCI Express Konfigurationen 1x16, 1x4, 1x8
PCI-Express-Slots-Version 2.0, 3.0
Prozessor-Code SR2DF
Prozessor Codename Broadwell
Prozessor Lithografie 14 nm
Prozessorbetriebsmodi 64-Bit
Prozessor-Paketgröße 37.5 x 37.5 mm
Prozessor-Serien Intel Xeon D-1500
Prozessorsockel BGA 1667
Skalierbarkeit 1S
Stepping V2
Thermal Design Power (TDP) 45 W
Maximaler interner Speicher, vom Prozessor unterstützt 128 GB
Interner Speichertyp DDR4
Maximum unterstützte RAM 64 GB
Speicherkartensteckplätze 4
Memory Formfaktor UDIMM
Ethernet LAN Datentransferraten 1000,10000 Mbit/s
Unterstützte Ethernet-LAN-Datenrate (max.) 10000 Mbit/s
Unterstützte Netzwerkprotokolle iSCSI, Telnet, SSH, SNMP
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) 3
PCI-Express x8 (Gen 3.x)-Anschlüsse 1
Gehäusetyp Rack (2U)
Kühlung Aktiv
Produktfarbe Schwarz, Grau
Anzahl Lüfter 2 Lüfter
Lüfterdurchmesser 6 cm
LED-Anzeigen Leistung, Status
Typ SAN
Geräteklasse Kleines & Mittleres Unternehmen
Backup-Funktionen iSCSI LUN
Geräuschpegel 51,3 dB
Unterstützter Browser Chrome, Firefox, Edge,Internet Explorer 10+, Safari 10+, Chrome
Unterstützte Server-Betriebssysteme Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016
Unterstützung anderer Betriebsysteme Solaris 10, Solaris 11, VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5
Platzierung der Stromversorgung Eingebaut
Kapazität der Stromversorgungseinheit 500 W
Anzahl von Stromversorgungseinheiten 1
Stromverbrauch (Standardbetrieb) 417,48 W
Stromverbrauch (HDD-Standby) 274,38 W
AC Eingangsspannung 100 - 240 V
AC Eingangsfrequenz 50 - 60 Hz
Gewicht 19,7 kg
Mitgelieferte Kabel AC
Intel® Secure Key Technologieversion 1,00
Intel® TSX-NI-Version 1,00
Intel® Turbo-Boost-Technologie 2.0
Maximale Anzahl der PCI-Express-Lanes 32
Speichertypen, vom Prozessor unterstützt DDR3-SDRAM, DDR4-SDRAM
Betriebstemperatur 0 - 35 °C
Relative Luftfeuchtigkeit in Betrieb 5 - 95%
Temperaturbereich bei Lagerung -20 - 60 °C
Luftfeuchtigkeit bei Lagerung 5 - 95%
Höhe bei Betrieb 0 - 5000 m
Warentarifnummer (HS) 84714100
Konformitätsbescheinigungen RoHS
Zertifizierung EACVCCICCCRCMKCFCCCEBSMI
ARK Prozessorerkennung 91202

Dimensions and weights

Gross weight
22.72 kg
Package width
48.2 cm
Package height
8.8 cm
Package length
72.4 cm

Product codes

EAN
4711174723126
