Ruijie RG-ES228GS-P 28-Port Gigabit Smart Cloud 4kV 56Gbps PoE+ Switch Black

Main info

Product has been archived

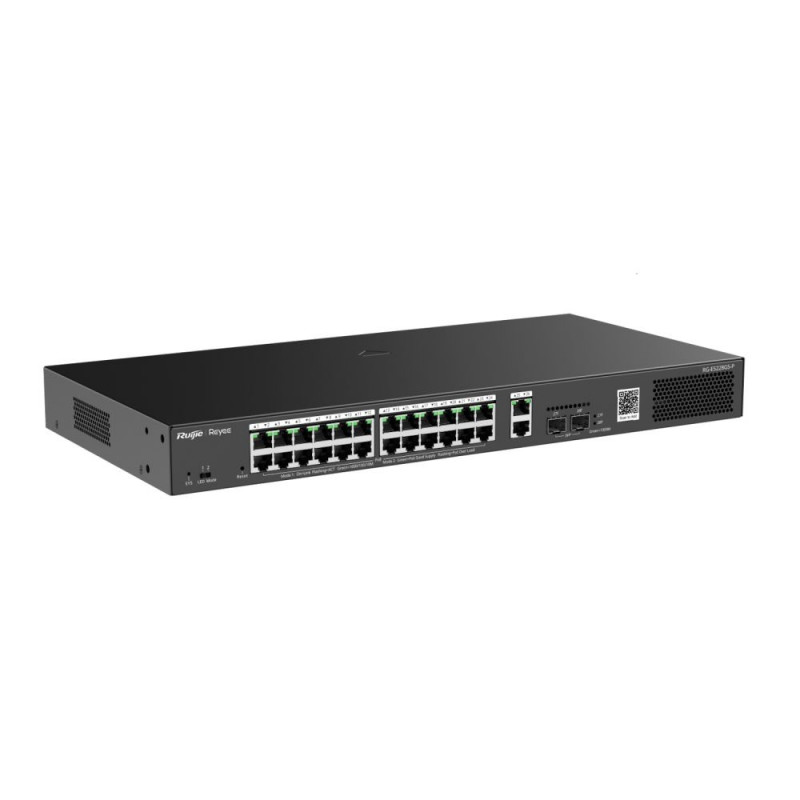

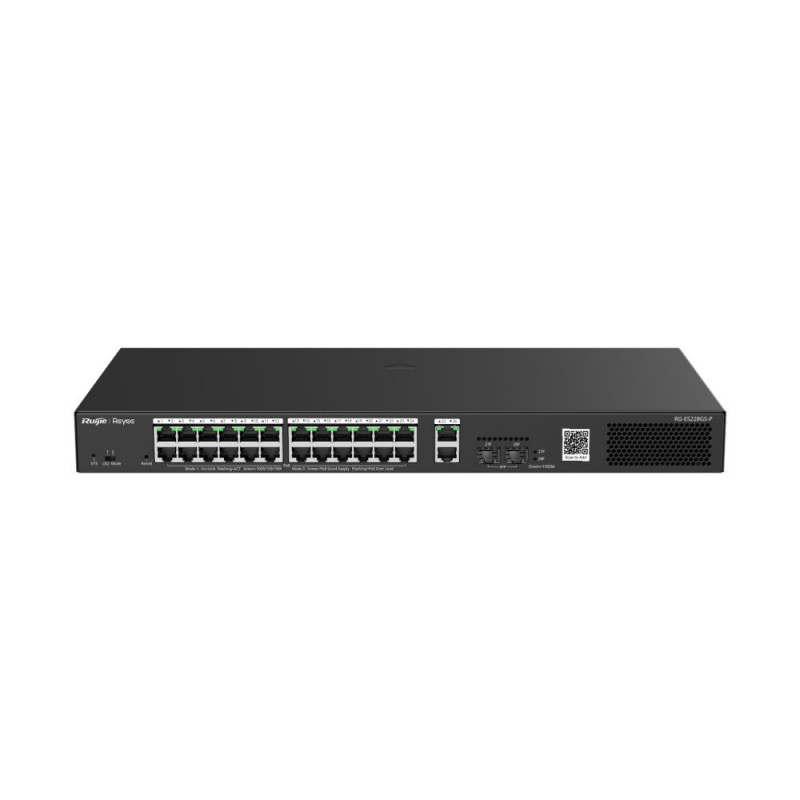

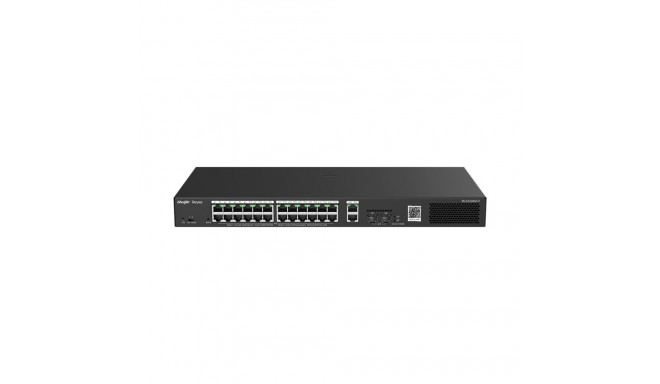

Ruijie RG-ES228GS-P 28-Port Gigabit Smart Cloud PoE+ Switch – Black Edition

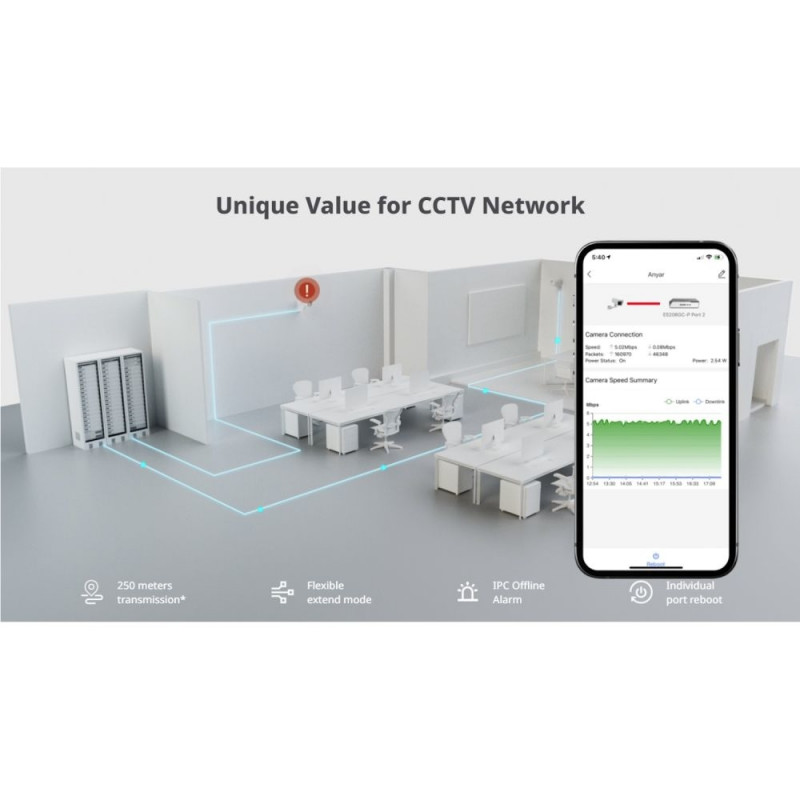

High-Density Cloud-Managed Gigabit PoE+ Switch for Enterprise and Surveillance Networks

The Ruijie RG-ES228GS-P is a full-featured 28-port Gigabit smart switch with cloud management, high PoE power output, and robust enterprise-level surge protection. Designed for security system integrators, campus deployments, and smart buildings, it offers 24 PoE+ ports, 4 uplink ports, and seamless cloud control via the Ruijie platform.

With 56 Gbps switching capacity, 4kV surge protection, and a 370W PoE power budget, it’s ready to support large-scale IP camera installations, AP clusters, VoIP systems, or remote IoT devices.

Key Features & Benefits
  • 24× PoE+ Ports for High-Density Deployments
    Provides up to 30W per port and a total 370W PoE power budget, supporting high-power APs, PTZ cameras, and VoIP phones.

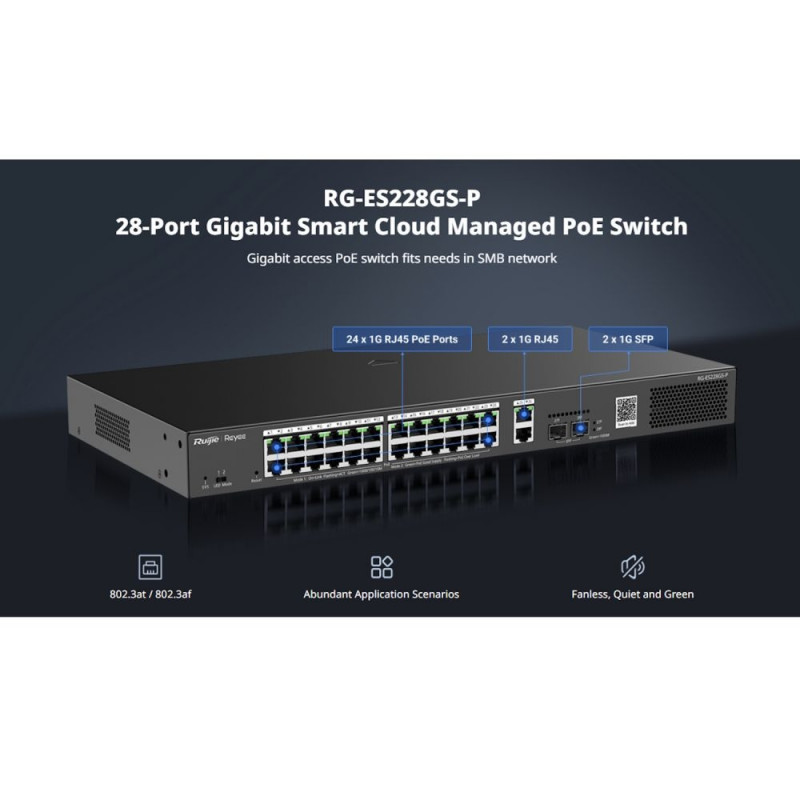

  • 4 Dedicated Gigabit Uplink Ports
    Two RJ45 and two SFP uplinks provide flexible backbone and fiber connectivity to core networks, routers, or NVRs.
  • Ruijie Cloud Management Platform
    Supports mobile and web-based centralized management, remote monitoring, batch configurations, and real-time fault diagnostics.
  • Enhanced Electrical Protection
    4kV surge protection per port shields your infrastructure from voltage spikes, lightning, and static discharge.
  • Silent Intelligent Cooling
    Integrated smart fan system adapts to thermal loads while ensuring quiet operation in office or telecom rooms.
  • Robust Metal Housing
    Enterprise-grade enclosure with rack-mount support for 19-inch cabinets and network racks.
Technical Specifications
  • Model: RG-ES228GS-P
  • Product Type: Smart Cloud-Managed Gigabit PoE+ Switch
  • Ports:
  • 24 × 10/100/1000 Mbps RJ45 PoE+
  • 2 × 10/100/1000 Mbps RJ45 Uplinks
  • 2 × Gigabit SFP Uplink Ports
  • PoE Standard: IEEE 802.3af / 802.3at
  • PoE Power Budget: 370W total (up to 30W per port)
  • Switching Capacity: 56 Gbps
  • Forwarding Rate: 41.7 Mpps
  • MAC Address Table: 8,000 entries
  • Surge Protection: 4kV per port
  • Management: Ruijie Cloud (app + web), Web GUI
  • Power Supply: AC 100–240V, 50/60Hz
  • Max Power Consumption: ≤ 400W
  • Cooling: Intelligent fan system
  • Housing: Metal (rack-mountable, 1U)
  • Dimensions: 44.0 × 20.0 × 4.4 cm
  • Net Weight: 3.8 kg
  • Color: Black
  • Operating Temperature: 0°C to +50°C
  • Operating Humidity: 10% to 90% RH (non-condensing)
  • EAN: 6971693278691
What’s Included
  1. Ruijie RG-ES228GS-P Switch (Black)
  2. Power Cable
  3. Rack-Mount Brackets & Screws
  4. Quick Installation Guide
Why Choose Ruijie RG-ES228GS-P?

Built for scale, power, and visibility, the RG-ES228GS-P is ideal for projects demanding 24/7 PoE delivery, smart management, and long-term stability. Whether you’re rolling out surveillance systems across multiple zones, building a smart office LAN, or supporting a fleet of wireless access points, this switch combines high port count with smart control and efficient cooling — ready for modern network edge applications.


Värvus Black
Pakend (EU Blister) - Retail packaging
Materjalid Plast, Silikoonid
Tüübid Datortehnikas aksesuāri

Dimensions and weights

Gross weight
4.1 kg
Package width
44 cm
Package height
20 cm
Package length
4 cm

Product codes

EAN
6971693278691
