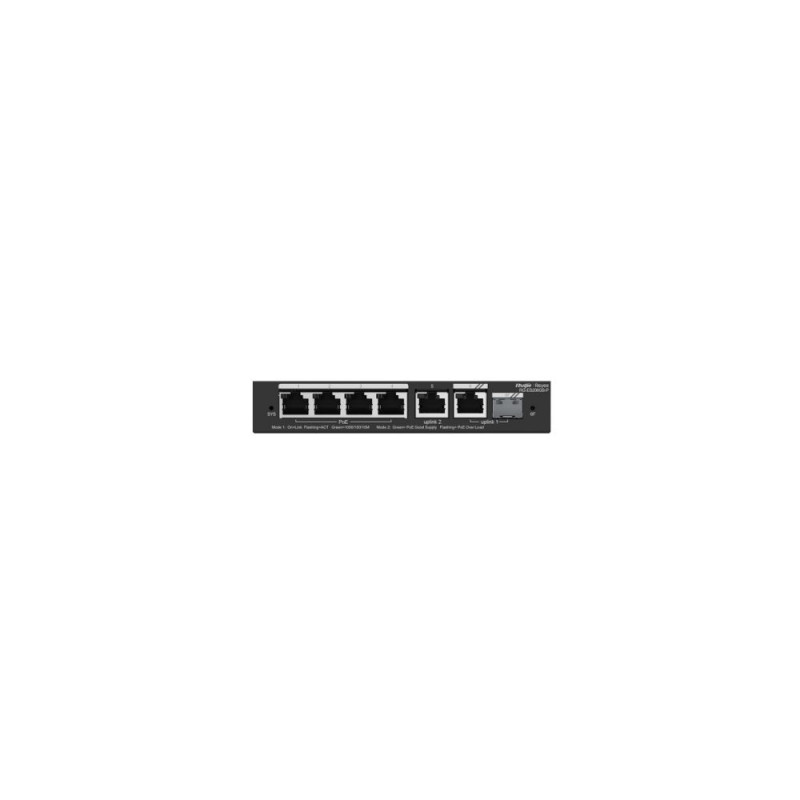

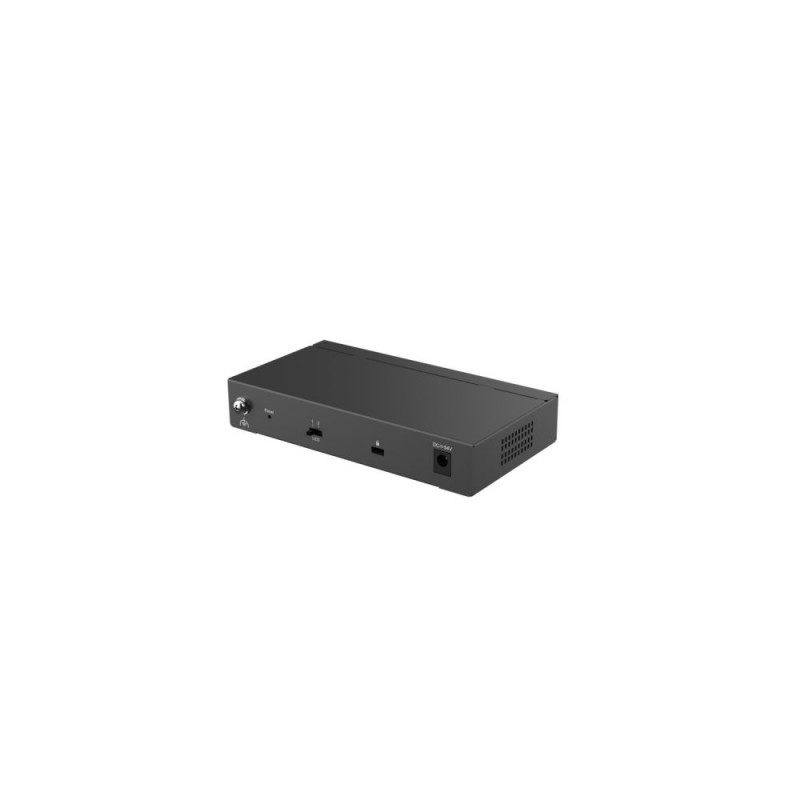

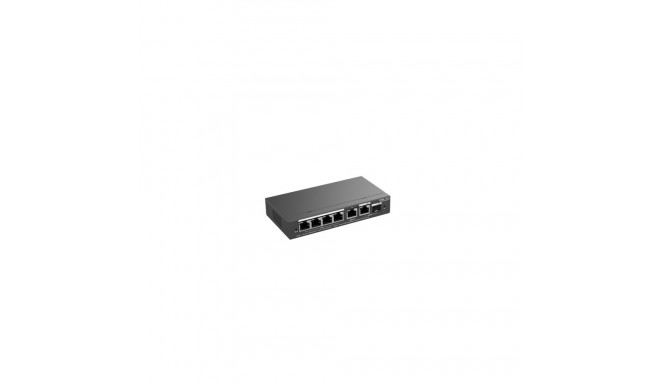

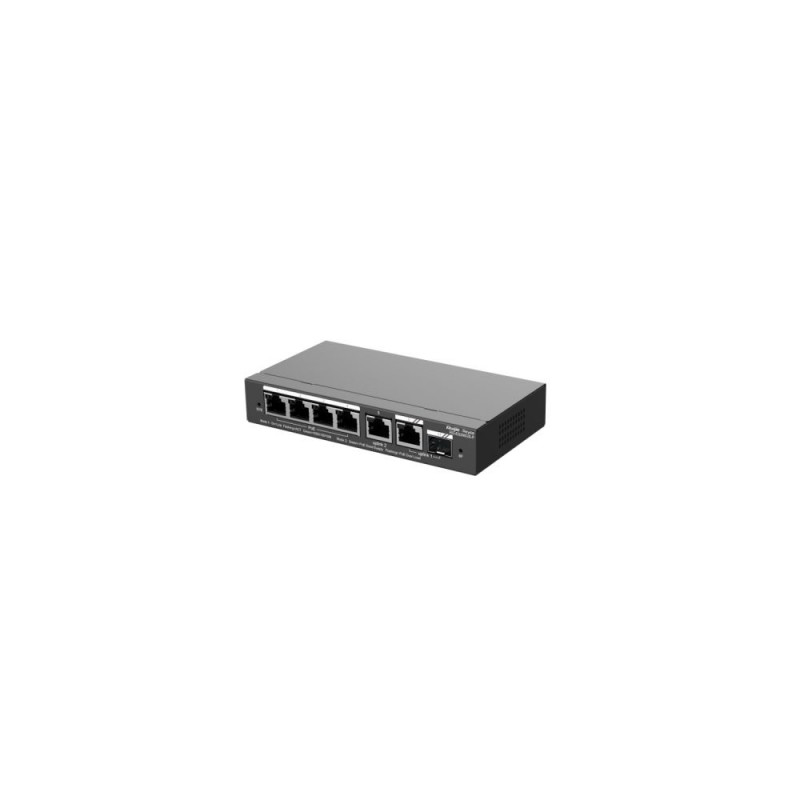

Ruijie RG-ES206GS-P 6-Port Gigabit Smart Cloud 6kV 12Gbps PoE Switch Black

Main info

Product has been archived

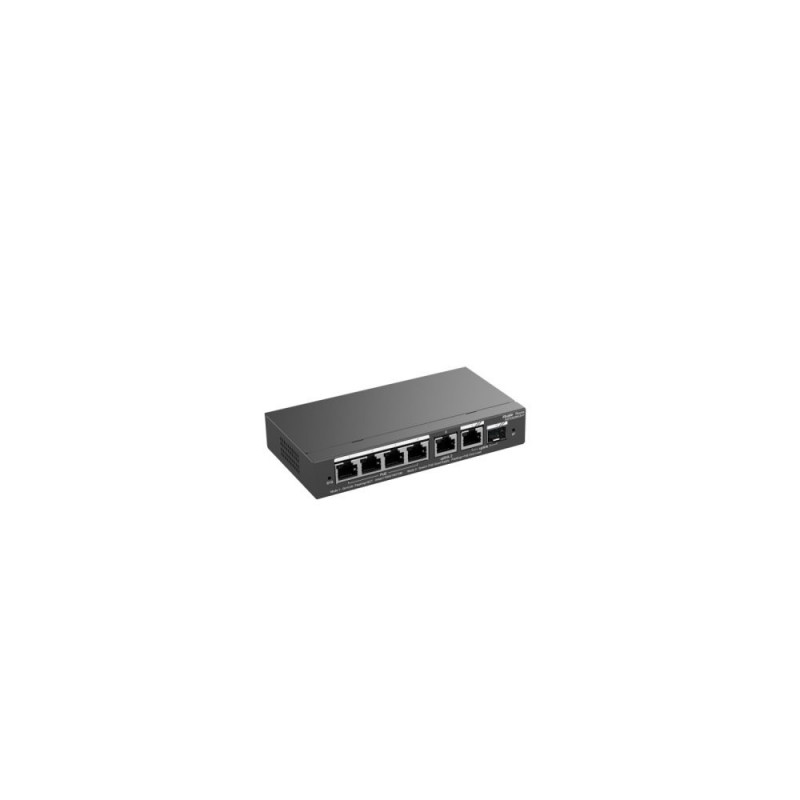

Ruijie RG-ES206GS-P 6-Port Gigabit Smart Cloud PoE Switch – Black Edition

Smart-Managed PoE Switch with Gigabit Speeds, Cloud Access, and Professional-Grade Surge Protection

The Ruijie RG-ES206GS-P is a cloud-smart 6-port Gigabit PoE switch, tailored for surveillance, retail, and small enterprise scenarios requiring both remote visibility and power delivery. With 4× PoE+ ports, 2× uplink ports, 6kV surge protection, and support for Ruijie Cloud platform, it enables both smart centralized management and reliable 24/7 operation for IP devices.

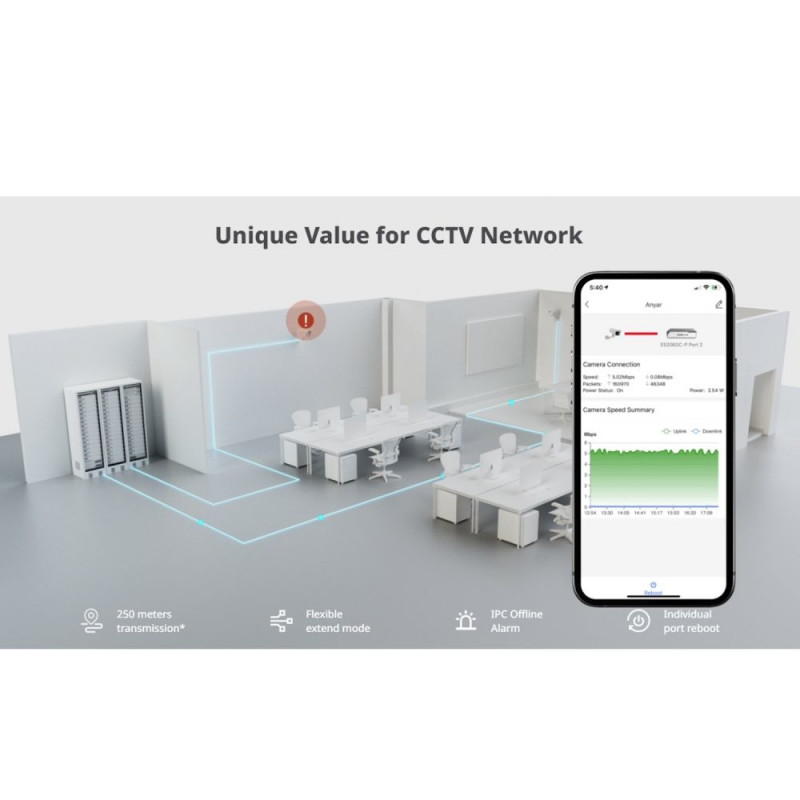

It is ideal for IP camera deployments, small wireless access networks, or VoIP setups where remote monitoring, PoE power, and network visibility are essential.

Key Features & Benefits
  • Cloud-Managed Smart Switch
    Offers centralized configuration, diagnostics, and status monitoring via the Ruijie Cloud platform or app — ideal for multi-site, remote, or unattended deployments.
  • 4× PoE+ Gigabit Ports
    Delivers up to 30W per port, with a total PoE budget of 54W, powering IP cameras, wireless APs, and IP phones — all through standard Ethernet cables.
  • Dual Uplink Ports for Backbone Separation
    Two non-PoE Gigabit uplinks allow clean routing between WAN/NVR/core switches without draining the power budget or reducing switching throughput.
  • High Surge Protection (6kV)
    All ports are equipped with 6kV surge protection, safeguarding devices and network integrity from electrical surges and lightning impact.

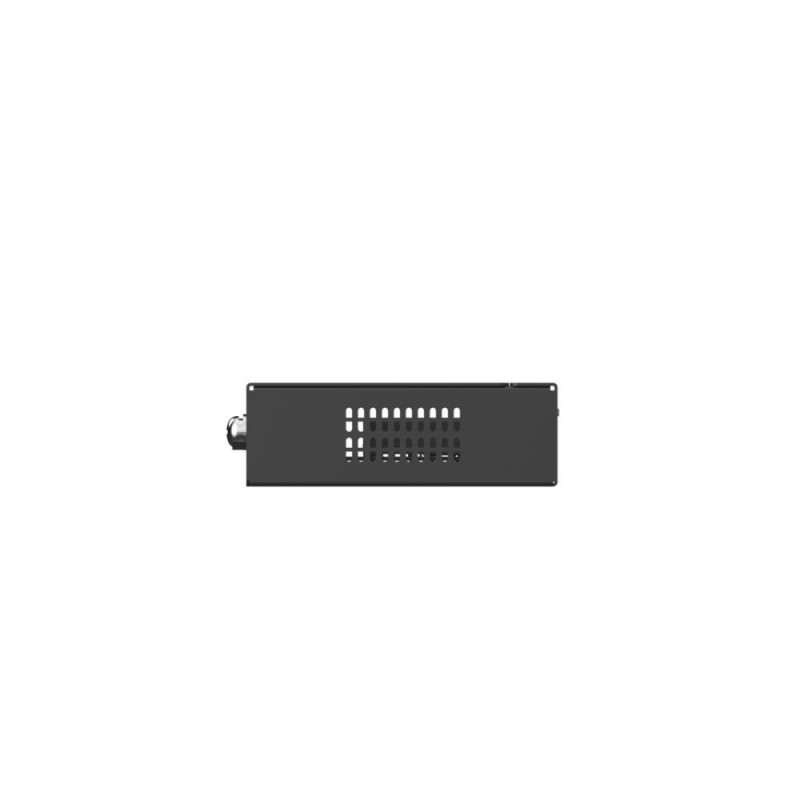

  • Silent Passive Cooling
    Fanless thermal design ensures completely silent operation and long-term durability without mechanical wear.

Enterprise-Class Metal Chassis
Rugged design in compact metal housing with support for wall-mounting or desktop deployment.

Technical Specifications
  • Model: RG-ES206GS-P
  • Product Type: Smart-Managed Gigabit PoE Switch with Cloud Support

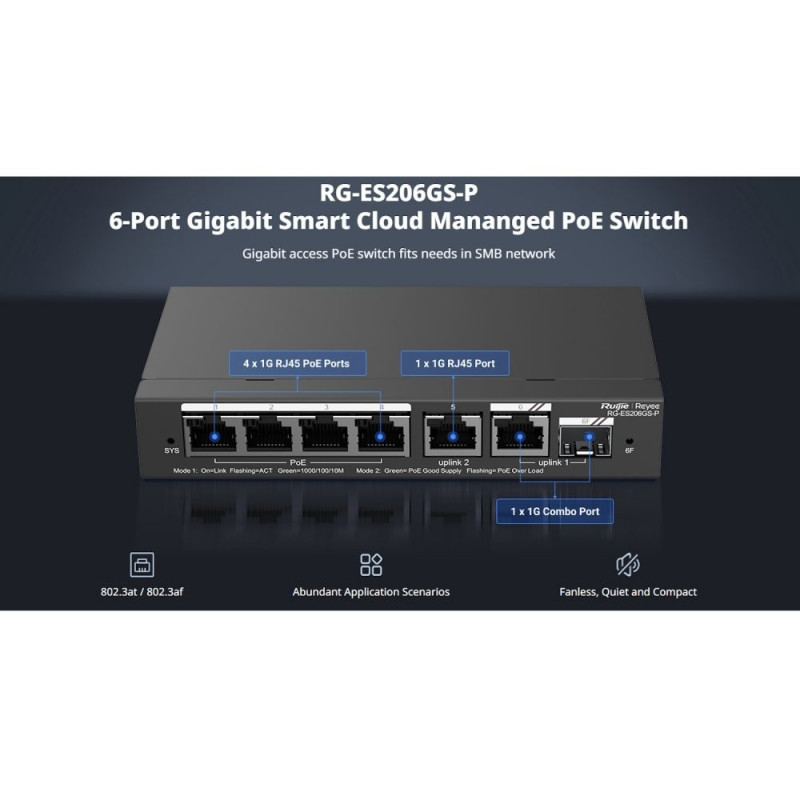

  • Ports:
  • 4 × Gigabit RJ45 PoE+ (10/100/1000 Mbps)
  • 2 × Gigabit RJ45 Uplink Ports (non-PoE)
  • PoE Standards: IEEE 802.3af / 802.3at
  • Total PoE Power Budget: 54W (max 30W per port)
  • Switching Capacity: 12 Gbps
  • Forwarding Rate: 8.93 Mpps
  • MAC Address Table: 2,000 entries
  • Surge Protection: 6kV per port
  • Management: Ruijie Cloud, Web GUI (smart managed)
  • Power Input: DC 54V / 1.2A
  • Max Power Consumption: ≤ 58W
  • Cooling: Fanless passive
  • Enclosure: Metal
  • Dimensions: 16.4 × 10.0 × 2.8 cm
  • Net Weight: 460 g
  • Color: Black
  • Operating Temperature: 0°C to +40°C
  • Humidity Range: 10% to 90% RH (non-condensing)
  • EAN: 6971693275812
What’s Included
  1. Ruijie RG-ES206GS-P PoE Switch (Black)
  2. Power Adapter (DC 54V / 1.2A)
  3. Wall Mount Screws (if included)
  4. Quick Installation Guide
Why Choose Ruijie RG-ES206GS-P?

With its combination of smart cloud functionality, robust PoE+ power delivery, and surge-protected gigabit performance, the RG-ES206GS-P provides a professional edge in remote network visibility and security. Whether powering a surveillance cluster, building an edge wireless LAN, or centralizing IP phones, this switch supports flexible topologies, reduces deployment time, and gives IT full control via cloud or app — all in a compact fanless form factor.


Värvus Black
Pakend (EU Blister) - Retail packaging
Materjalid Plast, Silikoonid
Tüübid Datortehnikas aksesuāri

Dimensions and weights

Gross weight
0.5 kg
Package width
16 cm
Package height
10 cm
Package length
3 cm

Product codes

EAN
6971693275812
