Ruijie RG-ES110D-P 8-port 10/100Mbps 6kV 5.6Gbps 8 PoE+ Switch Black

Main info

Product has been archived

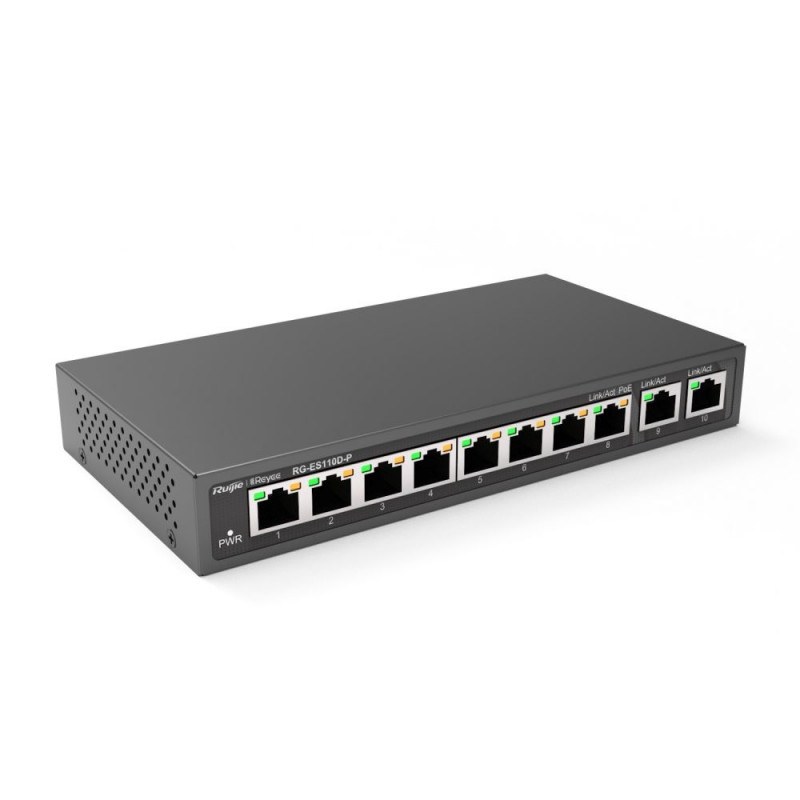

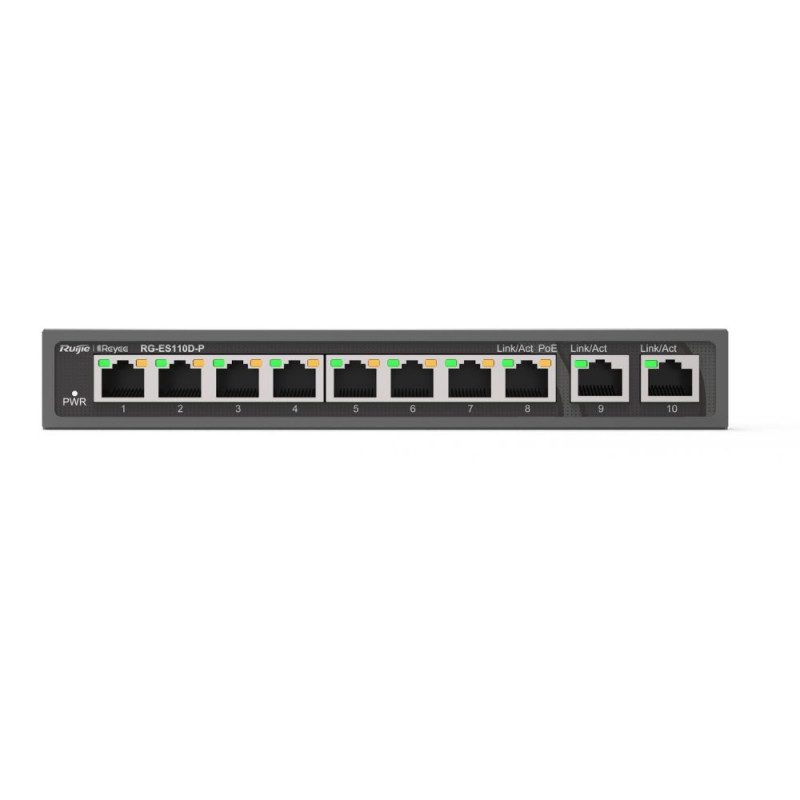

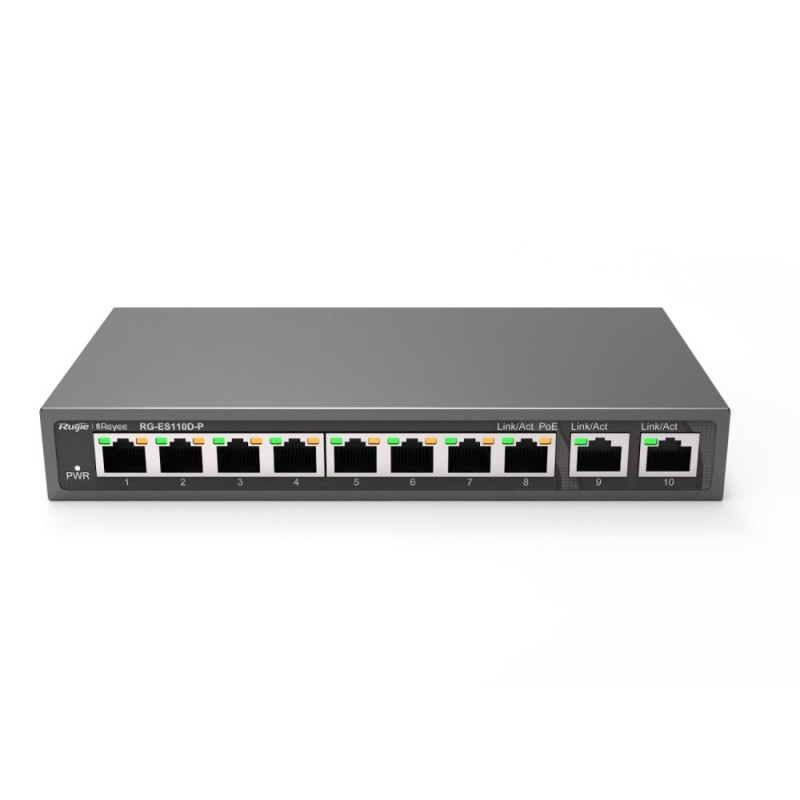

Ruijie RG-ES110D-P 8-Port 10/100 Mbps PoE+ Switch – Black Edition

Reliable Power-over-Ethernet Switch for IP Surveillance, VoIP, and Edge Networks

The Ruijie RG-ES110D-P is a rugged and efficient 8-port Fast Ethernet PoE+ switch, delivering both data and power through a single cable to simplify deployments of IP-based devices. Designed for security systems, smart buildings, and retail networks, it features full PoE+ support on all 8 ports, 6kV surge protection, and fanless operation — ensuring stability, silence, and energy efficiency in 24/7 environments.

Its compact design, integrated power delivery, and plug-and-play usability make it ideal for IP cameras, access points, VoIP phones, and more.

Key Features & Benefits
  • All Ports PoE+ Powered
    Supports IEEE 802.3af/at across all 8 ports, delivering up to 30W per port and a total power budget of 110W, enabling centralized powering of connected devices.
  • Unmanaged Simplicity
    Plug-and-play architecture allows for fast deployment with no configuration — ideal for installers, small businesses, or rapid rollouts.
  • 6kV Enhanced Surge Protection
    Industrial-grade surge shielding on each port protects connected devices from voltage spikes, power surges, or lightning events.
  • Silent Fanless Cooling
    Completely passive cooling design ensures 0 dB operation — perfect for retail, residential, or office use where noise is not acceptable.
  • Dedicated Uplink Port
    Allows seamless connection to the main router, NVR, or uplink switch without consuming PoE resources.
  • Durable Metal Housing
    Sturdy, professional-grade chassis enhances heat dissipation and fits standard cabinet or wall-mount environments.
Technical Specifications
  • Model: RG-ES110D-P
  • Product Type: 8-Port Fast Ethernet PoE+ Switch
  • Ports:
  • 8 × 10/100 Mbps RJ45 (PoE+)
  • 2 × 10/100 Mbps RJ45 Uplink Ports
  • PoE Standard: IEEE 802.3af/at
  • PoE Power Budget: 110W total, up to 30W per port
  • Switching Capacity: 5.6 Gbps
  • Forwarding Rate: 4.17 Mpps
  • MAC Address Table: 1,000 entries
  • Surge Protection: 6kV per port
  • Power Supply: DC 52V / 2.31A (external adapter included)
  • Power Consumption: ≤ 120W (with full PoE load)
  • Cooling: Fanless passive cooling
  • Housing: Metal enclosure
  • Dimensions: 18.5 × 9.4 × 2.7 cm
  • Net Weight: 600 g
  • Color: Black
  • Operating Temperature: 0°C to +40°C
  • Storage Temperature: -40°C to +70°C
  • Operating Humidity: 10% to 90% RH
  • Storage Humidity: 5% to 95% RH
  • EAN: 6971693279063
What’s Included
  1. Ruijie RG-ES110D-P PoE Switch (Black)
  2. External Power Adapter (52V / 2.31A)
  3. Wall Mount Kit (if included)
  4. Quick Start Guide
Why Choose Ruijie RG-ES110D-P?

The RG-ES110D-P is engineered for users who need reliable PoE+ delivery and network stability in demanding environments. Whether powering an 8-camera IP surveillance system or supporting APs and VoIP phones in a retail outlet, it’s a plug-and-go solution built to last.

Its enhanced surge protection, metal chassis, and passive cooling design deliver operational confidence in environments where uptime and reliability are non-negotiable.


Värvus Black
Pakend (EU Blister) - Retail packaging
Materjalid Plast, Silikoonid
Tüübid Datortehnikas aksesuāri

Dimensions and weights

Gross weight
0.64 kg
Package width
18 cm
Package height
9 cm
Package length
3 cm

Product codes

EAN
6971693279063
