Ruijie RG-ES106F-P 6-Port 10/100 Mbps 4kV 1.2Gbps PoE Switch Black

Main info

Product has been archived

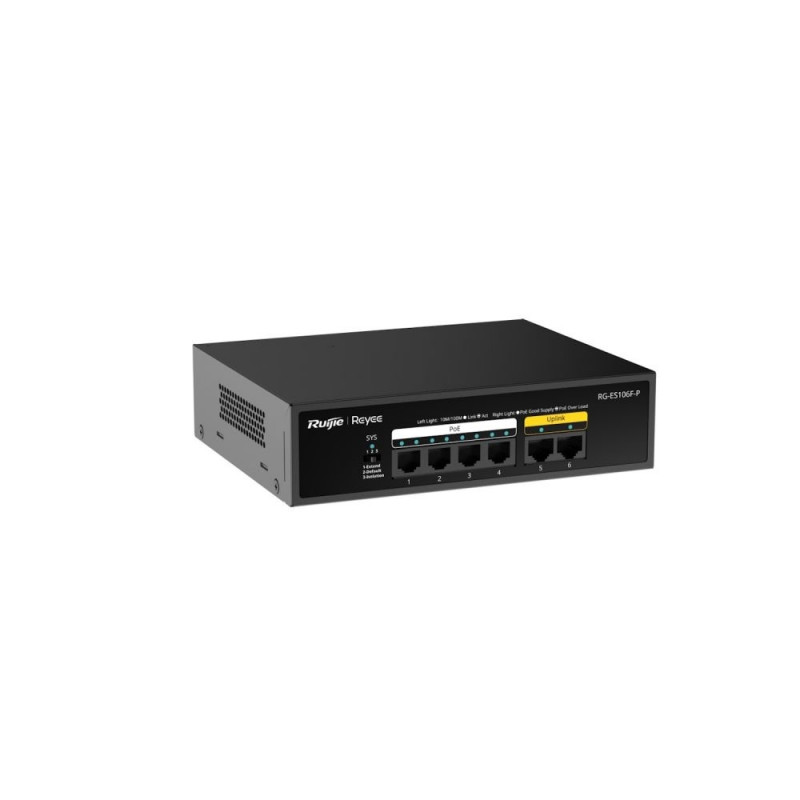

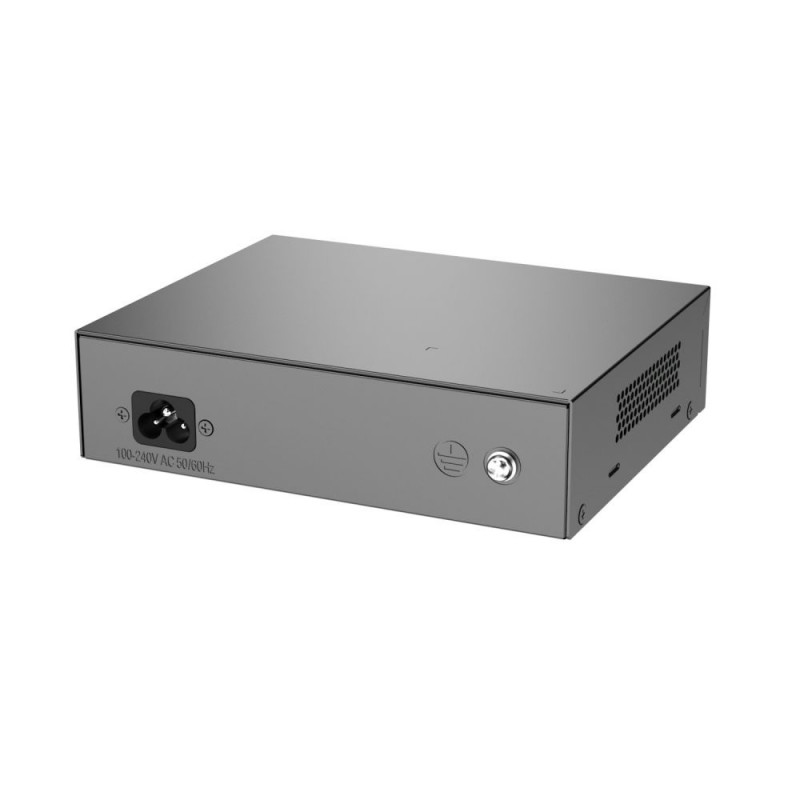

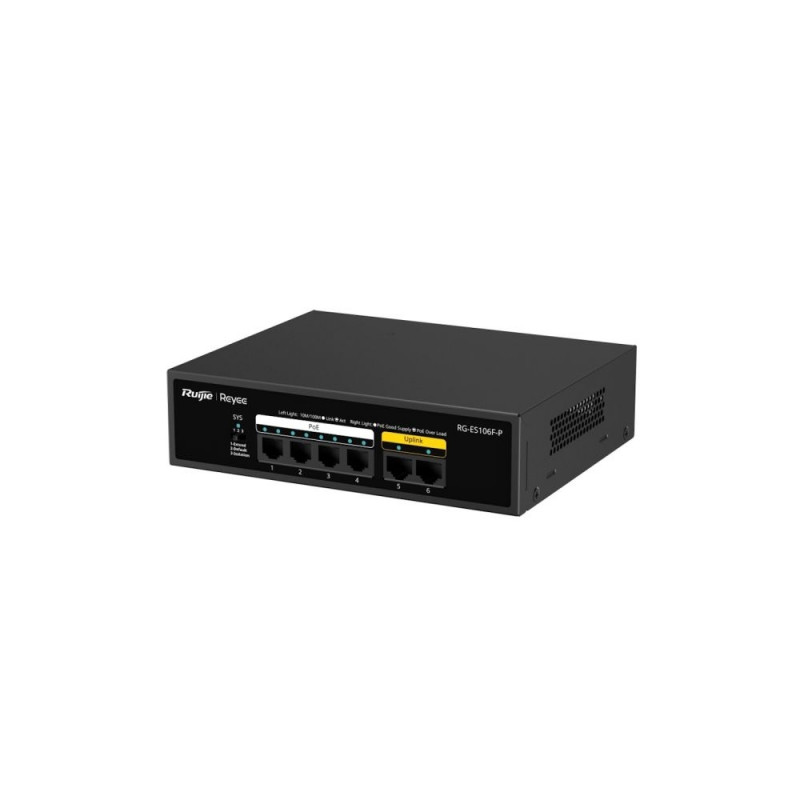

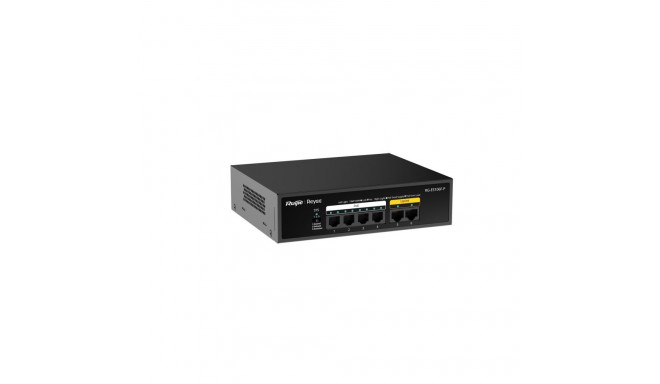

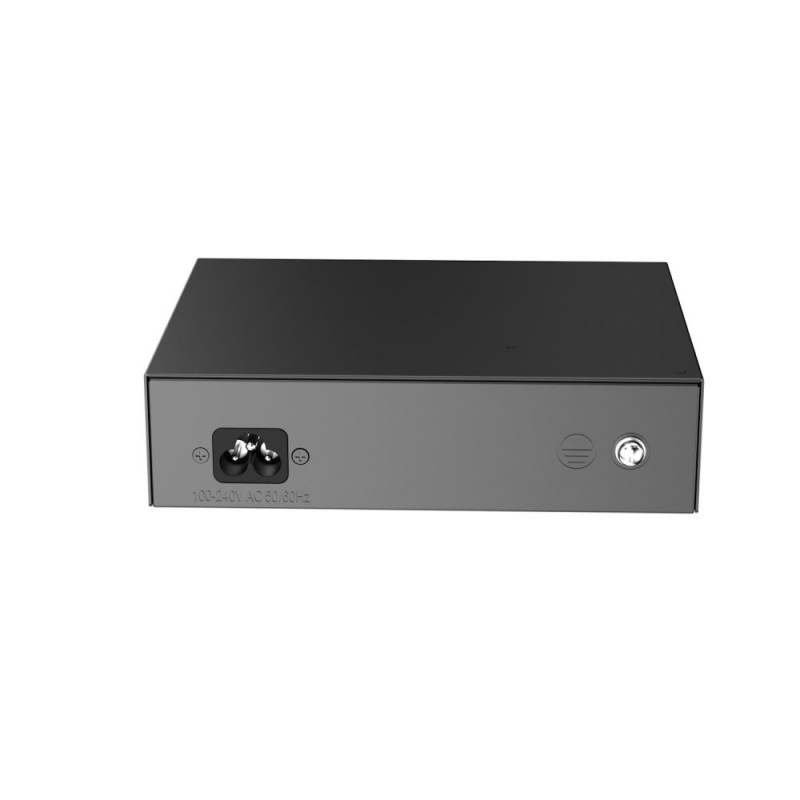

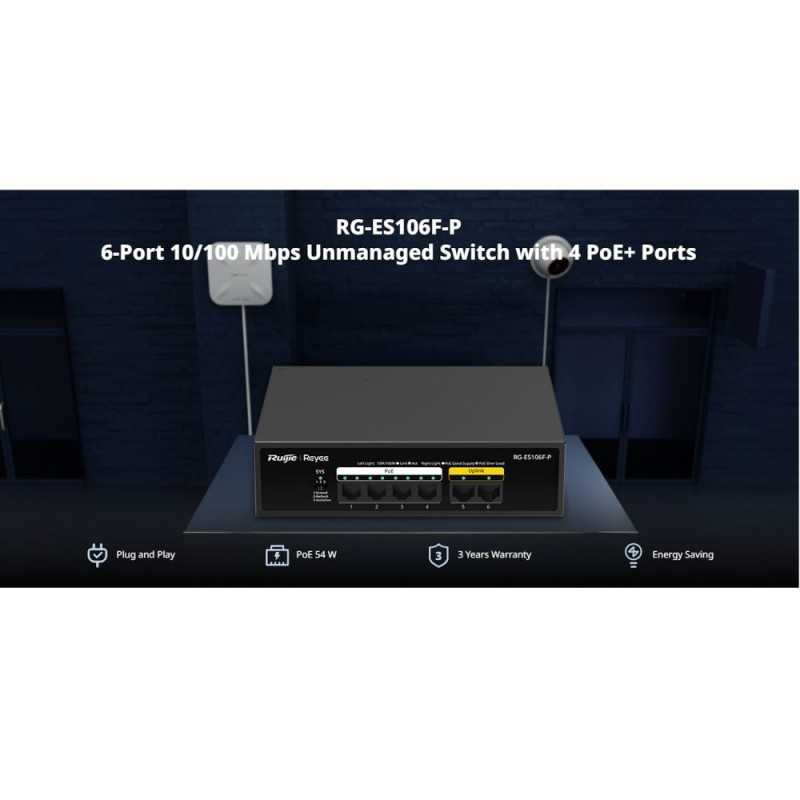

Ruijie RG-ES106F-P 6-Port 10/100 Mbps PoE Switch – Black Edition

Compact Power-over-Ethernet Switch for IP Cameras, Access Points & Small Networks

The Ruijie RG-ES106F-P is a compact 6-port Fast Ethernet PoE switch, designed to power and connect IP-based devices in small business, retail, or surveillance environments. With 4 PoE output ports, 4kV surge protection, and plug-and-play simplicity, it offers an ideal blend of performance, protection, and efficiency for installations where full gigabit bandwidth is not necessary.

This switch is purpose-built for powering IP cameras, wireless access points, VoIP phones, or similar devices — while offering quiet operation, reliable throughput, and low power consumption.

Key Features & Benefits
  • Power-over-Ethernet Simplicity
    Includes 4 PoE output ports compliant with IEEE 802.3af/at, delivering up to 30W per port and up to 60W total PoE budget — perfect for IP surveillance and wireless deployments.
  • Plug & Play Design
    No configuration required — simply connect powered devices and the switch will auto-detect and supply power safely.
  • Surge-Protected Stability
    Integrated 4kV surge protection safeguards all ports and connected devices from voltage spikes and lightning surges.
  • Fanless, Silent Cooling
    Operates with passive heat dissipation — no moving parts, no noise, no dust buildup.
  • Compact Desktop or Wall Mount Form Factor
    Designed to save space and integrate discreetly into any IT room, wall box, or network cabinet.
  • Dedicated Uplink Port
    Includes 1 uplink port for connecting to the internet gateway or main router without consuming PoE power budget.
Technical Specifications
  • Model: RG-ES106F-P
  • Product Type: Unmanaged Fast Ethernet PoE Switch

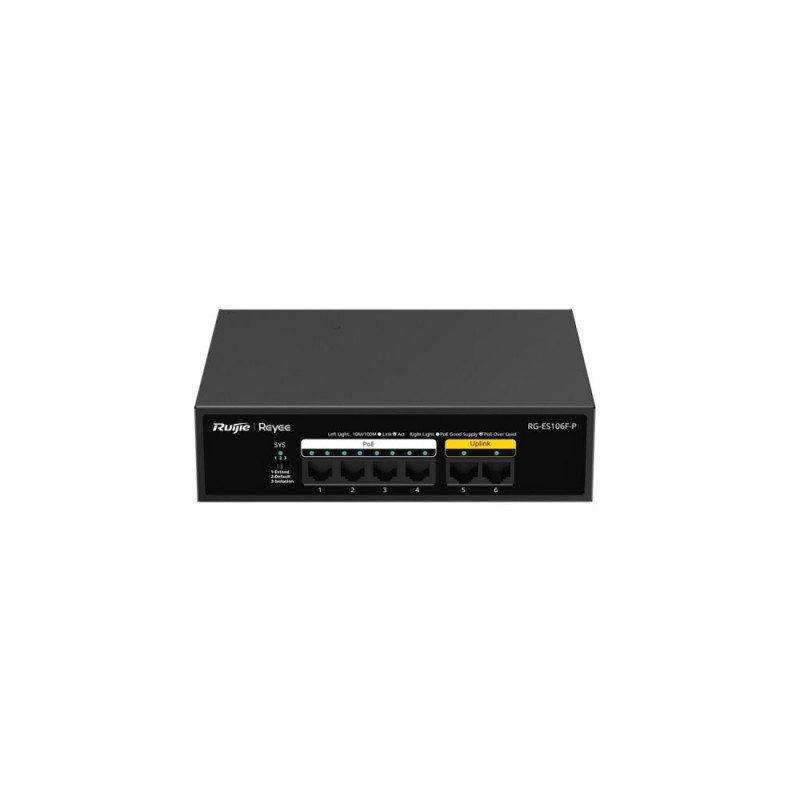

  • Ports:
  • 4 × 10/100 Mbps RJ45 PoE Output Ports
  • 1 × 10/100 Mbps RJ45 Uplink Port
  • 1 × 10/100 Mbps RJ45 Console Port (optional/diagnostic)
  • PoE Standard: IEEE 802.3af/at
  • PoE Power Budget: 60W total, 30W max per port
  • Switching Capacity: 1.2 Gbps
  • Forwarding Rate: 0.89 Mpps
  • MAC Address Table: 1,000 entries
  • Surge Protection: 4kV per port
  • Power Supply: External DC 48V / 1.5A (included)
  • Power Consumption: Max 63W
  • Cooling System: Fanless passive cooling
  • Dimensions: 14.0 × 8.0 × 2.6 cm
  • Net Weight: 300 g
  • Color: Black
  • Operating Temperature: 0°C to +40°C
  • Storage Temperature: -40°C to +70°C
  • Operating Humidity: 10% to 90% RH (non-condensing)
  • Storage Humidity: 5% to 95% RH
  • EAN: 6971693279056
What’s Included
  1. Ruijie RG-ES106F-P PoE Switch (Black)
  2. Power Adapter (48V / 1.5A)
  3. Wall Mount Screws (if included)
  4. Quick Start Guide
Why Choose Ruijie RG-ES106F-P?

This model is the go-to solution for small deployments requiring both network connectivity and power in one cable. Ideal for IP surveillance setups, hotel room APs, remote retail POS systems, or office VoIP environments — it's designed for rapid rollout, reliable uptime, and silent operation. Backed by Ruijie's commitment to efficient networking, it delivers professional-grade power delivery with a clean, affordable form.


Värvus Black
Pakend (EU Blister) - Retail packaging
Materjalid Plast, Silikoonid
Tüübid Datortehnikas aksesuāri

Dimensions and weights

Gross weight
0.34 kg
Package width
14 cm
Package height
8 cm
Package length
3 cm

Product codes

EAN
6971693279056
