Home page » Computers & IT»Networking»Switches»XS-4530YUP

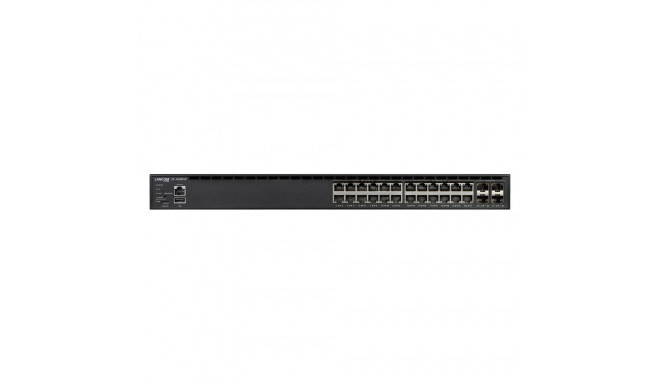

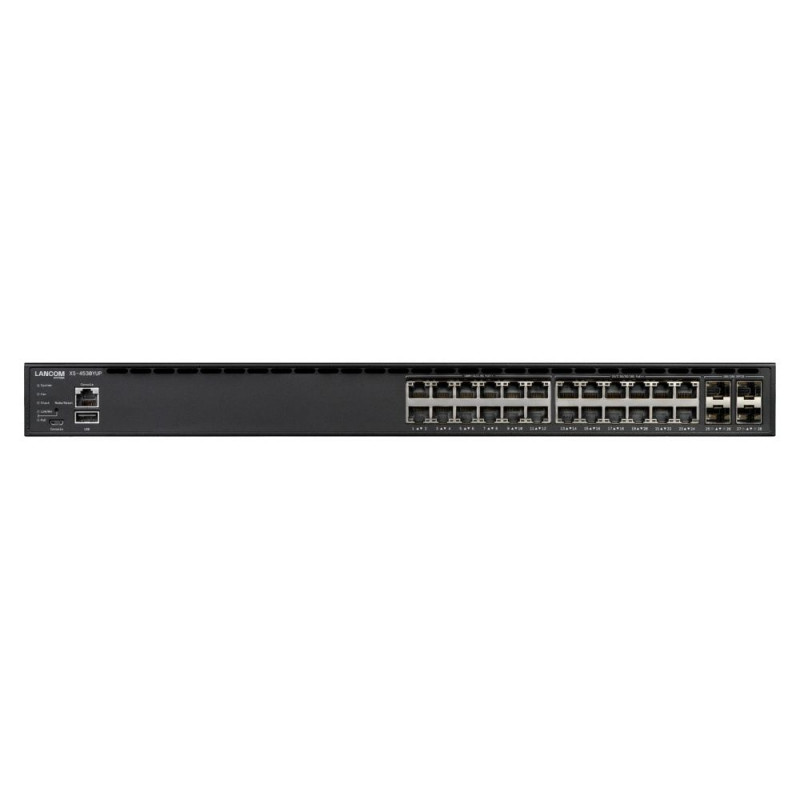

XS-4530YUP

8 769 €

Monthly payment starting from 298,88 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-14 working days

Free delivery

14 14 days return policy when purchasing online

"LANCOM XS-4530YUP. Switch-Typ: Managed, Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: 10G Ethernet (100/1000/10000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24, Konsolen-Port: RJ-45/Micro-USB. MAC-Adressentabelle: 32000 Eintragungen, Routing-/Switching-Kapazität: 900 Gbit/s. Netzstandard: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ad,.... Netzstecker: AC-Eingangsbuchse. Power over Ethernet (PoE). Rack-Einbau, Formfaktor: 1U"
Switch-Typ Managed
Switch-Ebene L3
Anzahl der basisschaltenden RJ-45 Ethernet Ports 24
Basic Switching RJ-45 Ethernet Ports-Typ 10G Ethernet (100/1000/10000)
Anzahl 2.5G Ethernet (Kupfer)-Ports 12
Anzahl 10G Ethernet (Kupfer)-Ports 12
Anzahl der USB Typ-A-Anschlüsse 1
Anzahl der Management-Ports 1 Stück(e)
Konsolen-Port RJ-45/Micro-USB
Anzahl QSFP28-Ports 2
Anzahl SFP28-Ports 4
Netzstecker AC-Eingangsbuchse
Virtuelle LAN-Funktionen IP subnet–based VLAN, MAC address-based VLAN, MVRP, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
Anzahl der VLANs 4093
Routing-/Switching-Kapazität 900 Gbit/s
Durchgang 670 Mpps
MAC-Adressentabelle 32000 Eintragungen
Anzahl der statischen Routen 16000
Jumbo-Frames 12288
Datenpaket-Pufferspeicher 8 MB
DHCP-Funktionen DHCP client, DHCP relay, DHCP server, DHCP snooping
Authentifizierung Gast VLAN
Autentifizierungstyp IEEE 802.1x, RADIUS, TACACS+
Router Protokoll BGP4, OSPFv2, OSPFv3, RIP-2, VRRP
Formfaktor 1U
Produktfarbe Schwarz
Gehäusematerial Metall
Anzahl Lüfter 2 Lüfter
Geräuschpegel 60 dB
Energiequelle AC/PoE
AC Eingangsspannung 100 - 240 V
AC Eingangsfrequenz 50/60 Hz
Stromverbrauch (max.) 1650 W
Anzahl der Power over Ethernet 4PPoE- (PoE++) Anschlüsse 24
Power over Ethernet (PoE) Leistung pro Anschluss 90 W
Gesamtleistung Power over Ethernet (PoE) 720 W
Betriebstemperatur 0 - 40 °C
Relative Luftfeuchtigkeit in Betrieb 10 - 90%
Wärmeableitung 715 BTU/h
Gewicht 6,2 kg
Mitgelieferte Kabel AC, Mikro-USB, Seriell
Verpackungsbreite 630 mm
Verpackungstiefe 590 mm
Verpackungshöhe 130 mm
Paketgewicht 6,45 kg
Konformitätsbescheinigungen CE, Eidgenössische Kommunikationskommission (FCC)
Zolltarifnummer (TARIC) 85176200
Ursprungsland Taiwan
Quality of Service (QoS) Support Ja
Web-basiertes Management Ja
ARP-Inspektion Ja
Konfiguration der Standorteinstellungen (CLI) Ja
Netzstandard IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3
10G-Unterstützung Ja
Port-Spiegelung Ja
Unterstützung Datenflusssteuerung Ja
Link Aggregation Ja
Broadcast-Sturmkontrolle Ja
Spannbaum-Protokoll Ja
Kabellängenerfassung Ja
VLAN-Unterstützung Ja
Store-and-Forward Ja
Statische Route Ja
Jumbo Frames Unterstützung Ja
Zugriffkontrollliste Ja
IGMP-Snooping Ja
IGMP-Proxy Ja
SSH-/SSL-Unterstützung Ja
Multicast Unterstützung Ja
Multicast Listener Discovery (MLD) Snooping Y
GARP VLAN Registration Protocol (GVRP) Ja
IP-Quellschutz (IPSG) Ja
Rack-Einbau Ja
Stapelbar Ja
DIN-Schienen-Montage Ja
Upgradefähige Firmware Ja
Netzteil enthalten Ja
Power over Ethernet (PoE) Ja
Schnellstartübersicht Ja
Ablageschienen Ja
Montageblöcke enthalten Ja

Dimensions and weights

Package width
44.2 cm
Package height
4.4 cm
Package length
44 cm

Product codes

EAN
4044144618857
