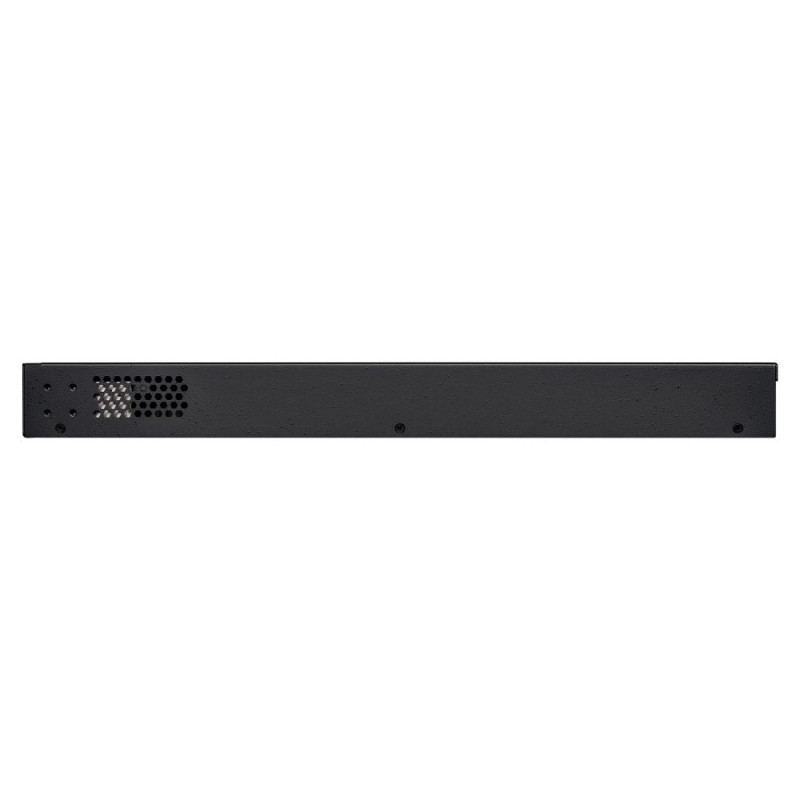

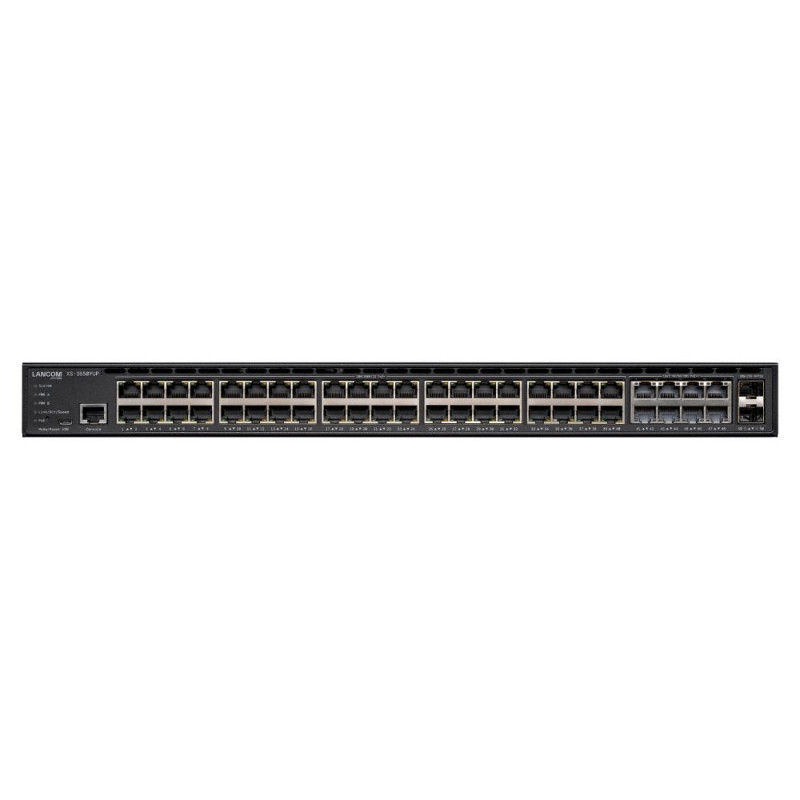

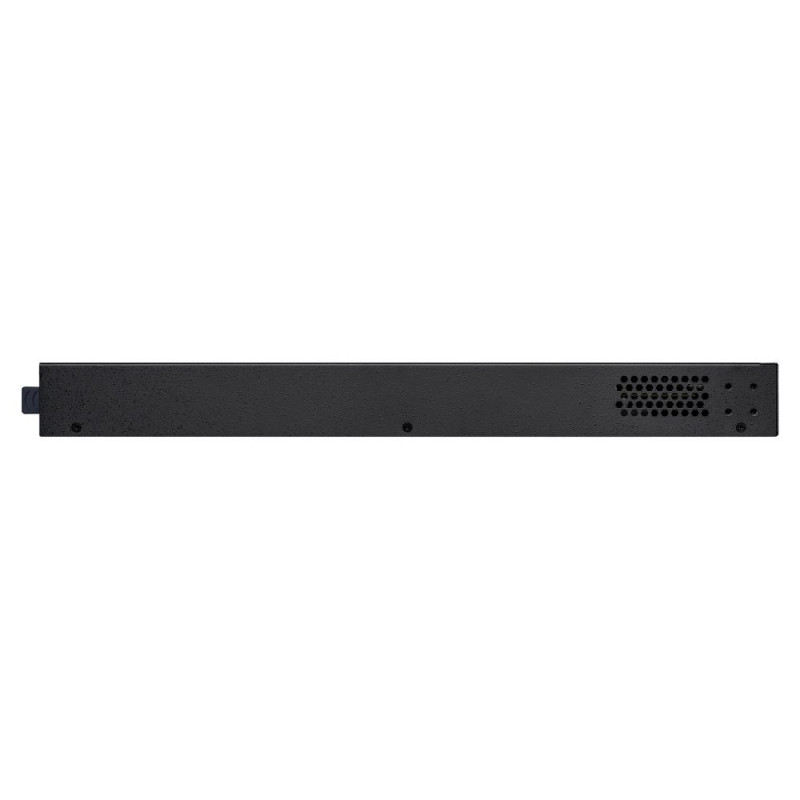

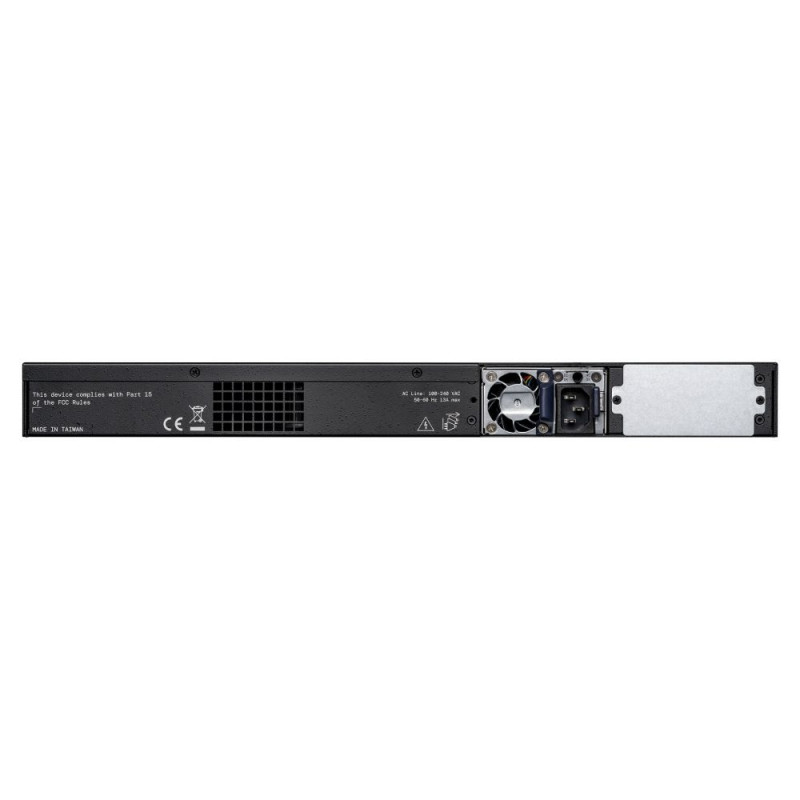

XS-3550YUP

5 489 €

Monthly payment starting from 187,08 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-14 working days

Free delivery

14 14 days return policy when purchasing online

"LANCOM XS-3550YUP. Switch-Typ: Managed, Switch-Ebene: L2/L3. Basic Switching RJ-45 Ethernet Ports-Typ: 10G Ethernet (100/1000/10000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 48, Konsolen-Port: RJ-45. MAC-Adressentabelle: 32000 Eintragungen. Netzstandard: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Netzstecker: AC-Eingangsbuchse. Power over Ethernet (PoE). Rack-Einbau, Formfaktor: 1U"
Switch-Typ Managed
Switch-Ebene L2/L3
MIB Unterstützung MIB II, Bridge MIB, Interface MIB, SMON MIB, IGMP MIB
Anzahl der basisschaltenden RJ-45 Ethernet Ports 48
Basic Switching RJ-45 Ethernet Ports-Typ 10G Ethernet (100/1000/10000)
Anzahl Gigabit Ethernet (Kupfer) Anschlüsse 40
Anzahl 10G Ethernet (Kupfer)-Ports 8
Konsolen-Port RJ-45
Anzahl SFP28-Ports 2
Netzstecker AC-Eingangsbuchse
Netzstandard IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
unterstütze Kabeltypen Cat6, Cat7
Virtuelle LAN-Funktionen Voice VLAN
Anzahl der VLANs 4093
Durchsatz 340 Gbit/s
MAC-Adressentabelle 32000 Eintragungen
Jumbo-Frames 10240
Datenpaket-Pufferspeicher 4 MB
DHCP-Funktionen DHCP server
IGMP-Einträge 1024
Autentifizierungstyp IEEE 802.1x, RADIUS, TACACS+
Formfaktor 1U
Produktfarbe Schwarz
Anzahl Lüfter 2 Lüfter
Geräuschpegel 62 dB
Energiequelle AC
AC Eingangsspannung 100 - 240 V
AC Eingangsfrequenz 50/60 Hz
Stromverbrauch (max.) 920 W
Anzahl Power over Ethernet (PoE) Anschlüsse 8
Betriebstemperatur 0 - 40 °C
Relative Luftfeuchtigkeit in Betrieb 10 - 90%
Wärmeableitung 683 BTU/h
Gewicht 6,3 kg
Verpackungsbreite 480 mm
Verpackungstiefe 570 mm
Verpackungshöhe 100 mm
Paketgewicht 5,7 kg
Zolltarifnummer (TARIC) 85176200
Ursprungsland Taiwan
Quality of Service (QoS) Support Ja
Konfiguration der Standorteinstellungen (CLI) Ja
Systemereignisprotokoll Ja
10G-Unterstützung Ja
Port-Spiegelung Ja
IP-Routing Ja
Unterstützung Datenflusssteuerung Ja
Link Aggregation Ja
Broadcast-Sturmkontrolle Ja
Ratenbeschränkung Ja
VLAN-Unterstützung Ja
Jumbo Frames Unterstützung Ja
Zugriffkontrollliste Ja
IGMP-Snooping Ja
IGMP-Proxy Ja
MAC Adressen Filtern Ja
Statische Anschlusssicherheit Ja
SSH-/SSL-Unterstützung Ja
Multicast Unterstützung Ja
Multicast Listener Discovery (MLD) Snooping Y
GARP VLAN Registration Protocol (GVRP) Ja
Rack-Einbau Ja
LED-Anzeigen Ja
Netzteil enthalten Ja
Power over Ethernet (PoE) Ja
Betriebsanleitung Ja

Dimensions and weights

Package width
44.2 cm
Package height
4.4 cm
Package length
44 cm

Product codes

EAN
4043619618910
