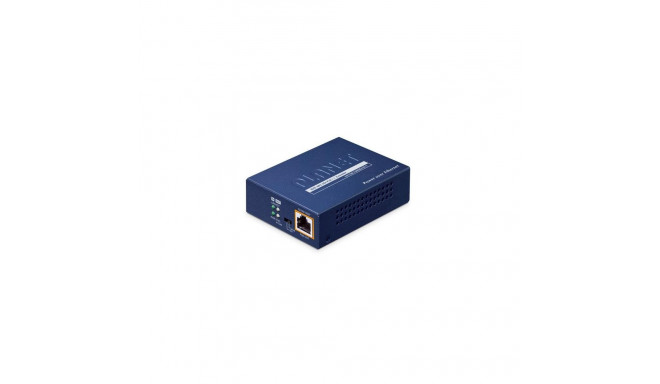

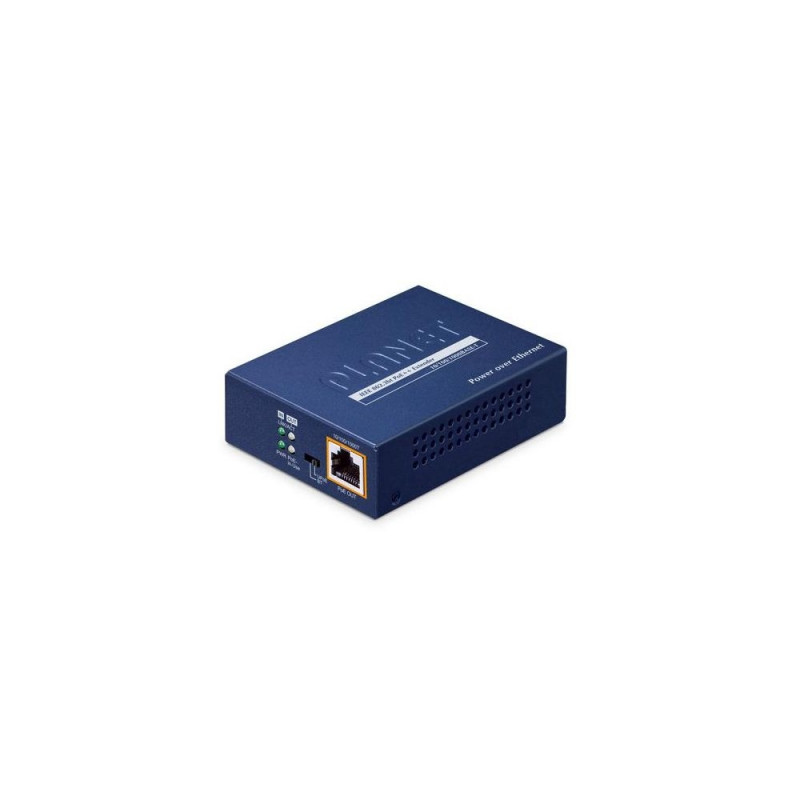

PLANET POE-E301 network extender Network transmitter & receiver Blue

116,99 €

Monthly payment starting from 3,50 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Long Distance 802.3bt PoE++ and Gigabit Data Extension Solution<br><br>PLANET POE-E301 is a simple extender that extends both the Gigabit Ethernet Data and IEEE 802.3bt/802.3at/802.3af Power over Ethernet transmission distance over the st

Warning: Last items in stock!

Add to cart

Delivery in 7-14 working days

Free delivery

14 14 days return policy when purchasing online

Long Distance 802.3bt PoE++ and Gigabit Data Extension Solution<br><br>PLANET POE-E301 is a simple extender that extends both the Gigabit Ethernet Data and IEEE 802.3bt/802.3at/802.3af Power over Ethernet transmission distance over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m, 300m, 400m and the maximum 400m. The POE-E301 can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ input port and the output port can supply a maximum of 65-watt power, providing a simple solution to achieve more wide-coverage network applications without requiring an external power adapter.<br><br>No matter how many PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones are deployed, they are easily installed without the need of having an additional electrical outlet. However, limited by the UTP cabling, only up to 100 meters (328 ft.) of cable is used. Thus, the POE-E301 is designed as the extender to transmit both Gigabit Ethernet data and 802.3bt PoE++ power over another distance of 100m. By daisy-chaining multiple POE-E301s, distance can be tripled or quadrupled to meet your requirements.<br><br>With its ability to provide 802.3bt PoE++ and Gigabit Ethernet data extension, the POE-E301 is an ideal networking solution for service providers, campuses and public areas. It enables you to centrally manage the power easily, efficiently and cost-effectively no matter how remote the location is.<br><br><br>Plug and Play, and Easy Cabling Installation<br><br>The POE-E301 Gigabit 802.3af/at/bt PoE Extender is quite easy to be installed by the simple plug and play configuration. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E301 injects power to the PD without affecting the data transmission performance. It offers a cost-effective and quick solution to double the standard range of PoE from 100 to 200 meters. The POE-E301 Compact 2-Port 802.3af/at/bt PoE Extender, suitable for use, features 2 1000Mbps auto-negotiation ports, of which the "PoE IN" port functions as PoE (Data and Power) input and the "PoE OUT" port on the other side functions as PoE (Data and Power) output. The "PoE OUT" port is also the power injector to transmit DC voltage via the Cat. 5/5e/6 cable and transfer data and power simultaneously between the PSE and a PD. <br><br><br><br>Learn more: https://www.planet.com.tw/en/product/poe-e301PLANET POE-E301. Type: Network transmitter & receiver, Maximum transfer distance: 400 m. Product colour: Blue, Housing material: Metal, Certification: FCC Part 15 Class A, CE. Width: 94 mm, Depth: 70 mm, Height: 26 mm

Extended warranties and insurance:

  • Additional warranty (2 years) - 29,99 €
  • Additional warranty + insurance (2 + 1 year) - 39,99 €
  • Insurance (1 year) - 29,99 €
  • Insurance (2 years) - 49,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Package width
94 cm
Package height
26 cm
Package length
70 cm

Product codes

EAN
4711605287340
Manufacturer code
POE-E301
