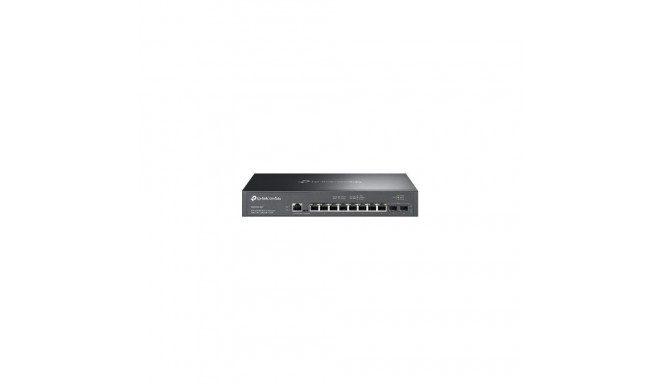

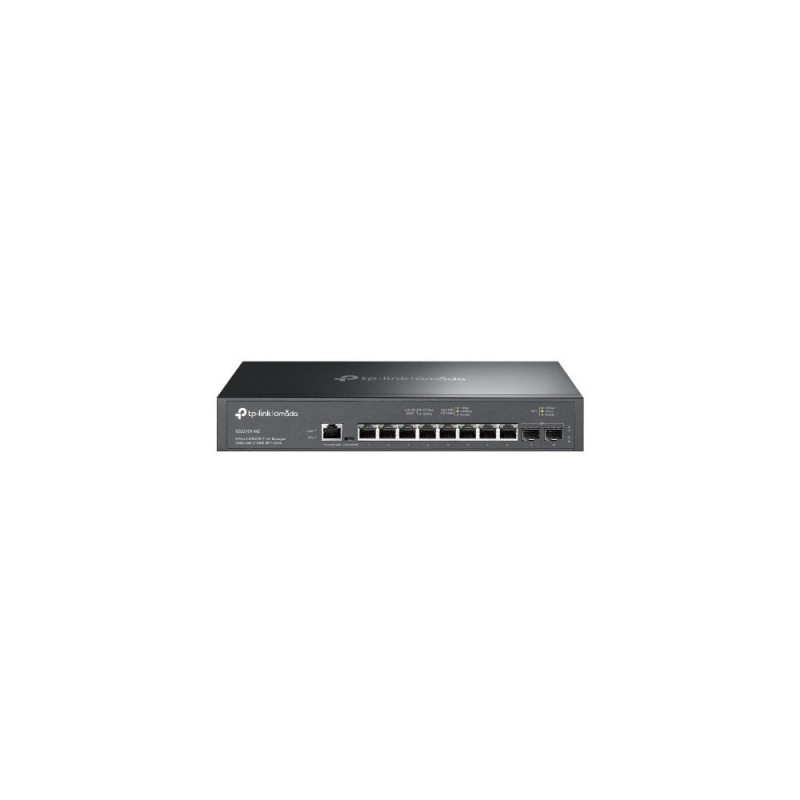

TP-Link Omada 8-Port 2.5G L2+ Managed Switch

Main info

Product has been archived


Certification CE, FCC, RoHS
Depth 180 mm
Multicast support Yes
Basic switching RJ-45 Ethernet ports quantity 8
IGMP snooping Yes
Switching capacity 80 Gbit/s
MAC address table 16000 entries
Management protocols SNMPv1/v2c/v3, SNTP
Switch layer L2+
Port mirroring Yes
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
10G support Yes
Authentication MAC-based authentication, Port-based authentication
Number of fans 2 fan(s)
Static port security Yes
Rack mounting Yes
Power supply included Yes
Spanning tree protocol Yes
Jumbo frames 9000
BPDU filtering/protection Yes
MIB support RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
VLAN support Yes
Switch type Managed
Console port RJ-45/Micro-USB
SSH/SSL support Yes
Traffic classification Yes
Packet buffer memory 12 MB
Power connector AC-in jack
Jumbo frames support Yes
Number of VLANs 4000
Password protection Yes
Harmonized System (HS) code 85176990
Flow control support Yes
SFP+ module slots quantity 2
Heat dissipation 51.18 BTU/h
Access Control List (ACL) Yes
Height 44 mm
Loop protection Yes
Number of static routes 48
Static route Yes
System event log Yes
Broadcast storm control Yes
Multicast Listener Discovery (MLD) snooping Y
IP-MAC-Port binding Yes
Link aggregation Yes
IP routing Yes
Forwarding rate 59.52 Mpps
ARP inspection Yes
Head-of-line (HOL) blocking Yes
Configuring Location Settings (CLI) Yes
Rate limiting Yes
Fanless Yes
Number of IP interfaces 16
GARP VLAN Registration Protocol (GVRP) Yes
Cloud-managed Yes
2.5G Ethernet (copper) ports quantity 8
Authentication type AAA, TACACS+
Package weight 2.84 kg
Web-based management Yes
MAC address filtering Yes
Package depth 250 mm
Ethernet LAN data rates 100,1000,2500 Mbit/s
Quick start guide Yes
Storage temperature (T-T) -40 - 70 °C
Quality of Service (QoS) support Yes
LED indicators Yes
Width 294 mm
Form factor 1U
AC input frequency 50/60 Hz
Package width 528 mm
Operating relative humidity (H-H) 10 - 90%
Package type Box
Cables included AC
Power consumption (typical) 15 W
Power source AC
Product colour Black
Operating temperature (T-T) 0 - 50 °C
Package height 80 mm
Storage relative humidity (H-H) 5 - 90%
AC input voltage 100 - 240 V
Warranty 24 (G)
Queue scheduling algorithms Weighted Round Robin (WRR)
DHCP features DHCP snooping
Virtual LAN features Voice VLAN
Security algorithms SSH
Networking standards IEEE 802.1D

Dimensions and weights

Package width
408 cm
Package height
87 cm
Package length
254 cm

Product codes

EAN
4897098689523
Manufacturer code
SG3210X-M2
