Home page » Computers & IT»Networking»Switches»Cisco Catalyst C1300-16XTS network switch Managed L2/L3 Grey

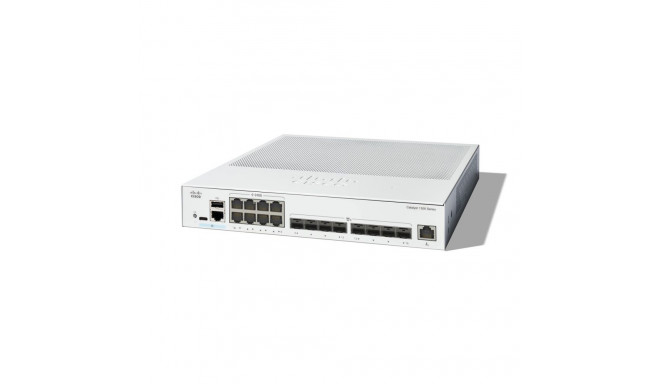

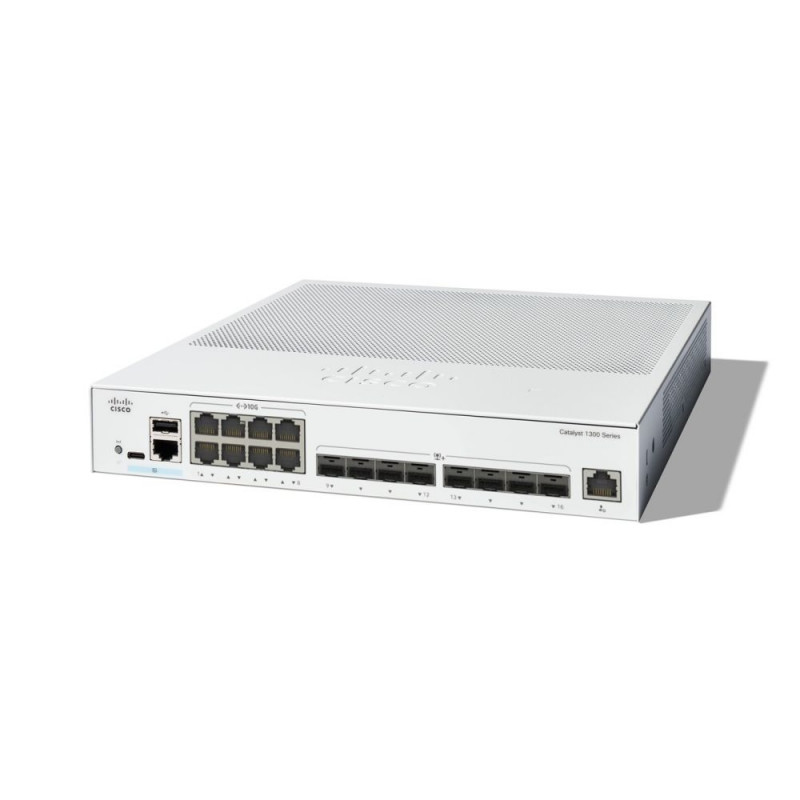

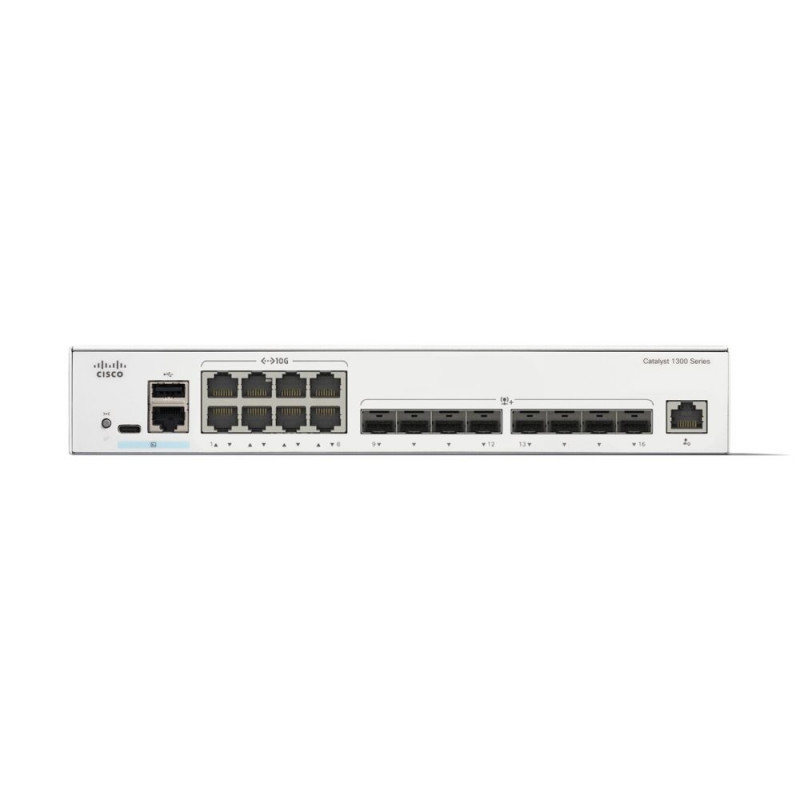

Cisco Catalyst C1300-16XTS network switch Managed L2/L3 Grey

Main info

Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A Switch type

Product has been archived


Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Switch type Managed
SFP+ module slots quantity 8
IGMP snooping Yes
Width 300 mm
Access Control List (ACL) Yes
Rack mounting Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Packet buffer memory 3 MB
Port mirroring Yes
DHCP features DHCP snooping
MAC address table 16000 entries
Power source AC
Multicast support Yes
IPv4 & IPv6 features IPv6 SNMP
Switch layer L2/L3
Country of origin China
Package depth 402.3 mm
Package width 355.9 mm
Flash memory 512 MB
VLAN support Yes
Security algorithms SNMPv2
Networking standards IEEE 802.3at
Head-of-line (HOL) blocking Yes
Package height 103.7 mm
Configuring Location Settings (CLI) Yes
AC input frequency 50/60 Hz
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Quality of Service (QoS) support Yes
Internal memory 1000 MB
SSH/SSL support Yes
Static route Yes
Authentication MAC-based authentication, Web-based authentication
Policy-based routing Yes
Authentication type RADIUS, TACACS+
MIB support Y
Product colour Grey
Rate limiting Yes
Storage relative humidity (H-H) 10 - 90%
Web-based management Yes
GARP VLAN Registration Protocol (GVRP) Yes
Depth 268 mm
Virtual LAN features Voice VLAN
Reset button Yes
Built-in processor Yes
Number of static routes 990
Access Control List (ACL) rules 1024
AC input voltage 100 - 220 V
Jumbo frames support Yes
Power plug type Type C
Broadcast storm control Yes
Plug and Play Yes
Number of queues 8
Processor frequency 1.4 MHz
Switching capacity 320 Gbit/s
Link aggregation Yes
DoS attack prevention Yes
Weight 2.68 kg
Operating temperature (T-T) -5 - 50 °C
Spanning tree protocol Yes
Jumbo frames 9000
Package weight 3.56 kg
IGMP proxy Yes
Memory type DDR4-SDRAM
Height 44 mm
10G Ethernet (copper) ports quantity 8
QinQ implementation Selective QinQ
Warranty 24 (G)

Dimensions and weights

Package width
235 cm
Package height
260 cm
Package length
180 cm

Product codes

EAN
0889728521482
Manufacturer code
C1300-16XTS
