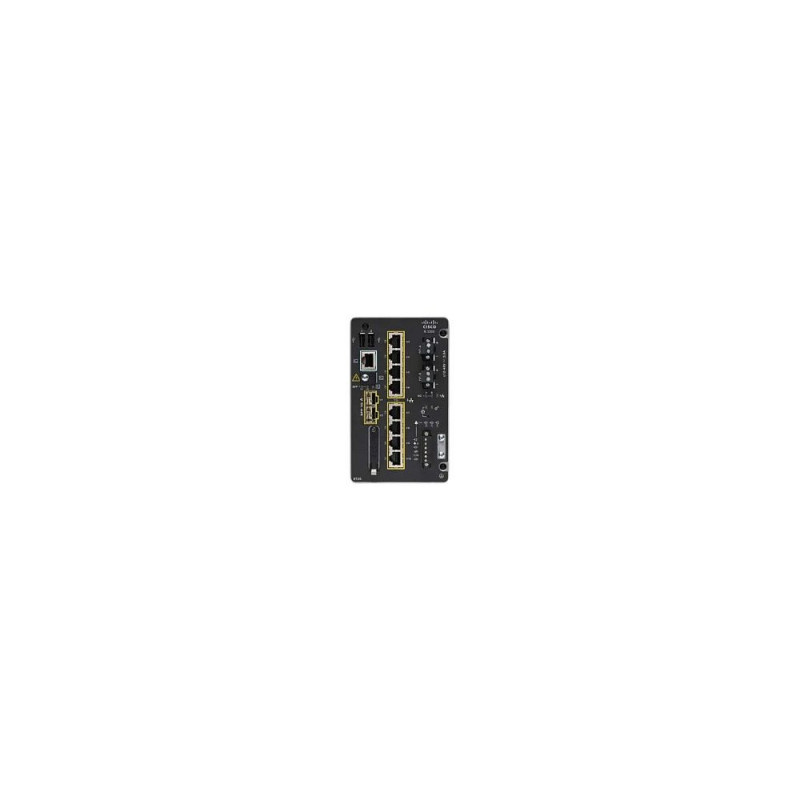

"Cisco CATALYST IE3300 RUGGED SERIES"

3 829 €

Monthly payment starting from 130,51 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-14 working days

Free delivery

14 14 days return policy when purchasing online

"Cisco Catalyst IE-3300-8T2S-E. Switch-Typ: Managed, Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8, Anzahl USB 2.0 Anschlüsse: 2, Konsolen-Port: RJ-45. MAC-Adressentabelle: 8000 Eintragungen. Netzstandard: IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE.... DC input Spannung: 9.6 - 60 V. Netzstecker: DC-Anschluss. Rack-Einbau"
Switch-Typ Managed
Switch-Ebene L2
Anzahl der basisschaltenden RJ-45 Ethernet Ports 8
Basic Switching RJ-45 Ethernet Ports-Typ Gigabit Ethernet (10/100/1000)
Anzahl Gigabit Ethernet (Kupfer) Anschlüsse 8
Menge SFP-Modul-Steckplätze 2
Konsolen-Port RJ-45
Anzahl USB 2.0 Anschlüsse 2
Kompatible Speicherkarten SD
Netzstecker DC-Anschluss
Anzahl der VLANs 256
MAC-Adressentabelle 8000 Eintragungen
Anzahl Queues 8
Jumbo-Frames 8996
DHCP-Funktionen DHCP server
Zugriffskontrollliste (ACL) Eingang 3000
IGMP-Einträge 1000
Unterstützte Sicherheitsalgorithmen 802.1x RADIUS, SNMPv3, SSH
Authentifizierung Gast VLAN, MAC-basierte Authentifizierung
Autentifizierungstyp IEEE 802.1x, RADIUS, TACACS+
Management-Protokolle IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, and RSTP
Switch Protokoll IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Produktfarbe Schwarz
Internationale Schutzart (IP-Code) IP20
Speicherkapazität 2000 MB
Flash-Speicher 1500 MB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF) 633420 h
DC input Spannung 9.6 - 60 V
Eingangsstrom 3.8 A
Stromverbrauch (Standardbetrieb) 23 W
Betriebstemperatur -40 - 75 °C
Temperaturbereich bei Lagerung -40 - 85 °C
Relative Luftfeuchtigkeit in Betrieb 5 - 95%
Luftfeuchtigkeit bei Lagerung 5 - 95%
Höhe bei Betrieb 0 - 4572 m
Gewicht 1,7 kg
Zertifizierung UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55
Warentarifnummer (HS) 85176990
Quality of Service (QoS) Support Ja
ARP-Inspektion Ja
Systemereignisprotokoll Ja
Netzstandard IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
10G-Unterstützung Nein
Link Aggregation Ja
Broadcast-Sturmkontrolle Ja
Spannbaum-Protokoll Ja
Jumbo Frames Unterstützung Ja
Zugriffkontrollliste Ja
IGMP-Snooping Ja
MAC Adressen Filtern Ja
BPDU-Filterung/Schutz Ja
Multicast Unterstützung Ja
Rack-Einbau Ja
LED-Anzeigen Ja
DIN-Schienen-Montage Ja
Netzteil enthalten Ja
Unterstützung für redundantes Netzteil Ja
Power over Ethernet (PoE) Nein
MIB Unterstützung 802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-M

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 399,99 €
  • Additional warranty (2 years) - 229,99 €
  • Insurance (1 year) - 259,99 €
  • Insurance (2 years) - 399,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
2.325 kg
Package width
9.1 cm
Package height
15.2 cm
Package length
13.5 cm
