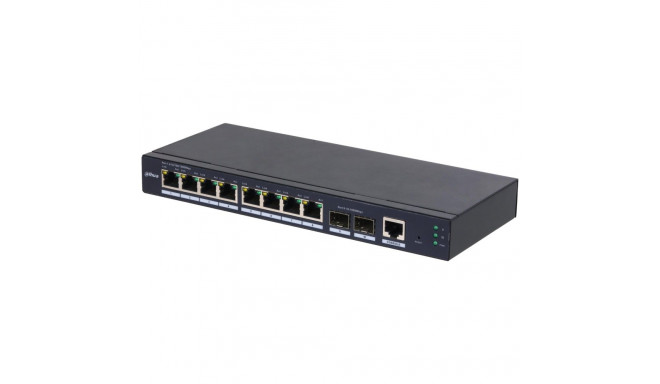

Switch|DAHUA|DH-SG4010-2F|SG4010-2F

82,99 €

Monthly payment starting from 2,48 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 2-4 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Equipped with a high performance switching engine, the 8 Port All- Gigabit Managed Switch performs optimally. It has low transmission delay, large buffer and is highly reliable. It also has a strong switching
capability and optimizes transmission performance when accessing Ultra HD videos. With its full metal design and fanless design, the device has great heat dissipation and is low power consumption, working
in environments ranging from –10°C to 55°C (+14°F to +131°F). With protection against overvoltage, EMC and overcurrent from power input terminals, the switch effectively resists interference from static electricity, lightning, and pulses. It also offers a variety of services, supporting IGMP Snooping, Link Aggregation, QoS, LLDP, STP/RSTP and various web and network management software based on SNMP.

Link Layer Discovery Protocol (LLDP)
Enables network devices to advertise their information mutually, al- lowing you to conveniently monitor and manage devices in the local topology. This makes it easy for administrators to effectively perform
troubleshooting.

Quality of Service (QoS)
Uses mechanisms designed to control bandwidth, delay, jitter, and loss to ensure the performance of services when the capacity is limited.

Spanning Tree Protocol (STP)
Uses algorithms that calculate the best loop-free path through a Layer 2 network while providing path redundancy to prevent the occurrence of broadcast storms and enhance the stability of operations and services.

Link Aggregation
Combines multiple physical links into one virtual channel for dynamic redundancy and load balancing, ensuring that the connection remains stable.

IGMP Snooping
Listens to multicast traffic, and solely forwards information to regis- tered clients based on the multicast forwarding table. This ensures the safety of information and improves network efficiency.

Fanless Design
The fanless design reduces noise, enhances user experience, reduces mechanical losses and improves service life to a certain extent.

  • Layer 2 network managed switch
  • Network redundancy: STP/RSTP
  • Static link aggregation and LACP
  • Devices discovery based on LLDP
  • QoS (IEEE802.1p/1Q) to increase determinism
  • IGMP Snooping
  • Fanless design
  • EMC high protection design
  • Desktop and wall-mounted installation


Infot ka tootja kodulehelt.
Management features Cloud-managed - No, Quality of Service (QoS) support - Yes, Switch layer - L2, Switch type - Managed, Web-based management - Yes
Ports & interfaces Basic switching RJ-45 Ethernet ports quantity - 8, Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000), Console port - RJ-45, Gigabit Ethernet (copper) ports quantity - 8, SFP module slots quantity - 2, Uplink ports quantity - 2
Optical fiber Fiber ethernet cabling technology - 1000BASE-X
Data transmission Forwarding rate - 14.88 Mpps, Jumbo frames - 9000, Jumbo frames support - Yes, MAC address table - 8000 entries, Packet buffer memory - 4.1 MB, Switching capacity - 20 Gbit/s
Security Access Control List (ACL) - Yes, DHCP features - DHCP client, IGMP snooping - Yes
Multicast features Multicast support - Yes
Protocols Management protocols - SNMP V1/V2C/V3
Design Housing material - Steel, LED indicators - Yes, Product colour - Black, Rack mounting - No, Reset button - Yes, Wall mountable - Yes
Performance Fanless - Yes, Mean time between failures (MTBF) - 2322286.99 h
Power DC input voltage - 12 V, Input current - 1 A, Power consumption (max) - 12 W, Power source - DC
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Operational conditions Operating relative humidity (H-H) - 5 - 95 %, Operating temperature (T-T) - -10 - 55 °C
Weight & dimensions Weight - 640 g
Packaging data Package depth - 316 mm, Package height - 82 mm, Package weight - 1040 g, Package width - 240 mm
Sustainability Sustainability compliance - Yes
Certificates Compliance certificates - CE
Model name DH-SG4010-2F
Units per Shipping Box 12
Unit Calculated Volume 0.007659 cubm
Unit Calculated Weight 1.18 kg
Summary Dahua Technology SG4010-2F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entr
Network 10G support - No, Copper ethernet cabling technology - 1000BASE-T/100BASE-TX/10BASE-T, Ethernet LAN data rates - 10,100,1000 Mbit/s, Flow control support - Yes, Full duplex - Yes, Link aggregation - Yes, Networking standards - IEEE 802.1p/IEEE 802.1Q/IEEE
