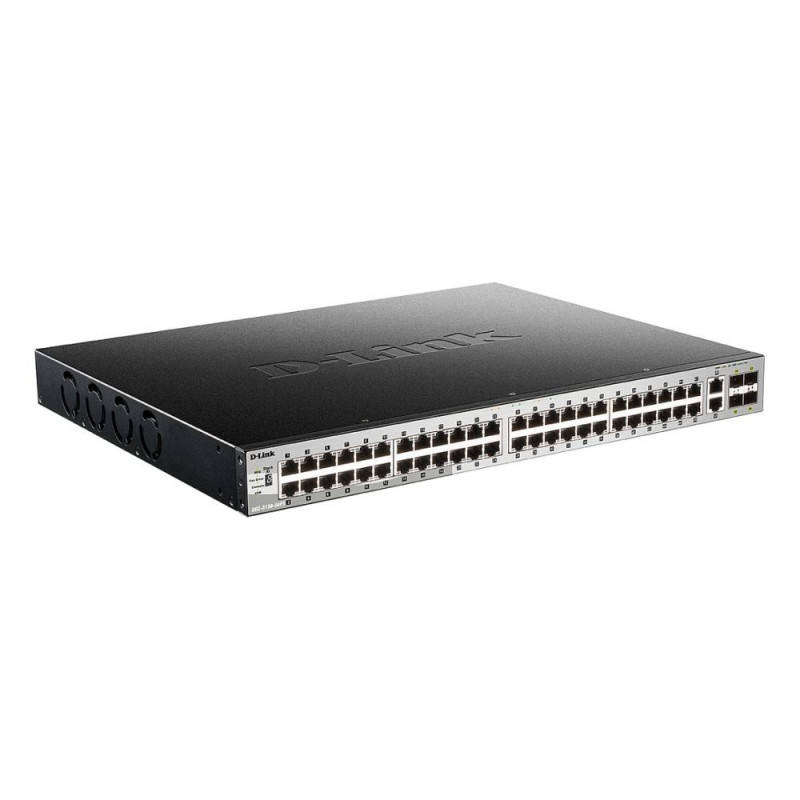

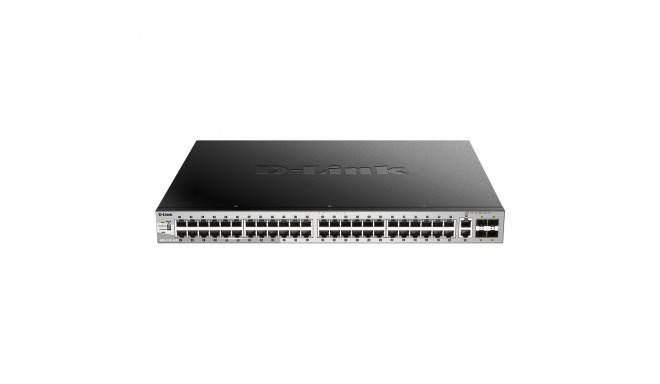

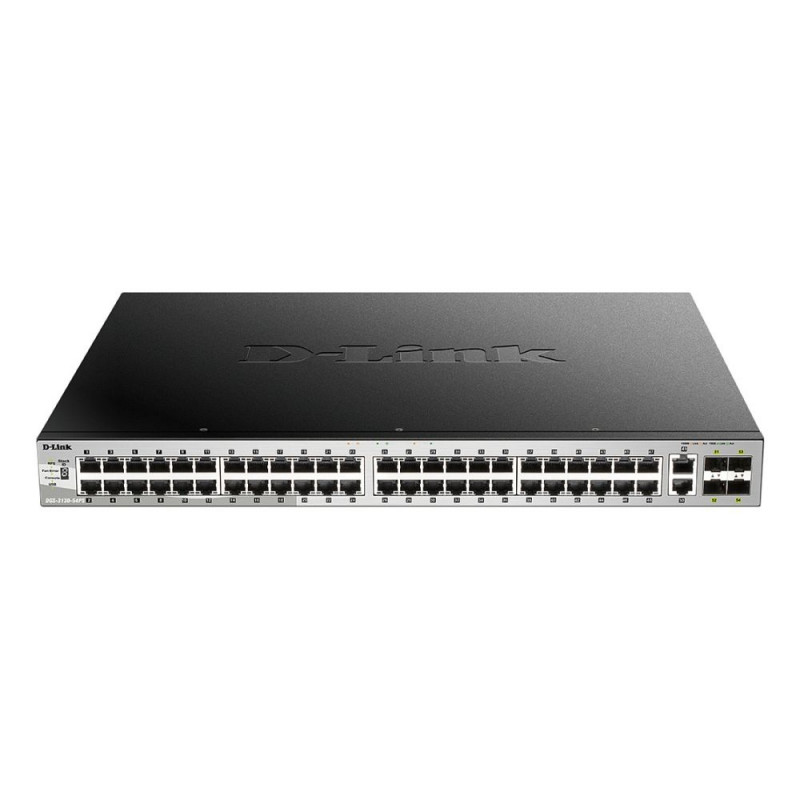

"D-Link DGS-3130-54PS/E 54-Port L2+ PoE Gigabit Stack Switch"

2 589 €

Monthly payment starting from 88,24 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-14 working days

Free delivery

14 14 days return policy when purchasing online

"D-Link DGS-3130-54PS/E. Switch-Typ: Managed, Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 48, Anzahl USB 2.0 Anschlüsse: 1, Konsolen-Port: RJ-45. MAC-Adressentabelle: 16384 Eintragungen, Routing-/Switching-Kapazität: 216 Gbit/s. Netzstandard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Netzstecker: AC-Eingangsbuchse. Power over Ethernet (PoE). Rack-Einbau"
Switch-Typ Managed
Switch-Ebene L3
Anzahl der basisschaltenden RJ-45 Ethernet Ports 48
Basic Switching RJ-45 Ethernet Ports-Typ Gigabit Ethernet (10/100/1000)
Menge Modul-Steckplätze SFP+ 4
Optischer Kabelverbinder SFP+
Konsolen-Port RJ-45
Anzahl USB 2.0 Anschlüsse 1
Netzstecker AC-Eingangsbuchse
Kupfer Ethernet Verkabelungstechnologie 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Virtuelle LAN-Funktionen MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Anzahl der VLANs 4000
Routing-/Switching-Kapazität 216 Gbit/s
Transferrate 161 Mpps
MAC-Adressentabelle 16384 Eintragungen
Anzahl Queues 8
Datenpaket-Pufferspeicher 2 MB
DHCP-Funktionen DHCP client, DHCP relay, DHCP server, DHCP snooping
Zugriffskontrollliste (ACL) Ausgang 512
Zugriffskontrollliste (ACL) Eingang 2048
Unterstützte Sicherheitsalgorithmen SNMP, SNMPv3, SSH-2, SSL/TLS
Authentifizierung MAC-basierte Authentifizierung, Port-basierte Authentifizierung, Webbasierte Authentifizierung
Warteschleifenplanungs-Algorithmen Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)
Multicast-Funktionen Steuerbarer Multicast
Router Protokoll RIP
Produktfarbe Grau
Anzahl Lüfter 4 Lüfter
Physisches Stacking (Einheiten) 9
Virtuelles Stacking (Einheiten) 32
Geräuschpegel 56 dB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF) 356876 h
Energiequelle DC/PoE
AC Eingangsspannung 100 - 240 V
AC Eingangsfrequenz 50 - 60 Hz
Stromverbrauch (max.) 474,51 W
Anzahl Power over Ethernet plus (PoE+) Anschlüsse 48
Gesamtleistung Power over Ethernet (PoE) 370 W
Betriebstemperatur 0 - 50 °C
Temperaturbereich bei Lagerung -40 - 70 °C
Relative Luftfeuchtigkeit in Betrieb 10 - 90%
Luftfeuchtigkeit bei Lagerung 5 - 90%
Wärmeableitung 1619,03 BTU/h
Gewicht 6,2 kg
Quality of Service (QoS) Support Ja
Web-basiertes Management Ja
ARP-Inspektion Ja
Systemereignisprotokoll Ja
Netzstandard IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
10G-Unterstützung Ja
Port-Spiegelung Ja
Unterstützung Datenflusssteuerung Ja
Link Aggregation Ja
Broadcast-Sturmkontrolle Ja
Spannbaum-Protokoll Ja
Head-of-Line (HOL)-Blocking Ja
VLAN-Unterstützung Ja
Jumbo Frames Unterstützung Ja
Zugriffkontrollliste Ja
IGMP-Snooping Ja
SSH-/SSL-Unterstützung Ja
Loop Protection Ja
BPDU-Filterung/Schutz Ja
Passwortschutz Ja
Multicast Unterstützung Ja
GARP VLAN Registration Protocol (GVRP) Ja
Rack-Einbau Ja
Stapelbar Ja
LED-Anzeigen Ja
Unterstützung für redundantes Netzteil Ja
Power over Ethernet (PoE) Ja
MIB Unterstützung RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215;

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 399,99 €
  • Additional warranty (2 years) - 229,99 €
  • Insurance (1 year) - 259,99 €
  • Insurance (2 years) - 399,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Package width
44 cm
Package height
4.4 cm
Package length
43 cm

Product codes

EAN
0790069469992
