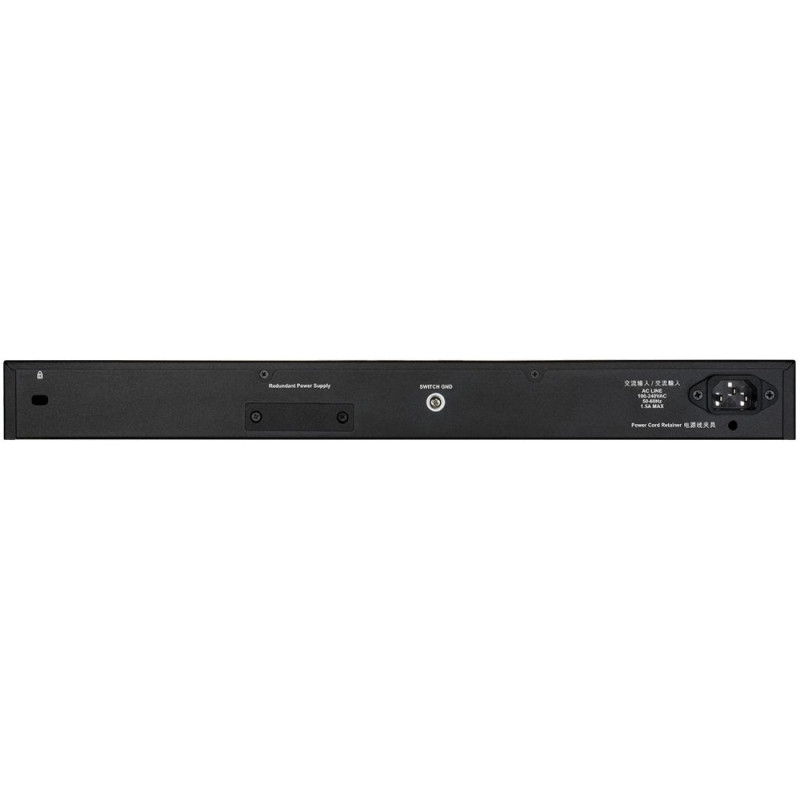

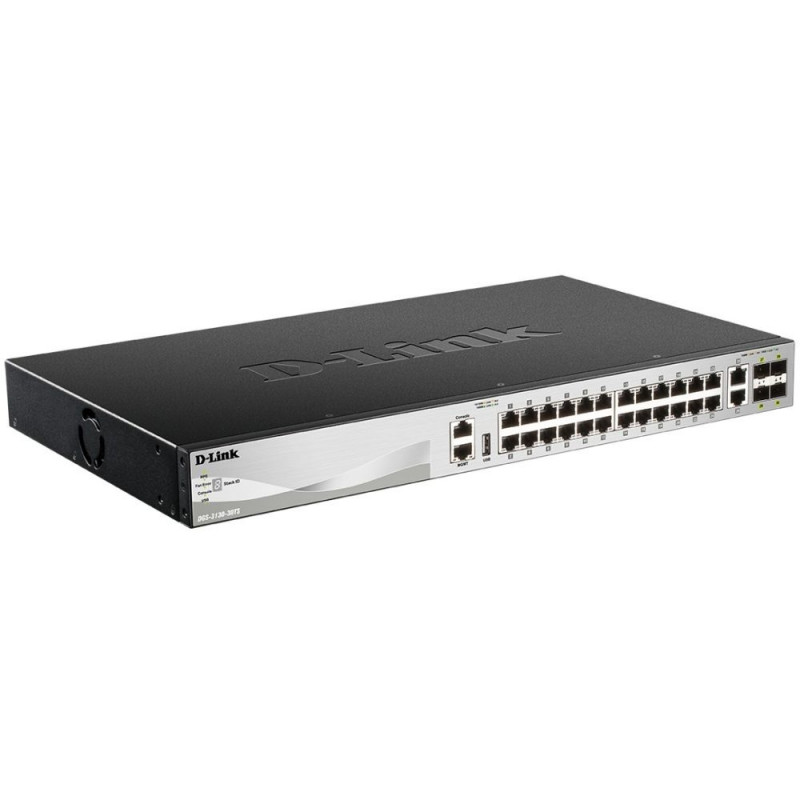

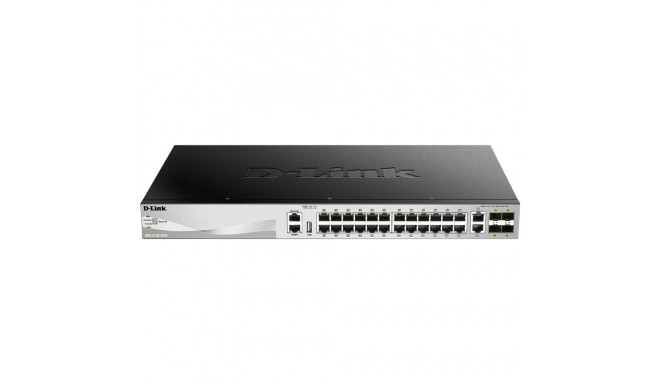

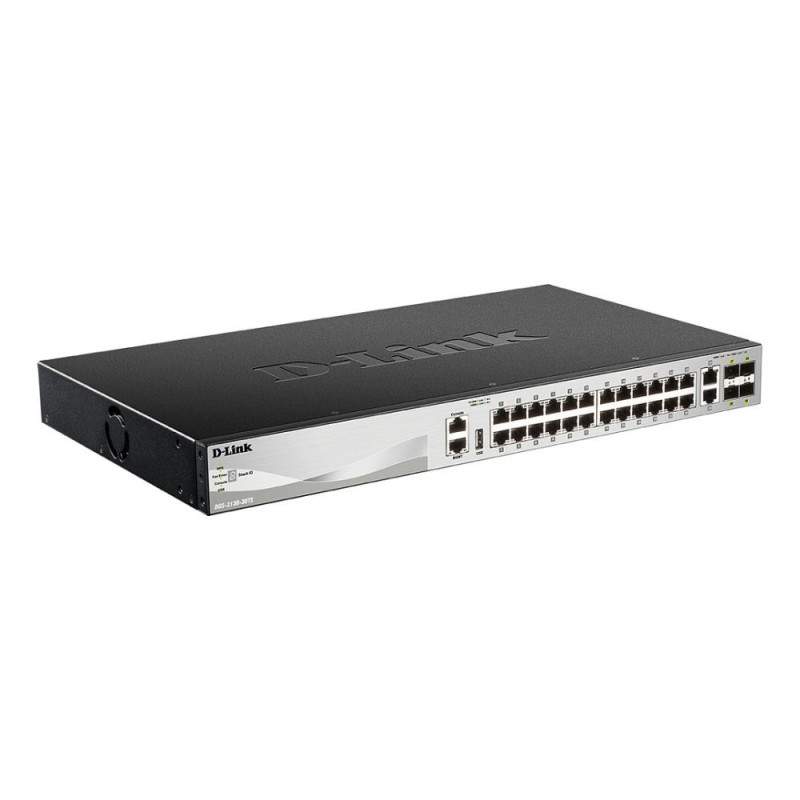

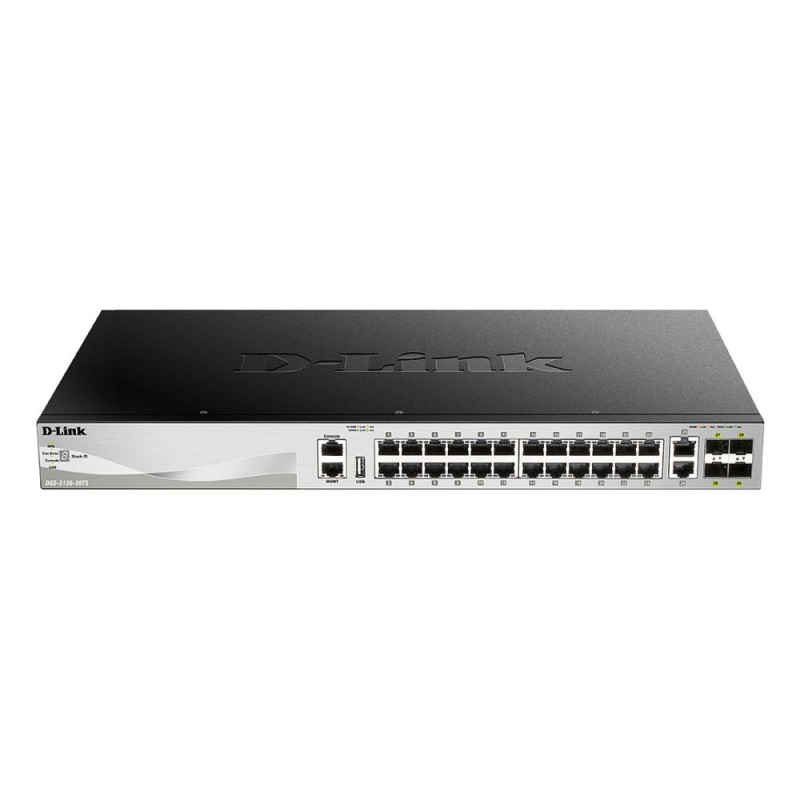

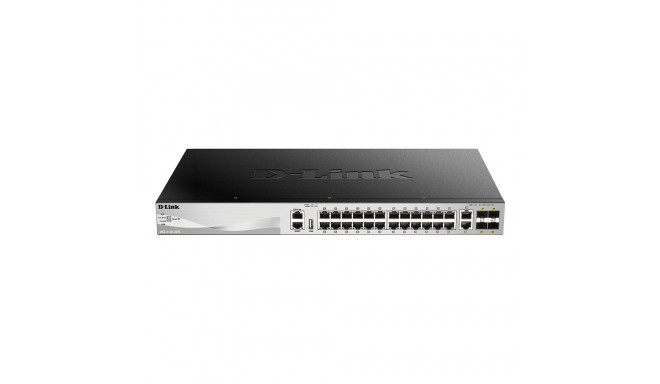

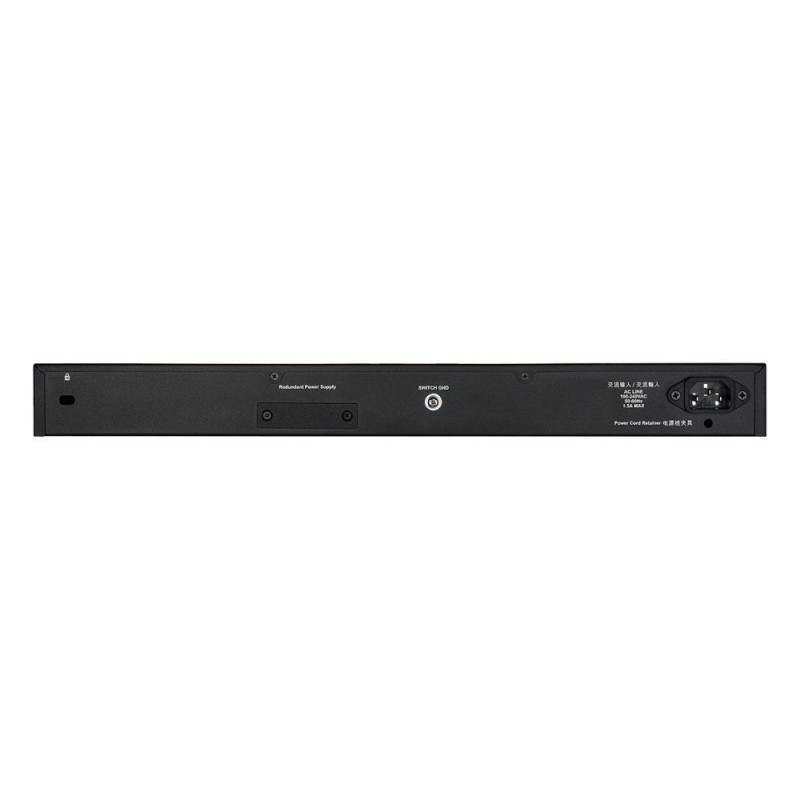

"D-Link DGS-3130-30TS/E 30-Port L2+ Gigabit Stack Switch"

1 019 €

Monthly payment starting from 34,73 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-14 working days

Free delivery

14 14 days return policy when purchasing online

"D-Link DGS-3130-30TS/E. Switch-Typ: Managed, Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24, Anzahl USB 2.0 Anschlüsse: 1. MAC-Adressentabelle: 16384 Eintragungen, Routing-/Switching-Kapazität: 168 Gbit/s. Netzstandard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Netzstecker: AC-Eingangsbuchse"
Switch-Typ Managed
Switch-Ebene L3
Anzahl der basisschaltenden RJ-45 Ethernet Ports 24
Basic Switching RJ-45 Ethernet Ports-Typ Gigabit Ethernet (10/100/1000)
Anzahl 10G Ethernet (Kupfer)-Ports 2
Menge Modul-Steckplätze SFP+ 4
Optischer Kabelverbinder SFP+
Anzahl USB 2.0 Anschlüsse 1
Netzstecker AC-Eingangsbuchse
Netzstandard IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
Kupfer Ethernet Verkabelungstechnologie 10BASE-T, 10GBASE-T, 100BASE-T, 1000BASE-T
Virtuelle LAN-Funktionen MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Anzahl der VLANs 4000
Routing-/Switching-Kapazität 168 Gbit/s
Transferrate 125 Mpps
MAC-Adressentabelle 16384 Eintragungen
Jumbo-Frames 9000
Datenpaket-Pufferspeicher 2 MB
DHCP-Funktionen DHCP client, DHCP relay, DHCP server, DHCP snooping
Zugriffskontrollliste (ACL) Ausgang 512
Zugriffskontrollliste (ACL) Eingang 2048
Authentifizierung Gast VLAN, MAC-basierte Authentifizierung, Port-basierte Authentifizierung
Warteschleifenplanungs-Algorithmen Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)
Router Protokoll RIP
Produktfarbe Grau
Anzahl Lüfter 1 Lüfter
Physisches Stacking (Einheiten) 9
Virtuelles Stacking (Einheiten) 32
Geräuschpegel 47 dB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF) 388361 h
Energiequelle Gleichstrom
AC Eingangsspannung 100 - 240 V
AC Eingangsfrequenz 50 - 60 Hz
Stromverbrauch (max.) 30,36 W
Betriebstemperatur 0 - 50 °C
Temperaturbereich bei Lagerung -40 - 70 °C
Relative Luftfeuchtigkeit in Betrieb 10 - 90%
Luftfeuchtigkeit bei Lagerung 5 - 90%
Wärmeableitung 103,59 BTU/h
Gewicht 3,2 kg
Zertifizierung FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
Quality of Service (QoS) Support Ja
Web-basiertes Management Ja
ARP-Inspektion Ja
10G-Unterstützung Ja
Port-Spiegelung Ja
Unterstützung Datenflusssteuerung Ja
Link Aggregation Ja
Spannbaum-Protokoll Ja
Head-of-Line (HOL)-Blocking Ja
VLAN-Unterstützung Ja
Jumbo Frames Unterstützung Ja
Zugriffkontrollliste Ja
IGMP-Snooping Ja
SSH-/SSL-Unterstützung Ja
Loop Protection Ja
BPDU-Filterung/Schutz Ja
Multicast Unterstützung Ja
Stapelbar Ja
LED-Anzeigen Ja
Unterstützung für redundantes Netzteil Ja
Power over Ethernet (PoE) Nein
MIB Unterstützung RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215;

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 159,99 €
  • Additional warranty (2 years) - 99,99 €
  • Insurance (1 year) - 199,99 €
  • Insurance (2 years) - 269,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Package width
44 cm
Package height
4.4 cm
Package length
25 cm

Product codes

EAN
0790069469985
