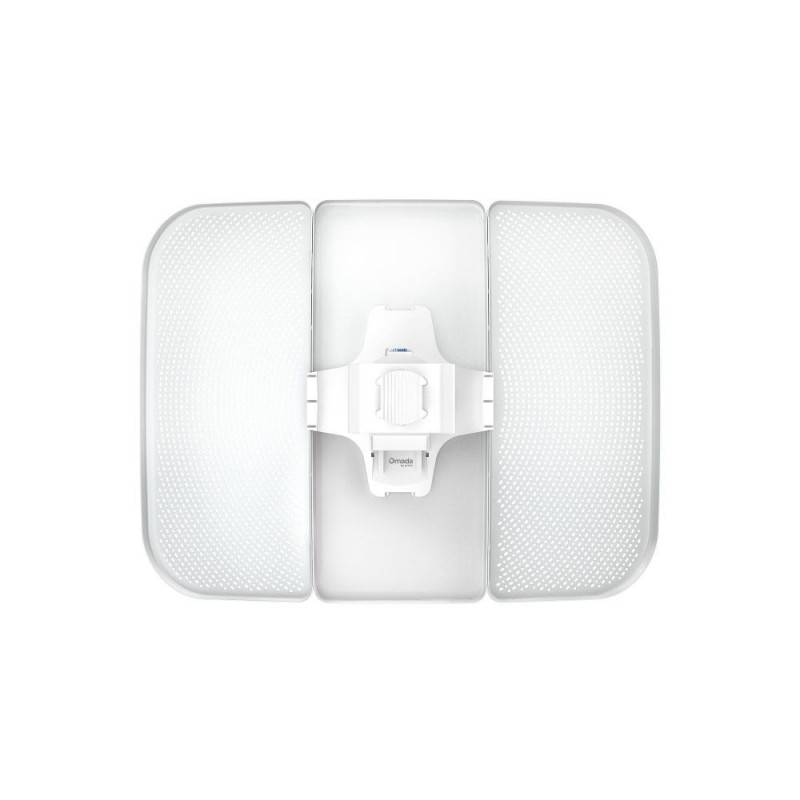

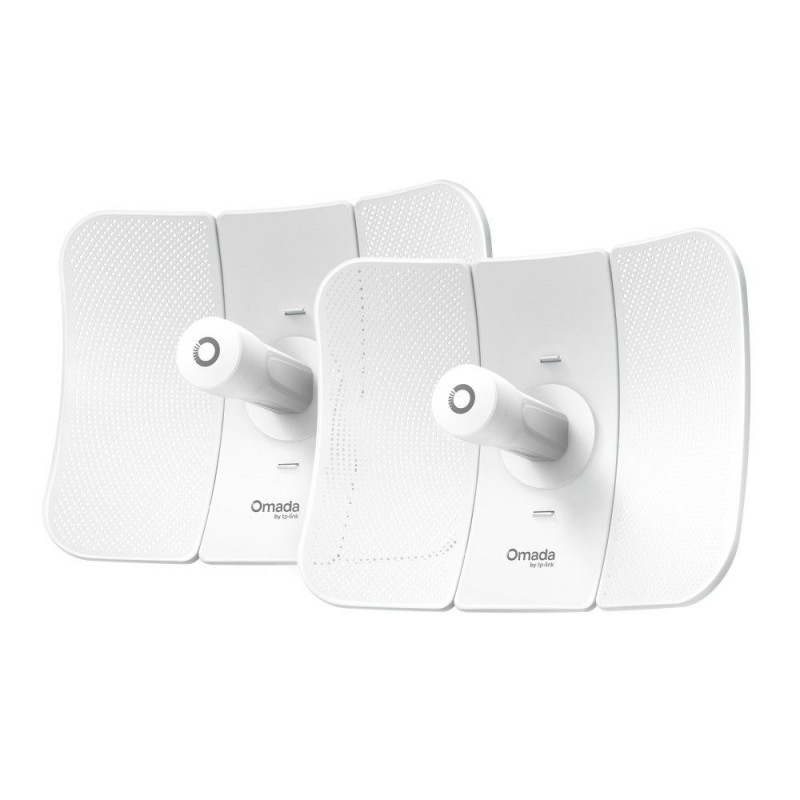

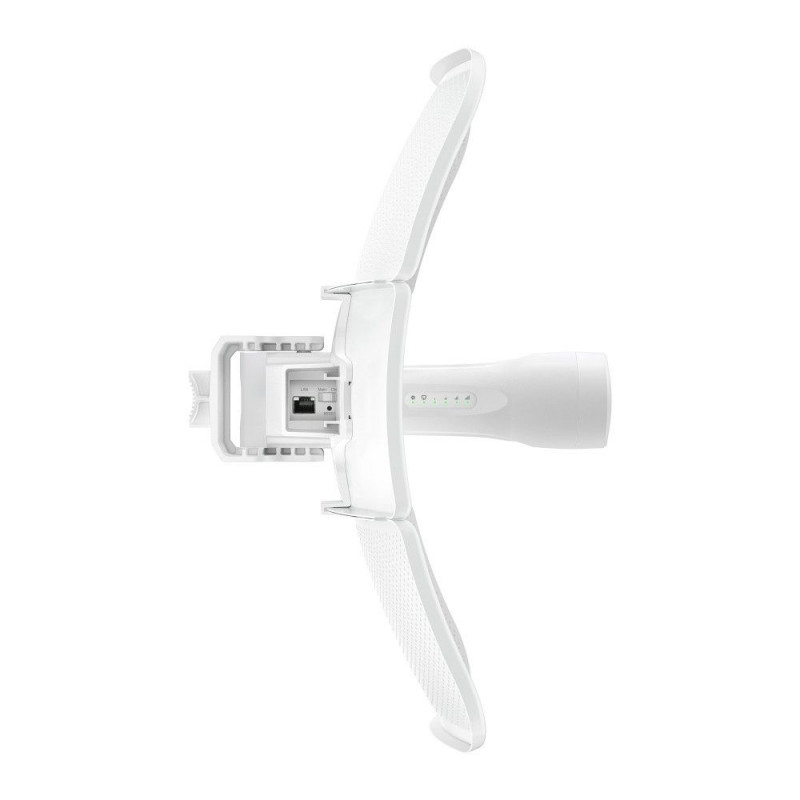

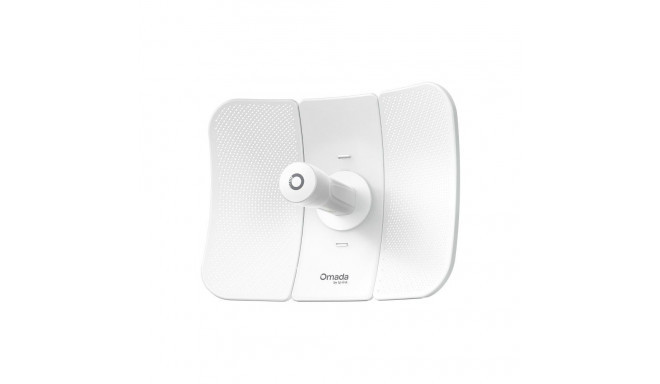

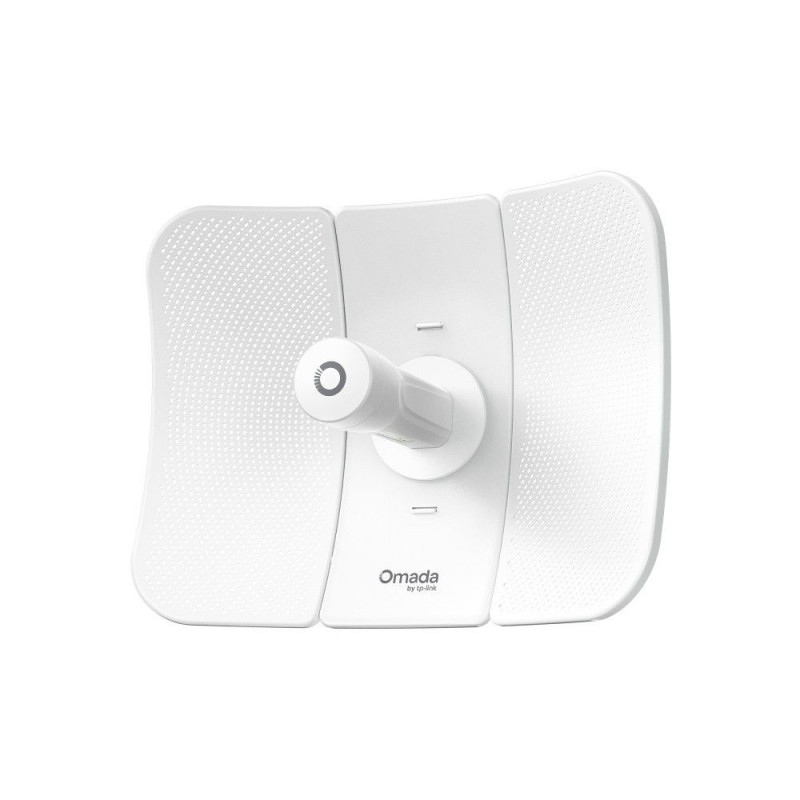

Beam Bridge 5 UR KIT

268,99 €

Monthly payment starting from 9,17 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Omada Long-Range Indoor/Outdoor Wireless Bridge, 5GHz 867Mbps

  • Extensive Transmission Range of up to 15km: Directional 23dBi High-Gain Antennas
  • Plug and Play: Factory-preconfigured kit enables instant, automatic PtP pairing and out-of-the-box connectivity
  • App-Based Alignment: Visualizing device alignment in the app simplifies installation over long distances and enables instant speed testing to verify installation
  • Simple PoE Deployment and Power Supply: 1 Gigabit port supporting 802.3af PoE and Passive PoE simplifies cabling and reduces deployment costs
  • Designed for Outdoor Environments: IP65-rated enclosure, 6kV lightning protection, and operating temperature range from -40°C to 70°C
  • Remote Monitoring and Management: Choose standalone or Omada SDN mode for centralized remote management via web interface or app

Network architecture GigabitEthernet
I/O ports 1 x 10/100/1000 Mbit/s PoE
Operating frequency 5 GHz
Standards 802.3af
Number of antennas 2
Antenna Fixed external
Antenna gain 23
Security IP65 VLAN Rogue AP Detection Maximum MAC Filtering: 4000 Wireless Encryption
Special functions MU-MIMO: 5G 2x2 MU-MIMO DL Maximum number of associated STAs: 8 Speed test Channel optimization Antenna alignment ACS (Automatic Channel Selection) Speed limit Guest network
Power supply 802.3af PoE (pins 1/2, pins 3/6) Passive PoE 24V or 48V (pins +4/5, pins -7/8) (Passive PoE adapter included)
Environment requirements Permissible operating temperature: -40°C - 70°C Permissible storage temperature: -40°C - 70°C Permissible air humidity: 10% - 90%, non-condensing Permissible storage humidity: 5% - 90%, non-condensing
Certificates CE FCC RoHS
Accessories included Beam Bridge 5 UR KIT Installation Guide Mounting Kit Passive PoE Adapter Power Cord
Color white
Weight 1.1
Dimensions 366 × 280 × 207 mm
Designation
Management, monitoring, configuration Omada App Backup and Restore Website Firmware Update NTP Centralized Management Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller Cloud Access Email Notifications LED On/Off SNMP SSH Website Management ZTP Zero-touch Configur

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 59,99 €
  • Additional warranty (2 years) - 39,99 €
  • Insurance (1 year) - 39,99 €
  • Insurance (2 years) - 69,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
9.698 kg
Package width
39 cm
Package height
30 cm
Package length
16.5 cm

Product codes

EAN
1210002603782
Manufacturer code
KMTPLAP00000071
