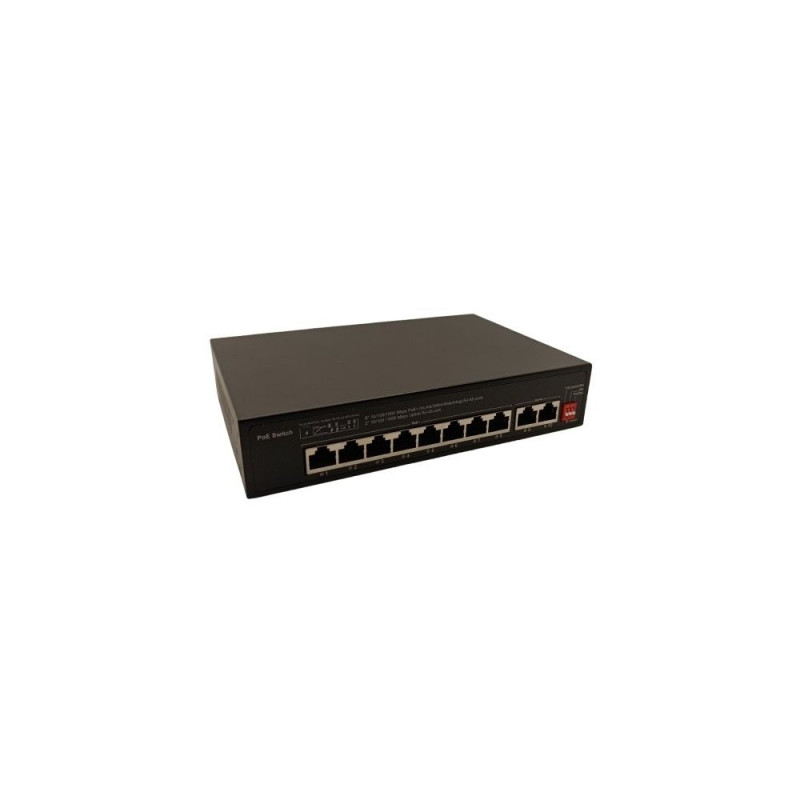

PoE switch 8ch 1000Mbps +2G uplink

58,99 €

Monthly payment starting from 1,76 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Unmanaged PoE Switch 8 Ports 1000M with 2 ports uplink 1000M.
 Features: 8x 10/100/1000M PoE ports, 2x 10/100/1000M RJ45uplink ports, ports 1-8 support IEEE 802.3af/at. Standard PoE power output is 15.4W per port, maximum power: 30W per port, total power budget 120W. With DIP switch. AI Extend mode: transmission up to 300 meters, single port speed is automatically reduced (up to 10 Mbps); other ports maintain 1000 Mbps speed up to 100 meters. VLAN mode supports isolation and VLAN for each of the 1–8 PoE ports. PoE Watchdog / Auto Recovery mode for ports 1–8 supports AI-PoE network self-healing, automatically resolves camera operation issues and reduces maintenance needs. Built-in power supply, power cable included.
 Specifications: Interface: 8x 10/100/1000Mbps Base-TX PoE ports (data/power), 2x 10/100/1000Base-T/TX uplink RJ45 ports (data only). Network Protocol: IEEE802.3 10BASE-T. IEEE802.3i 10Base-T. IEEE802.3u 100Base-TX. IEEE802.3ab 1000Base-T. IEEE802.3z 1000Base-X. IEEE802.3x. Input voltage: 100-240V AC, 50-60Hz. Power pinout: default: 1/2(+), 3/6(-). PoE standards: IEEE802.3af/at. MAC address table: 4K. Buffer memory: 4M. Twisted Pair Transmission: 10BASE-T: Cat5 UTP (</=300 meter). 100BASE-TX: Cat5 or later UTP (</=100 meter). 1000BASE-T: Cat5e or later UTP (</=100 meter). Maximum power: 30W per port when using only one port; IEEE802.3af/at. Average power: 15.4W per port. Total power: 120W. Power consumption: standby <4W. LED indicators: power; network. Built-in power supply: AC100–240V, 50–60Hz, 120W. Operating temperature: -20°C ~ +55°C. Operating humidity: 5–90% RH (non-condensing). Dimensions: 220x145x45 mm. Weight: 850g. Installation: desktop / wall-mounted. Protection level: IP30. Mechanical Properties: IEC61000-4-2 (ESD) (electrostatic discharge protection) ±8kV contact discharge, ±15kV air discharge, IEC61000-4-5 (surge protection) Power:CM±4kV/DM±2kV; Port: ±4kV. Certification: CCC; CE, CE/LVD EN60950; FCC Part 15 Class B; RoHS.
 Warranty: 24 months.
