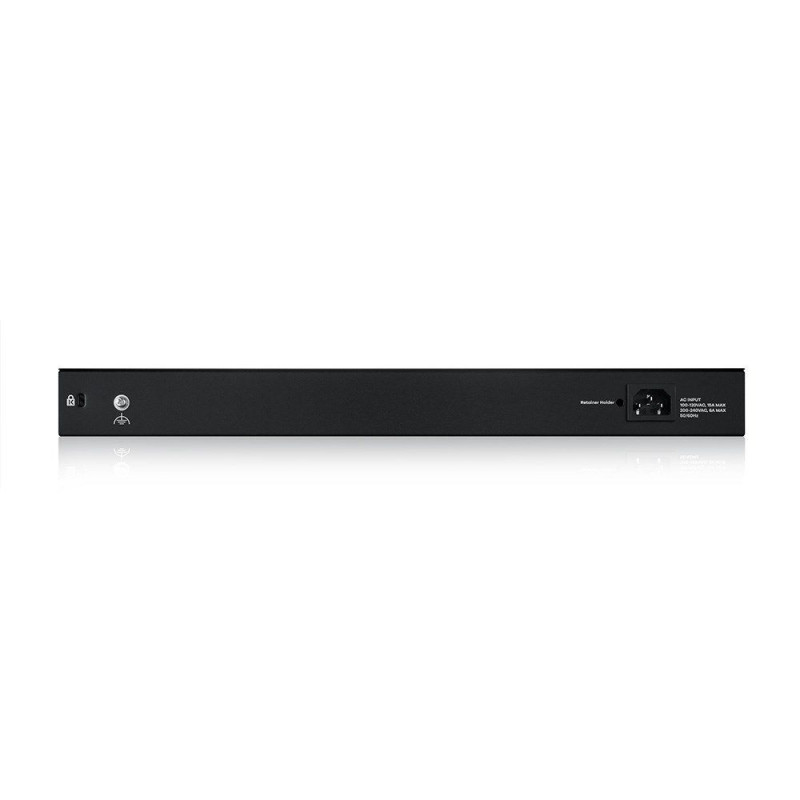

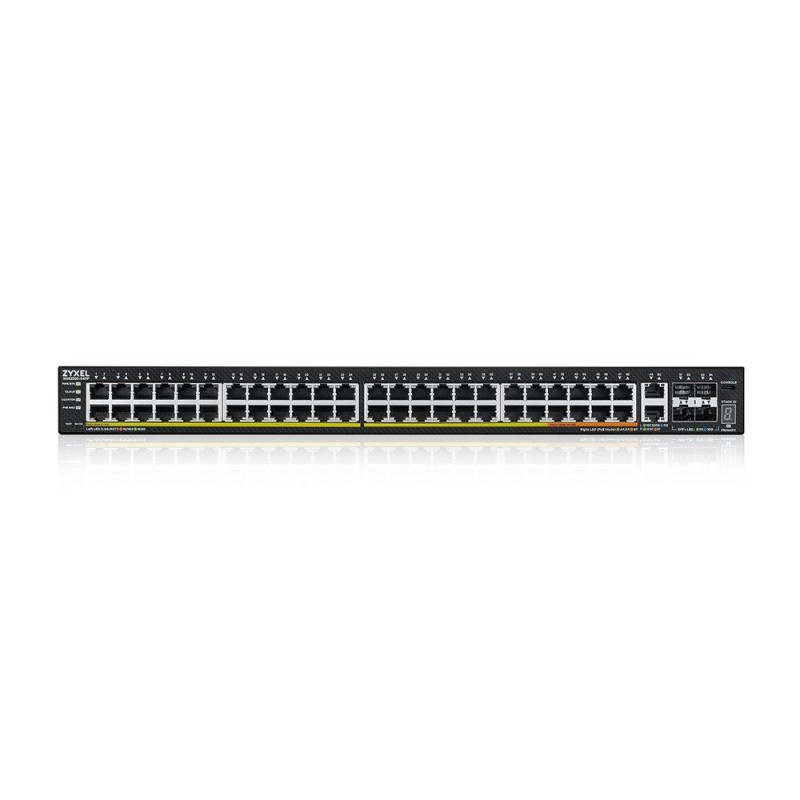

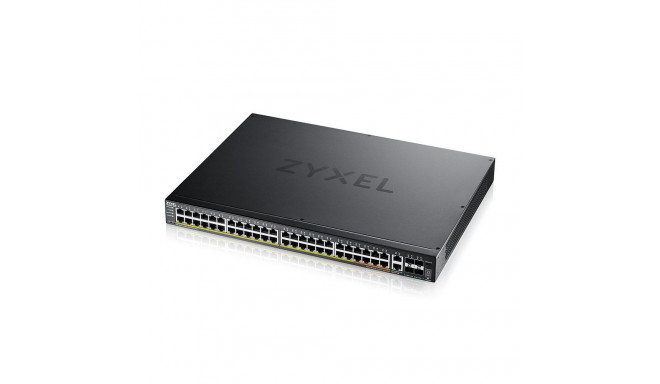

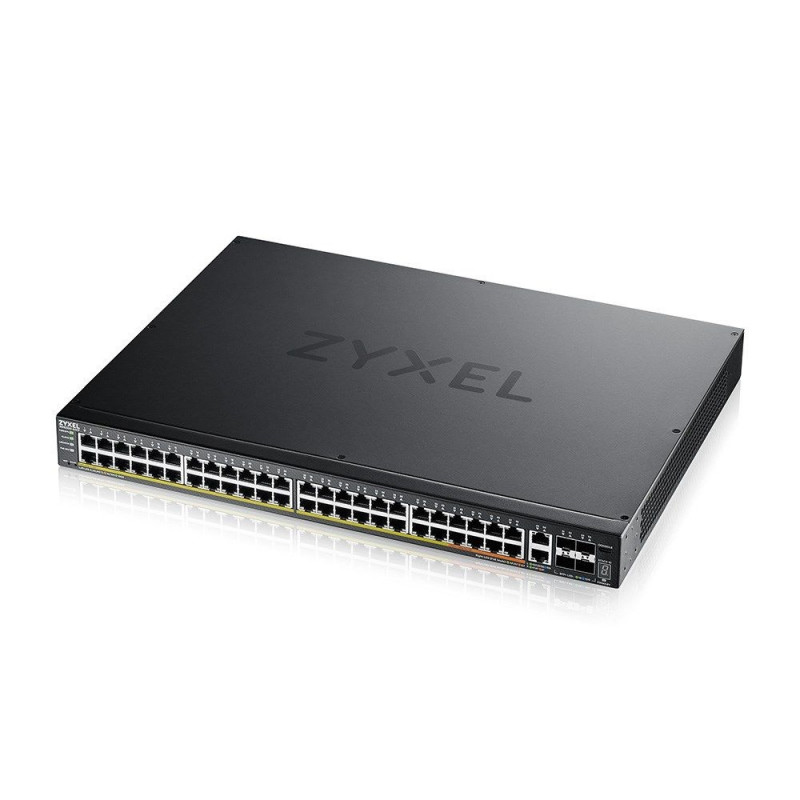

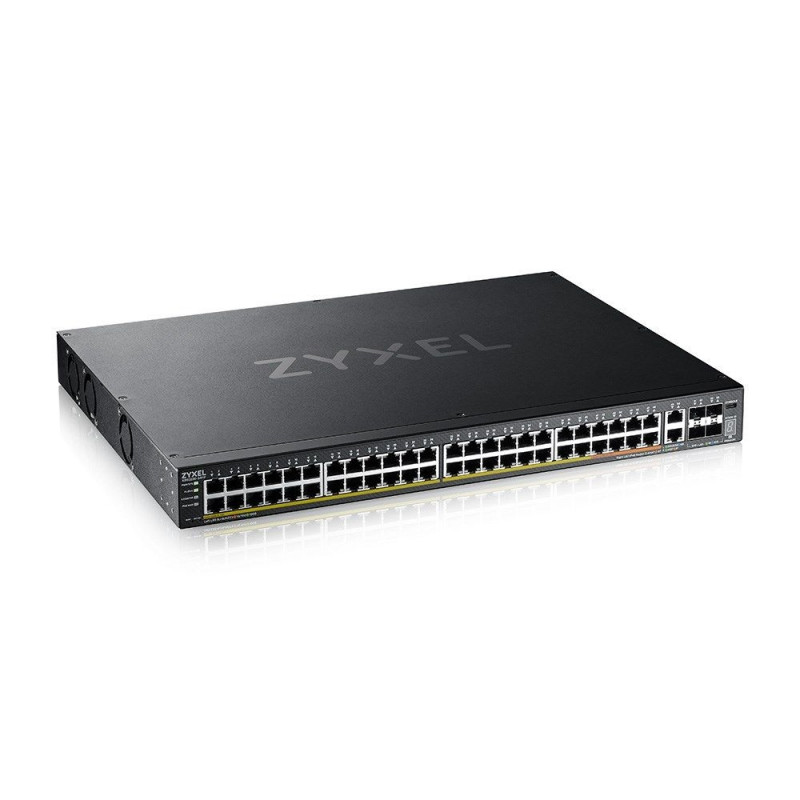

Ethernet Switch - Zyxel Xgs2220-54fp

Addional discount of 12%
will be applied in shopping cart
(min. 10€ purchase)
2 159 €

Monthly payment starting from 73,59 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

The Zyxel XGS2220-54FP switch features 52x 10/100/1000BASE-T ports and 2x 10GBASE-X SFP+ slots, with a total PoE budget of 960W. It supports L3 routing capabilities, IGMP snooping, QoS prioritization, and advanced security features including IEEE 802.1x authentication.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Ethernet Switch - Zyxel Xgs2220-54fp

The Zyxel XGS2220-54FP is a managed L3 gigabit Ethernet switch featuring 52x 10/100/1000BASE-T ports and 2x 10GBASE-X SFP+ slots. It supports power over Ethernet (PoE) with a budget of up to 960W.

Key Features
  • 52x 10/100/1000BASE-T ports, 2x 10GBASE-X SFP+ slots
  • L3 routing capabilities with 64 routing entries
  • IGMP snooping and MLD snooping for efficient multicast traffic management
  • QoS support for prioritizing critical traffic

Design
Rack mounting Yes
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power supply included Yes
Power source AC
Power consumption (max) 1161.6 W
Security
IGMP proxy Yes
Authentication type IEEE 802.1x, RADIUS, TACACS+
DHCP features DHCP server, DHCP relay
IGMP snooping Yes
Operational conditions
Heat dissipation 195.43 BTU/h
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 10 - 95%
Storage relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Management features
Switch type Managed
Switch layer L3
ARP inspection Yes
Quality of Service (QoS) support Yes
Weight & dimensions
Weight 5 kg
Depth 330 mm
Height 44 mm
Width 441 mm
Network
Networking standards IEEE 802.3an, IEEE 802.1ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1x, IEEE 802.3bt, IEEE 802.3at, IEEE 802.1w
Routing entries 64
10G support Yes
Performance
Mean time between failures (MTBF) 298.735 h
Internal memory 1024 MB
Flash memory 64 MB
Protocols
GARP VLAN Registration Protocol (GVRP) Yes
Ports & interfaces
10G Ethernet (copper) ports quantity 2
Installed SFP+ modules quantity 4
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Data transmission
Forwarding rate 161 Mpps
MAC address table 32000 entries
Packet buffer memory 2 MB
Switching capacity 216 Gbit/s
Jumbo frames support Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 960 W
Power over Ethernet (PoE) ports quantity 50
Power over Ethernet (PoE) Yes
Multicast features
Multicast Listener Discovery (MLD) snooping MLD v1/v2

Width 441 mm
Height 44 mm
Length 330 mm
Product Weight 5000 g
Country TW

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 399,99 €
  • Additional warranty (2 years) - 229,99 €
  • Insurance (1 year) - 259,99 €
  • Insurance (2 years) - 399,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
6.285 kg
Package width
9.5 cm
Package height
58 cm
Package length
50 cm

Product codes

EAN
4718937625130
Manufacturer code
XGS2220-54FP-EU0101F
