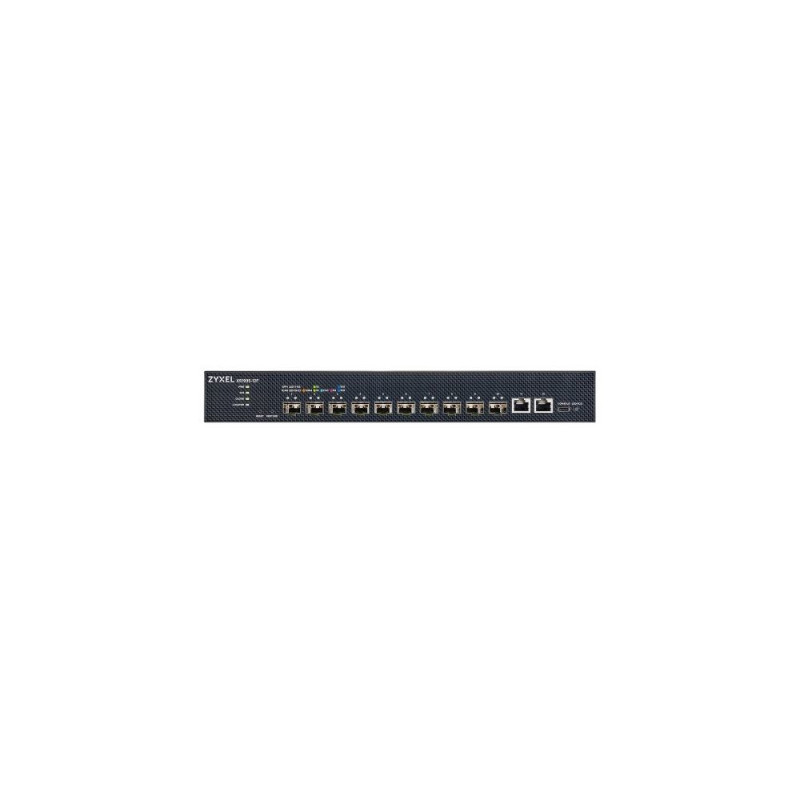

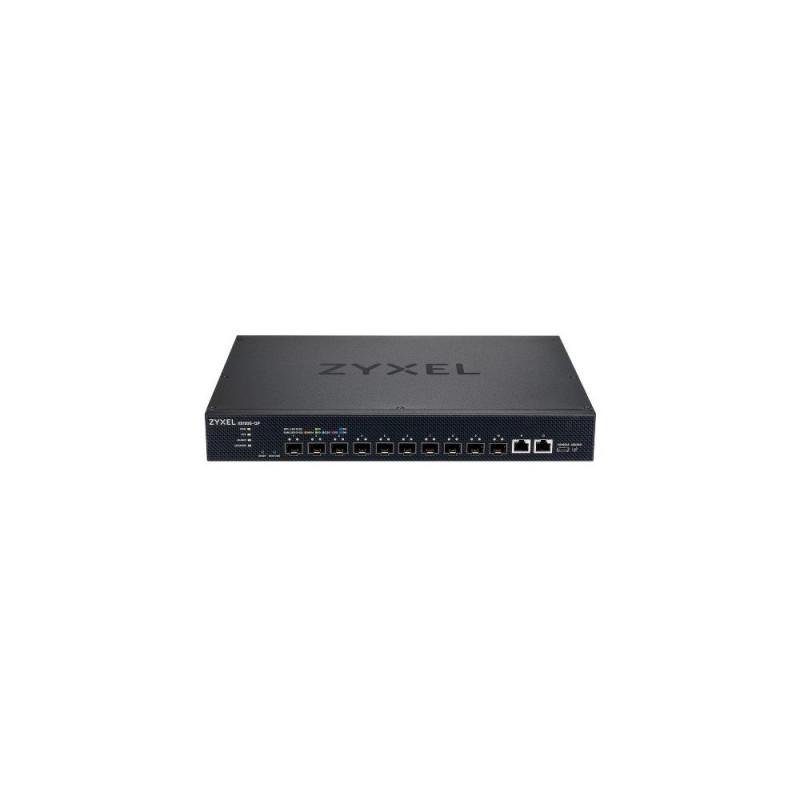

Smart Switch 12P XS1935-12F-ZZ0101F

Main info

XS1935 Series As businesses adopt cloud applications, AI-driven workloads, and high-definition collaboration tools, network performance is critical. With WiFi 7 delivering speeds beyond 10 Gbps, the demand for faster, more efficient wired infrastruct

Product has been archived

XS1935 Series

As businesses adopt cloud applications, AI-driven workloads, and high-definition collaboration tools, network performance is critical. With WiFi 7 delivering speeds beyond 10 Gbps, the demand for faster, more efficient wired infrastructure is growing. Zyxel's XS1935 Series Switch is built for modern networks with future-ready technology. Smart fan design delivers near silent and stable Multi-Gig 10G operation.

Unlock the Future of Networking with 10G Multi-Gig Switches
A 10G Multi-Gig switch provides the flexibility to support 100M, 1G, 2.5G, 5G, and 10G connections, allowing businesses to upgrade their network gradually without overhauling their entire infrastructure. This ensures that high-performance devices such as servers, NAS, workstations, and next-gen WiFi 7 access points can operate at their full potential without bottlenecks.


Switch class SMART
Application Home and small office
Switch layer L3
Network architecture GigabitEthernet
Number of 10/100/1000 Mbps ports 10
Number of 10Gb ports 2
Number of SFP+ ports 10
Console port No
Throughput 240
Forwarding rate 178.5
Packet buffer 2
MAC address table size 16000
Support for Jumbo frames Yes
Jumbo frame size 12
Stackability No
Number of VLAN groups 4000
VLAN 802.1Q Static VLANs/Dynamic VLANs: 1K/4K Support up to 4K VLAN ID Independent VLAN Learning (IVL) L2PT Port-based VLAN Voice VLAN VLAN trunking GVRP
QoS No. of hardware queues per port: 8 802.1p queuing methods: SPQ, WRR, WFQ Storm control: broadcast, unknown L2MC, unknown unicast (DLF) Rate limiting per port Policy-based rate limiting Policy-based prioritization
L2 features L2 multicast group: 1K IGMP snooping (v1, v2, v3) Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling IGMP filtering Static multicast Multicast load sharing over trunking port
Chassis type Rack
Fan Yes
Power supply Internal
Power consumption 36.65
Mean time between failures (MTBF) 443496
Environment requirements Operating temperature: -20°C to 50°C/-4°F to 122°F Operating humidity 5% to 95% (non-condensing) Storage temperature: -40°C to 70°C/-40°F to 158°F  Storage humidity 5% to 95% (non-condensing)
Certificates Safety: LVD, BSMI Safety EMC: FCC Part 15 (Class A), CE (Class A), BSMI EMC RoHS
Power supply 100 - 240 V AC, 50/60 Hz
Dimensions 330 x 230 x 44 mm
Weight 2.2
Supported protocols and standards IEEE 802.3z 1000BASE-X IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3an 10G BASE-T Ethernet IEEE 802.3ae 10 Gbit/s Ethernet over fiber IEEE 802.3x flow control IEEE 802.3ad LACP aggregation IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning
Security 802.1X Port security MAC authentication Static MAC forwarding Static ARP Policy-based security filtering Port isolation MAC search Guest VLAN PPPoE relay agent PPPoE option 82 PPPoE IA Interface related trap enable/disable (by port) CPU protection Import
Management, monitoring, configuration SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) Syslog (IPv4/v6) IEEE 802.1AB LLDP IEEE 802.1AB LLDP-MED Custom default Display port utilization Support NebulaFlex for hybrid mode Standalone management by Web interface Cloud management by Nebula Contro
L3 features Multilevel CLI CLI (Cisco-like) Expanding Network Capacity IEEE 802.1Q Static VLAN: up to 4,094 IPv4 Address table: up to 1,024 MAC table: up to 32K IPv4/IPv6 Static route: up to 64/64 ACL: up to 256 Networked AV Mode Protocol-Based VLAN IP subnet-based V

Dimensions and weights

Gross weight
3.854 kg
Package width
41 cm
Package height
37.5 cm
Package length
9.5 cm

Product codes

EAN
4718937637805
Manufacturer code
NUZYXSS12000004
