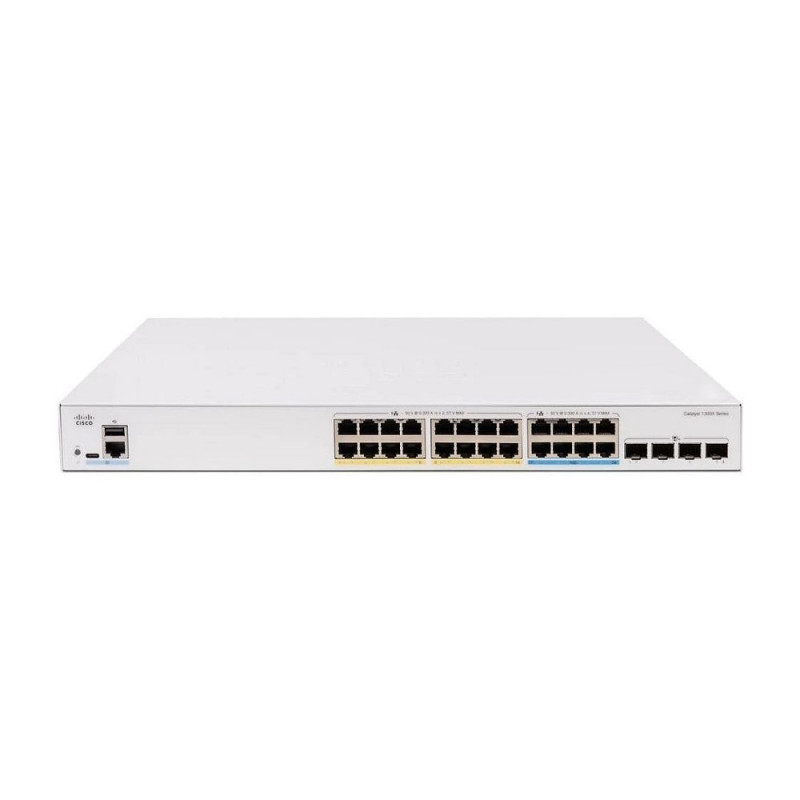

"Cisco Catalyst 1300X-24NGU-4X"

Main info

"Cisco Catalyst C1300X-24NGU-4X. Switch-Typ: Managed, Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: 10G Ethernet (100/1000/10000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 28, Konsolen-Port: RJ-45/USB Type-C. MAC-Adressentabell

Product has been archived

"Cisco Catalyst C1300X-24NGU-4X. Switch-Typ: Managed, Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: 10G Ethernet (100/1000/10000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 28, Konsolen-Port: RJ-45/USB Type-C. MAC-Adressentabelle: 16000 Eintragungen, Routing-/Switching-Kapazität: 192 Gbit/s. Netzstandard: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack-Einbau"
Switch-Typ Managed
Switch-Ebene L3
Quality of Service (QoS) Support Ja
Web-basiertes Management Ja
Konfiguration der Standorteinstellungen (CLI) Ja
MIB Unterstützung Y
Anzahl der basisschaltenden RJ-45 Ethernet Ports 28
Basic Switching RJ-45 Ethernet Ports-Typ 10G Ethernet (100/1000/10000)
Konsolen-Port RJ-45/USB Type-C
Anzahl SFP28-Ports 4
Netzstandard IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D
10G-Unterstützung Ja
Port-Spiegelung Ja
Richtlinienbasiertes Routing Ja
Link Aggregation Ja
Broadcast-Sturmkontrolle Ja
Ratenbeschränkung Ja
Spannbaum-Protokoll Ja
Head-of-Line (HOL)-Blocking Ja
QinQ-Implementierung Selective QinQ
VLAN-Unterstützung Ja
Virtuelle LAN-Funktionen Private VLAN, Voice VLAN
Routing-/Switching-Kapazität 192 Gbit/s
MAC-Adressentabelle 16000 Eintragungen
Anzahl Queues 8
Statische Route Ja
Anzahl der statischen Routen 990
Jumbo Frames Unterstützung Ja
Jumbo-Frames 9000
Datenpaket-Pufferspeicher 3 MB
DHCP-Funktionen DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Zugriffkontrollliste Ja
Access Control List (ACL) Regeln 3072
IGMP-Snooping Ja
IGMP-Proxy Ja
Unterstützte Sicherheitsalgorithmen HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
SSH-/SSL-Unterstützung Ja
Authentifizierung MAC-basierte Authentifizierung, Webbasierte Authentifizierung
DoS Attacken Prävention Ja
Autentifizierungstyp RADIUS, TACACS+
Warteschleifenplanungs-Algorithmen Weighted Round Robin (WRR)
Multicast Unterstützung Ja
GARP VLAN Registration Protocol (GVRP) Ja
IPv4 & IPv6-Funktionen ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
Rack-Einbau Ja
Produktfarbe Grau
Reset-Knopf Ja
Speichertyp DDR4-SDRAM
Speicherkapazität 21000 MB
Flash-Speicher 1000 MB
Geräuschpegel 49,5 dB
Plug & Play Ja
Mittlere Betriebsdauer zwischen Ausfällen (MTBF) 343272 h
Energiequelle AC
AC Eingangsspannung 100 - 220 V
AC Eingangsfrequenz 50/60 Hz
Stromverbrauch (Standardbetrieb) 103,9 W
Stromverbrauch (max.) 870,8 W
Power over Ethernet (PoE) Ja
Power-over-Ethernet (PoE)-Typ unterstützt PoE++ (4PPoE)
Anzahl Power over Ethernet (PoE) Anschlüsse 24
Gesamtleistung Power over Ethernet (PoE) 740 W
Betriebstemperatur -5 - 50 °C
Temperaturbereich bei Lagerung -25 - 70 °C
Relative Luftfeuchtigkeit in Betrieb 10 - 90%
Luftfeuchtigkeit bei Lagerung 10 - 90%
Wärmeableitung 3104,3 BTU/h
Gewicht 4,23 kg
Zertifizierung UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Dimensions and weights

Package width
44.43 cm
Package height
4.39 cm
Package length
27 cm

Product codes

EAN
0889728647458
