Home page » Computers & IT»Networking»Switches»Switch|DAHUA|CHS4206-4ET-90|Switch type Managed|Switch layer L2|Form factor Desktop|4xRJ-45 ports|RJ

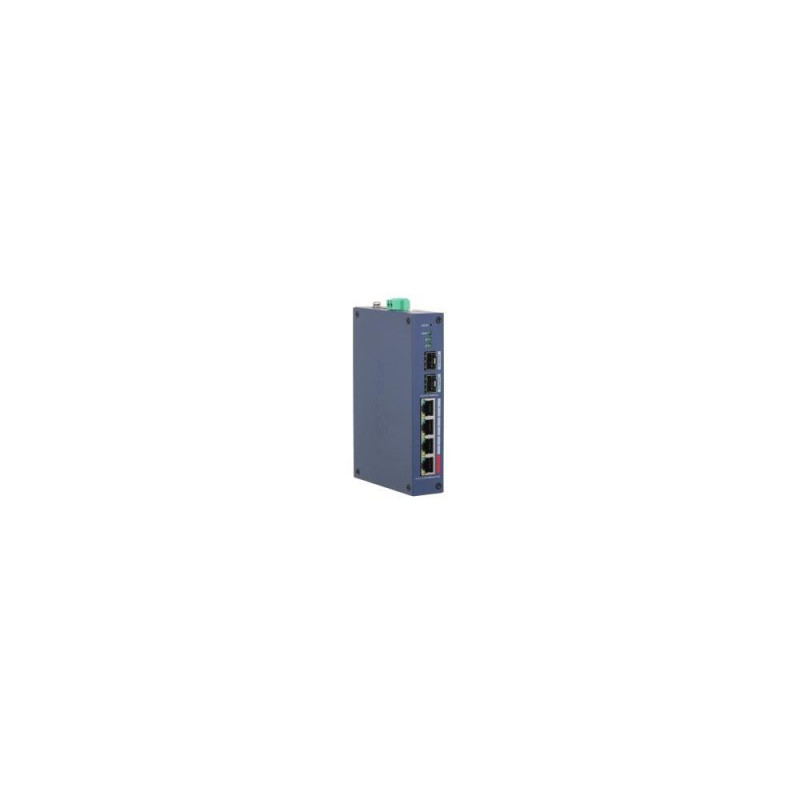

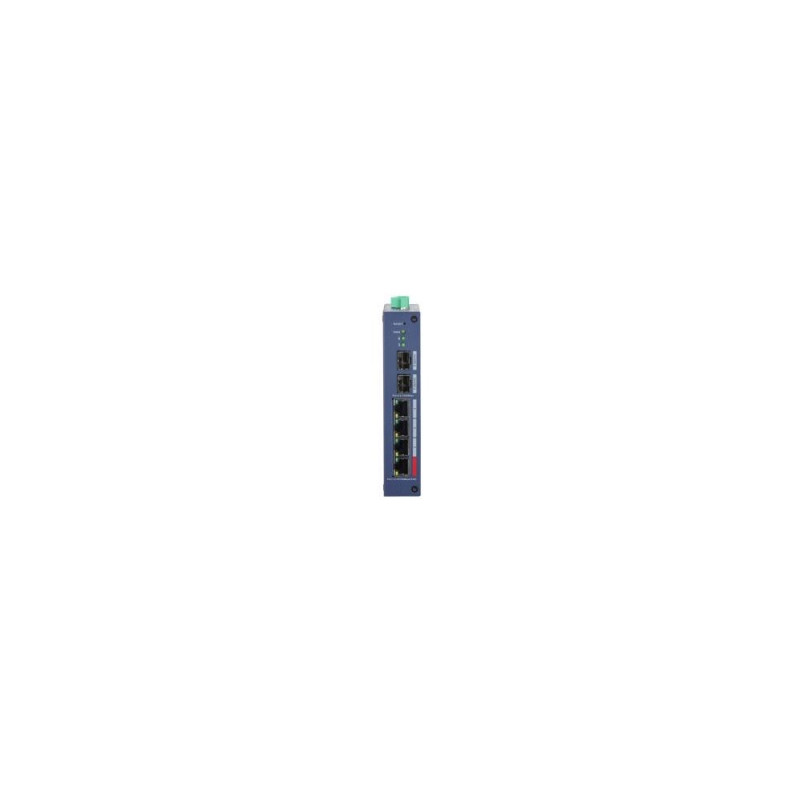

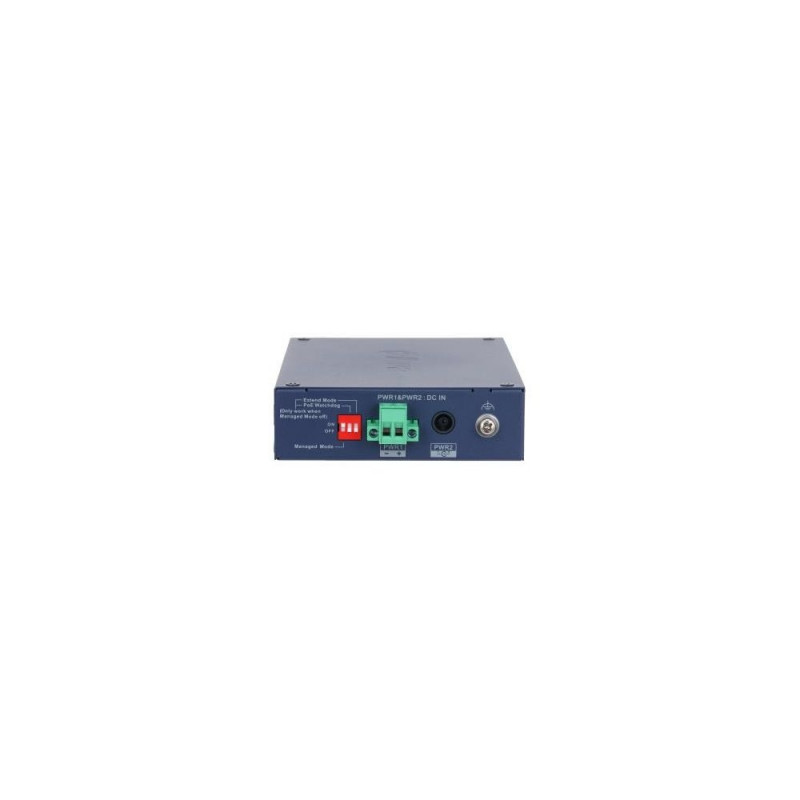

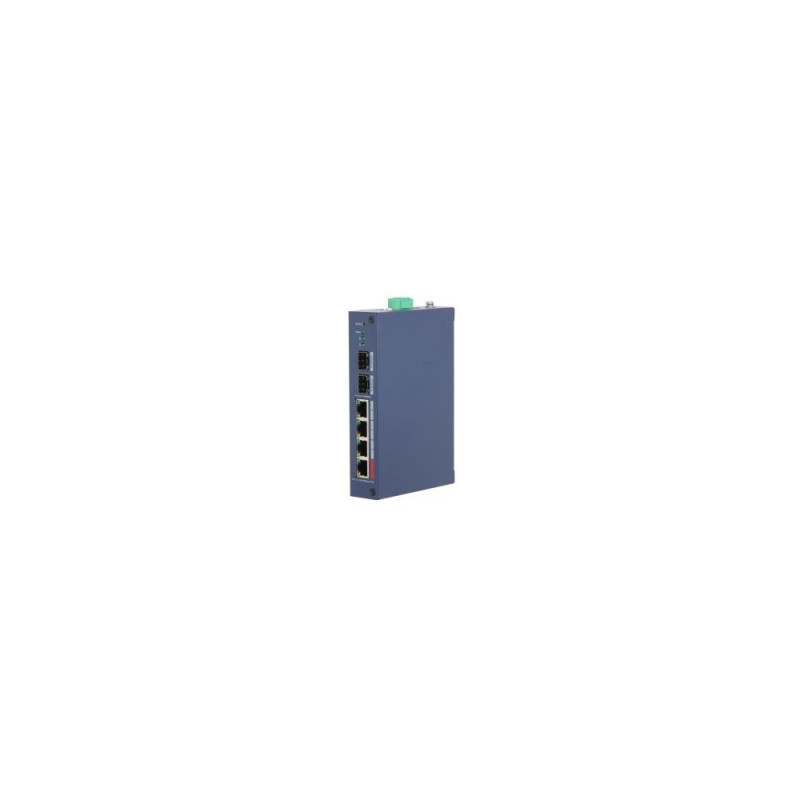

Switch|DAHUA|CHS4206-4ET-90|Switch type Managed|Switch layer L2|Form factor Desktop|4xRJ-45 ports|RJ

Addional discount of 2%
will be applied in shopping cart
(min. 12€ purchase)
65,99 €

Monthly payment starting from 1,97 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Features managed mode Complies with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab and IEEE802.3z standards Supports network topology visualization Supports mobile management by app Supports one-stop maintenance With its full metal design and dust-
Add to cart

Delivery in 2-4 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

  • Features managed mode
  • Complies with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab and IEEE802.3z standards
  • Supports network topology visualization
  • Supports mobile management by app
  • Supports one-stop maintenance
  • With its full metal design and dust-proof enclosure, it can be used in a wide range of temperatures
  • Supports desktop mount and DIN rail mount


Infot ka tootja kodulehelt.
Management features Cloud-managed - Yes, Switch layer - L2, Switch type - Managed, Web-based management - Yes
Ports & interfaces Basic switching RJ-45 Ethernet ports quantity - 4, Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100), Fast Ethernet (copper) ports quantity - 4, Installed SFP modules quantity - 2, Power connector - DC-in jack
Data transmission Forwarding rate - 3.57 Mpps, Jumbo frames - 9216, Jumbo frames support - Yes, MAC address table - 8000 entries, Packet buffer memory - 4 MB, Switching capacity - 4.8 Gbit/s
Security DHCP features - DHCP client, Loop protection - Yes
Multicast features Multicast support - Yes
Design DIN rail mounting - Yes, Form factor - Desktop, Housing material - Iron, IK code - IK06, International Protection (IP) code - IP30, Product colour - Blue, Rack mounting - No, Reset button - Yes, Stackable - No
Performance Mean time between failures (MTBF) - 1852444.63 h
Power DC input voltage - 48 - 57 V, Input current - 2 - 1.69 A, Power source - DC/PoE, Power supply included - Yes, Power supply location - External
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes, Total Power over Ethernet (PoE) budget - 90 W
Operational conditions Operating relative humidity (H-H) - 10 - 90 %, Operating temperature (T-T) - -30 - 65 °C, Storage relative humidity (H-H) - 5 - 95 %, Storage temperature (T-T) - -40 - 85 °C
Weight & dimensions Weight - 320 g
Packaging content Cables included - AC, Manual - Yes, Quick start guide - Yes
Packaging data AC adapter included - Yes, Package depth - 266 mm, Package height - 77 mm, Package type - Box, Package weight - 870 g, Package width - 239 mm, Terminal block included - Yes
Certificates Compliance certificates - CE
Model name CHS4206-4ET-90
Units per Shipping Box 8
Unit Calculated Volume 0.005559 cubm
Unit Calculated Weight 1.13 kg
Summary Dahua Technology CHS4206-4ET-90. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4, Installed SFP modules quantity: 2. MAC address table: 8000 entrie
Network 10G support - No, Broadcast storm control - Yes, Flow control support - Yes, Networking standards - IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z, Number of VLANs - 32, Port mirroring - Yes, VLAN suppor

Product codes

EAN
6939554903465
Manufacturer code
CHS4206-4ET-90
