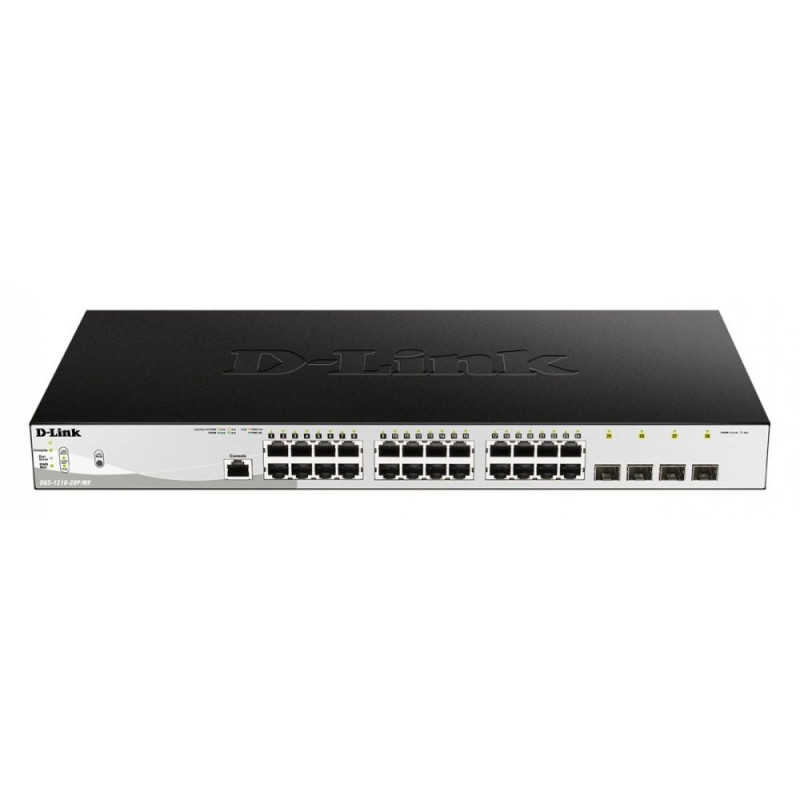

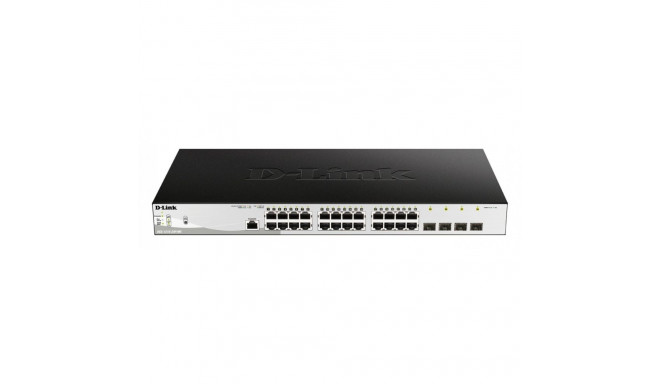

Switch DGS-1210-28/ME/E

Addional discount of 5%
will be applied in shopping cart
(min. 12€ purchase)
291,99 €

Monthly payment starting from 9,95 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Metro Ethernet Switches DGS-1210/ME Series Flexible Hardware Design Available in multiple configurations: Combinations of 1000BASE-T and SFP Designed for standard 1U rack-mounting Rear panel RPS connector for an additional external power supply La
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Metro Ethernet Switches DGS-1210/ME Series

Flexible Hardware Design

  • Available in multiple configurations:
  • Combinations of 1000BASE-T and SFP
  • Designed for standard 1U rack-mounting

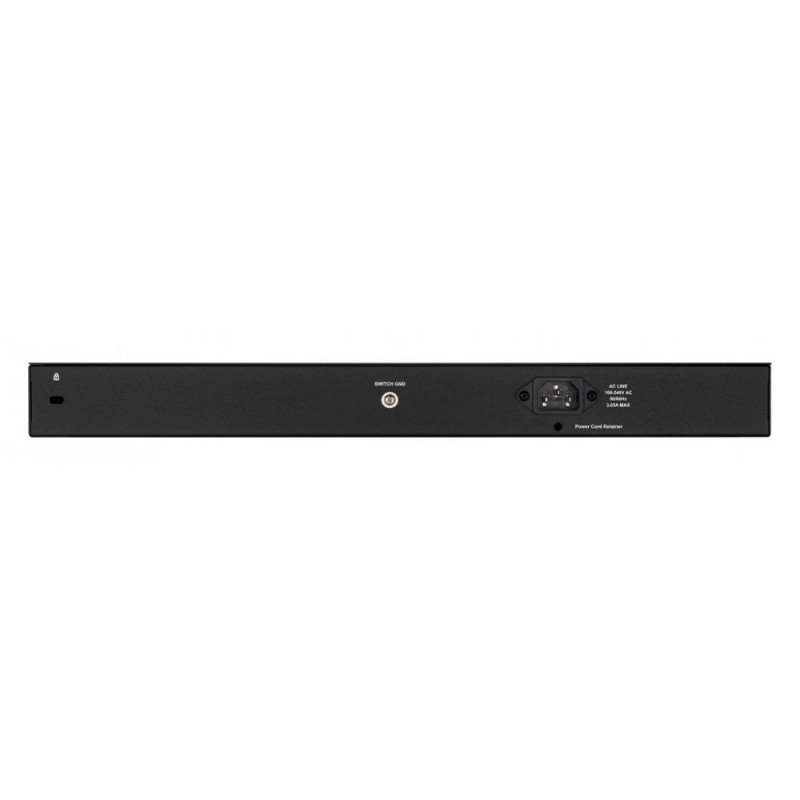

  • Rear panel RPS connector for an additional external power supply

Layer 2 Features

  • 16K MAC address table
  • IEEE 802.1D STP, 802.1w RSTP, and 802.1s MSTP
  • Loopback detection
  • Supports IEEE 802.3ad Link Aggregation
  • Port-based Q-in-Q
  • VLAN Trunking

Security and Authentication

  • Port security
  • SSH/SSL
  • IP-MAC-Port Binding (IMPB)
  • Access Control List (ACL) and IEEE 802.1X
  • Guest VLAN

Reliability and Maintenance

  • Surge protection on all Gigabit Ethernet ports
  • ITU-T G.8032 ERPS sub-50 ms protection and recovery
  • Dying Gasp for quick trouble shooting during power failures or system shut downs

The DGS-1210/ME Series Metro Ethernet Switches are a range of switches designed for Metro Ethernet applications. They feature a variety of port configurations, including 10/100/1000BASE-T RJ-45 ports and 1G SFP ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1210/ME Series Metro Ethernet Switches ideal for Metro Ethernet applications.

Efficient and Resilient
For mission critical environments, the DGS-1210/ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The Spanning Tree Protocol allows the switches to participate in Spanning Tree topology, providing an alternative Layer 2 path in the event of a network failover. The switches also support IEEE 802.3ad link aggregation, which enables multiple ports to be grouped to form a single virtual port, increasing bandwidth and redundancy for higher availability.

This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.

Security & Authentication
The DGS-1210/ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP- MAC-Port Binding (IMPB) feature allows administrators to associate a source IP address with a designated MAC address and also offers the flexibility to define the port number to enhance user access control.

The built-in D-Link Safeguard Engine protects the CPU from broadcast, multicast, and unicast flooding by automatically trapping packets and logging events in these situations. In addition, the Access Control List (ACL) feature enhances network security and switch performance.

Management Capabilities
A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration. This enables switches to load their configuration from a TFTP server once they have been assigned an IP address, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the devices capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port
also supports cable diagnostics, which can be used to troubleshoot cable length and functionality problems remotely, resulting in lower management overheads.

Traffic & Bandwidth Control
Integrated bandwidth control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64 Kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64 Kbps for egress queue bandwidth. The DGS-1210/ME Series also supports traffic control, which optimizes performance by dropping packets when exceeding a set threshold, while port mirroring helps administrators facilitate traffic diagnostics and track network performance. The DGS-1210/ME Series also provides IGMP snooping with IGMP authentication to prune multicast traffic and to optimize available bandwidth.

Multicast Applications
The DGS-1210/ME Series features a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, fast leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210/ME Series is ready and capable of handling growing IPTV applications. Host-based IGMP/MLD snooping allows for multiple multicast subscribers per physical interface, and ISM VLAN sends multicast streams in a multicast VLAN, saving bandwidth on the backbone. Additionally, ISM VLAN profiles allow users to bind or replace the predefined multicast registration information to subscriber ports quickly and easily.


Switch class Managed
Application Home and small office
Switch layer L2+
Network architecture GigabitEthernet
Number of 10/100/1000 Mbps ports 28
Number of SFP ports 4
Console port Yes
Forwarding mode Store-and-forward
Throughput 56
Forwarding rate 41.7
Packet buffer 1.5
MAC address table size 16000
Support for Jumbo frames Yes
Jumbo frame size 9
Stackability No
Number of VLAN groups 4094
VLAN 802.1Q tagged VLAN VLAN group Max. 4094 VLAN groups Port-based VLAN GVRP Asymmetric VLAN Max. 256 dynamic VLAN 802.1v protocol VLAN VLAN trunking MAC-based VLAN Port-based Q-in-Q ISM VLAN (multicast VLAN) Private VLAN
Supported protocols and standards IEEE 802.3i 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) IEEE 802.3az compliance Auto-negotiation IEEE 802.3x Flow Control IEEE 802.3z 100
QoS CoS based on: Switch port 802.1p priority queues VLAN ID MAC address IPv4/IPv6 address DSCP TOS Protocol type TCP/UDP port IPv6 traffic class Bandwidth control: Port-based (ingress, min. granularity 64 Kbps) Flow-based (ingress, min. granularity 64 Kbps)
Security SSH v2 SSL v1/2/3 Port security (Up to 64 MAC addresses per port) IP-MAC-Port Binding (IMPB) ARP inspection IP inspection IPv6 DHCP snooping Broadcast/Multicast/Unicast storm control D-Link Safeguard Engine DHCP server screening DHCP client filtering BPDU
Management, monitoring, configuration Web-based GUI (IPv4/IPv6) Command Line Interface (CLI) Telnet Server/Client (Support IPv4/IPv6) TFTP client (IPv4) Command logging SNMP v1/v2c/v3SNMP traps System log RMON v1 RMON v2 LLDP BootP/DHCP client DHCP auto-configuration Text-editable config file
L2 features MAC address table: 16K entries Jumbo Frame Support: Up to 9,216 bytes Spanning Tree Protocols 802.1D STP 802.1w RSTP 802.1s MSTP BPDU filtering Root restriction Loopback detection Mirroring Support 1 mirroring group Support One-to-One, Many-to-One, Flow-b
Chassis type Rack
Fan No
Power supply Internal
Power consumption 19.14
Mean time between failures (MTBF) 497918
Environment requirements Operating Temperature: -5 to 50 °C (23 to 122 °F) Storage Temperature: -40 to 70 °C (-40 to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing
Certificates EMI:  FCC class A, CE class A, VCCI, BSMI, CCC Safety: CE, LVD, UL, CB
Power supply 100 - 240 V AC, 50/60 Hz
Dimensions 440 x 140 x 44 mm
Weight 2.21
