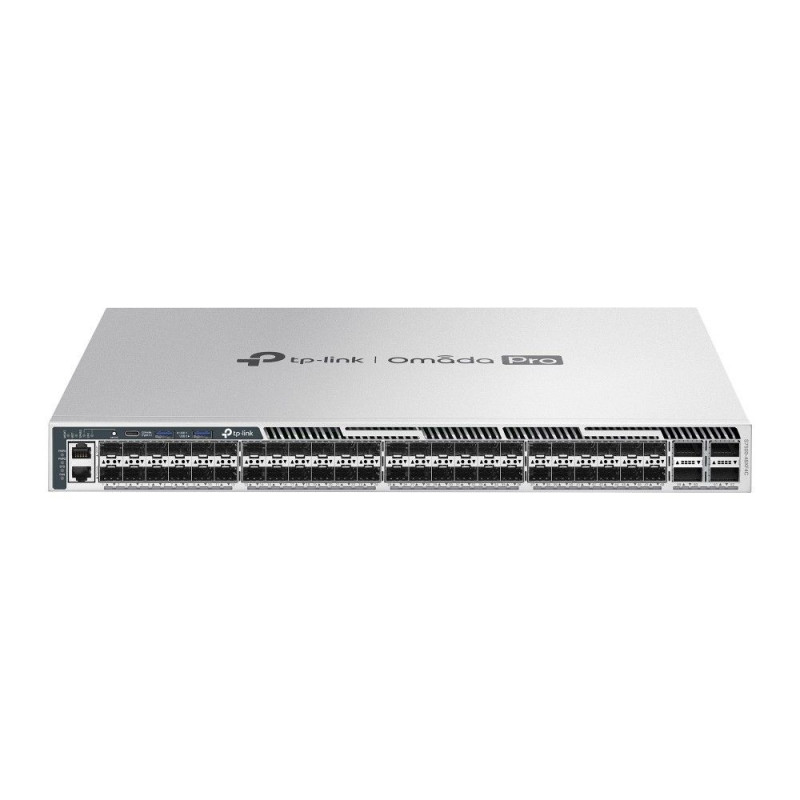

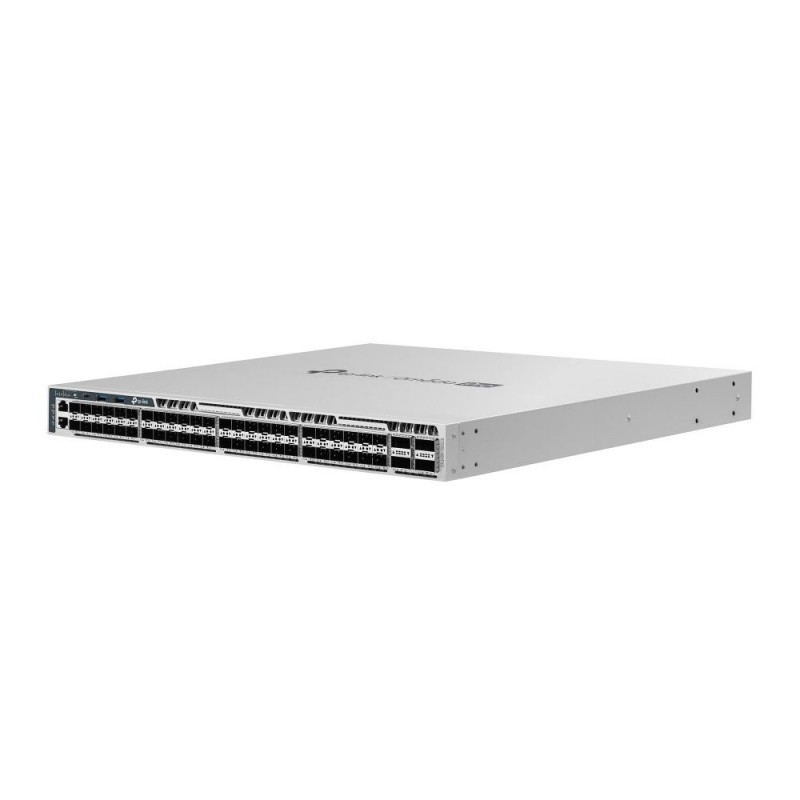

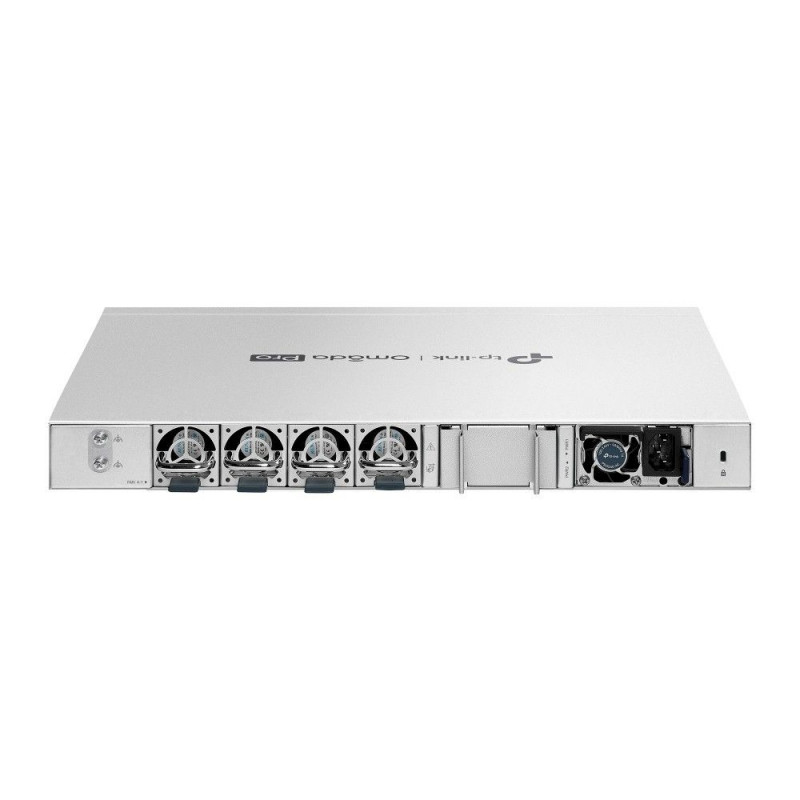

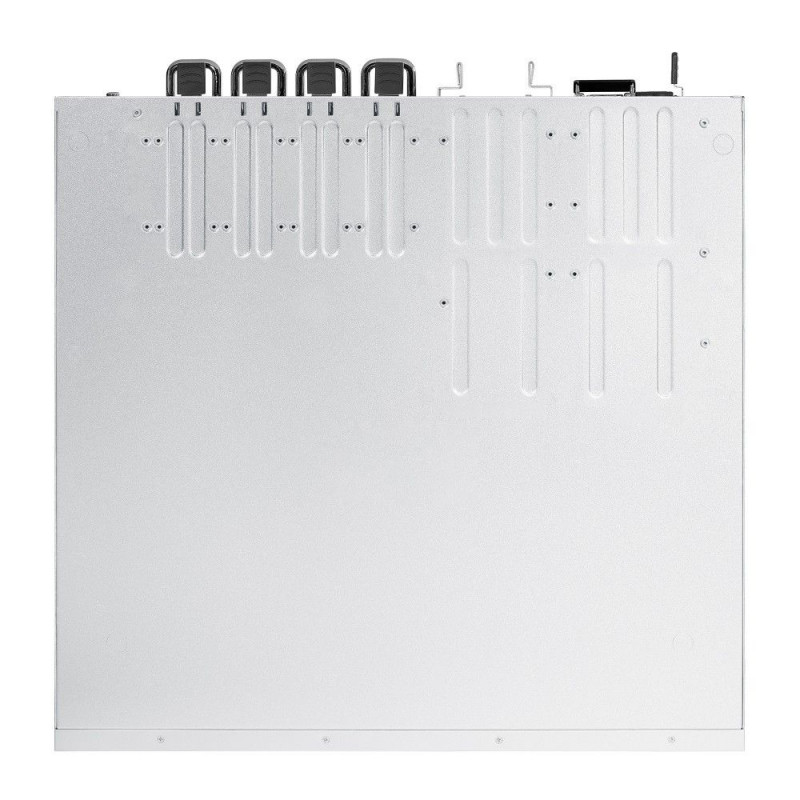

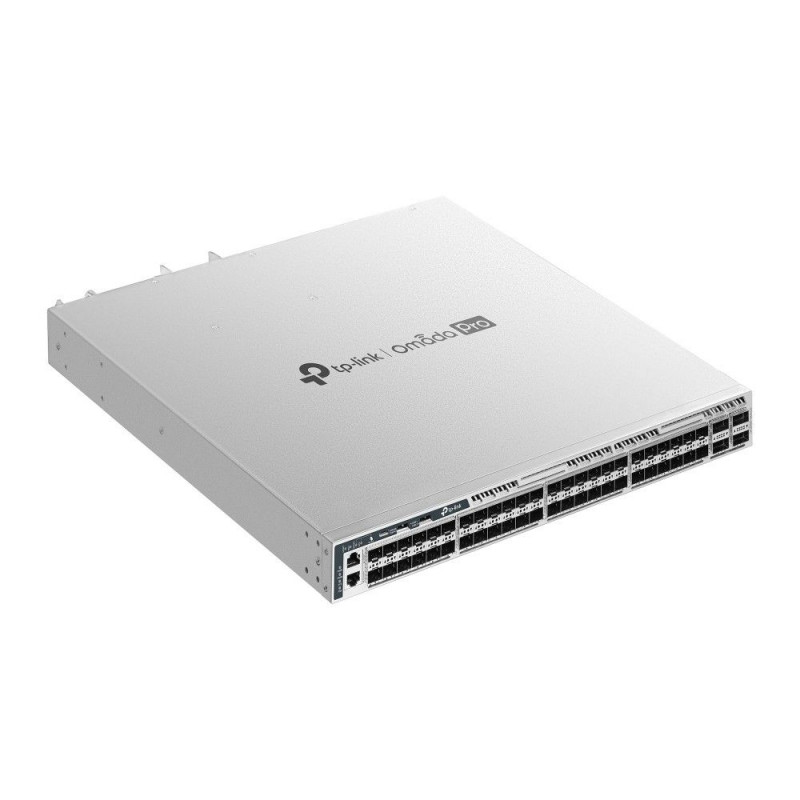

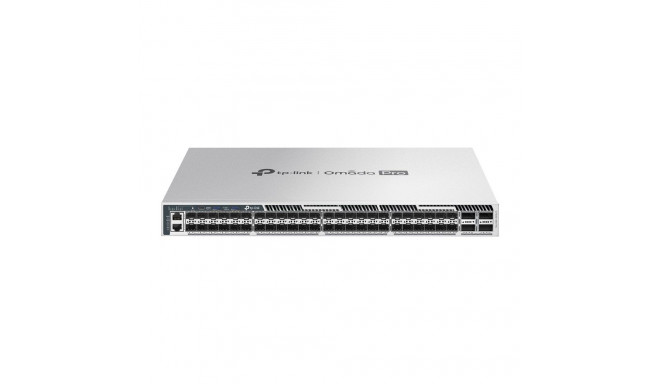

Switch S7500-48XF4C

FREE SHIPPING
WITHIN ESTONIA!

6 059 €

Monthly payment starting from 206,51 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

S7500-48XF4C Omada Pro 48-Port 10G Stackable L3 Managed Aggregation Switch with 4 100G Slots 48x 10 Gbps SFP+ slots and 4x 100 Gbps QSFP28 slots Physical Stacking for built-in redundancy and performance M-LAG improves link reliability from the card

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

S7500-48XF4C Omada Pro 48-Port 10G Stackable L3 Managed Aggregation Switch with 4 100G Slots

  • 48x 10 Gbps SFP+ slots and 4x 100 Gbps QSFP28 slots
  • Physical Stacking for built-in redundancy and performance
  • M-LAG improves link reliability from the card level to the device level
  • L3 Features: OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
  • Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
  • Highly available with two field-replaceable power supplies, VRRP, ERPS, BFD
  • Easy O&M: NETCONF, Configuration Rollback, Hot Patching, RSPAN, and PTPv2
  • Centralized cloud management via the web or the Omada app

Omada Pro S7500-48XF4C is a high-performance L3 managed switch tailored for the aggregation and core layer, featuring L3 routing, ultra-fast 100 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 48x 10 Gbps SFP+ slots, 4x 100 Gbps QSFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S7500-48XF4C offers a dependable networking solution for enterprises, campus, and ISPs.

High-speed Connectivity and Powerful Stacking
48x 10 Gbps SFP+ slots and 4x 100 Gbps QSFP28 slots provide up to 1760 Gbps switching capacity per unit. Physical stacking of up to 12 units enhances network performance and redundancy.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.

Comprehensive Security Functions
Defend against a range of network threats with Secure Boot, RADSEC, IMPB, Dynamic ARP Inspection, SFTP, 802.1X, and Secure Shell. Secure Boot protects the operating system from malicious attacks.

Highly Available
Two field-replaceable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing. M-LAG improves link reliability from the card level to the device level.

Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions. PTPv2 and 802.1AS provide sub-microsecond-level time synchronization precision by leveraging hardware timestamping.

Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network-all controlled from a single interface.

Apart from central management via the web or Omada app, S7500-48XF4C can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications.


Switch class Managed
Application Medium and large companies
Switch layer L3
Network architecture GigabitEthernet
Number of 10Gb ports 48
Number of 100Gb ports 4
Number of SFP+ ports 48
Number of QSFP28 ports 4
Console port Yes
Throughput 1760
Forwarding rate 600
Packet buffer 10
MAC address table size 128000
Support for Jumbo frames Yes
Jumbo frame size 9
Stackability Yes
Maximum number of units per stack 12
Number of VLAN groups 4000
VLAN Max 4K VLAN Group (802.1q VLAN) 802.1Q Tagged VLAN MAC VLAN Entries: 200 Multicast VLAN Management VLAN VLAN VPN (QinQ): Max 256 entries GVRP Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries Voice VLAN Private VLAN
QoS 8 Queues of Priority Port Priority IEEE 802.1p Priority DSCP Priority Queue Min-Bandwidth Schedule Mode (SP, WRR, SP+WRR) Bandwidth Control Rate Limit Storm Control Voice VLAN User-Defined OUI Smoother Performance Action for Flows QoS remark (802.1P Remar
Security Port Isolation CPU-Defend ARP Inspection (Dynamic ARP Inspection) DoS Defend IP-MAC-Port Binding 1,024 Entries DHCP Snooping ARP Inspection IPv4 Source Guard IPv6-MAC-Port Binding 1,024 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Guard DH
Management, monitoring, configuration Omada App Omada Pro Cloud-Based Controller Omada Pro Hardware Controller Omada Pro Software Controller Cloud Access Zero-Touch Provisioning Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9
L2 features Link Aggregation Spanning Tree Protocol Port-based and VLAN-based Loopback Detection 802.3x Flow Control ERPS Mirroring RSPAN MAC Address Table Multicast IGMP Snooping MLD Snooping Multicast VLAN Registration (MVR) Max Multicast Table: 4K (IPv4, IPv6) Fas
L3 features L3 Interface: 256 (IPv4,IPv6) Static Route: 2,048 IPv4, 1,024 IPv6 Host Route Table: Max 22,528 entries IPv4 Network Router entries: 40,960 (shared with IPv6 Network Router entries) IPv6 Network Router entries: 40,960 (shared with IPv4 Network Router entr
Other functions Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule
Chassis type Rack
Fan Yes
Power supply Internal
Power consumption 109.3
Environment requirements Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters   Storage Temperature: -40 °C to 70 (-40 to 158 ) Operating Humidity: 1090% RH non-condens
Accessories included S7500-48XF4C Switch Power Cord RJ45 Console Cable Quick Installation Guide Rackmount Kit Rubber Feet
Power supply Two Field-replaceable and Hot-swappable Power Supply Modules*(100240 VAC, 50/60 Hz) *Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Dimensions 440 x 380 x 44 mm
Data Act Link

Dimensions and weights

Gross weight
1 kg
Package width
56 cm
Package height
19 cm
Package length
60 cm

Product codes

EAN
4895252505375
Manufacturer code
NUTPLSW48S47501
