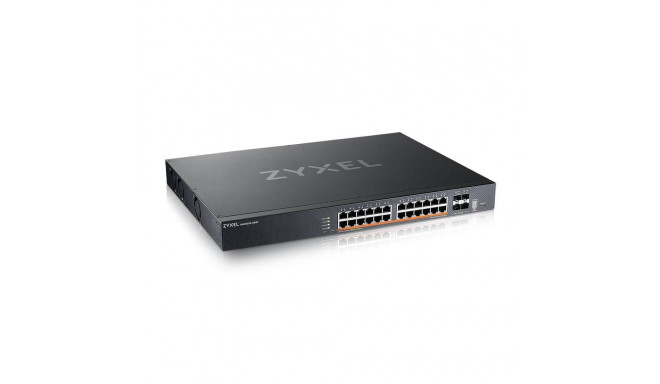

Switch XMG2230-28HP-ZZ0101F

1 169 €

Monthly payment starting from 39,84 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Flexible Multi-Gig port configuration for diversified deployments The XMG2230-28HP offers PoE-capable 2.5G Multi-Gig ports. Both models include four 10G SFP+ fiber uplinks for high-speed connectivity. The 52-port model's port mix enables efficient b

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Flexible Multi-Gig port configuration for diversified deployments

The XMG2230-28HP offers PoE-capable 2.5G Multi-Gig ports. Both models include four 10G SFP+ fiber uplinks for high-speed connectivity. The 52-port model's port mix enables efficient bandwidth allocation based on device needs, balancing cost and performance for scalable, future-proof networks.

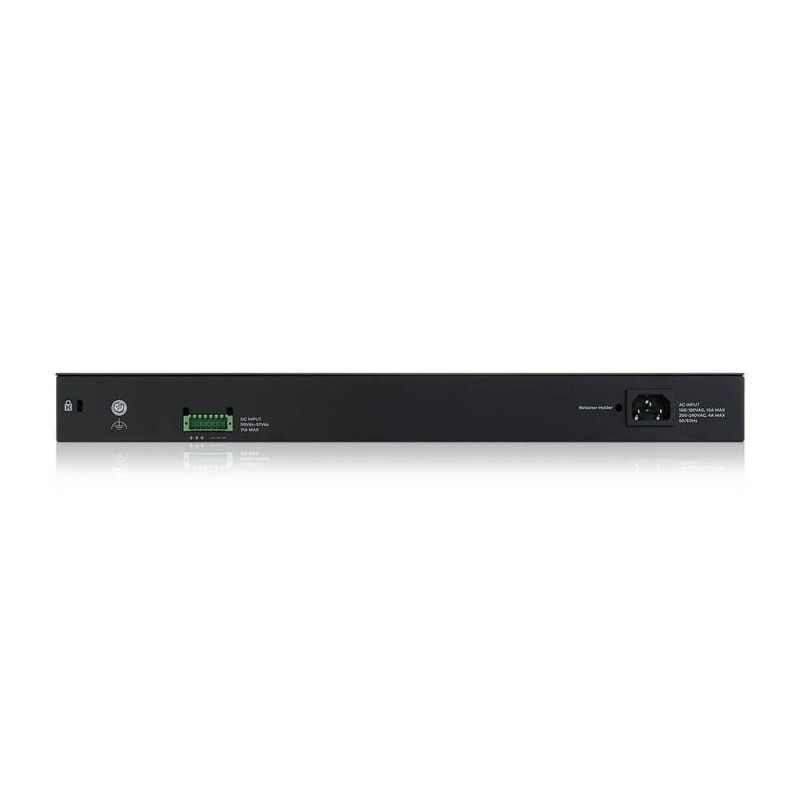

Dual power for always-on connectivity
The XMG2230 Series is designed with superior network resiliency in mind, featuring dual power sources: an internal AC input as the primary source and an optional DC input for connection to an external DC power system. This active-standby power redundancy enables automatic switchover to backup power if the main AC source fails. The dual power design helps prevent unexpected outages and ensures stable, 24/7 connectivity.

High-power, adaptive PoE for modern business devices
The XMG2230-28HP supports PoE++ on all ports. The series provides adaptive PoE power budget with either internal AC power 700W or external DC power system 1440W. It is built for higher capacity, improved efficiency, and reliable operation in demanding environments such as high-performance WiFi, video conferencing, IP surveillance, thin/zero clients, smart building, IoT, and AV applications.

Segment your network more effectively for security
Designed for SME networks, this series of switches supports full L2 feature sets such as VLAN, ACL, port aggregation, and mirroring, along with advanced security to keep your business protected. It also provides essential L3 access features for converged voice, video, and data. With support for static routing, the switches ensure efficient traffic flows across your network, while the built-in DHCP server simplifies device onboarding and reduces IT overhead.

Click. Tap. Done.
Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required.
Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere.

Powerful, effortless and scalable connectivity.
With Nebula, you can manage your entire network - wireless, switching, security and LTE/5G through a single centralized cloud platform. Deploy and configure devices quickly and remotely, without the need for extra hardware controllers or software.
Whether you're managing one site or many, Nebula delivers real-time monitoring, instant alerts and complete network visibility - anytime, anywhere.
Scale confidently, simplify operations and stay secure - all through one intuitive platform.

Dedicated networked AV mode
The Networked AV mode in standalone mode simplifies deployment with an intuitive setup wizard and AI-driven auto-configuration. A visual dashboard highlights key AV settings like IGMP, while a simplified menu streamlines management. With high performance plus built-in Dante and AES67 profile support, the XMG2230 ensures smooth, reliable AVoIP streaming for professional AV environments.


Switch class Managed
Application Medium and large companies
Switch layer L2+
Network architecture GigabitEthernet
10/100/1000/2500 Mbps ports 24
Number of 10Gb ports 4
Number of PoE ports (PoE & PoE+) 24
Number of SFP+ ports 4
Console port No
Forwarding mode Store-and-forward
Throughput 200
Forwarding rate 148.8
Packet buffer 2
MAC address table size 32000
Support for Jumbo frames Yes
Jumbo frame size 12
Stackability No
Number of VLAN groups 4000
Chassis type Rack
Fan Yes
Power supply Internal
Power consumption 842.3
Mean time between failures (MTBF) 554612.62
Environment requirements Operating temperature: -20°C to 50°C/-4°F to 122°F Operating humidity: 5% to 95% (non-condensing) Storage temperature: -40°C to 70°C/-40°F to 158°F Storage humidity: 5% to 95% (non-condensing)
Certificates Safety: LVD BSMI Safety EMC: FCC Part 15 (Class A) CE EMC (Class A) BSMI EMC RoHS
Accessories included Power cord Rack mounting kit
Power supply 100-240V AC, 50/60Hz 50-57V DC
Dimensions 441 x 330 x 44 mm
Weight 4.53
VLAN 802.1Q static VLANs/dynamic VLANs: 4K/4K Port-based VLAN VLAN isolation Vendor ID based VLAN Protocol-based VLAN IP subnet-based VLAN MAC-based VLAN Private VLAN Voice VLAN Independent VLAN Learning (IVL) VLAN Translation VLAN trunking VLAN mapping IEEE 8
Supported protocols and standards IEEE 802.3z 1000BASE-X IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3an 10GBASE-T Ethernet IEEE 802.3bz 2.5GBASE-T/5GBASE-T IEEE 802.3ae 10Gbit/s Ethernet over fiber IEEE 802.3af PoE IEEE 802.3at PoE plus IEEE 802.3bt (60W) PoE over 4 pair IEEE 802.3az EEE I
QoS No. of hardware queues per port (on-premise/Nebula cloud): 8/6 Storm control and event log: Broadcast, multicast, unknown unicast (DLF) Port-based rate limiting (ingress/ egress) Rate limiting per IP/TCP/UDP per port Policy-based rate limiting 802.1p Clas
Security Port security Layer 2 MAC filtering Layer 3 IP filtering Layer 4 TCP/UDP socket filtering Static MAC forwarding Multiple RADIUS servers Multiple TACACS+ servers 802.1x VLAN and 802.1p assignment by RADIUS Login authentication by RADIUS Login authenticatio
Management, monitoring, configuration SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) ICMP echo/echo reply Syslog Display port utilization Support NebulaFlex Pro for hybrid mode Standalone management by Web interface Cloud management by Nebula Control Center Auto configuration recovery (on
L2 features L2 multicast: 1K IGMP snooping (v1, v2, v3) IGMP snooping fast leave IGMP snooping immediate leave Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling IGMP filtering IGMP proxy mode & snooping mode selection Multicast lo
Data Act Link

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 219,99 €
  • Additional warranty (2 years) - 129,99 €
  • Insurance (1 year) - 229,99 €
  • Insurance (2 years) - 349,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
6.4 kg
Package width
58.5 cm
Package height
52 cm
Package length
10 cm

Product codes

EAN
4718937645312
Manufacturer code
NUZYXSZ24P00024
