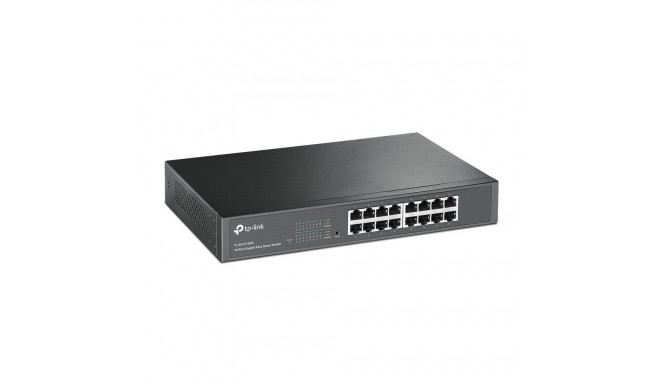

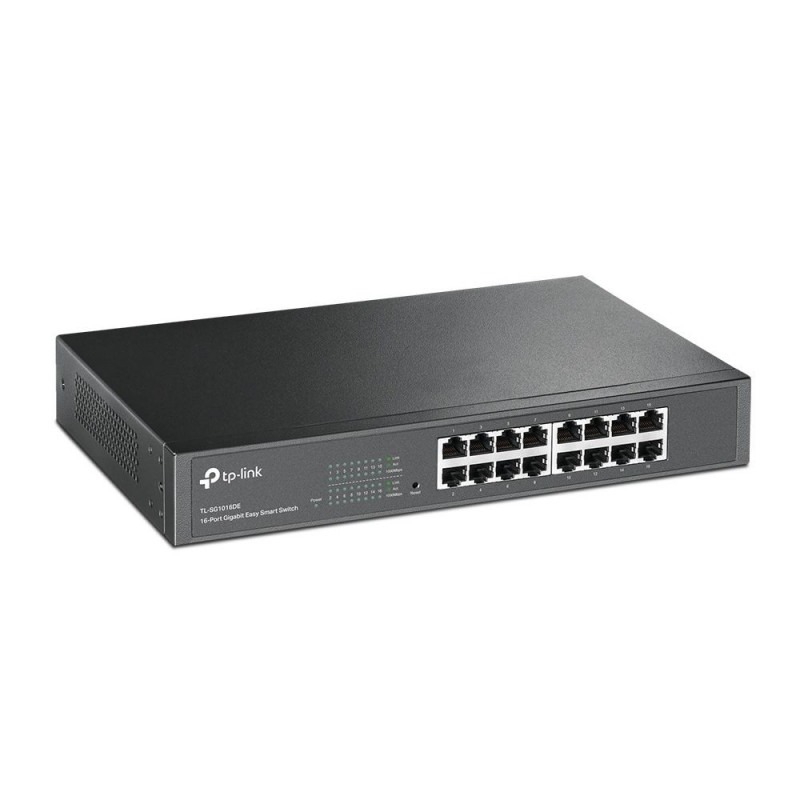

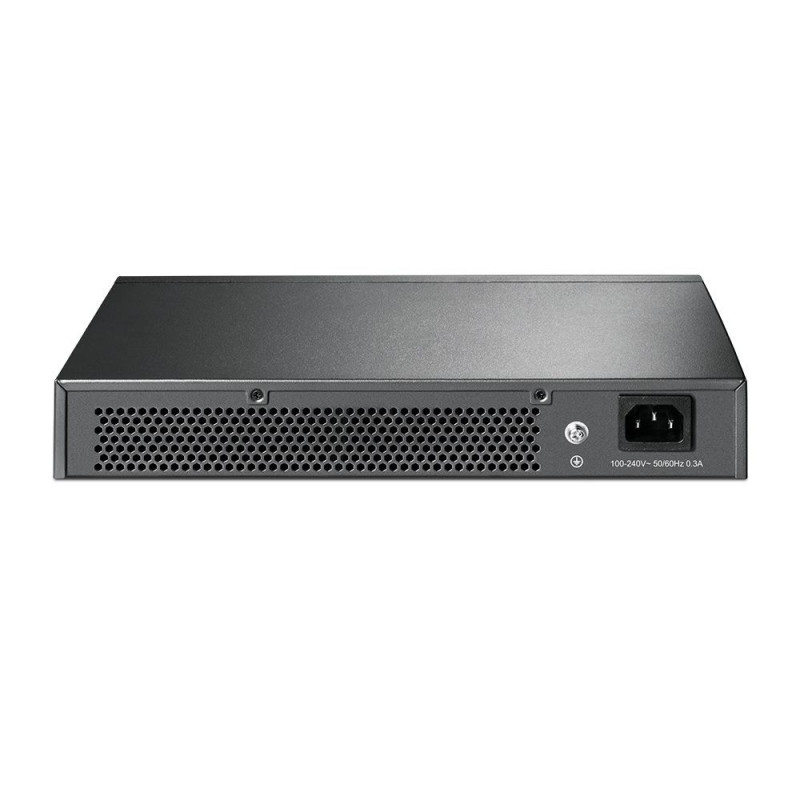

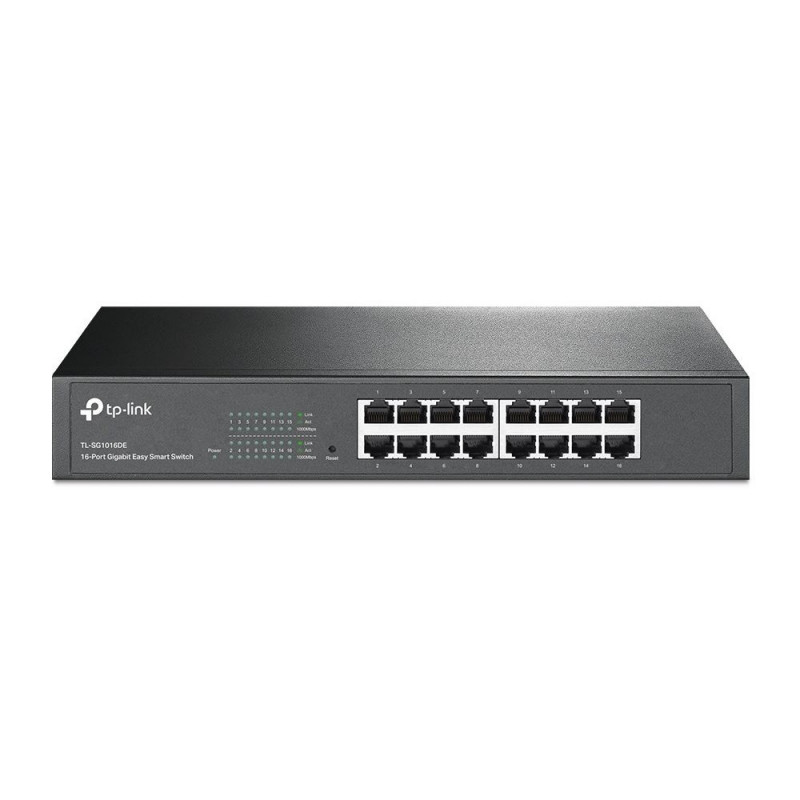

Switch - TP-Link TL-SG1016DE Black

Main info

TP-Link TL-SG1016DE is a managed Layer 2 switch with 16 Gigabit Ethernet ports, VLAN support, QoS, and IGMP snooping. The black rack-mountable unit provides 32 Gbit/s switching capacity and does not support PoE.

Product has been archived

TP-Link TL-SG1016DE Black

TP-Link TL-SG1016DE is a managed Layer 2 switch with 16 Gigabit Ethernet ports, VLAN support, QoS, and IGMP snooping. The black rack-mountable unit provides 32 Gbit/s switching capacity and does not support PoE.


  • Managed Layer 2 Gigabit Ethernet switch with 16 RJ-45 ports for reliable wired network connectivity.
  • Supports VLANs, QoS, link aggregation, port mirroring and rate limiting for flexible network management.
  • Provides 32 Gbit/s switching capacity, an 8,000-entry MAC address table and jumbo frames up to 9,000 bytes.
  • Rack-mountable black design with IGMP snooping, broadcast storm control and a power supply included.

Product Information
Product Type Managed Layer 2 Gigabit Ethernet switch
Brand TP-Link
Model TL-SG1016DE
Colour Black
Ports and Networking
Ethernet Ports 16 × RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
Duplex Mode Full duplex
Networking Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
10G Support No
Auto MDI/MDI-X Yes
IGMP Snooping Yes
Management and Performance
VLAN Capacity Up to 32 VLANs
Switching Method Store-and-forward
MAC Address Table 8,000 entries
Packet Buffer Memory 0.5 MB
Jumbo Frames Up to 9,000 bytes
Number of QoS Queues 4
Additional Features
Indicators LED indicators
Flow Control Supported
Power over Ethernet Not supported
Installation Rack-mountable; rack-mount kit included
Power and Dimensions
Power Input 100–240 V AC, 50–60 Hz
Maximum Power Consumption 11.73 W
Dimensions 294 × 44 × 180 mm (W × H × D)
Operating Temperature 0–40 °C
Operating Humidity 10–90% relative humidity
Included Accessories
Included Items Power supply, AC cable, rack-mount kit and user guide
Safety
Safety Warning For indoor network use only. Connect and operate the switch using the supplied power cable and within the specified electrical and environmental limits. Do not expose it to moisture, and ensure adequate ventilation during operation.

Width 294 mm
Height 44 mm
Length 180 mm
Product Weight 1200 g
Country CN

Dimensions and weights

Gross weight
1.5 kg
Package width
35 cm
Package height
10 cm
Package length
25 cm

Product codes

EAN
1210002616751
Manufacturer code
TL-SG1016DE
