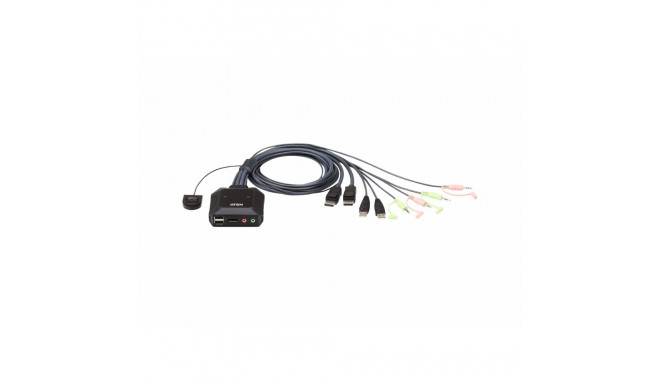

ATEN 2-Port USB DisPlayPort Cable KVM Switch

Main info

Product has been archived


Warranty 24 (F)
Power source DC
Master (outer) case gross weight 9.33 kg
HDCP Yes
Built-in display No
Weight 360 g
Master (outer) case net weight 7.2 kg
USB 2.0 ports quantity 2
Headphone outputs 1
Package weight 435 g
Maximum resolution 4096 x 2160 pixels
Width 84.2 mm
Rack mounting No
Height 30.4 mm
Windows operating systems supported Yes
Package height 225 mm
Package width 55 mm
Operating relative humidity (H-H) 0 - 80%
USB powered Yes
Harmonized System (HS) code 85176200
Products per master (outer) case 20 pc(s)
Product colour Black
Operating temperature (T-T) 0 - 50 °C
DisplayPort version 1.1
Depth 83.4 mm
Keyboard port type USB
Master (outer) case width 328 mm
Master (outer) case length 389 mm
Hot-Plug support Yes
Storage temperature (T-T) -20 - 60 °C
Mac operating systems supported Yes
Package depth 155 mm
HD type 4K Ultra HD
Housing material Plastic
Mouse port type USB
DisplayPorts quantity 1
Video port type DisplayPort
Ethernet LAN No
Cable length 1.2 m
Input voltage 5 V
Manual Yes
Master (outer) case height 330 mm
Linux operating systems supported Yes
Number of computers controlled 2
Power consumption (typical) 1.38 W
LED indicators Yes
Video bandwidth 30 Hz
Console USB ports quantity 2
Audio connections Yes
Remote switch cable length 1.8 m
Number of microphone inputs 1
Sustainability certificates RoHS
Wired remote switch Yes
Compliance certificates RoHS
Console ports USB A
USB connector type Micro-USB B

Dimensions and weights

Package width
225 cm
Package height
55 cm
Package length
155 cm

Product codes

EAN
4719264645525
Manufacturer code
CS22DP-AT
