ATS PDU44005 Rack1U,16A, 2xC20, 12 xC13, 2xC19, SNMP

Main info

Product has been archived

ATS PDU44005 Rack1U,16A, 2xC20, 12xC13, 2xC19, SNMP

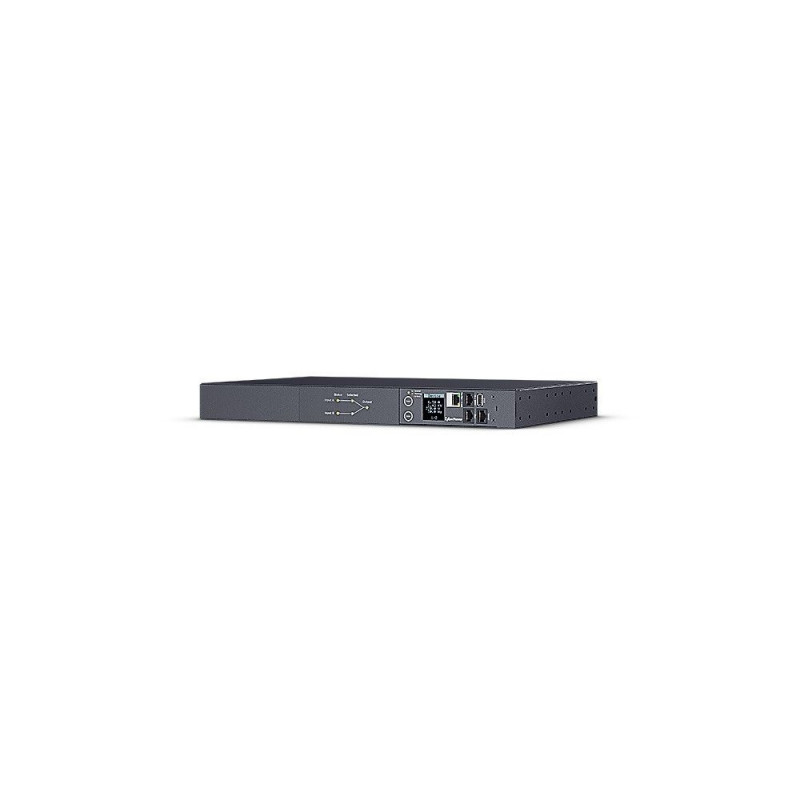

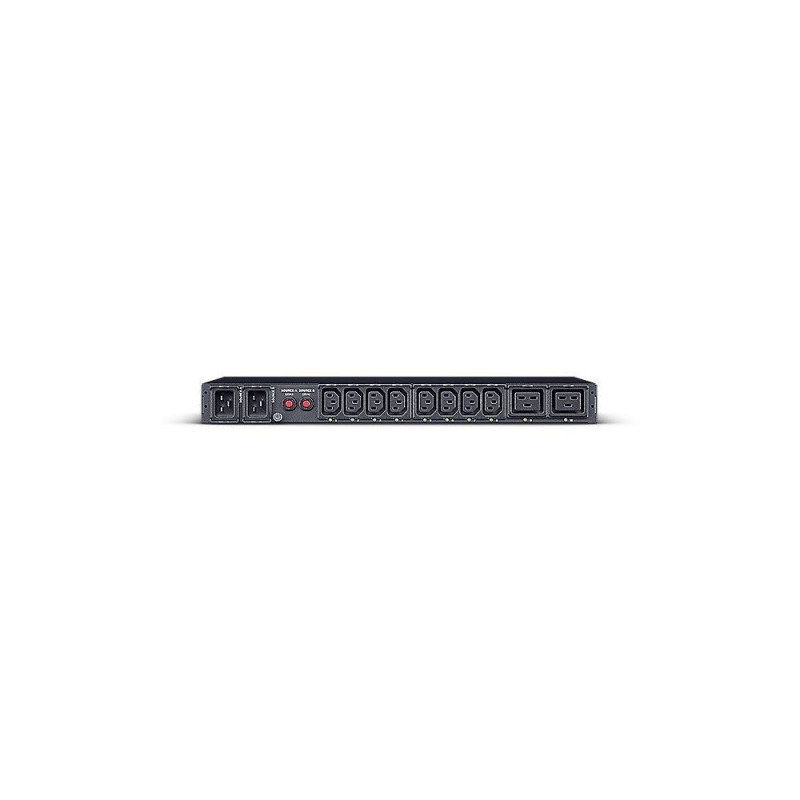

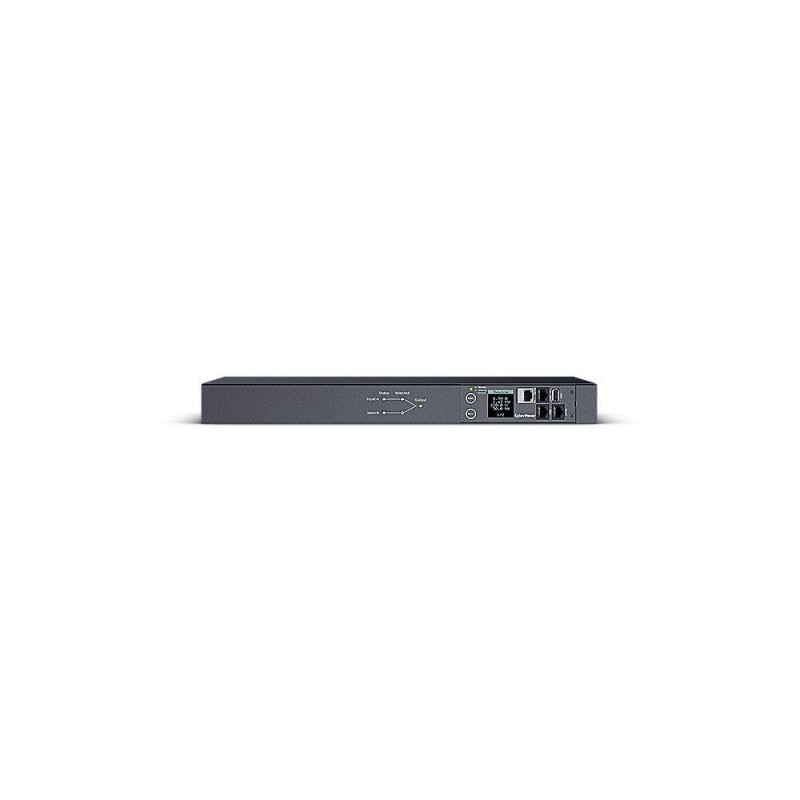

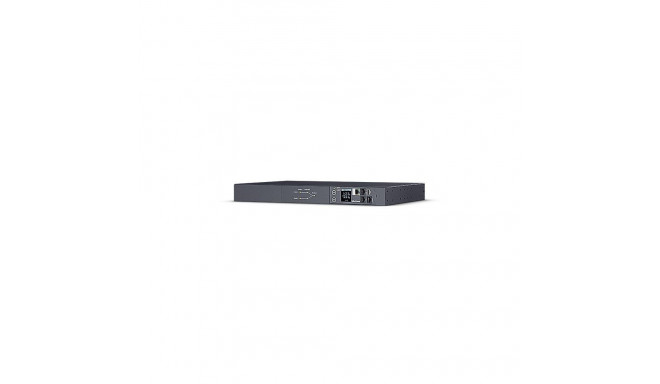

The CyberPower PDU44005 provides output from a UPS, generator or mains power to multiple connected devices in IT environments. Two power cords can be connected to separate power sources to provide redundancy for connected single-cable devices. If the selected power source exceeds the defined parameters or fails, the ATS PDU will automatically switch to another power source within 10 ms (Source failure detection time: 2-3 ms. Power source transfer time: 2-7 ms) to ensure continuous work. The device supports remote individual control over the network, allowing administrators to turn on/off connected devices from any location.

The product features a hot-swappable Ethernet module that can work with PowerPanel Power Management Software and a power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change the colors of the LCD display to easily categorize devices between multiple machines in server rooms and IT environments. Event logging via a web browser or network connection allows users to view a history of power conditions. When specific power events occur, automatic event notifications will be sent via email, SMS or SNMP trap to designated users so they can take immediate action. The USB port also supports easy firmware updating. Moreover, the described RJ45 port allows you to connect an optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in the IT center.

  • Local/remote monitoring and real-time switching
  • Dual entrances
  • Industrial metal housing
  • Customizable color LCD display
  • LED status indicator
  • ENVIROSENSOR support
  • PowerPanel management software
  • Cable tray
  • Power sequence controlled sockets
  • Fast transfer time (total 10 ms)
  • Real-time digital load display
  • LCD can be replaced during operation
  • Software update via USB
  • Firmware updateable by the user
  • Adjustable mounting brackets
  • IEC socket lock

Number of phases input 1 (230V)
Chassis type Rack
Software PowerPanel Business (Recommended for small and medium scale management) PowerPanel Enterprise (Recommended for large-scale management)
Input power ports IEC-C20
Output power ports 8 x IEC-C13
Output power ports 2 x IEC-C19
I/O connectors 4 x RJ-45 LAN
I/O connectors 1 x USB 2.0
Accessories included PDU44005 User manual Cable support tray Mounting brackets Headbands Screw set Power cord Serial cable
Color Black
Dimensions 44 x 433 x 215 mm
Weight 3.4
Designation
Special functions LCD Information Display: Input Voltage (Volts), Input Frequency (Hz), Current Level (Amp), Power Consumption (Kilowatts), Network Information, Serial Number, Environmental Status, Hardware Version, Firmware Version Color LCD display Hot-swap LCD module LC
Environment requirements Operating Temperature: 32 ~ 113 (°F) Operating temperature: 0 ~ 45 (°C) Operating relative humidity (non-condensing): 0 ~ 95 (%) Operating altitude: 0-13,000 feet (0-4000 meters) (feet/meters) Storage Temperature: 5 ~ 131 (°F) Storage temperature: -15 ~ 5

Dimensions and weights

Gross weight
5 kg
Package width
54.5 cm
Package height
11.5 cm
Package length
40 cm

Product codes

EAN
4711027799780
Manufacturer code
NUCBPTPPDU44005
