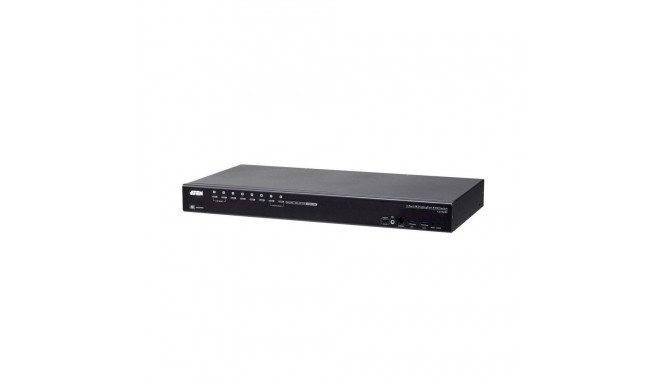

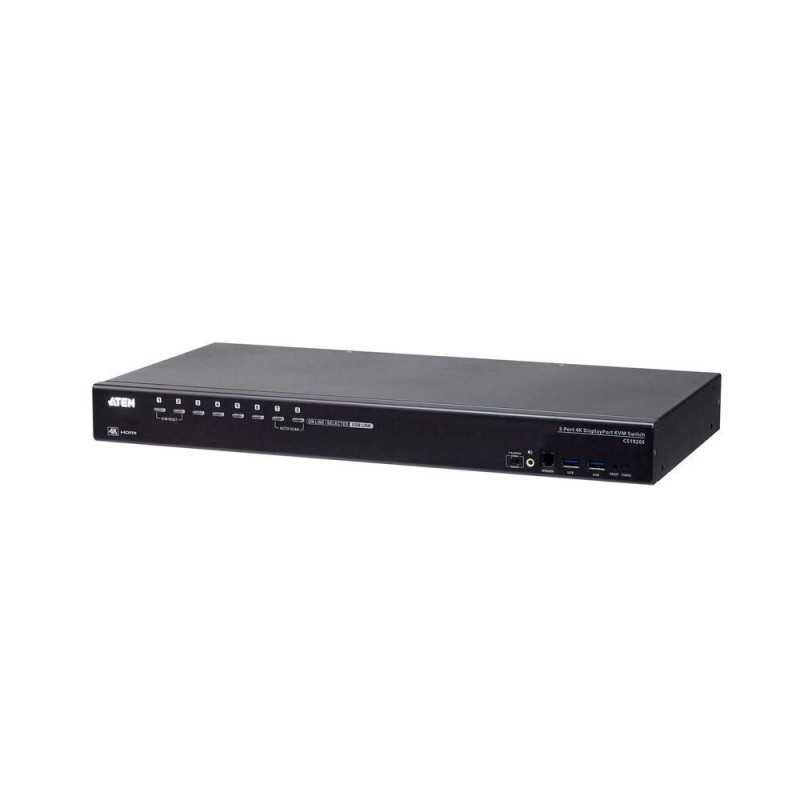

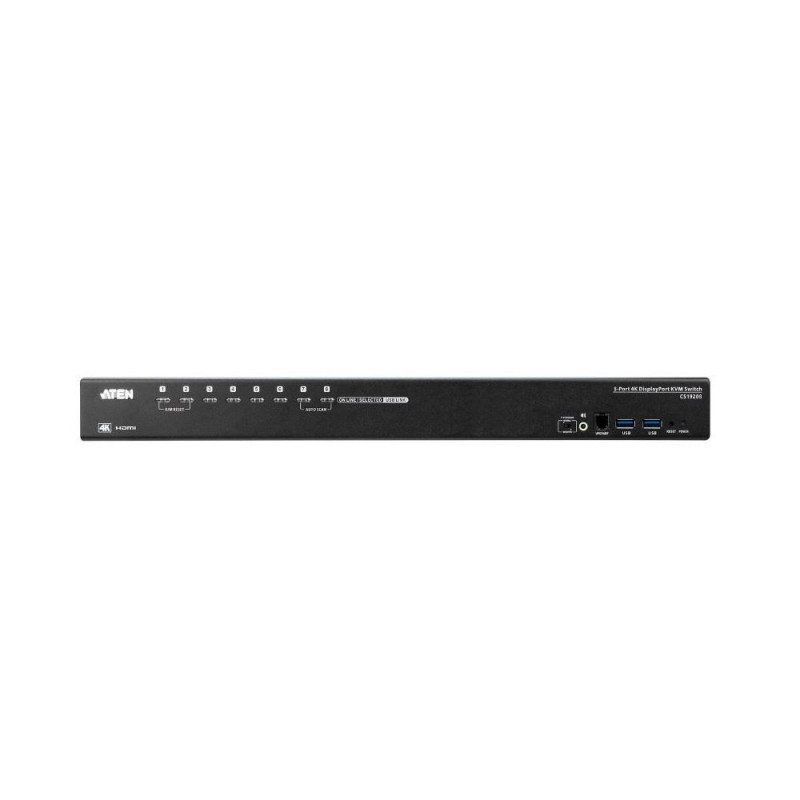

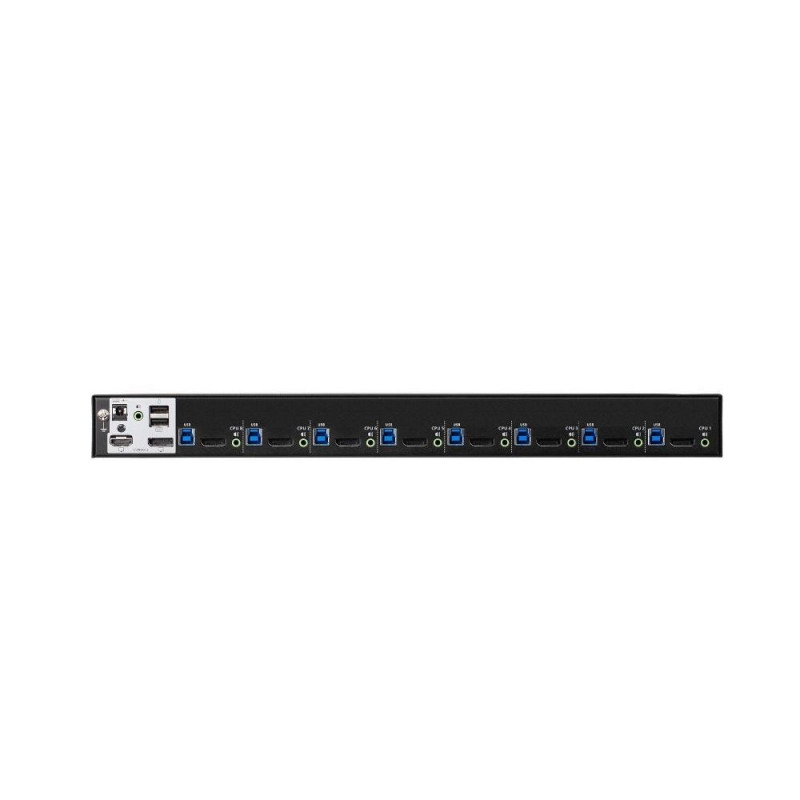

8-port USB 3.0 4K DisplayPort KVM switch

  • Superior video quality - up to 4K DCI (4096 x 2160 @ 60Hz)
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rate
  • Cascadable to two levels - control up to 128 computers
  • Video DynaSync - ATEN's exclusive technology that eliminates display problems at start-up and optimises resolution when switching between different sources.

The ATEN CS19208 8-port USB 3.0 4K DisplayPort KVM Switch allows you to access and control up to 8 DisplayPort computers with a single USB keyboard, USB mouse and monitor console. With the dual interface console, users can choose between DisplayPort/HDMI video outputs supporting high quality video resolutions up to 4K DCI (4096 x 2160 at 60 Hz) for crystal clear images.

To meet requirements for easy expansion and flexibility, the CS19208 can be cascaded up to two levels and control up to 128 computers from a single console. What's more, the CS19208 supports a multi-display function, enabling information to be compared and analysed on up to eight monitors, greatly enhancing the working environment.

With ATEN's two patented technologies - Video DynaSync and EDID Expert - the CS19208 can optimise display resolution, speed up switching between ports, and power on smoothly while eliminating monitor start-up issues.

In addition, the CS19208 is equipped with a built-in USB 3.1 Gen 1 hub that enables data transfer rates of up to 5Gbps, allowing users to speed up their workflow and make USB peripherals instantly available. To provide user-friendly port selection methods, the CS19208 offers pushbuttons, hotkeys, RS-232 commands and on-screen display (OSD) menus with a newly designed UI for easy and intuitive operation.

To eliminate security concerns, two-level password authentication is available to enhance the security of computer access and control. The consolidation of these beneficial features makes the CS19208 ideal for managing server/computer rooms used in industries where high image quality and multi-tasking are required, such as enterprise, government, manufacturing, telecommunications, financial, medical healthcare, industrial automation, etc.


No. of devices (max) 128
Console Ports 2x Audio 3,5mm minijack Female
Console Ports 1x HDMI Female
Console Ports 1x DisplayPort Female
Console Ports 2x USB Type A Żeński
Console Ports 1 x RJ-11 Female
PC connectors 8x Audio 3,5mm minijack Female
PC connectors 8x USB Type B Female
Resolution 4096 x 2160
Accessories included CS19208 8-port USB 3.0 4K DisplayPort KVM switch with rack mount kit 2 x DisplayPort 1.4 cable 2 x USB 3.0 cable 2 x audio cable Cable for firmware update 4 x rubber feet Power adapter User manual
Dimensions 432.4 x 214.3 x 44 mm
Weight 3.11
Other features For some RACK-mounted products, the standard dimensions width/depth/height may be expressed as length/width/height.
Designation
Functions One USB console controls up to eight DisplayPort-enabled computers and two additional USB 3.0 peripherals Cascadable to two levels - control up to 128 computers1 Multi-Display function - stack up to eight CS19208 units and display up to 8 monitors (dual /

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 219,99 €
  • Additional warranty (2 years) - 129,99 €
  • Insurance (1 year) - 229,99 €
  • Insurance (2 years) - 349,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
4.8 kg
Package width
13.5 cm
Package height
33 cm
Package length
50 cm

Product codes

EAN
4719264649257
Manufacturer code
NUATNKV8PCS1920
