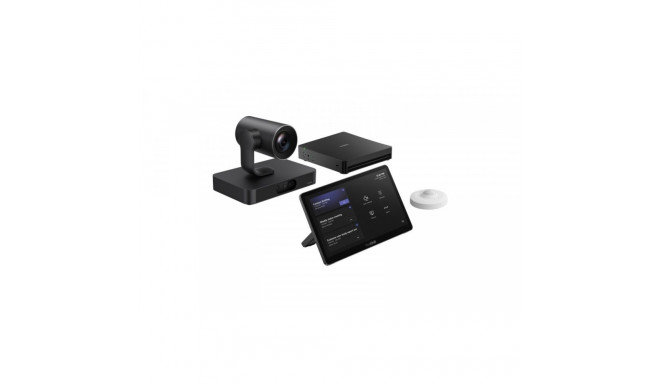

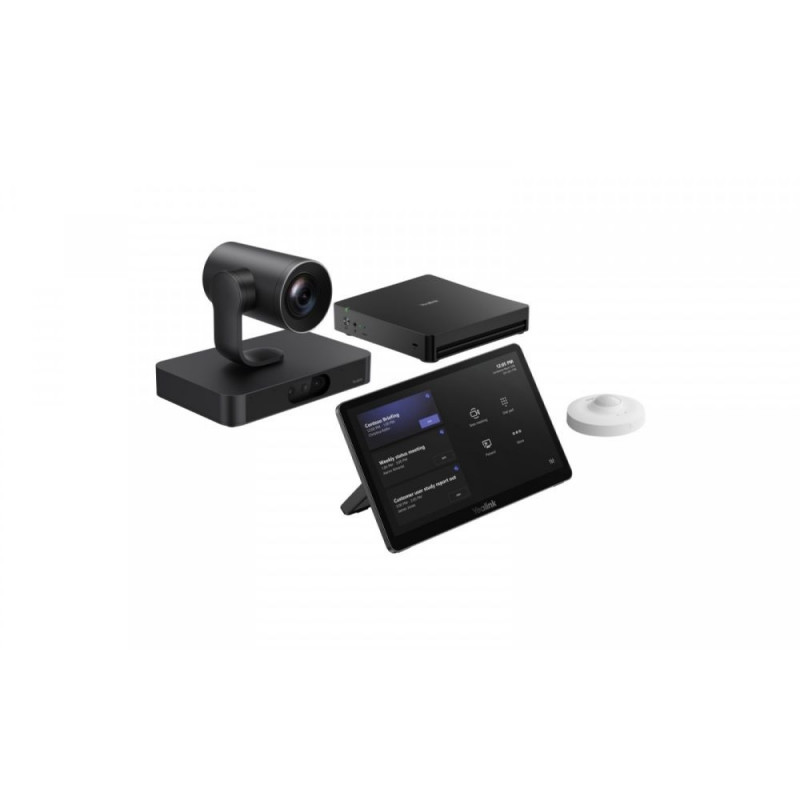

Videoconferencing kit MVC S80-C5U-000 110994

4 839 €

Monthly payment starting from 164,93 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

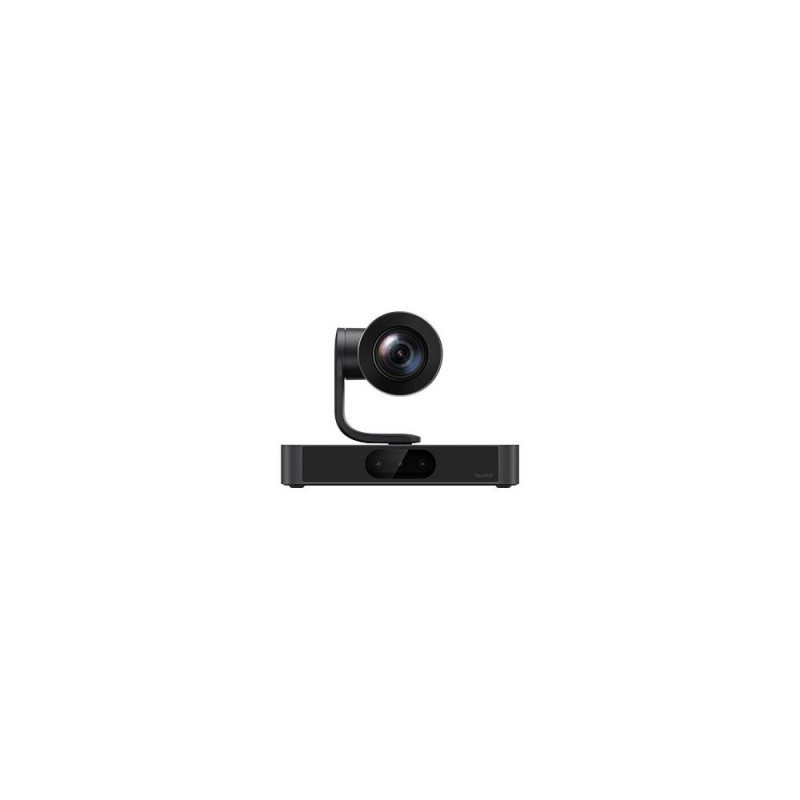

SmartVision 80: Four Lenses Capture Every Detail with Exceptional Clarity
The SmartVision 80 is equipped with three electronic cameras and one PTZ camera. The electronic cameras include a wide-angle lens and two telephoto lenses, providing full coverage of the conference room and delivering a clear image of each participant. The PTZ camera features a 20x optical zoom, maintaining focus even from a distance, and delivering exceptional high-quality visuals.

Advanced Intelligent Tracking for Engaging Meetings
SmartVision 80 enhances remote meetings with multiple tracking modes, including IntelliFocus, presenter tracking, speaker tracking, and auto-framing. When multiple SmartVision 80 devices are used together, they expand the captured area and offer advanced features such as Multi-camera IntelliFocus, IntelliFrame, and microphone-camera integration. This ensures more precise tracking and a professional, efficient meeting experience.

Full Device Compatibility and High-Quality Audio
SmartVision 80 works seamlessly with a wide range of Yealink audio devices, such as VCM35/36, CM20, and MSpeaker Pro. Advanced audio processing technology captures every detail of conversations, providing clear and natural sound for both remote presentations and group discussions, ensuring smooth communication and professional audio quality for every participant.

Seamless Meeting Experience with Microsoft Teams Integration

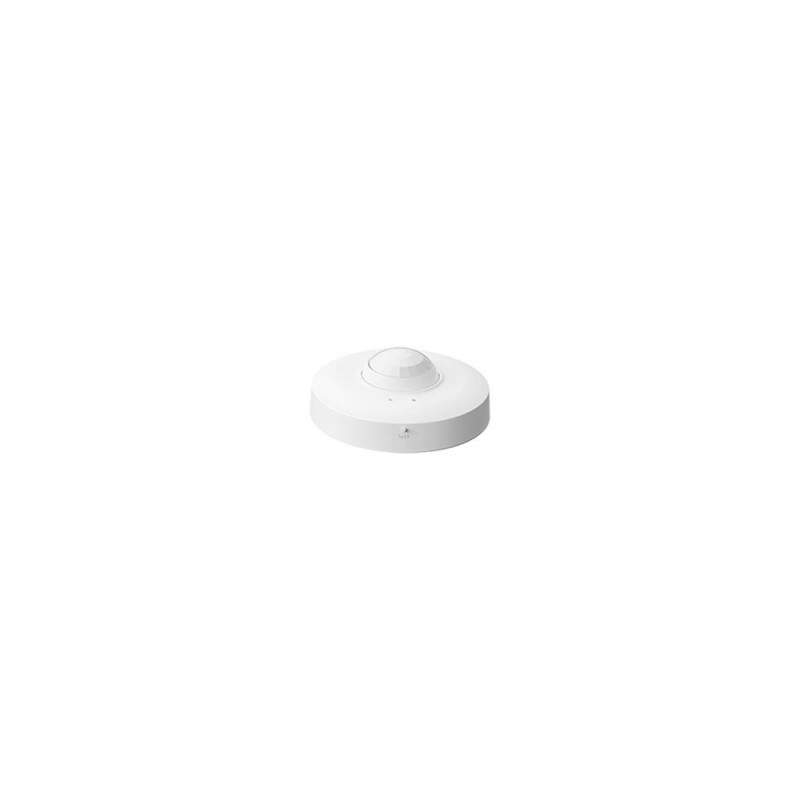

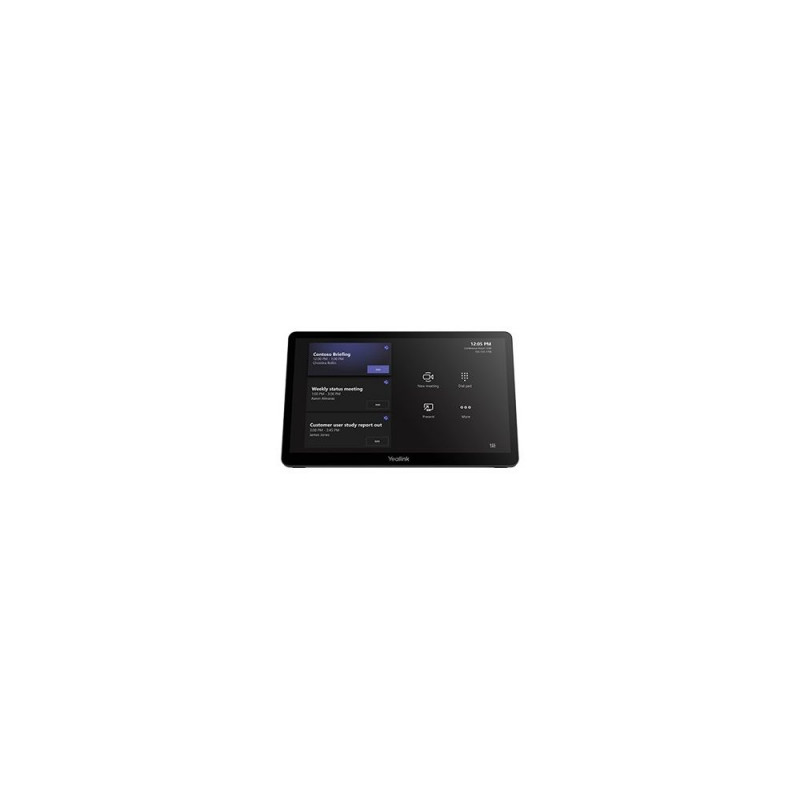

The MVC S80-C5U system comes with a native Microsoft Teams interface, providing a familiar and intuitive workflow. The MTouch Plus touch panel allows one-click access to meetings, call control, camera adjustment, and content sharing. The RoomSensor automatically activates the system when participants enter the room, ensuring smooth, efficient meetings that support productivity and collaboration.

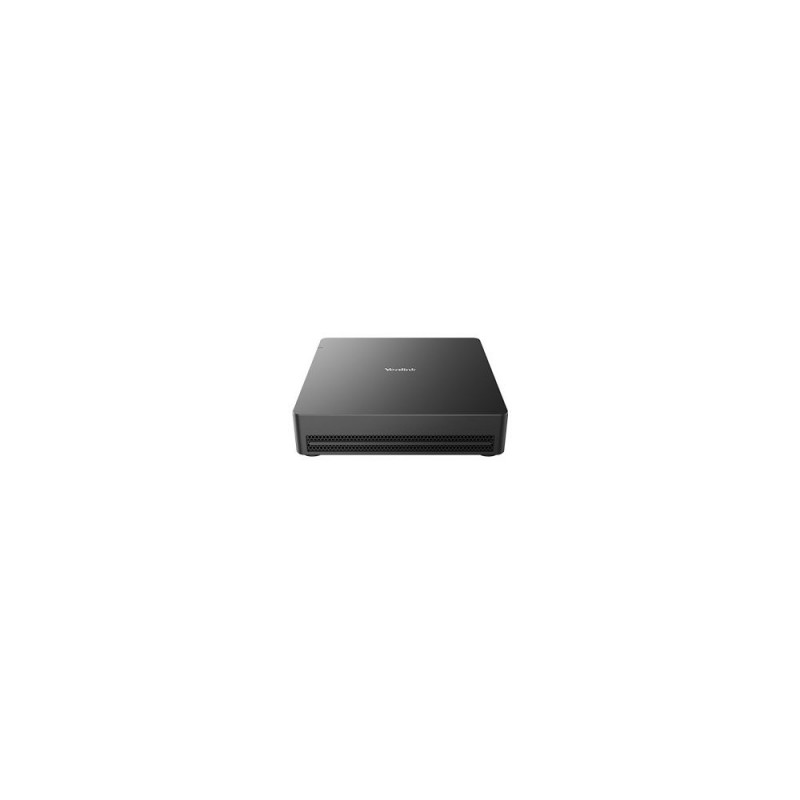

Exceptional Processing Power
At the core of the MVC S80-C5U is the MCore 4, powered by an Intel Ultra5 125H processor. It delivers outstanding data processing performance and advanced AI computing capabilities via a built-in NPU, ensuring smooth, efficient meetings and enabling intelligent conferencing features. MCore 4 supports modern meeting rooms, providing a stable and high-performance environment for engaging remote communication.

Real-Time Content Sharing for Better Collaboration
The system supports both wireless and wired content sharing for maximum flexibility. Wireless sharing is simple via the Yealink adapter, supporting 1080p/30fps transmission for high-quality visuals. Wired sharing is available by connecting the MTouch panel to a laptop via USB-C or HDMI using the MTouch cable. Additionally, MCore 4 includes an HDMI-In interface that supports 4K video streams, enabling lossless presentation and an enhanced content-sharing experience.

Simple Installation and User-Friendly Operation
Connecting the MCore 4 to the MTouch Plus requires a single CAT5e cable, which simultaneously handles data and power-eliminating the need for additional cables or power supplies. The RoomSensor uses Bluetooth (BLE), completely removing the need for extra wiring.

Remote Device Management
The system supports the Yealink Device Management Platform/Cloud Service, allowing remote management, monitoring, configuration, updates, and diagnostics of all connected components. This ensures that your conference room is always ready for use and operates at peak performance.


Output resolution UHD 4K (3840 x 2160)
Zoom, optical 20
Connectors Line in balanced
Connectors 1 x USB 3.0 (Type B)
Connectors Line out balanced
Connectors 1 x HDMI
Connectors 2 x RJ-45
Connectors RJ-45
Connectors 1 x USB 2.0
Color Black
Processor family Intel Core Ultra 5
CPU Boost frequency 4.5
Number of cores 14
Number of threads 18
L3 cache 18 MB
ECC support No
Architecture 64-bit
RAM memory installed 16
Number of memory slots used 2
Disk type SSD
SSD capacity 256
Video ports 3 x HDMI
Network interface 1 x 10/100/1000 Mbit/s
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
Network interface Bluetooth
Connectors 3 x HDMI
Connectors 4 x USB 3.0
Connectors 3,5 mm minijack
Diagonal screen 11,6''
Touch screen Yes
Matrix type TFT IPS
Resolution 1920 x 1080 (FHD 1080)
Motion detection Yes
Color white
Designation
Separator Camera SmartVision 80
Special functions IntelliFocus Speaker Tracking Presenter Tracking Video Framing Picture-in-Picture (PiP) Auto Framing IntelliFrame
Dimensions 230 x 135 x 171.5 mm
Other features PTZ Camera: 20x Optical Zoom PTZ Camera Field of View (FOV): 69° DFOV, 61.5° HFOV, 36° VFOV Panoramic Camera FOV: 110° DFOV, 98° HFOV, 82° VFOV Telephoto Camera FOV: 51° DFOV, 41.6° HFOV, 32° VFOV
CPU frequency 1.2

Dimensions and weights

Gross weight
11 kg
Package width
40.5 cm
Package height
34 cm
Package length
54 cm

Product codes

EAN
6938818323803
Manufacturer code
UVYEABHW0000461
