Revopoint MetroX Pro Standard 3D Scanner

1 139 €

Monthly payment starting from 38,82 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

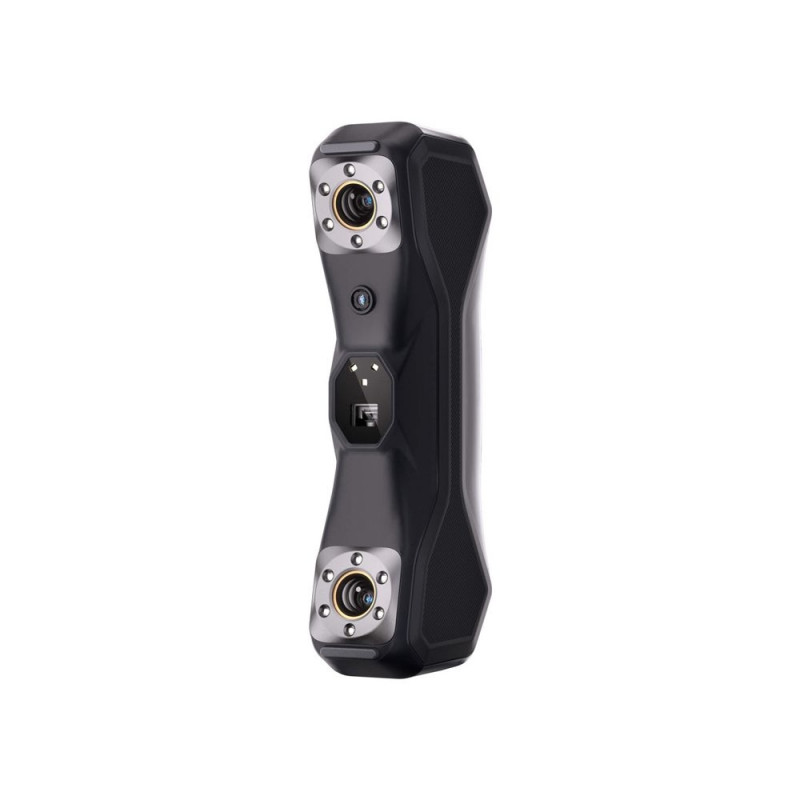

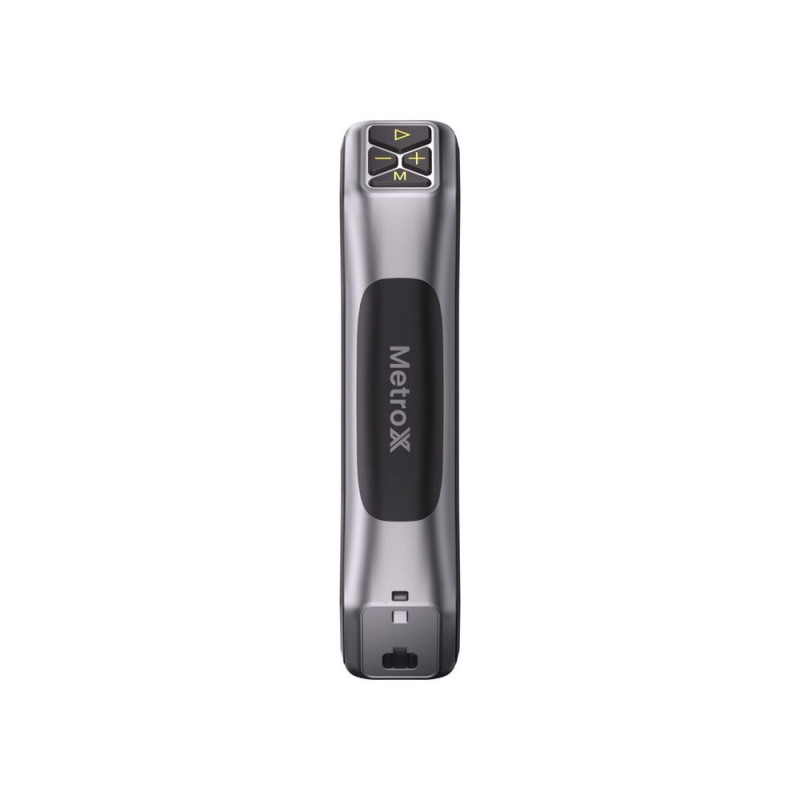

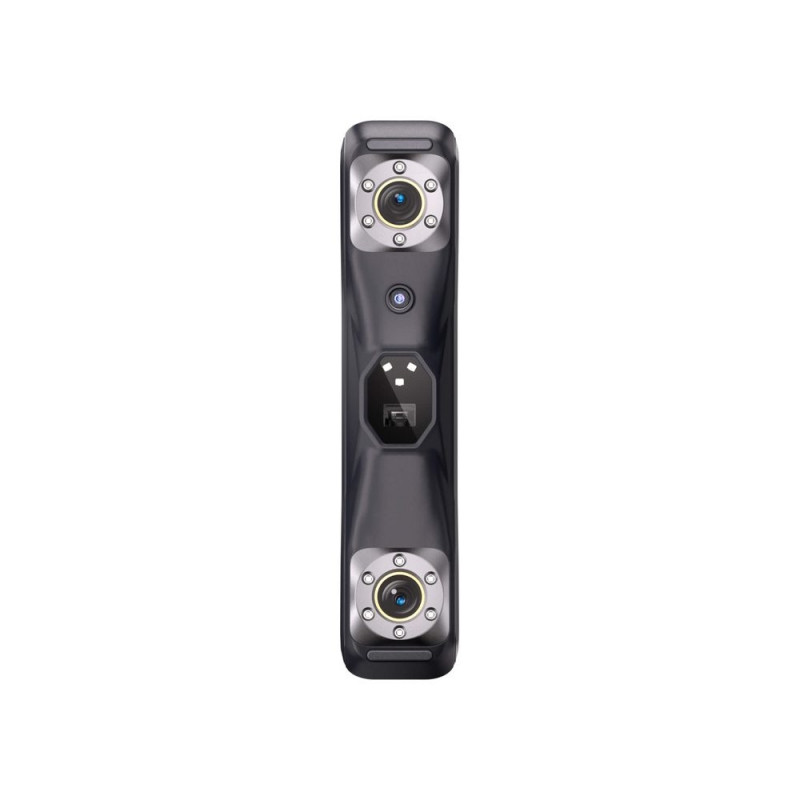

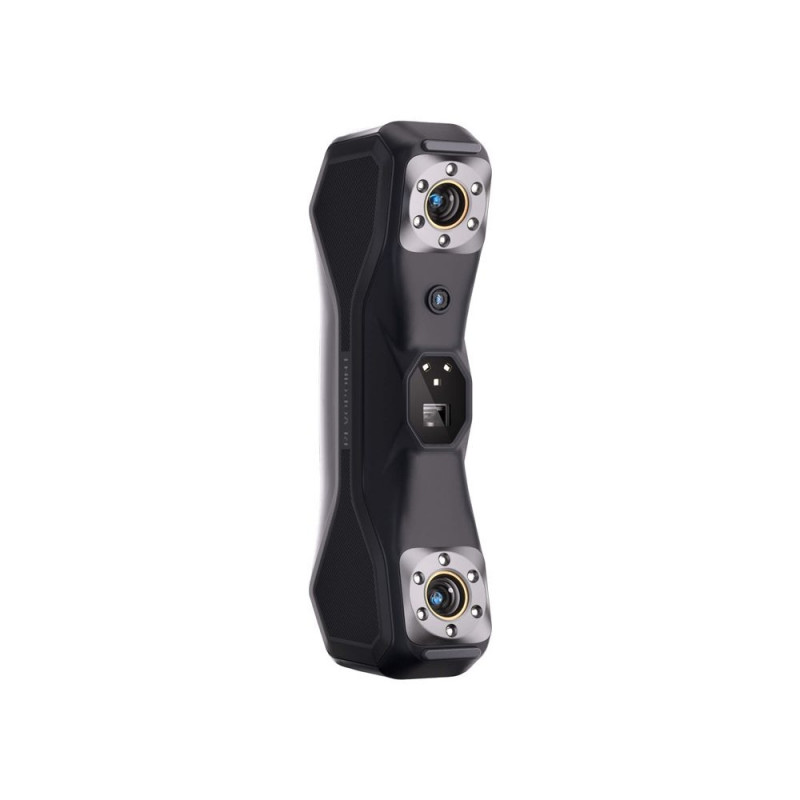

Revopoint MetroX Pro Standard 3D Scanner

The Revopoint MetroX Pro is an advanced 3D scanner that combines multi-line laser and structured light technology, offering a precision of up to 0.01 mm and an accuracy of up to 0.02 mm. The device supports 4 scanning modes and achieves speeds of up to 7,000,000 points per second in full-field mode and up to 2,000,000 points per second in laser mode. This allows it to quickly and accurately map objects ranging in size from 10 × 10 × 10 mm to 1 × 1 × 1 m, making it a versatile tool for engineering and design applications.

Advanced technologies and measurement precision

The scanner utilizes a combination of Multi-line Laser Scan and Full-field Structured Light Scan technologies, allowing the operating mode to be adapted to a specific task and surface type. Users have access to 30 blue cross-line lasers, 15 parallel lasers, and 62 structured light lines, resulting in highly detailed mapping. This solution, combined with a precision of 0.01 mm and an accuracy of 0.02 mm, allows for the capture of even the finest details.

High performance and operational flexibility

Thanks to support for GPU-accelerated scanning and a frame rate of up to 60 FPS, the device enables fast data collection without compromising quality. The scanner offers both handheld and stationary modes, allowing you to adapt your workflow to the type of object and scanning conditions. Support for Feature, Marker, and Global Marker tracking methods enhances operational stability and facilitates scanning of various surfaces.

Wide scanning range and ease of use

The device operates at a distance of 200–400 mm, offering a field of view of 43 × 33°. At the closest distance, it captures an area of 160 × 70 mm, and at the maximum distance, 320 × 215 mm, allowing for convenient scanning of both smaller elements and larger technical components. The compact design, measuring 209 × 88 × 44 mm and weighing 508 g, facilitates transport and operation in various environments.

Software and System Compatibility

The scanner works with Revo Metro software and allows image streaming from a computer to mobile devices thanks to the Revo Mirror feature. It is compatible with Windows 10/11 (64-bit) and macOS 11.0 or later. Support for PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX allows for easy further processing of models and preparation for 3D printing.

Stable operation and components

The scanner is equipped with a 2.0 GHz quad-core ARM processor and a built-in depth map processing system, which ensures stable and smooth operation during scanning. This allows the device to efficiently analyze data in real time, reducing delays and streamlining the entire 3D modeling process. The use of 12 blue LEDs further supports the optical system, improving the quality of captured data and helping to map details more accurately.

Included
  • scanner
  • tripod
  • USB-C to USB-C cable
  • power adapter
  • test scanning model
  • markers (6 mm) × 500
  • rotating stand
  • wrist strap
  • carrying case
  • calibration plate
  • user manual
Manufacturer Revopoint
Model MetroX Pro Standard
Scanning type Handheld or tripod-mounted
Technology Multi-line laser scanning and full-field structured light scanning
Size of scanned objects Small to medium
Single-frame precision (max.) 0.01 mm
Single-frame accuracy (max.) 0.02 mm
Volumetric accuracy 0.02 mm + 0.04 mm × L (m), where L is the object length
Minimum distance between points 0.05 mm
Working distance 200 ~ 400 mm
Scanning area (closest distance) 160 × 70 mm at 200 mm
Scanning area (farthest distance) 320 × 215 mm at 400 mm
Field of view (vertical × horizontal) 43 × 33°
Minimum scanning volume 10 × 10 × 10 mm
Maximum scanning volume 1 × 1 × 1 m
Scanning speed (max.) 2,000,000 points/s (multi-line laser) / 7,000,000 points/s (full field)
Depth camera resolution No data available
RGB camera resolution 2 MP
Color scanning Only in automatic turntable mode
Tracking methods Feature, Marker, Global Marker
Outdoor scanning No
3D light source 30 blue cross-line lasers
15 blue parallel line lasers
62 blue structured light lines
Auxiliary lighting 12 blue LEDs
White strobe lights None
Positioning sensors None
Processor 4-core ARM, 2.0 GHz
On-board processing Depth map calculation
Internal memory None
RAM None
Touchscreen None
Buttons 4
Compatible operating systems Windows 10/11 (64-bit), macOS 11.0 or later
Output file formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
3D print ready Yes
Wi-Fi None
Bluetooth None
Connector type USB Type-C to Type-C
Power supply DC 12V, 3A
Battery None
Scanner weight 508 g
Dimensions (L × W × H) 209 × 88 × 44 mm

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 219,99 €
  • Additional warranty (2 years) - 129,99 €
  • Insurance (1 year) - 229,99 €
  • Insurance (2 years) - 349,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
5.8 kg
Package width
16 cm
Package height
29 cm
Package length
51 cm

Product codes

EAN
6975577881755
Manufacturer code
METROX-PRO-STANDARD
