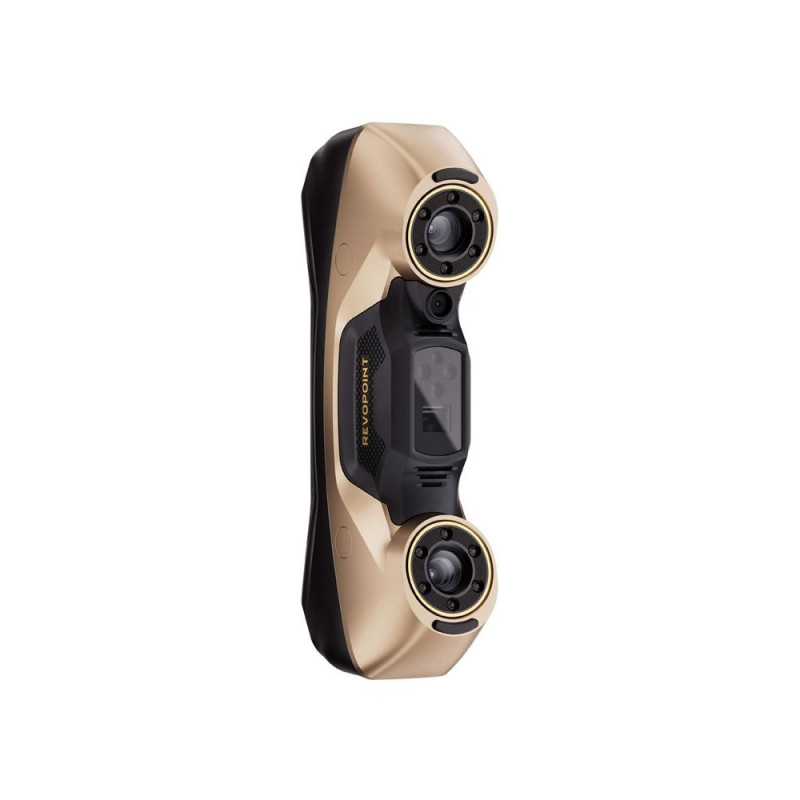

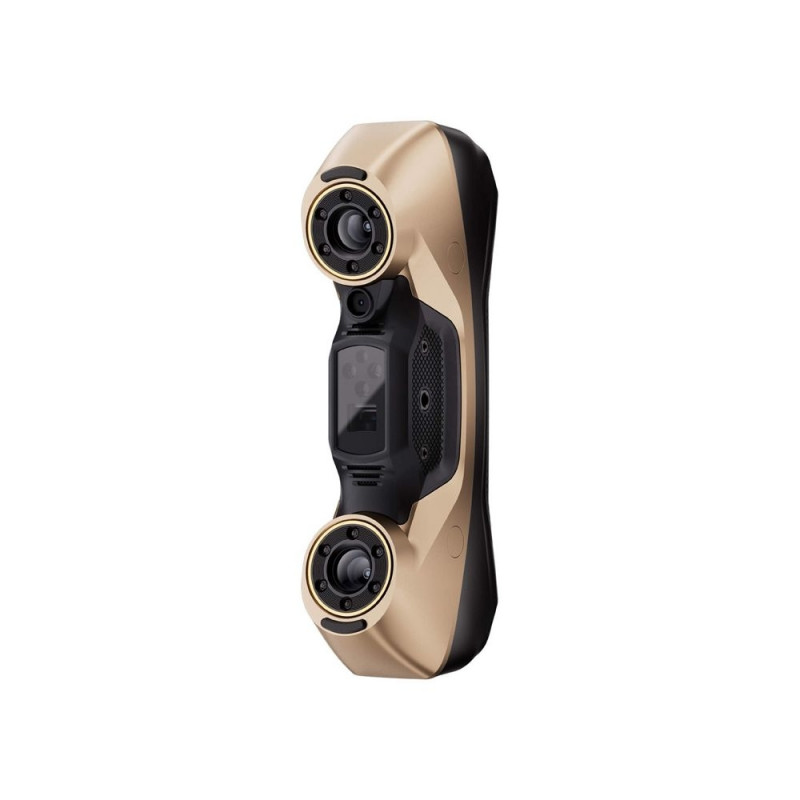

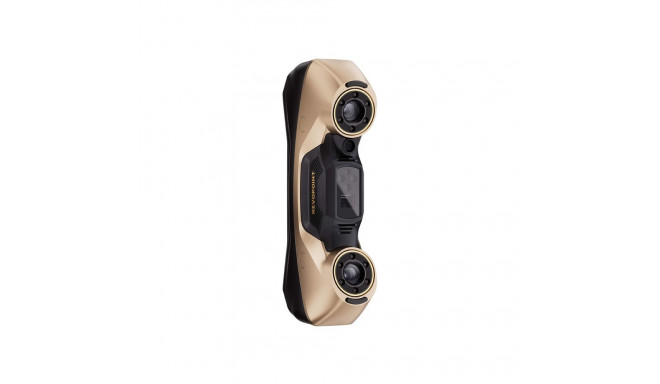

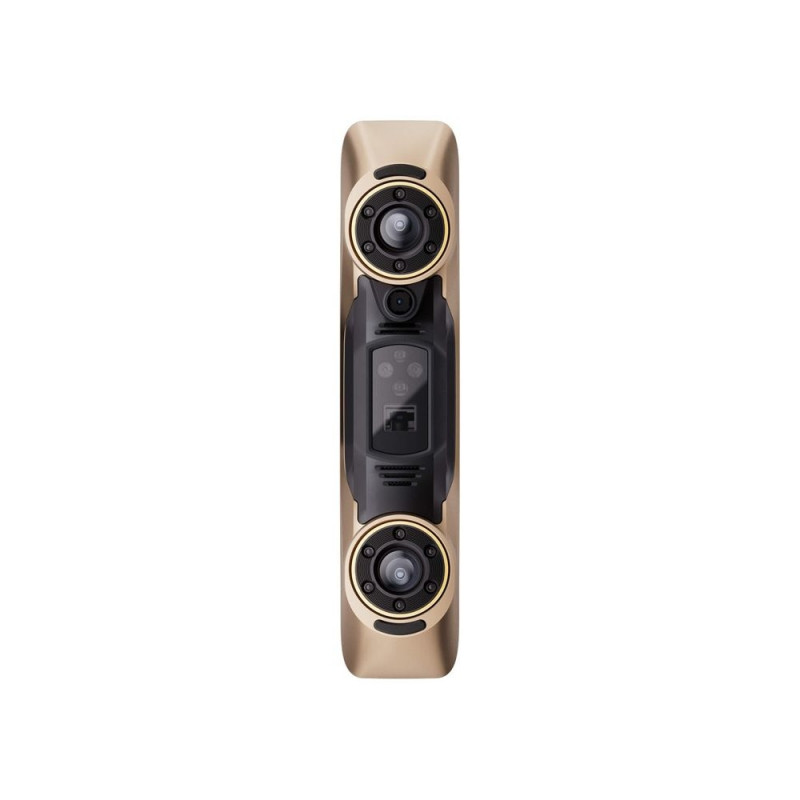

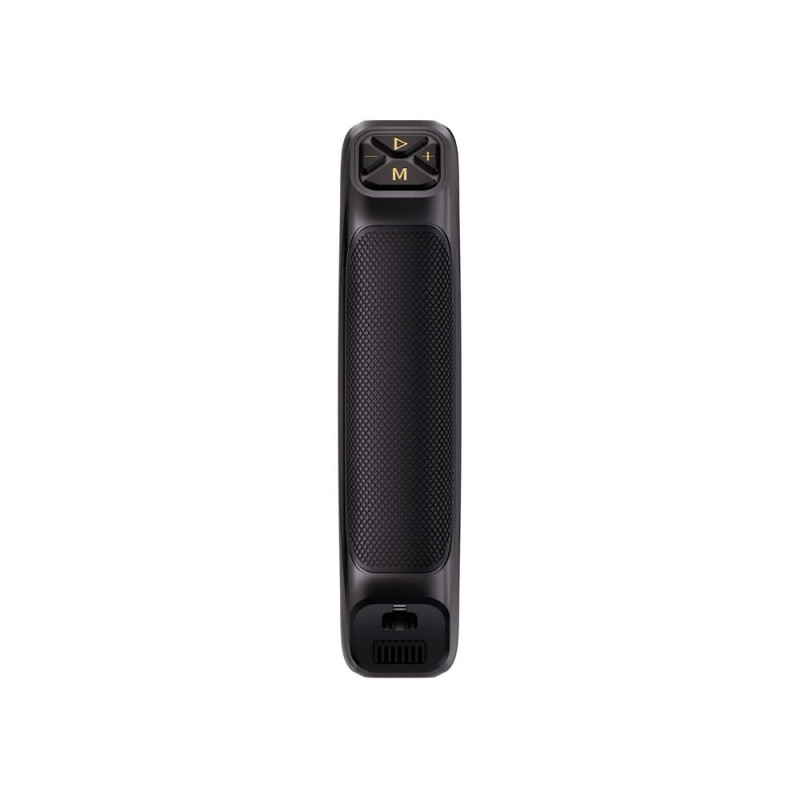

Revopoint MetroY Ultra 3D Scanner - CCM Edition

FREE SHIPPING
WITHIN ESTONIA!

2 859 €

Monthly payment starting from 97,44 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Revopoint MetroY Ultra 3D Scanner - CCM Edition The Revopoint MetroY Ultra is an advanced industrial-grade 3D scanner that combines blue-light technology with a multi-line laser and structured light, achieving a single-frame accuracy of up to 0.015 m

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Revopoint MetroY Ultra 3D Scanner - CCM Edition

The Revopoint MetroY Ultra is an advanced industrial-grade 3D scanner that combines blue-light technology with a multi-line laser and structured light, achieving a single-frame accuracy of up to 0.015 mm. The device operates at speeds of up to 90 frames per second and captures up to 3,000,000 points per second, resulting in fast and extremely precise object mapping. Thanks to Wi-Fi 6 connectivity, real-time data transfer is possible, and support from Revo Metro and Revo Measure software enables the full workflow—from scanning to advanced measurements. The CMM Edition expands the device’s capabilities with accuracy verification and metrological measurement functions, making it an ideal solution for professional quality control.

Industrial-grade measurement precision

The scanner offers single-frame accuracy of up to 0.015 mm and volumetric accuracy of 0.015 mm + 0.04 mm × L (m), ensuring consistent and reliable measurement results. In the CMM Edition, rapid accuracy verification is possible directly at the workstation thanks to the use of a metrology-grade ball plate. A one-click function allows for instant verification of the distances between the centers of the balls and comparison with reference values, enabling immediate assessment of scanning accuracy.

Fast and flexible scanning in all conditions

The MetroY Ultra provides scanning at speeds of up to 90 FPS and captures up to 3,000,000 points per second, significantly speeding up work even with more complex parts. The device can operate in lighting conditions of up to 100,000 lux, making it suitable for industrial environments as well. Support for objects ranging from approximately 50 mm to 1,000 mm in height allows the scanner to be used for both small details and larger components.

5 scanning modes tailored to the task

The device offers five scanning modes using blue light, allowing you to select the appropriate method for the task. High Speed mode with 34 cross lines enables fast data capture, Details mode with 15 parallel lines ensures high detail, and single-line mode allows for the mapping of deep holes. Additionally, full-field structured light is ideal for larger surfaces, and the automatic rotary table mode enables convenient, unattended scanning of smaller parts.

Advanced Measurements and Data Analysis

The CMM Edition uses Revo Measure software with PTB-certified algorithms, ensuring compliance with international metrology standards. Once accuracy has been verified, you can seamlessly transition to scanning parts and importing data into a measurement environment, where you can perform detailed analyses, measurements, and generate reports. The intuitive interface and data visualization make work easier and reduce the time needed to obtain results.

Wireless operation

Thanks to Wi-Fi 6 and wireless scanning capabilities, users can work without the constraints of cabling. The image display feature allows you to track scanning progress on multiple devices simultaneously, which increases control over the process and facilitates team collaboration. This solution works well in both design offices and manufacturing environments.

Wide-ranging applications in industry and engineering

The MetroY Ultra CMM Edition is used wherever precision and the ability to verify results matter—from reverse engineering and rapid prototyping to detailed quality control. The ability to compare results with reference data and generate reports makes the device a comprehensive tool for working with 3D measurements.

Included
  • Scanner
  • Tripod
  • USB Type-C to Type-C cable
  • Power adapter
  • Model sample
  • 6 mm markers (500 pcs)
  • Dual-axis rotating table
  • Carrying case
  • Calibration plate
  • Mobile Kit (4th generation)
  • Calibration plate with spheres
  • Revo Measure software (1-year license)
Manufacturer Revopoint
Model MetroY Ultra
Single-frame precision up to 0.01 mm
Single-frame accuracy up to 0.015 mm
Volumetric accuracy 0.015 mm + 0.04 mm × L (m), where L is the object length
Distance between points up to 0.05 mm
Working distance 200–400 mm
Single scan area at minimum distance 152 × 138 mm at 200 mm
Single scan area at maximum distance 332 × 276 mm at 400 mm
Minimum scan volume 10 × 10 × 10 mm
Maximum scan volume 2 × 2 × 2 m
Scan speed NVIDIA GPU: up to 90 fps
CPU: up to 60 fps
Point capture rate Multi-line scanning: 3,000,000 points/s
Structured light scanning: 7,000,000 points/s
RGB camera resolution 2 MP
Processor 4-core ARM, 2.0 GHz
Outdoor scanning Yes (multi-line laser mode allows operation in lighting conditions up to 100,000 lux)
3D light source 34 blue cross lines
15 blue parallel lines
1 blue line for deep holes
62-line full-field blue structured light
Lighting 12 blue LEDs
Scanner weight 450 g
Dimensions (L × W × H) 211 × 94 × 47 mm

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 399,99 €
  • Additional warranty (2 years) - 229,99 €
  • Insurance (1 year) - 259,99 €
  • Insurance (2 years) - 399,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
6.43 kg
Package width
34 cm
Package height
16.5 cm
Package length
44.5 cm

Product codes

EAN
6975577881984
Manufacturer code
METROY-ULTRA-CCM
