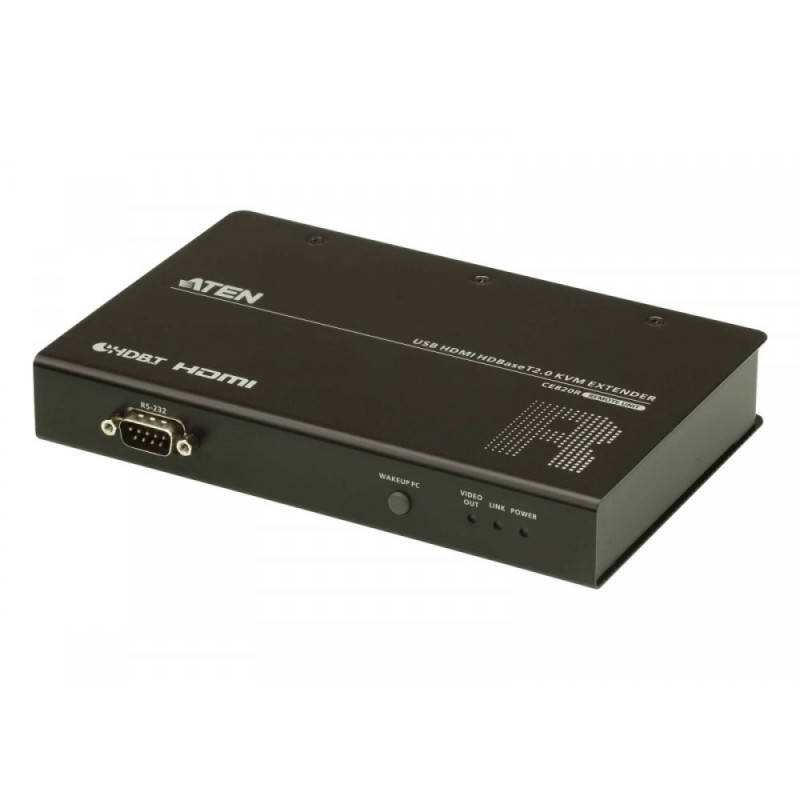

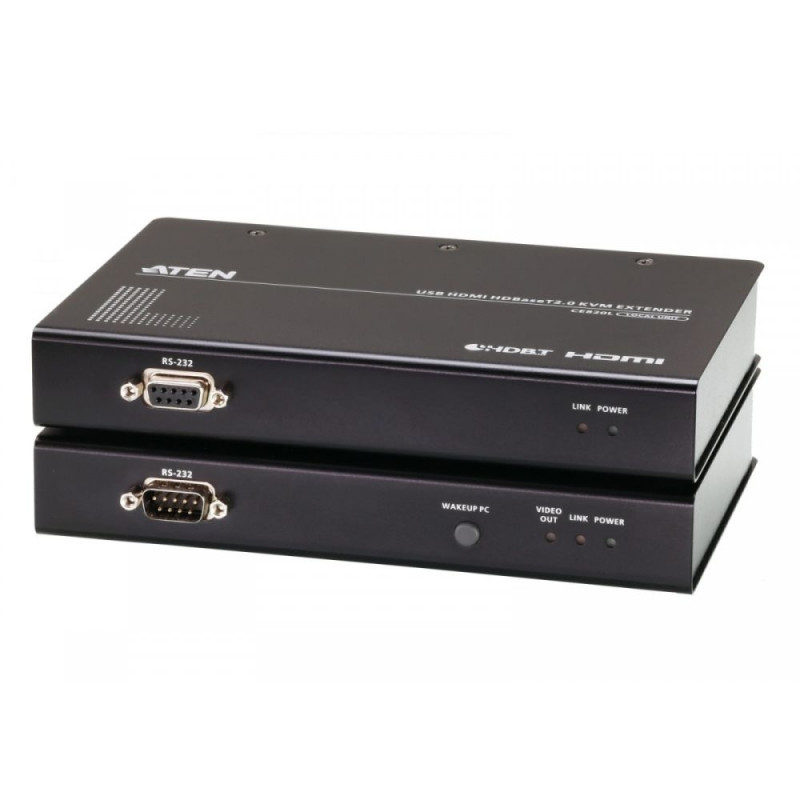

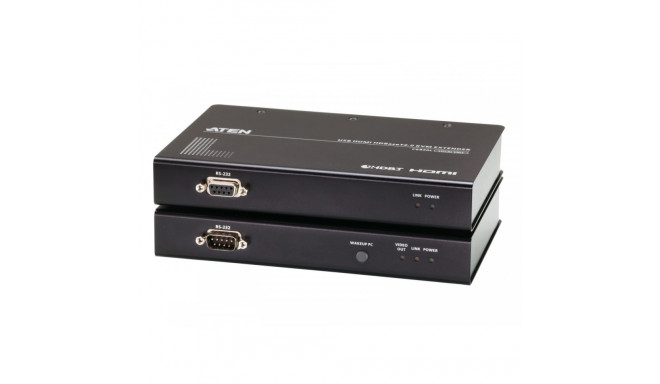

USB HDMI HDBaseT2.0 KVM Extender w/o Ethernet

1 009 €

Monthly payment starting from 34,39 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

USB HDMI HDBaseT 2.0 KVM Extender (4K@100m) The ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender combines the latest HDBaseT 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters over a single Cat6/2

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

USB HDMI HDBaseT 2.0 KVM Extender (4K@100m)

The ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender combines the latest HDBaseT 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters over a single Cat6/2L-2910 Cat 6 cable. HDBaseT 2.0 guarantees the most reliable transmission on the market and also enables long range, extending Full HD 1080P signals up to 150 meters. With easy cable installation supporting various signals, the CE820 is ideal for applications requiring convenient remote access, such as transport control centers, medical facilities, industrial warehouses, and complex workstations.

Supports HDBaseT 2.0 technology

  • Extends video, audio, USB, RS-232, and Ethernet signals over a single Cat6/6a/2L-2910 Cat 6 cable
  • Enhanced bit error detection and correction, resistant to signal interference during high-quality video transmission
  • Status detection and LED indication for HDBaseT signal transmission on the remote device

EDID buffer for smooth startup and the highest-quality display
HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 compatible
Highest video quality over long distances

  • HDBaseT Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
  • HDBaseT Long-Reach mode up to 1080P @ 150 m

Long-Reach mode switch - switches between HDBaseT Standard and Long-Reach modes in the blink of an eye
Supports individual 2-channel stereo audio and USB 2.0 full-speed connections
Supports single-button computer wake-up
Built-in 8 kV/15 kV ESD protection (8 kV contact voltage, 15 kV air voltage)


Hot Swap No
Console Ports 1x HDMI Female
Console Ports 1x Audio 3,5mm minijack Female
Console Ports 3x USB Type A Female
PC connectors 1 x HDMI Female
PC connectors 1x USB Type B Female
Resolution 3840 x 2160
Accessories included 1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit) 1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit) 1x HDMI KVM Cable Set (HDMI, USB, Audio, 1.8m) 2x Power Adapters 2x Mounting Kits 1x Quick Start Guide
Other features Operating temperature: 040°C Storage temperature: -2060°C Humidity: 080% RH, non-condensing CE820L: 0.63 kg 18.20 x 12.19 x 2.87 cm CE820R: 0.65 kg 18.20 x 12.19 x 2.87 cm

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 159,99 €
  • Additional warranty (2 years) - 99,99 €
  • Insurance (1 year) - 199,99 €
  • Insurance (2 years) - 269,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
2.185 kg
Package width
21 cm
Package height
32.5 cm
Package length
9 cm

Product codes

EAN
4710469341823
Manufacturer code
AVATNVECE820ATA
