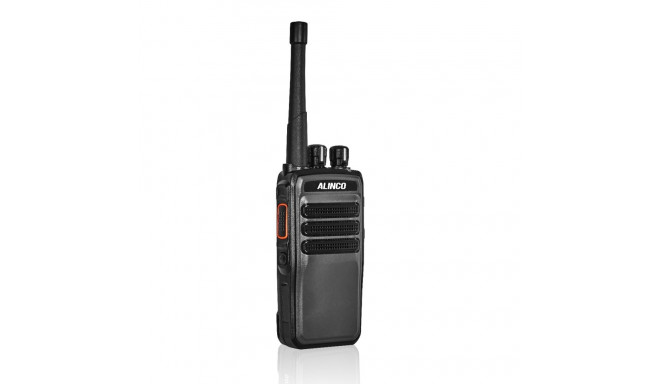

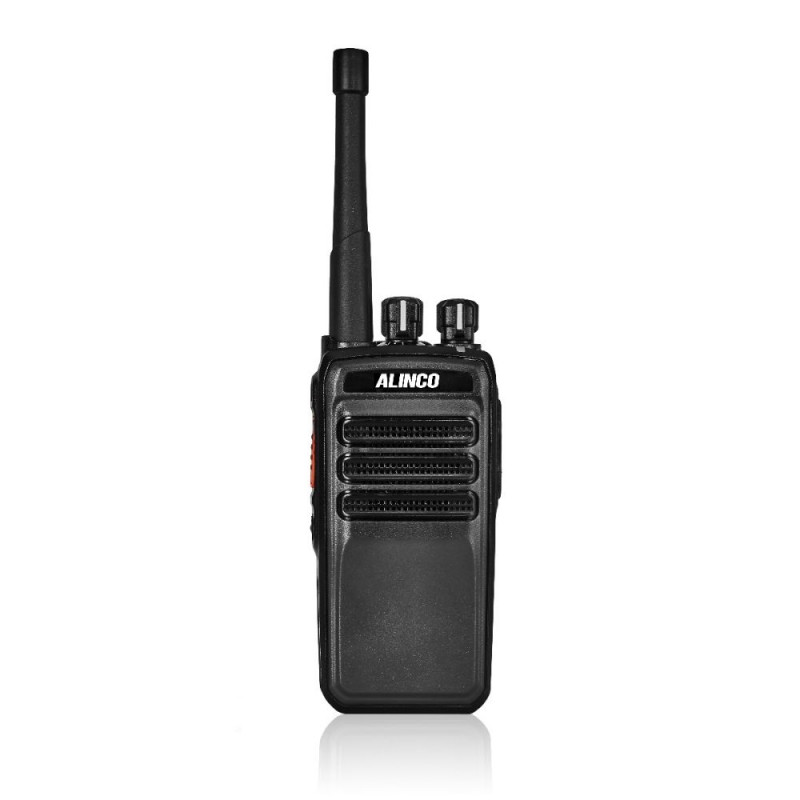

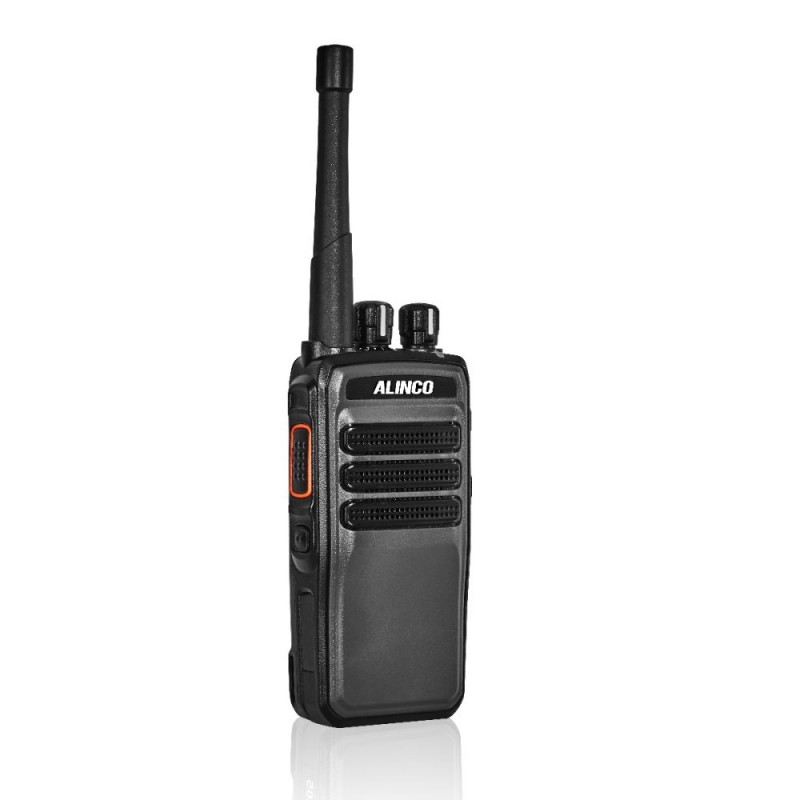

DJ-D15E DMR handheld transceiver VHF 136-174MHz Alinco

254,99 €

Monthly payment starting from 8,69 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 5-7 working days

Free delivery

14 14 days return policy when purchasing online

FEATURES, FUNCTIONS AND SPECIFICATIONS:
The Alinco DJ-D15(VHF)/D45(UHF) series are heavy duty handheld DMR radios packed with features that make them the ideal choice for professional users. High quality design, tough constuction, outstandig audio clarity and receiver specifications ensure the best possible performance and maximum communication range!

Features
• DMR Tier I and Tier II
• RF output ѕelectable from 5W/1W(VHF or 4W/1W(UHF)
• Programmable up to 256ch in 16ch/zone
• IP54 Dust & splash proof
• Voice guidances in English
• Improved call capacity with DMO 2-slots in Direct Mode
• Up to 16 hours of operation time with 2000mAh battery pack
• ARC 40-bit Encryption supported
• Variety of security features including Radio check, Call alert, Stun/Revive/Kill & remote monitor

Specification
• Frequency Range (TX/RX):
...DJ-D15: 136-174 MHz
...DJ-D45: 400-470 MHz
• Number of Channels: 256ch
• Zone capacity: 16
•  Channel Spacing:
...Analog: 12.5/25 kHz
...Digital: 12.5 kHz
• Operating Voltage: 7.5V DC ±20%
• Operating Temperature Range: -30°C to +60°C
• Frequency Stability: ±1.5ppm
• Antenna Impedance: 50Ω
• Dimensions (WxHxD Approx.) with battery pack / without antenna: 54 x 116 31 mm
• Weight  (Approx.) with battery pack & antenna: 275 gram
* projections are not included in the declared dimension values

Transmitter
• RF Power Output: 5W/1W (DJ-D15), 4W/1W (DJ-D45)
• Spurious Emission:
...Less than 1GHz: -36dBm
... More then 1 GHz: -30dBm
• FM Hum & Noise (Analog):
...25 kHz: 45dB
...12.5kHz: 40dB
• Modulaton: 16K0F3E / 11K0F3E / 7K60FXD / 7K60FXE
• Vocoder: AMBE-2™

Receiver
• Sensitivity (Analog/12dB SINAD): 0.25μV
• Sensitivity (Digital/BER): 0.25μV (5%)
• Intermodulation: -65dB
• Spurious response: 70dB
• Audio Distortion: Less than 3% typical
• Audio Ouput: 1000mW / 16Ω

PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Battery Pack
1 Pc of Antenna
1 Pc of Belt Clip
1 Pc of Wrist strap
1 Pc of Rapid Charger Stand
1 Pc of AC Adapter
1 Pc of User Manual in English

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 59,99 €
  • Additional warranty (2 years) - 39,99 €
  • Insurance (1 year) - 39,99 €
  • Insurance (2 years) - 69,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
0.5 kg

Product codes

Manufacturer code
DJ-D15E
