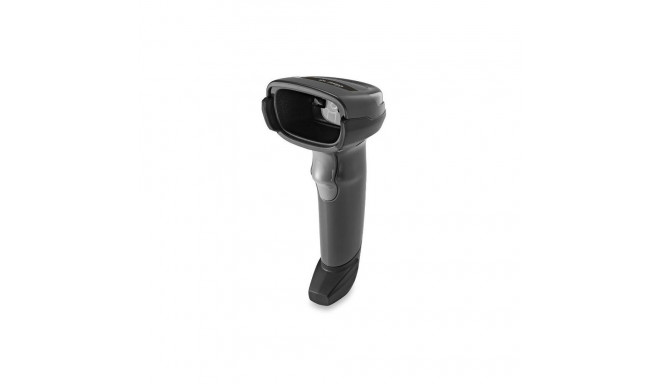

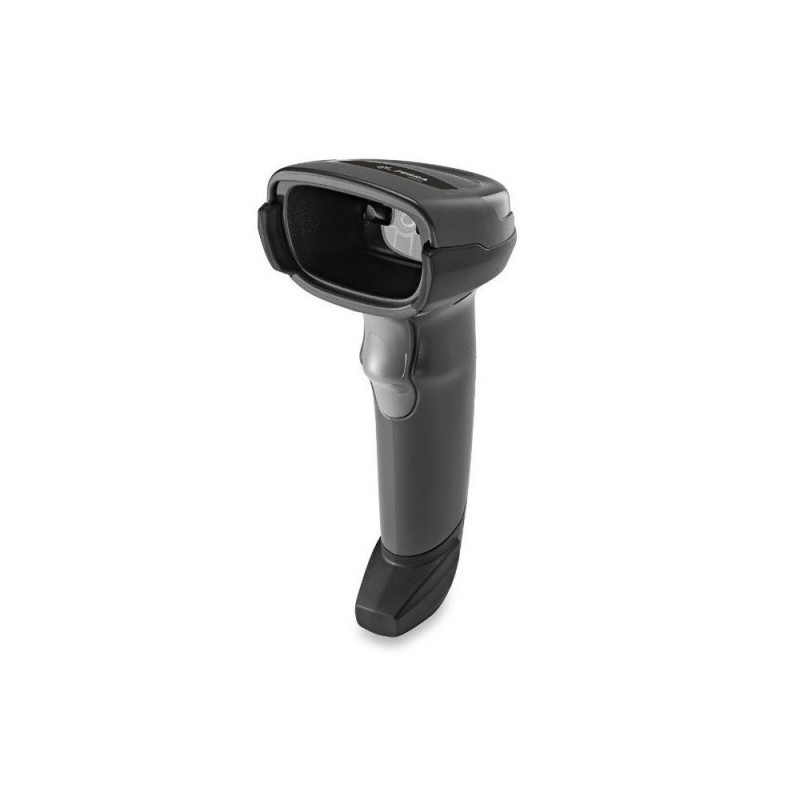

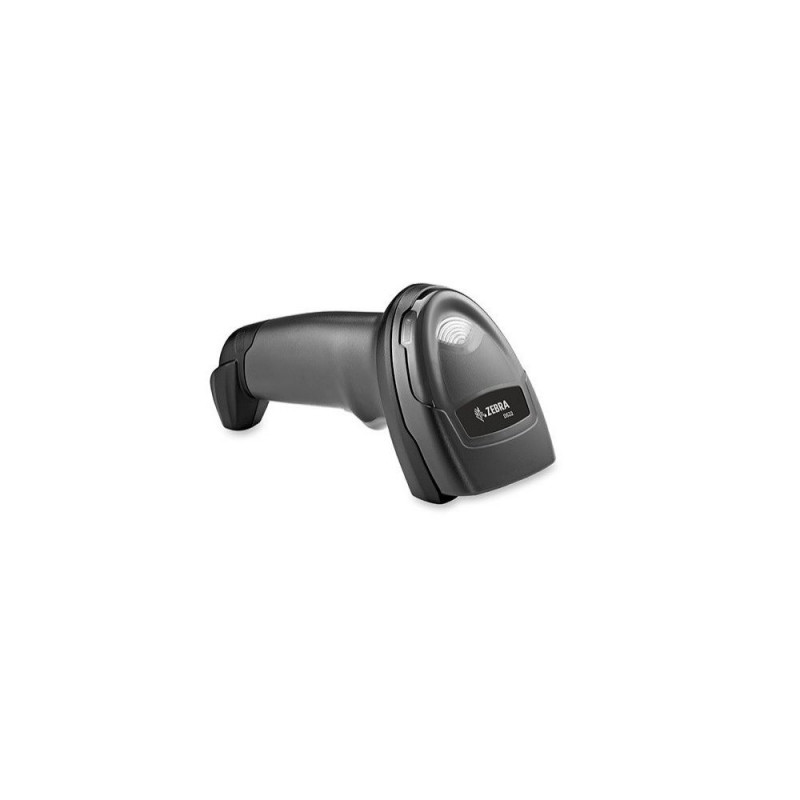

Zebra DS2208 Handheld bar code reader 1D/2D LED Black

Main info

Product has been archived


Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
Battery capacity 2400 mAh
Operating temperature (T-T) 0 - 50 °C
Sensor type LED
Product colour Black
Yaw reading angle -65 - 65°
Cables included Micro-USB
International Protection (IP) code IP42
Scanner type 1D/2D
LED indicators Yes
Storage temperature (T-T) -40 - 70 °C
Weight 161.6 g
Tilt reading angle -65 - 65°
Harmonized System (HS) code 84716070
Operating relative humidity (H-H) 5 - 95%
Width 66 mm
Battery life 100 h
Motion tolerance (cm/s) 13
Height 165 mm
Depth 99 mm
Compliance certificates RoHS
Optical sensor resolution (W x H) 640 x 480 pixels
Type Handheld bar code reader
Connectivity technology Wired
Standard interfaces USB, RS-232, RS-485, Keyboard wedge
AC adapter output voltage 5 V
Power source type DC
Charging base No
Power consumption 250 mA
Wavelength 645 nm
Pitch reading angle -65 - 65°
Working distance 36.8 cm
Battery technology Lithium-Ion (Li-Ion)
Warranty 24 (F)
2D (matrix & stacked) barcodes supported Micro QR Code
Linear (1D) barcodes supported Interleaved 2 of 5
Warnings Avoid direct contact with eyes.

Dimensions and weights

Package width
128 cm
Package height
182 cm
Package length
79 cm

Product codes

EAN
0007198686290
Manufacturer code
DS2208-SR7U2100AZW
