Holzmann BF500 400V Milling Machine

9 229 €

Monthly payment starting from 314,56 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

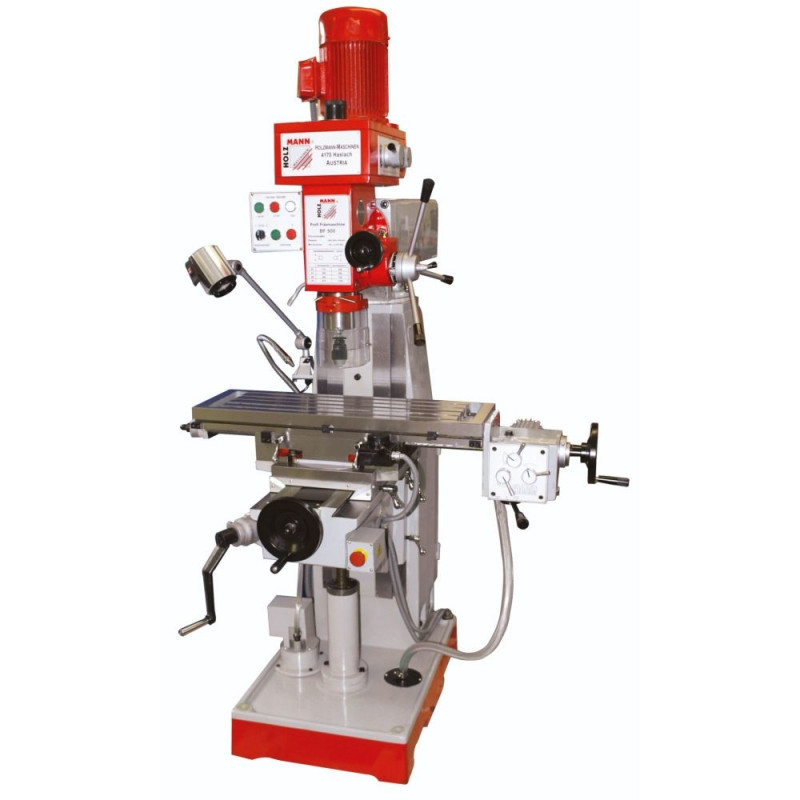

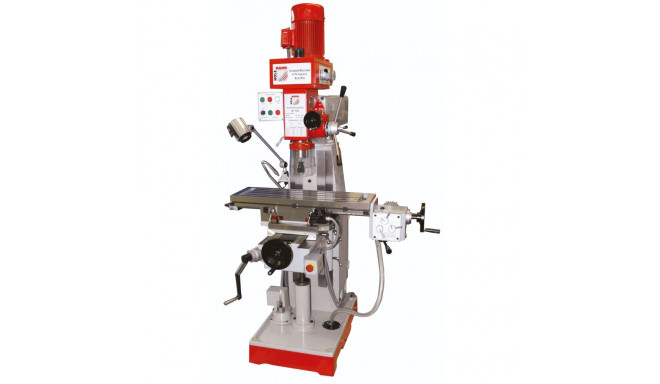

Holzmann BF500 400V milling machine

Features:

  • Heavy and vibration-absorbing cast design

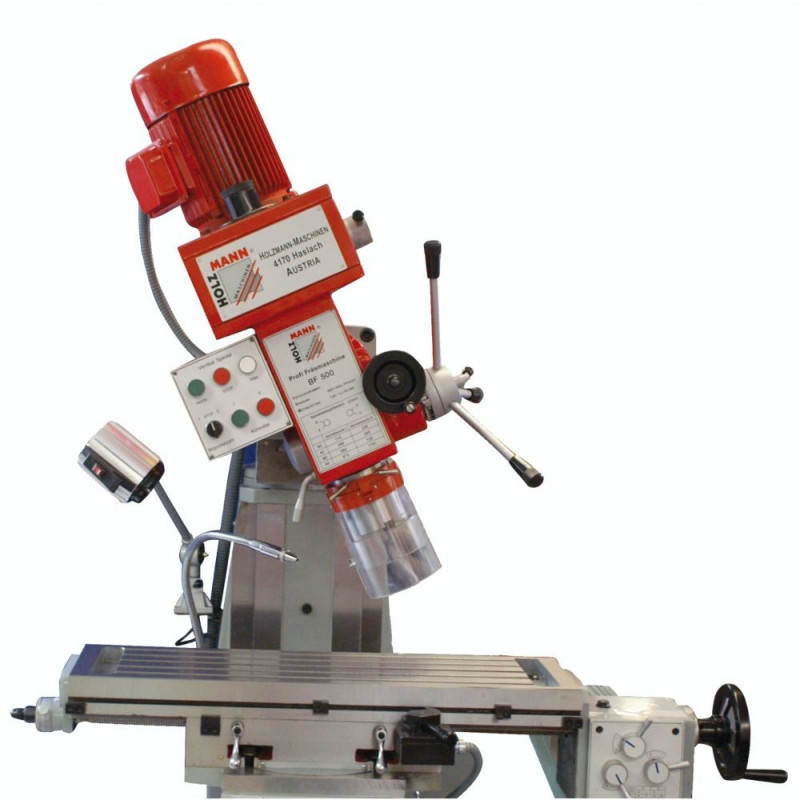

  • Robust and swivelling (+90° -90°) vertical milling head with gear shift
  • Oil bath gears with ground, hardened gears
  • Left/ right rotation
  • Tapping up to M16 possible
  • Quill delivery via three-hand lever and fine adjustment
  • Massive and large cross table with 14 mm T-slots for fixing a vice or similar
  • X-axis automatic feed (370W, 24-720mm/U (8)) with
  • Speed adjustment via gear transmission
  • Automatic and adjustable end stop of the X-axis
  • Dovetail guides of the table adjustable by wedge bars
  • Including coolant device and halogen lamp

Technical data:

  • Voltage: 400V (400V connection required)
  • Power: 800 / 1500 watts
  • Table size: 1000 x 240 mm
  • Projection: 260 - 695 mm
  • Milling spindle mount: ISO 40
  • Milling spindle speed: 115 - 1750 rev/min
  • Head tilt: +/- 90°
  • Travel Z-axis: 400 mm
  • Travel Y-axis: 230 mm
  • Travel X-axis: 560 mm
  • Max distance spindle table: 350 mm
  • Maximum drilling capacity steel: 50 mm / (M16)
  • Maximum finger cutter diameter: 25 mm
  • Maximum face milling cutter diameter: 80 mm
  • T-slot size: 14 mm
  • Weight: 800 kg

Scope of delivery:

  • Feed X-axis
  • Coolant device

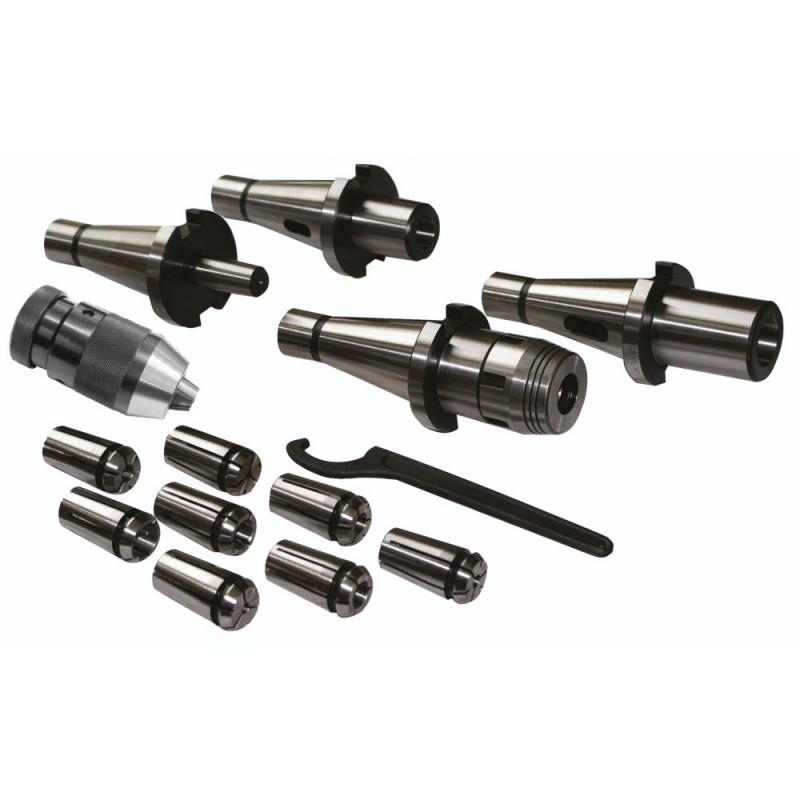

  • Collet set of 8 pieces (4, 5, 6, 8, 10, 12, 14, 16 mm)
  • Drill chuck 1-16mm (B18)
  • 1xMK2 - 1xMK3 - 1xB18 recording

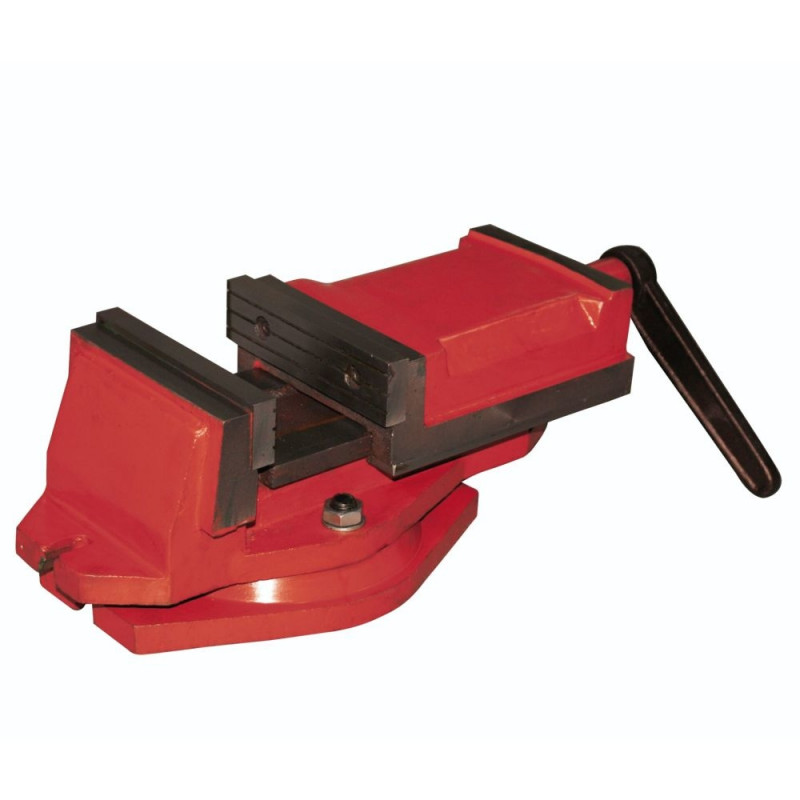

  • Machine vice 160mm
  • Halogen lamp
  • Tightening spindle M16

Please note:
Electrical connection work / installations may only be carried out by qualified specialists.


Type Milling Machine
Operating Mode Mains Operation, 400V
Max. Milling Diameter (mm) 80
Idle Speed (min-1) 1750
Power (Watt) 1500
Colour Silver / Red

Dimensions and weights

Gross weight
800 kg
Package width
1150 cm

Product codes

EAN
9120039905419
Manufacturer code
BF500_400V
