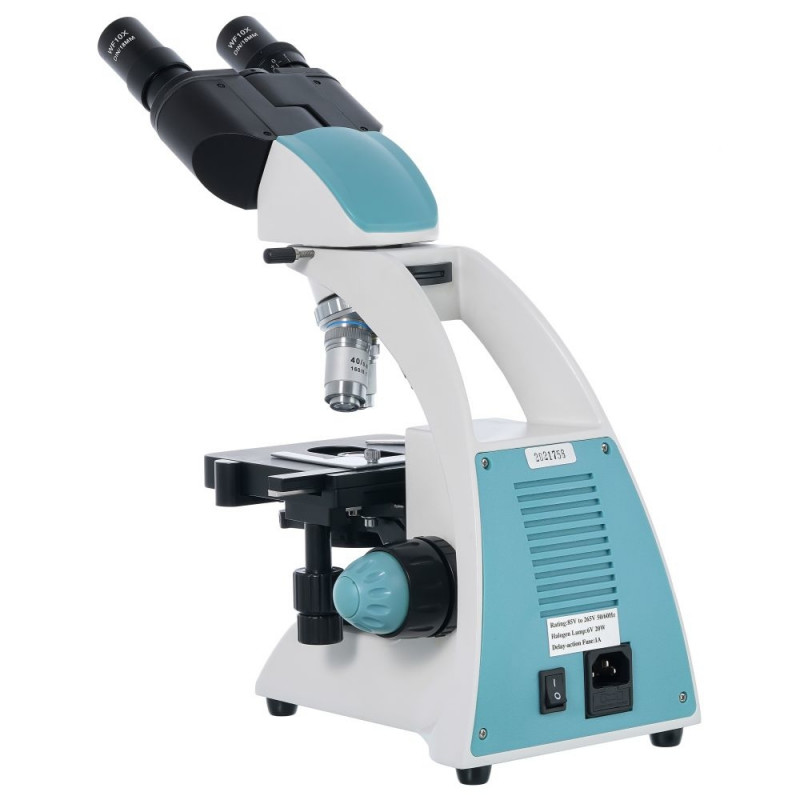

Levenhuk 500B Binocular Microscope

Main info

Product has been archived

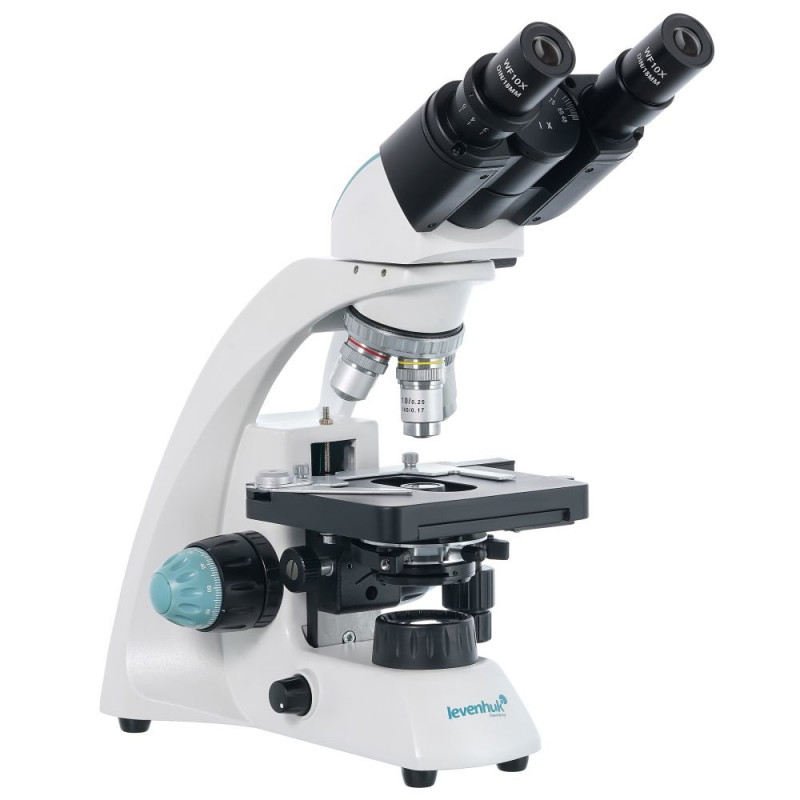

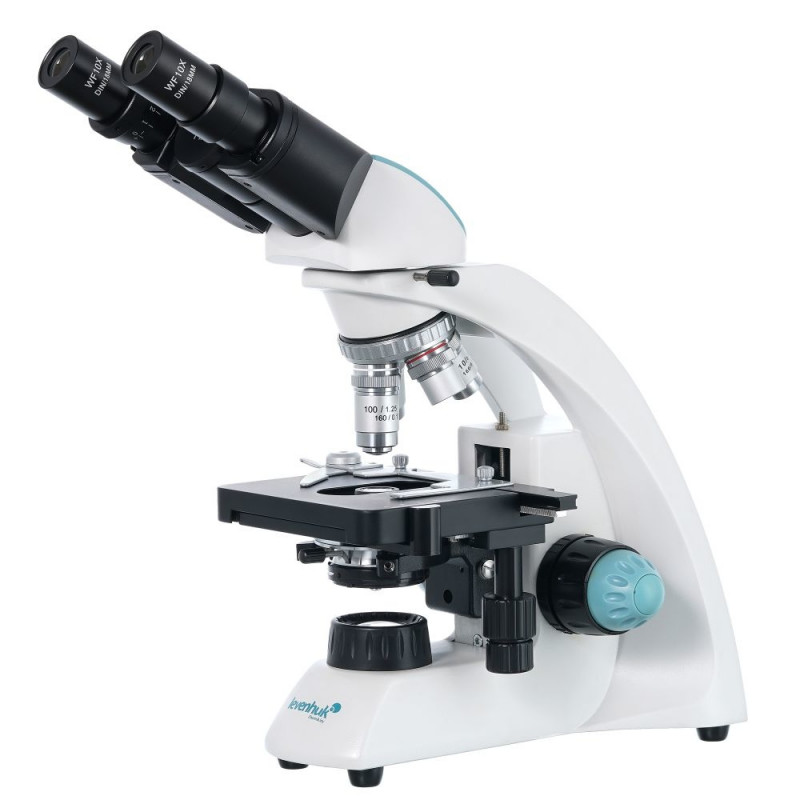

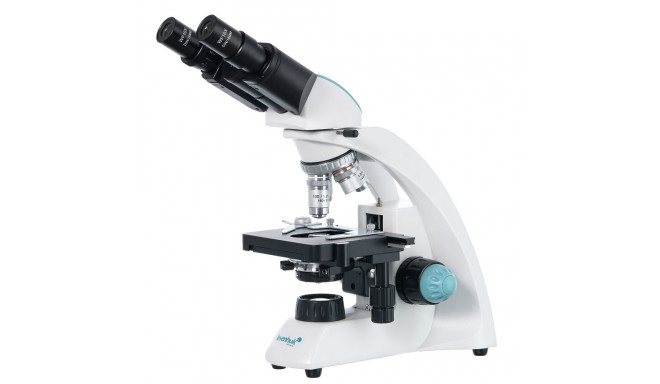

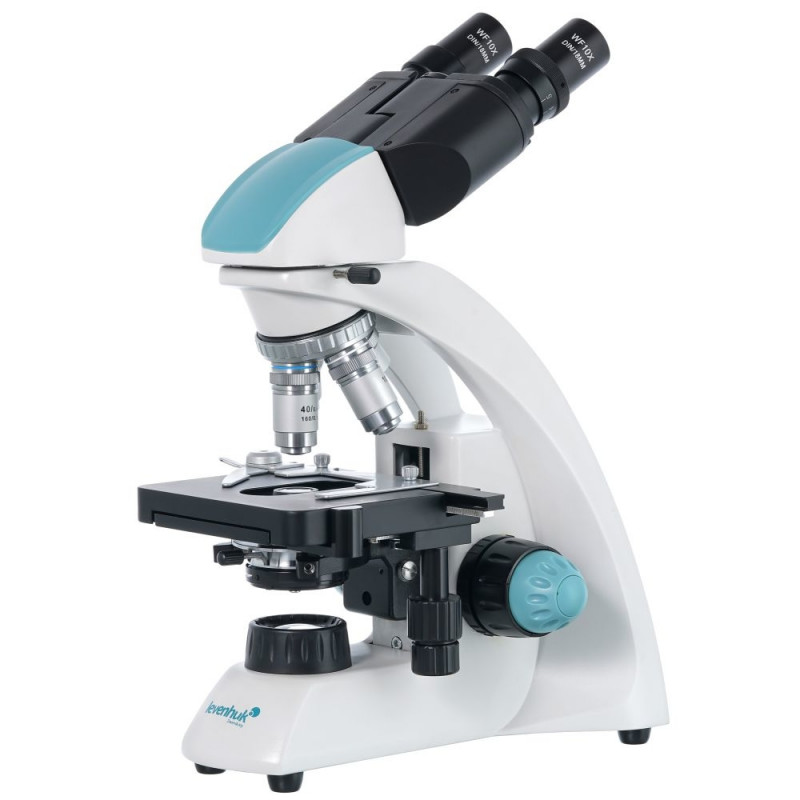

Use a Levenhuk 500B Binocular Microscope in a laboratory to study stained microscope slides of plant and animal tissues. Due to the halogen light, the entire color range will be transmitted as accurately as possible, and the contrast of details will impress even the most demanding researchers. This microscope is a great choice for a biochemist, microbiologist, or veterinarian.

The microscope features wide-field eyepieces with 10x magnification and achromatic objectives with 4x, 10x, 40x, and 100x magnification. The binocular head is conveniently inclined at 30°; what’s more, it is rotatable. The optics allow for examining samples at magnifications from 40x to 1000x using a bright field method as well as oil immersion. Two objectives feature front lens protection (a spring-loaded frame): 40x and 100x ones. Immersion oil is used with a 100x objective.

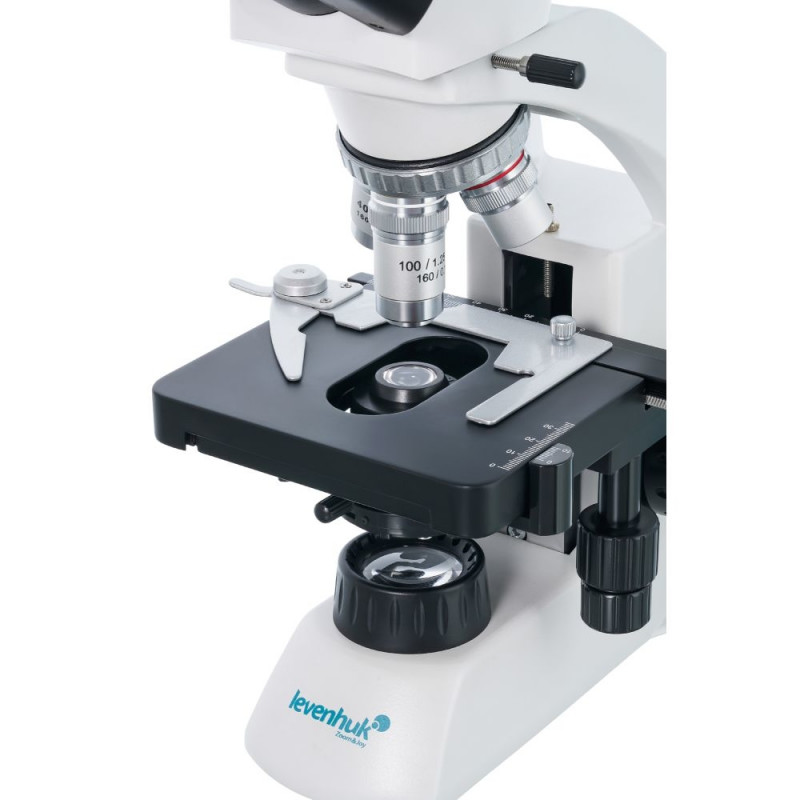

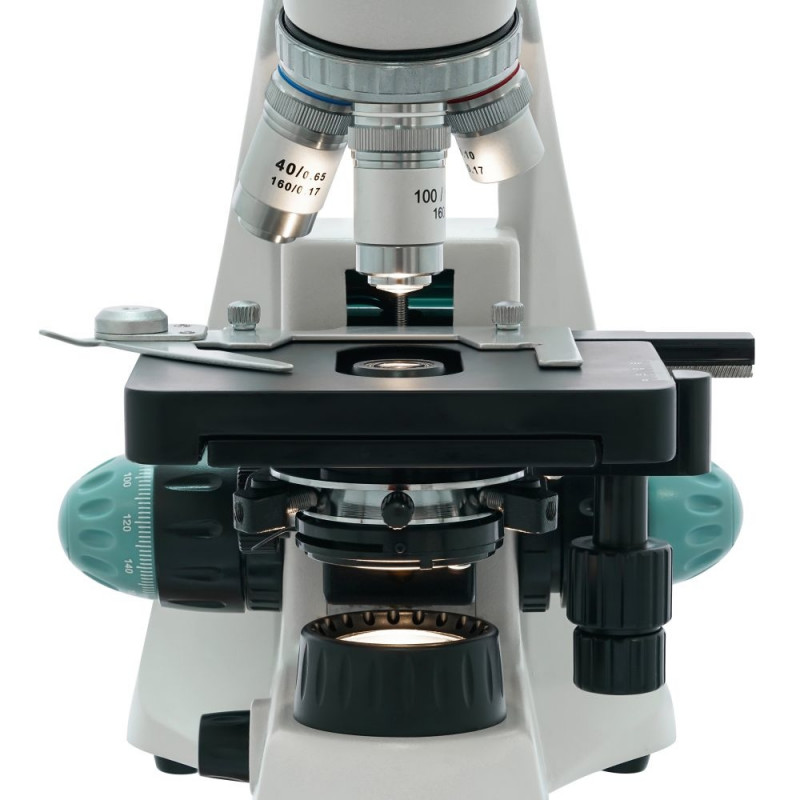

The microscope is equipped with a stage with a mechanical scale that helps to place the specimen accurately under the objective. Under the stage, there is an Abbe condenser with adjustable height with an iris diaphragm. You can install a light filter in a special holder. Powerful halogen lighting is equipped with a collector; there is a brightness adjustment. The lighting is powered by an AC power supply.

All of the optical elements in the microscope are made of glass. The body is made of metal.

Features:

  • Binocular microscope with achromatic optics
  • Conveniently inclined visual part; the head is 360° rotatable
  • Wide-field eyepieces, 40–1000x optics magnification range
  • Halogen light with a collector powered by an AC supply

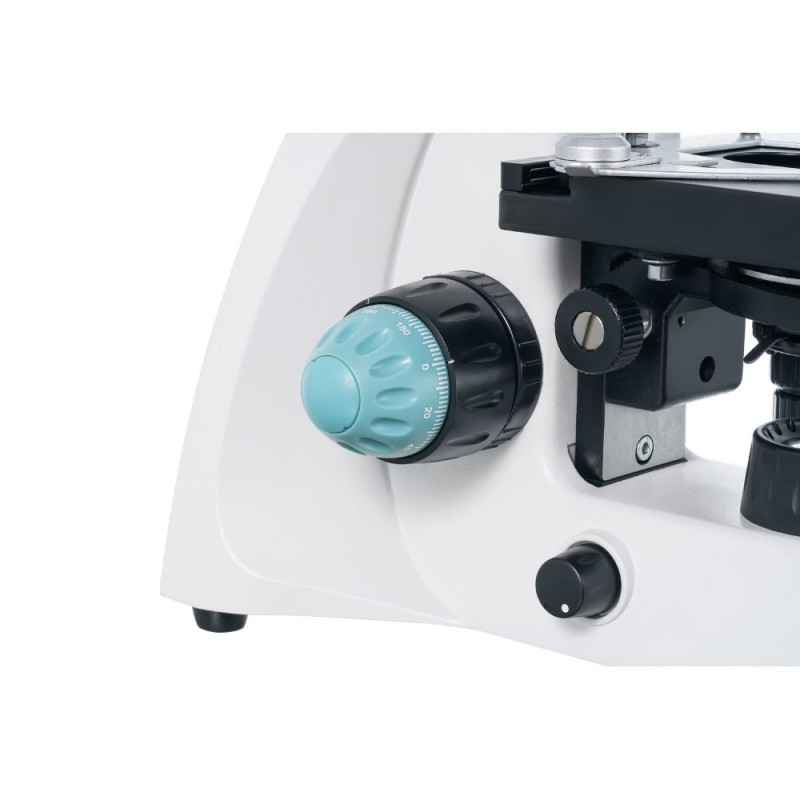

  • Brightness adjustment of the lighting, coarse and fine focusing
  • Slot for installing an analyzer (an analyzer is not included)

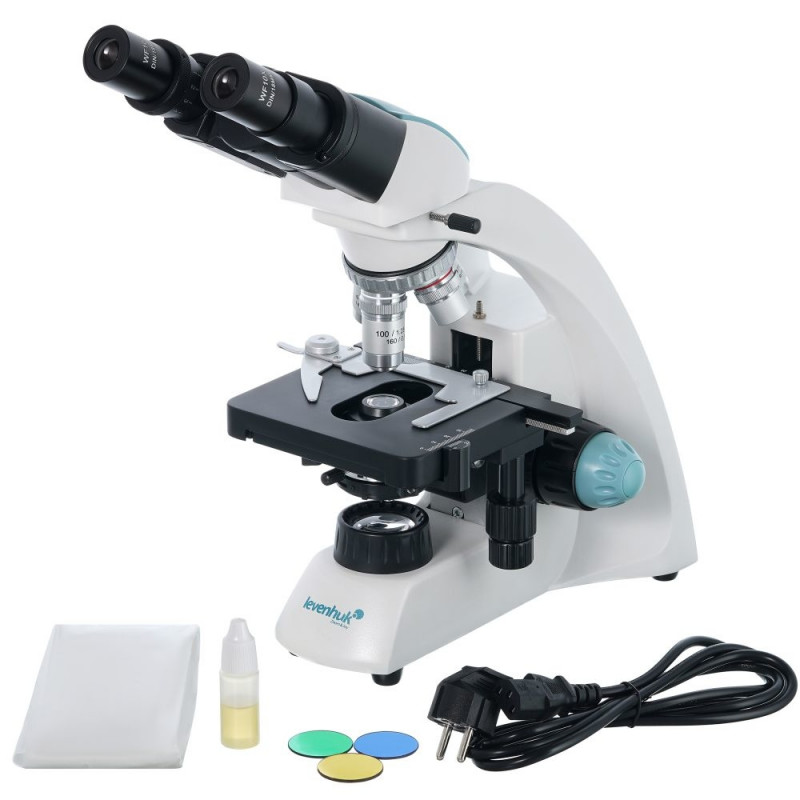

The kit includes:

  • Microscope
  • 4x, 10x, 40xs, 100xs (oil) achromatic objectives
  • WF10x/18mm eyepieces (2 pcs)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Filters: blue, green, yellow
  • Fuse
  • Vial of immersion oil
  • Power cord
  • Dust cover
  • User manual and lifetime warranty

Valgustus halogen lamp
Toiteallikas 110–220V, via a network adapter
Tüüp biological, light/optical
Okulaarid WF10x/18mm (2 pcs.)
Bränd Levenhuk, Inc., USA
Warranty, years lifetime
Package size (LxWxH), cm 42x26.5x33
Shipping Weight, kg 4.94
Stage features mechanical double-layer, with a mechanical scale
Objectives achromat: 4x, 10x, 40xs, 100xs (oil immersion)
Korpuse materjal metal
Stage, mm 125x115
Illumination halogen
Head Binocular
Suurendus, x 40—1000
Eyepiece tube diameter, mm 23.2
Revolving nosepiece for 4 objectives
Stage moving range, mm 70/30
Focus coaxial, coarse: 30mm; fine: 0.002mm
Brightness adjustment True
Light source type with a collector, halogen 6V/20W
Head inclination angle 30 °
Application laboratory/medical
Optics material optical glass
Nozzle 360 ° rotatable

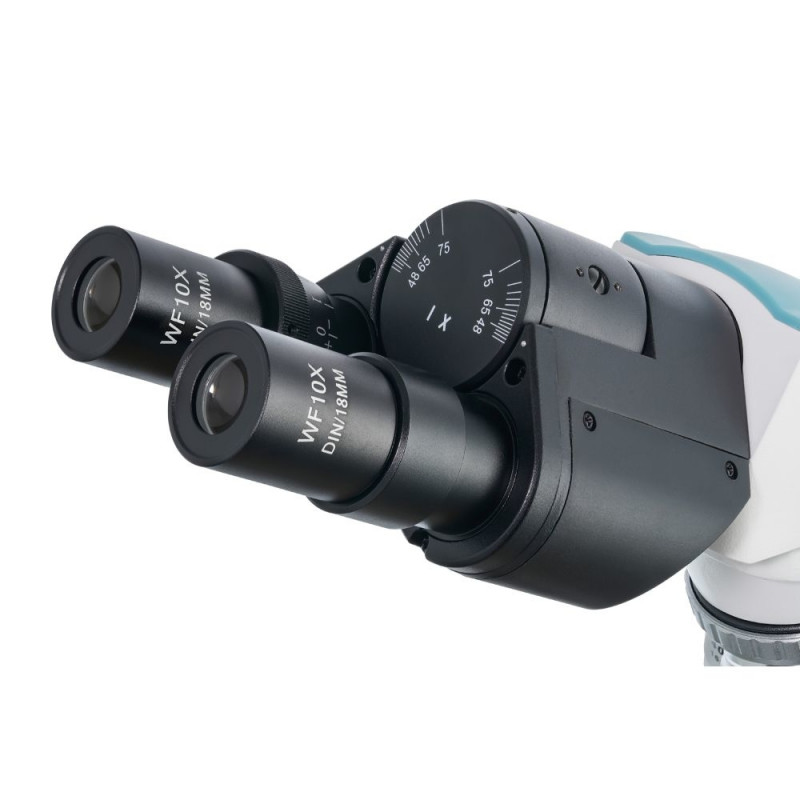

Interpupillary distance, mm 48—75
Eyepiece diopter adjustment, diopters ±5
Light filters green, blue, yellow
Ability to connect additional equipment a slot for installing an analyzer (an analyzer is not included)
Uurimismeetod Bright Field
Illumination location Lower
Valgusallikas Halogen lamp
Mikroskoobi tüüp Biological, light/optical
Kondensaator Abbe condenser N.A. 1.25 with an iris diaphragm and filter holder
Diaphragm iris
Mikroskoobi kasutamine Clinic & Lab
*Can be put into parcel-machine Истина

Dimensions and weights

Gross weight
4.94 kg
Package width
26.5 cm
Package height
33 cm
Package length
42 cm

Product codes

EAN
5905555005300
